Thor Fiber F-GET-TR-SFP 10/100/1000 Ethernet Transceiver w/ SFP - 20km (12.4 Miles)

ITEM #: THR-F-GET-TR-SFP MFG #: F-GET-TR-SFP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$354.00

Our Price:

$295.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


F-GET-TR-SFP - Overview

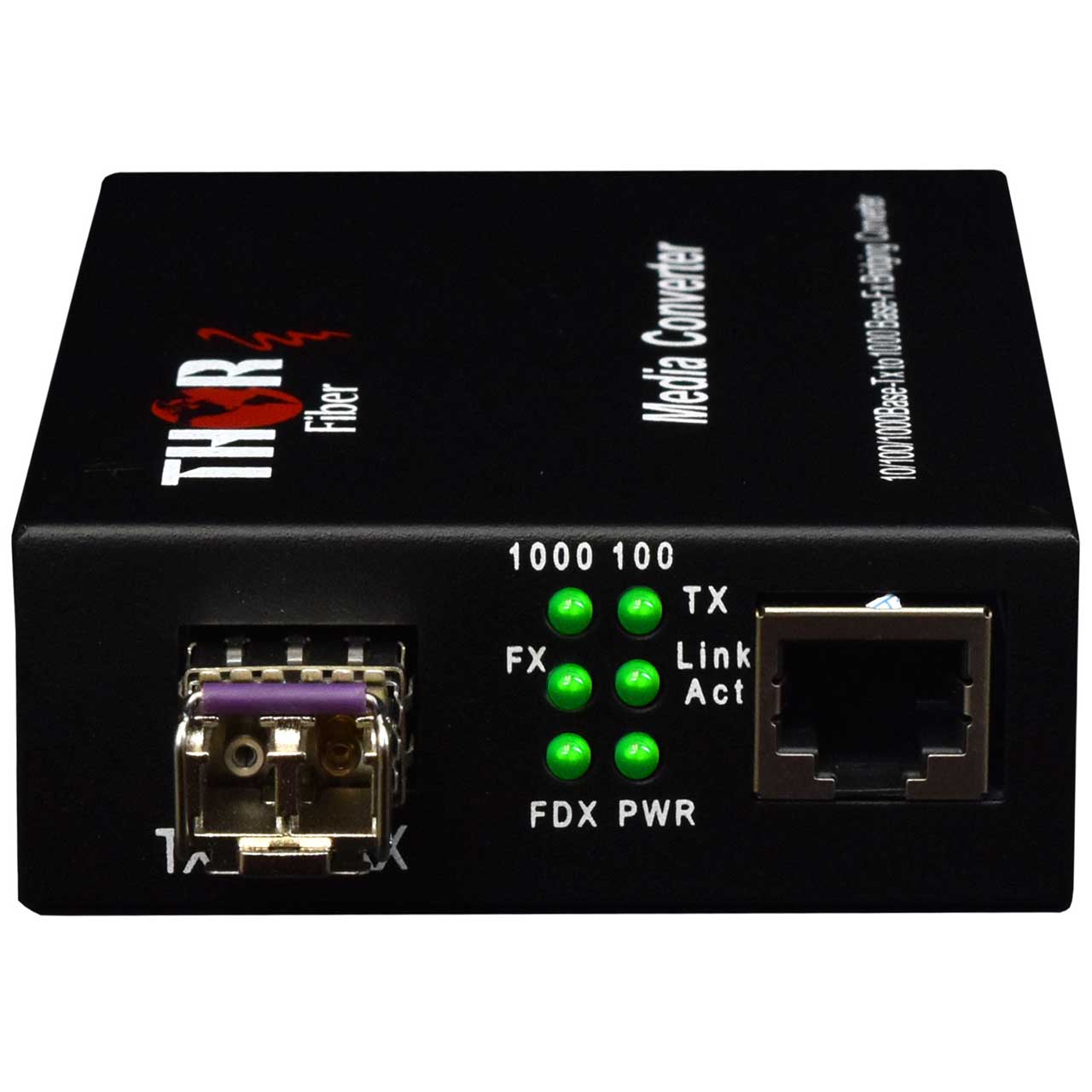

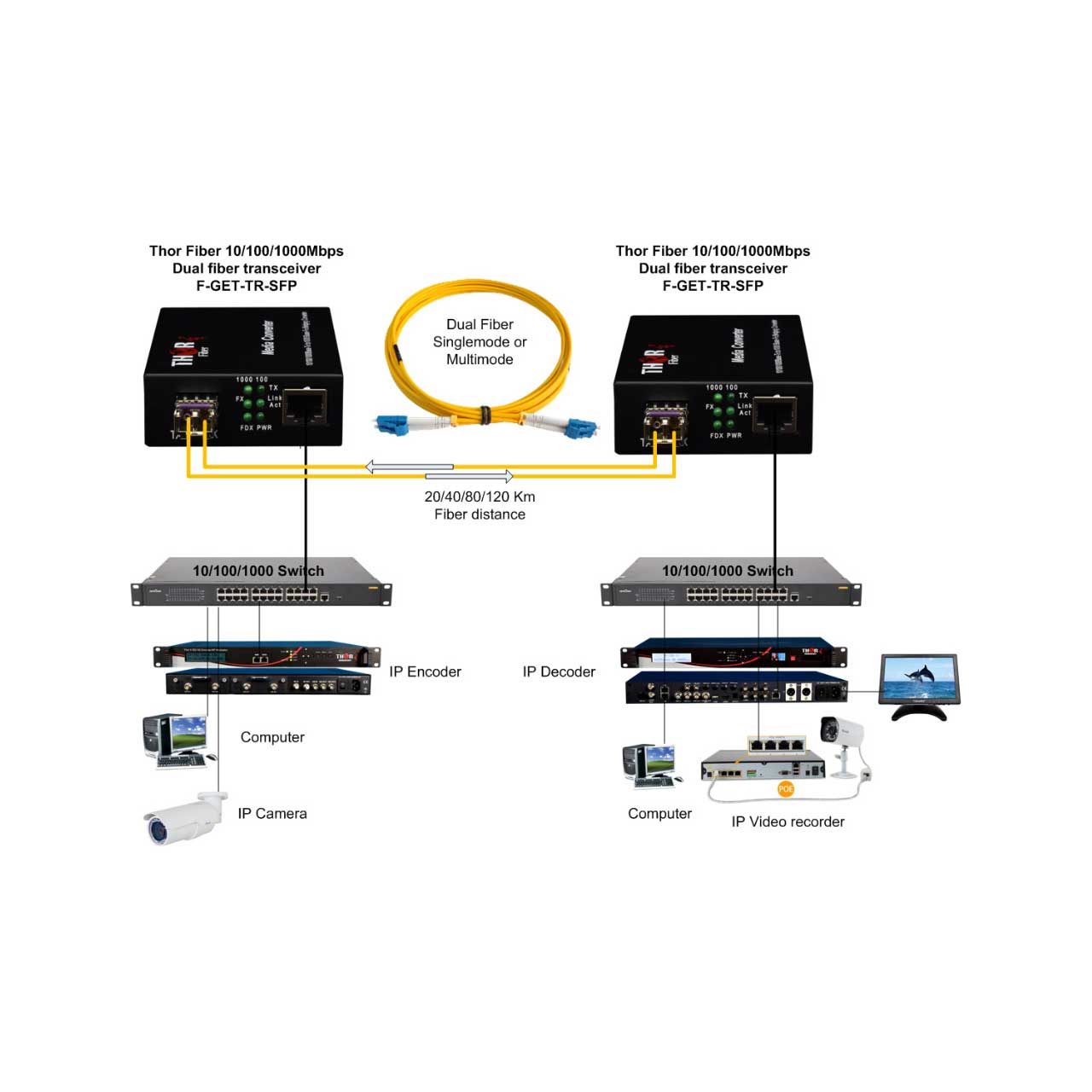

The Thor F-GET-TR-SFP Ethernet Transceiver with SFP is used for transporting a Gigabit Ethernet port over a fiber from one location to another. The units work in pairs with a transceiver on each end of the link. Any network cable connected to the RJ-45 port one one unit is transported to the corresponding RJ-45 port on the second unit. Our units work transparently, meaning they are non-IP addressable and any network traffic traveling through the the fiber link remains unmodified. Any two devices that are connected over the fiber link appear to be directly connected by a standard network cable. This is useful for connecting switches or other network devices in different buildings or for extending an IP network to a far away location. We also offer custom equipment to incorporate more signals onto a single fiber. In addition to Ethernet you can also carry video and audio channels, telephone lines, E1 or T1 links, or even satellite signals all over a single fiber. Our units have a maximum transmission distance of 120 km when used with singlemode fiber. We feature easy to read diagnostic LED's for continuous monitoring of link status and network speed. Contact a sales representative for more information.

  • Features:

    • 10/100/1000Base-T to 1000Base-X or 100Base-X FlexibleFiber SFP Media Converters
    • Connect 10/100 devices to Fast Ethernet or 1000 Gigabit backbone
    • Empty slot for standard Gigabit or Fast Ethernet Fiber SFPs
    • Automatically adjusts to speed of Gigabit and Fast Ethernet fiber SFP´s
    • Connect to 10 Mbps, 100 Mbps or 1000 Mbps copper connections
    • Allows for Fast Ethernet and Gigabit speeds using different SFP modules
    • Supports Multimode or Single-mode fiber using different SFP modules

  • Specifications:

    • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX
    • IEEE 802.3z 1000BASE-LX

      Operating Mode
    • Full-Duplex

      Fiber Type
    • Single Mode

      Connection Ports
    • 2 Fiber Port SFP Transceiver: LC/PC
    • RJ-45 Female

      Dimensions
    • 1" [26 mm] x 3.7" [95 mm] x 2.8" [70 mm]

      Environment
    • Operating temperature: 0°C to 50°C
    • Storage temperature: -20°C to 70°C
    • Operating humidity: 10% to 90% RH
    • Storage humidity: 5% to 90% RH

      Power Requirements
    • Voltage: 110/240V Auto-sense Internal Power

      Registration
    • FCC Part 15 Class A, CE, UL, CUL, TUV

      Network Media
    • 62.5/125 microns muitimode or Single mode fiberfiber cable

      LED Indicators
    • 1 - Power
    • 1 - Fiber Port Link/Act
    • 1 - Copper Port Link/Act
    • 1 - 1000Mbps


F-GET-TR-SFP - Required Accessories
