Tripp Lite N784-001-ST Fiber Optic - 10/100BaseT to 100BaseFX-ST Media Converter 2km 1300nm

ITEM #: TRL-N784-001-ST MFG #: N784-001-ST

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$83.00

Our Price:

$68.30

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


N784-001-ST - Overview

Tripp Lite's N784-001-ST, 10/100 Media Converter, is an economical way to extend the distance (up to 2Km) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection (switch selectable).

  • Features:

    • Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
    • Auto MDI/MDI-X
    • UTP port auto-senses network speed
    • Switch selectable half or full duplex operation on the fiber port
    • Fiber lengths up to 2Km
    • 2 Power Choices - AC-DC Adapter or USB
    • 5 LED Function lights
    • Uses 62.5/125 or 50/125 Multimode cable
    • 3.75"L x 2.75"W x 1"H
    • Wavelength: 1310nm
    • Supports Link Fault Pass-through (LFP) for easy tracing of network link failures

  • Specifications:

    • Product Type: Fiber to Ethernet
    • Technology: Cat5/5e; Multimode
    • Mode Type: Multimode
    • Accessories (Included): External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V/2A)
    • Network Ports: RJ45 (FEMALE); ST (FEMALE)
    • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A
    • External Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 1.2A
    • External Power Supply Output Specs (V / A): 5V, 2A
    • External Power Supply Cord Length (ft.): 4.53
    • External Power Supply Cord Length (m.): 1.38
    • DC Barrel Plug: OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve
    • External Power Supply Plug(s): NEMA 1-15P North America
    • Color: Black
    • Power Cord Color: Black
    • Shipping Dimensions (hwd / in.): 9.25 x 2.17 x 4.92
    • Shipping Weight (lbs.): 0.94
    • Unit Dimensions (hwd / in.): 1.00 x 2.95 x 3.74
    • Unit Packaging Type: Box
    • Unit Weight (lbs.): 1.00
    • Housing: Metal
    • Operating Temperature Range: 32 to 122°F (0 to 50°C)
    • Storage Temperature Range: -4 to 158 F (-20 to 70 C)
    • Relative Humidity: 5 to 90% RH, Non-Condensing
    • Network Compatibility: 10 Mbps; 100 Mbps (Fast Ethernet)
    • Network Speed Details: 10 Mbps; 100 Mbps
    • Wavelength: 1310nm
    • Transmission Distance: 2 km
    • Side A - Connector 1: RJ45 (FEMALE)
    • Side B - Connector 1: ST DUPLEX (FEMALE)
    • Data Transfer Rate: 10 Mbps; 100 Mbps
    • Auto MDIX Support : Yes
    • DIN Mountable: No
    • Working Mode: Full/Half Duplex
    • Optical Port: ST
    • Certifications: CE, FCC, RoHS
    • External Power Supply Certifications: CE; FCC; cUL; WEEE

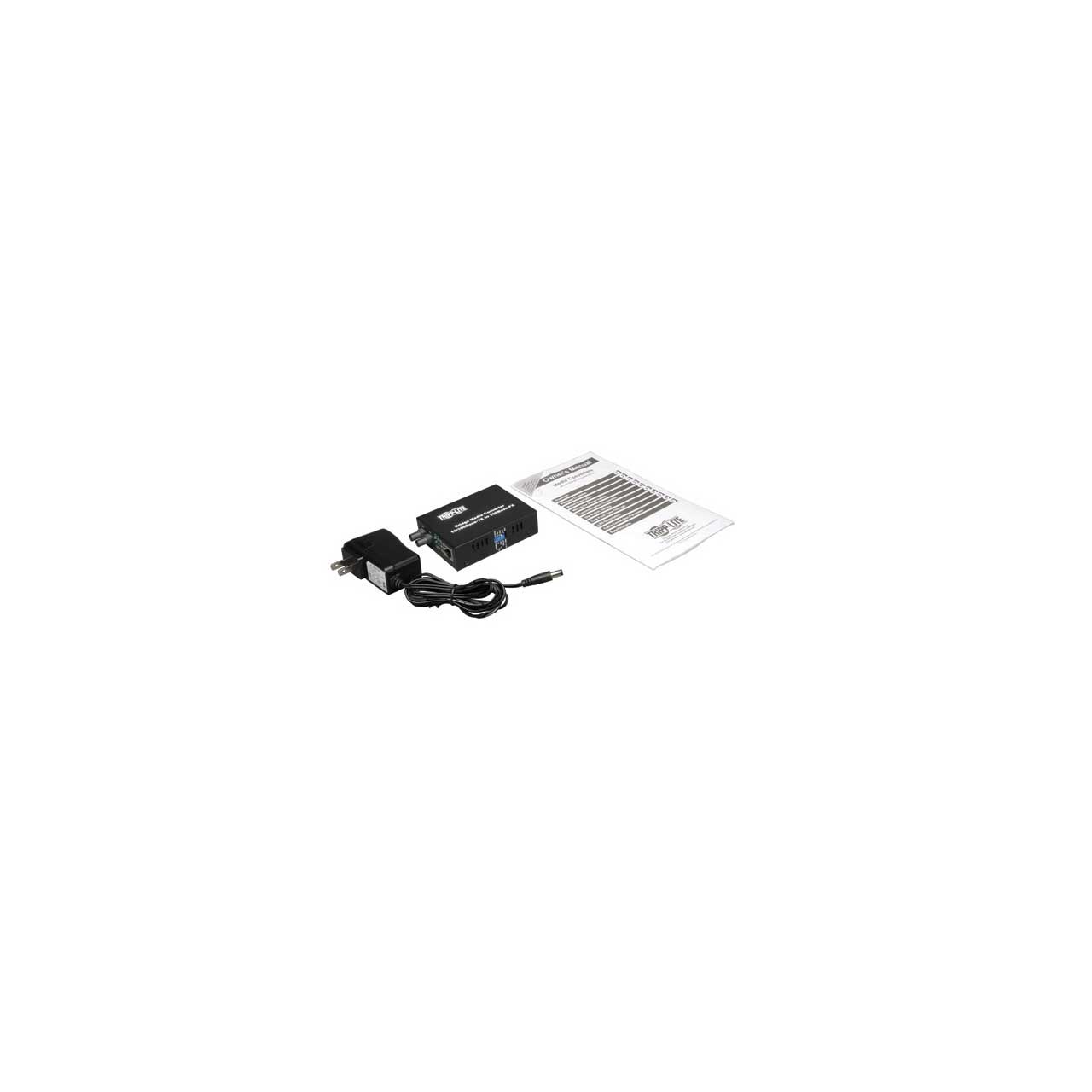

  • Item Includes:

    • 10/100 Media Converter, UTP - ST
    • External Power Supply with NEMA 1-15P Plug ( 100-240V )
    • Owner's Manual

  • Warranty:

    • 1 Year

  • GTIN:

    0037332130907
