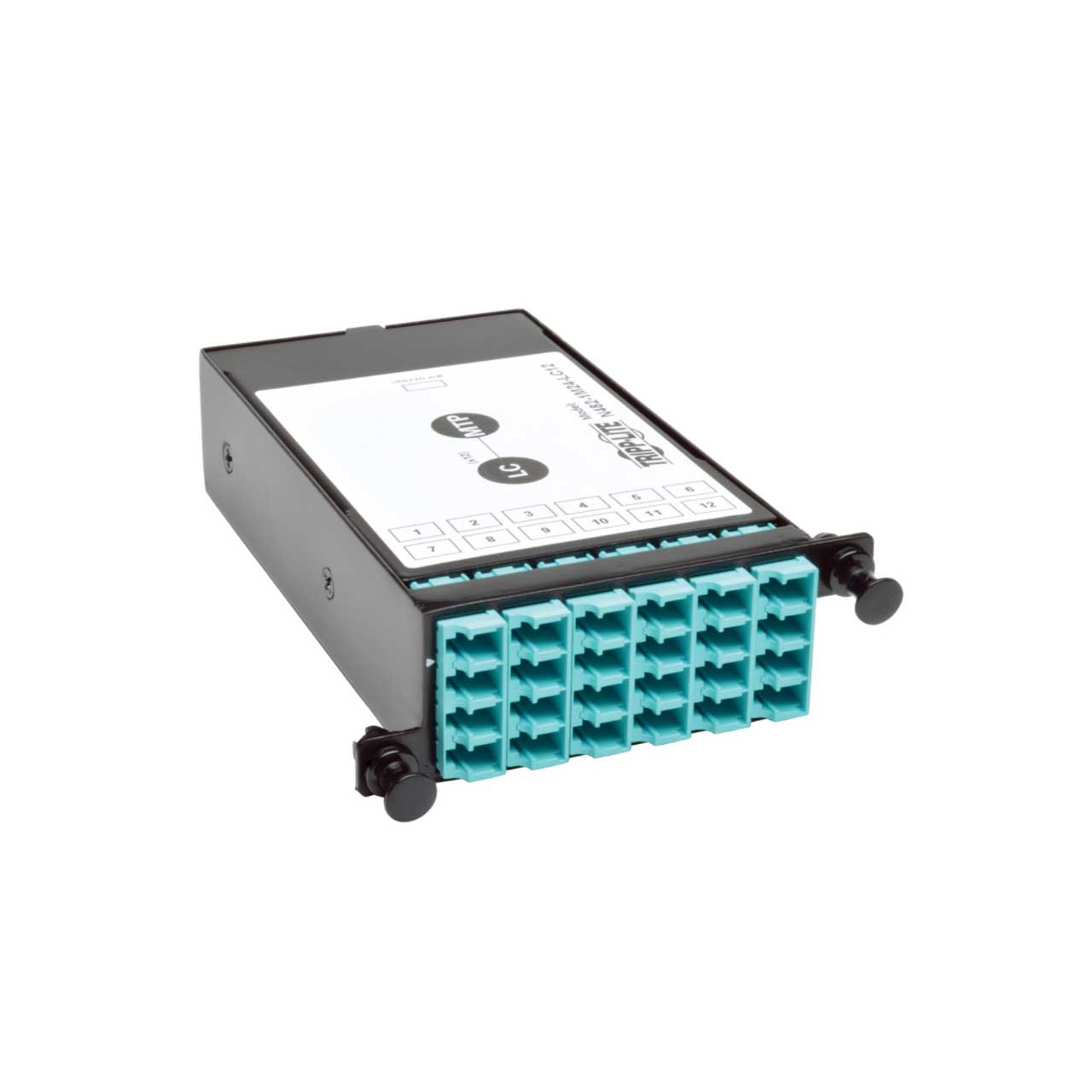

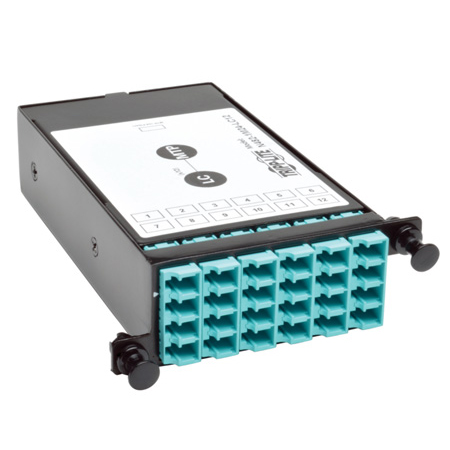

Tripp Lite N482-1M24-LC12 100Gb/120Gb to 10Gb Breakout Cassette - 24-Fiber OM4 MTP/MPO to (x12) LC

N482-1M24-LC12 - Overview

• Features:

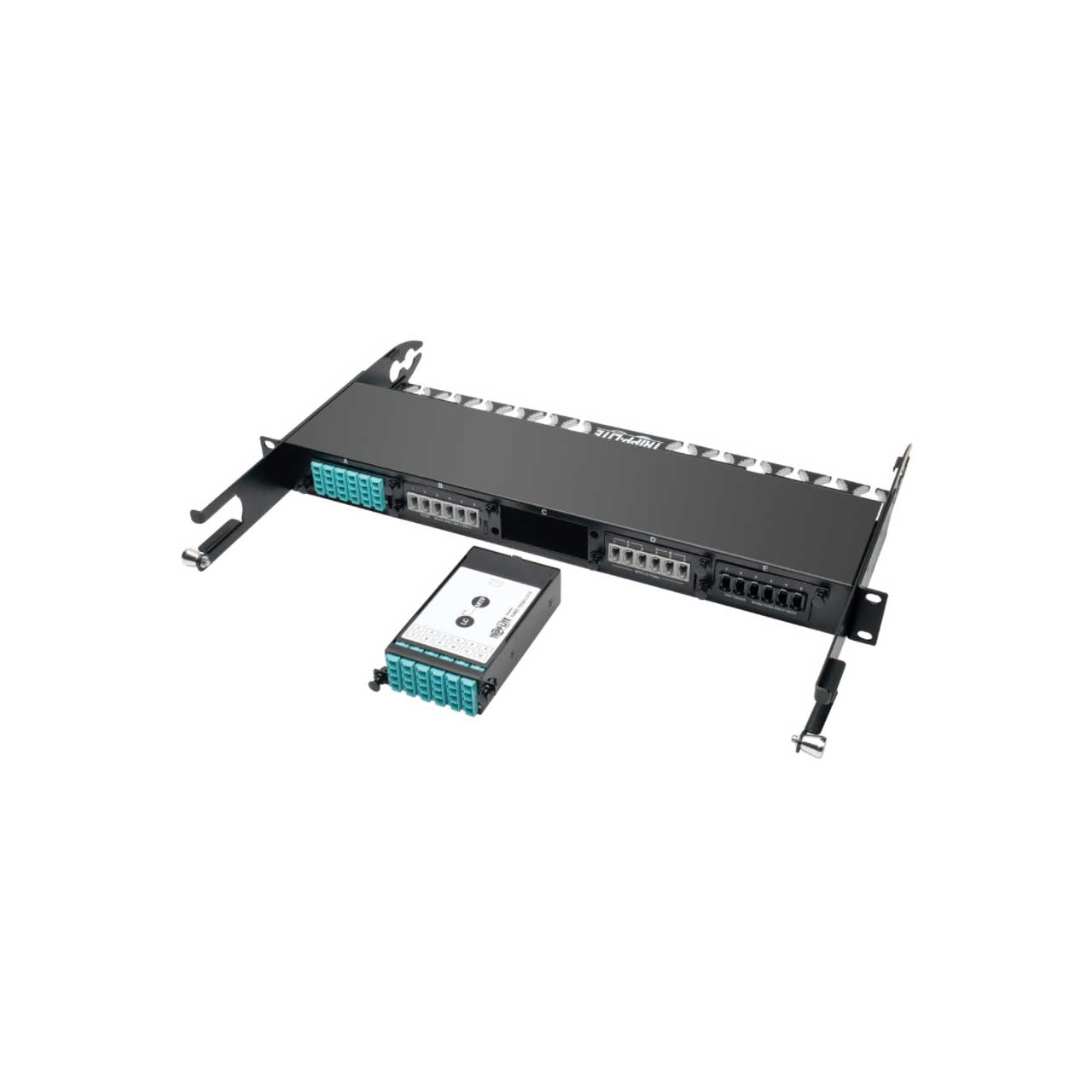

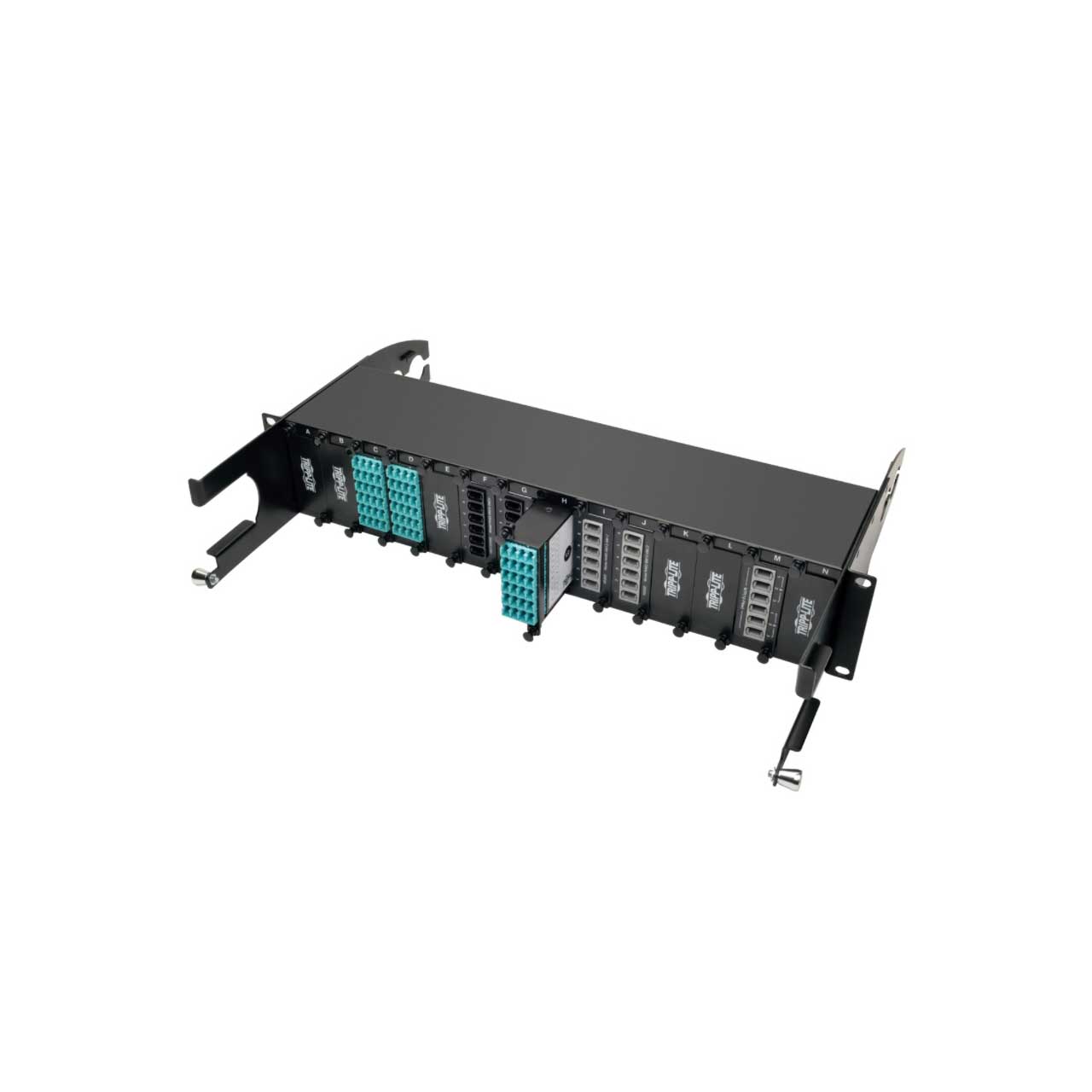

  • High Density Fiber Cassette for use with Tripp Lite N482-01U and N482-02U High Density Fiber Enclosure Panels
  • 100/120Gb to 10Gb Breakout Cassette, with (x12) LC connections to a 24-Fiber, OM4 MTP/MPO connection
  • Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required
  • Factory terminated connectors reduce the time and labor required of field connector terminations
  • Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
  • Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
  • Constructed of heavy-duty steel housing


• Specifications:

  • Unit Dimensions (hwd / in.): 1.2 x 3.5 x 4.7
  • Unit Dimensions (hwd / cm): 3.05 x 8.89 x 11.94
  • Unit Weight (lbs.): 0.53
  • Unit Weight (kg): 0.24
  • Color: Black
  • Ports: 12

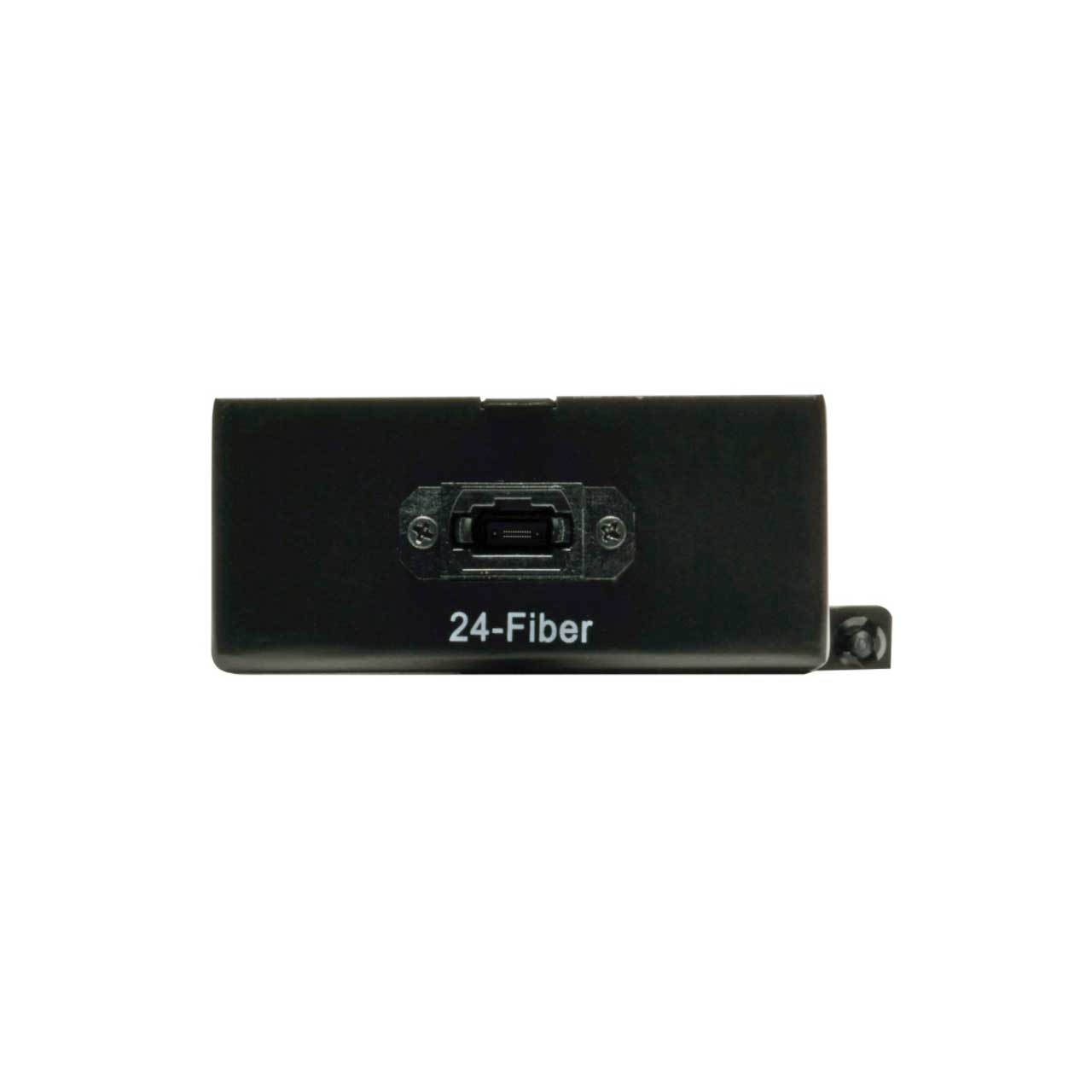

  • Side A - Connector 1: 24-STRAND MTP (MALE)

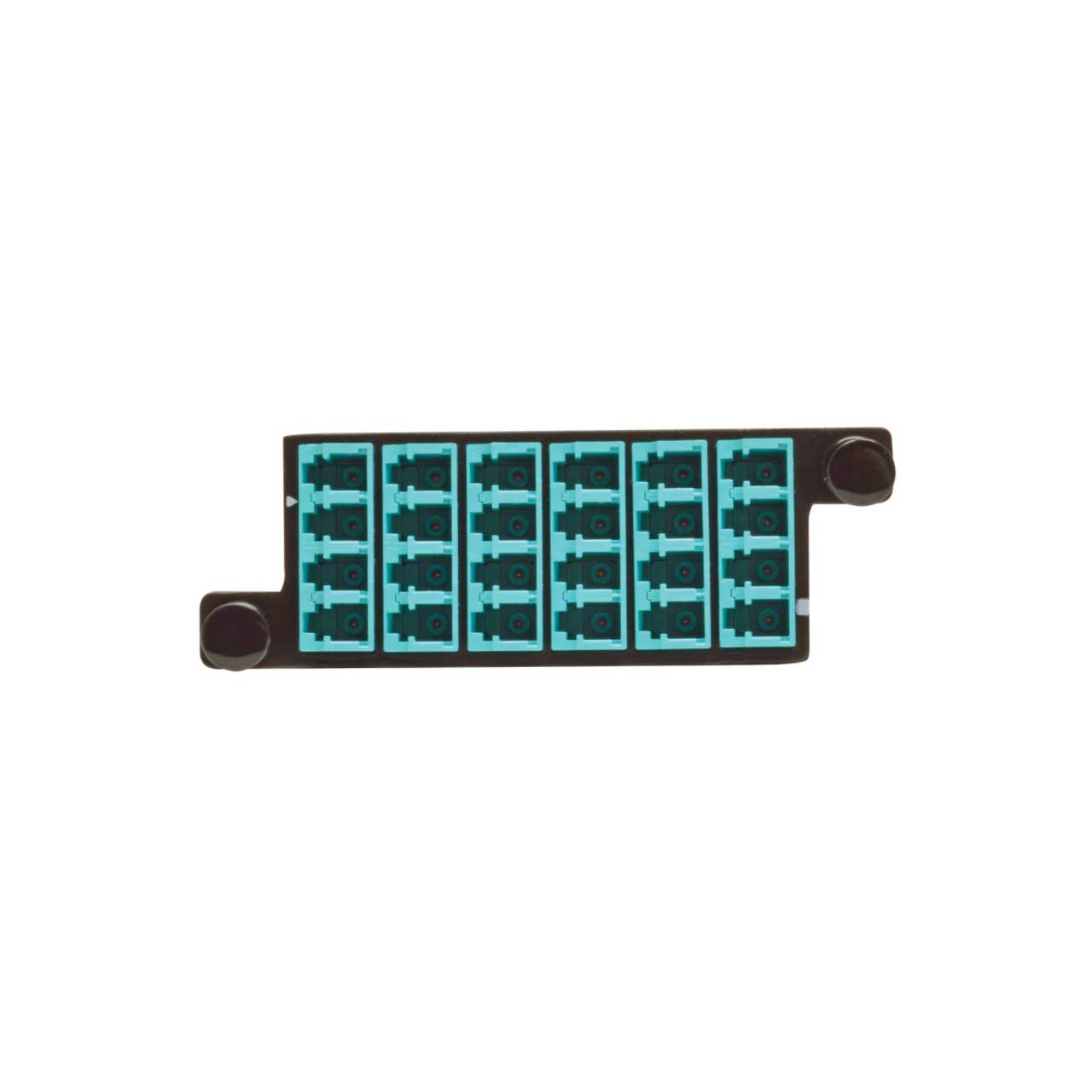

  • Side B - Connector 1: (12) LC DUPLEX (FEMALE)
  • Product Warranty Period (Worldwide): Lifetime limited warranty


• Item Includes:

  • N482-1M24-LC12 100/120Gb to 10Gb Breakout Cassette - 24-Fiber OM4 MTP/MPO to (x12) LC
  • Quick Start Guide


• Warranty:

  • Lifetime


• GTIN:

  0037332184535
