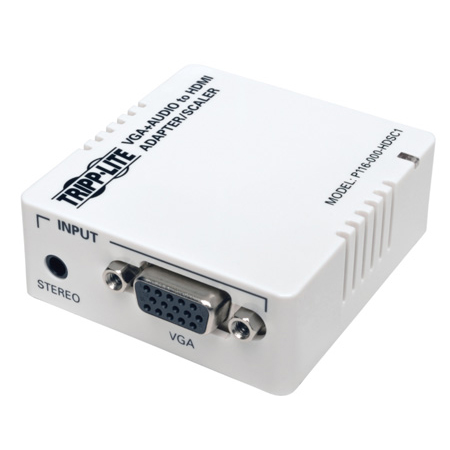

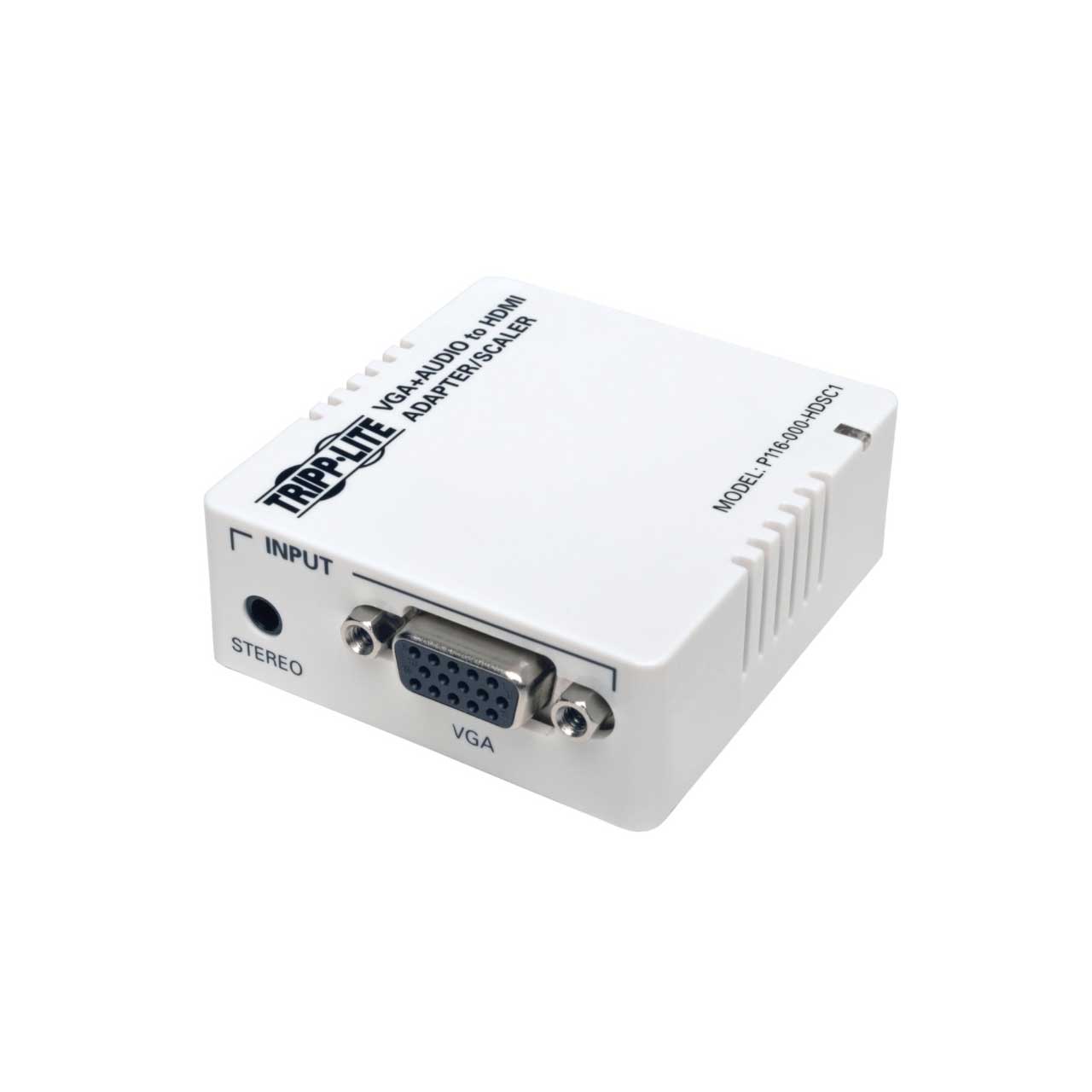

Tripp Lite P116-000-HDSC1 VGA with Audio to HDMI Converter/Scaler

P116-000-HDSC1 - Overview

• Features:

  • Built-In Scaler Converts and Upscales from VGA to HDMI

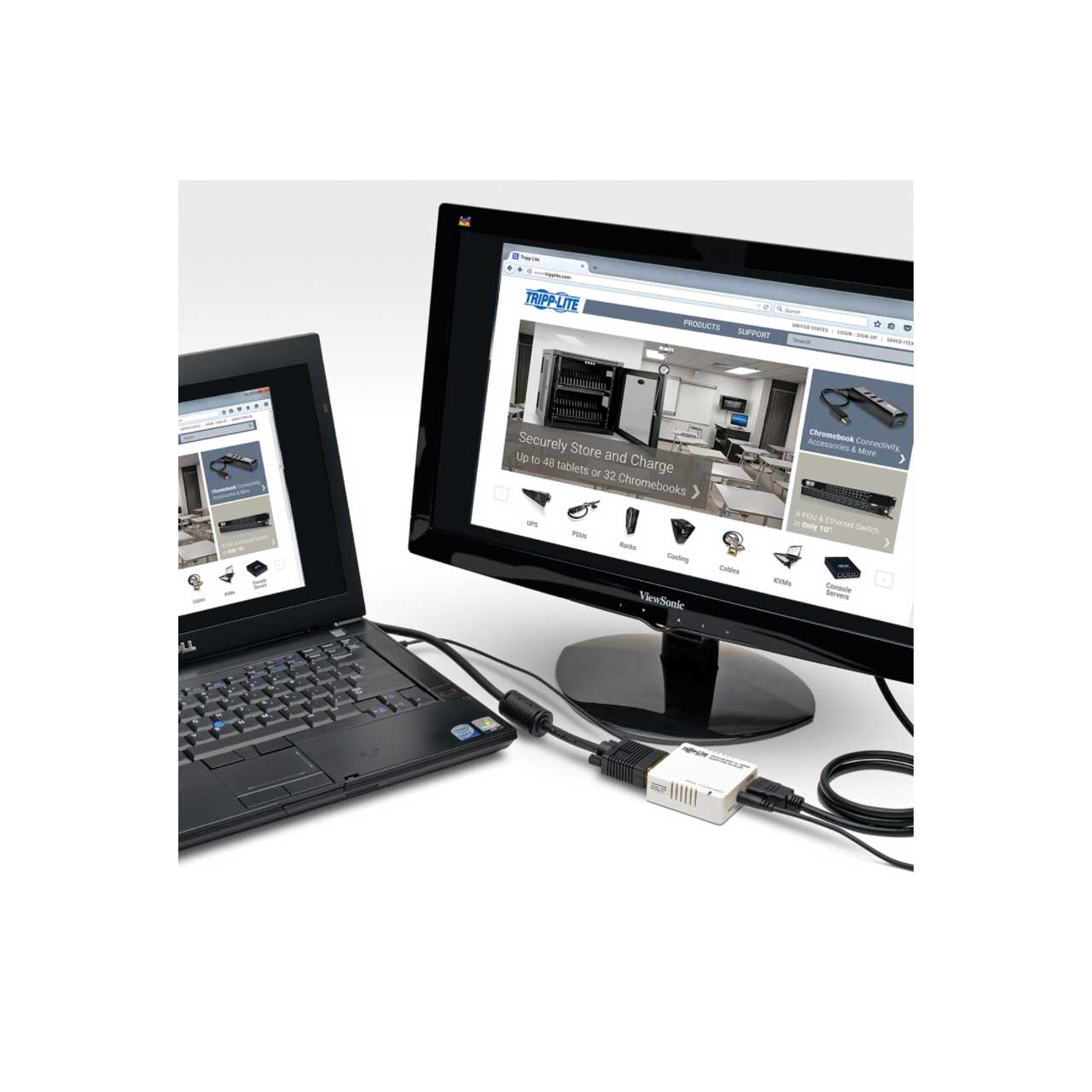

  • Ideal for home audio/video setups, media presentations and digital signs
  • Automatically upscales video to 720p
  • Toggle between 720p and 1080p with button on unit
  • Supports computer input video resolutions up to 1920 x 1440 (@ 60 Hz) and scales to 720p or 1080p
  • Supports HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per channel) Plug-and-Play Convenience
  • Ready to use right from the box—no software or drivers required
  • Connects easily to source’s VGA and 3.5 mm mini-stereo ports and display’s HDMI port
  • Eliminates the need for costly equipment upgrades


• Specifications:

  • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4 ft.
  • Shipping Dimensions (hwd / in.): 2.4 x 6.7 x 5
  • Shipping Dimensions (hwd / cm): 6.1 x 17 x 12.7
  • Shipping Weight (lbs.): 0.84
  • Shipping Weight (kg): 0.38
  • Unit Dimensions (hwd / in.): 0.8 x 2.2 x 2.4
  • Unit Dimensions (hwd / cm): 2 x 5.6 x 6.1
  • Unit Weight (lbs.): 0.1
  • Unit Weight (kg): 0.05
  • Color: White
  • Operating Temperature Range: 32 to 158 F (0 to 70 C)
  • Storage Temperature Range: 14 to 176 F (-10 to 80 C)
  • Operating Humidity Range: 10 to 85% RH, Non-Condensing
  • Storage Humidity Range: 5 to 95% RH, Non-Condensing
  • Side A - Connector 1: HD15 (FEMALE)
  • Side A - Connector 2: 3.5MM (FEMALE)
  • Side B - Connector 1: HDMI (FEMALE)
  • Product Warranty Period (Worldwide): 1-year limited warranty

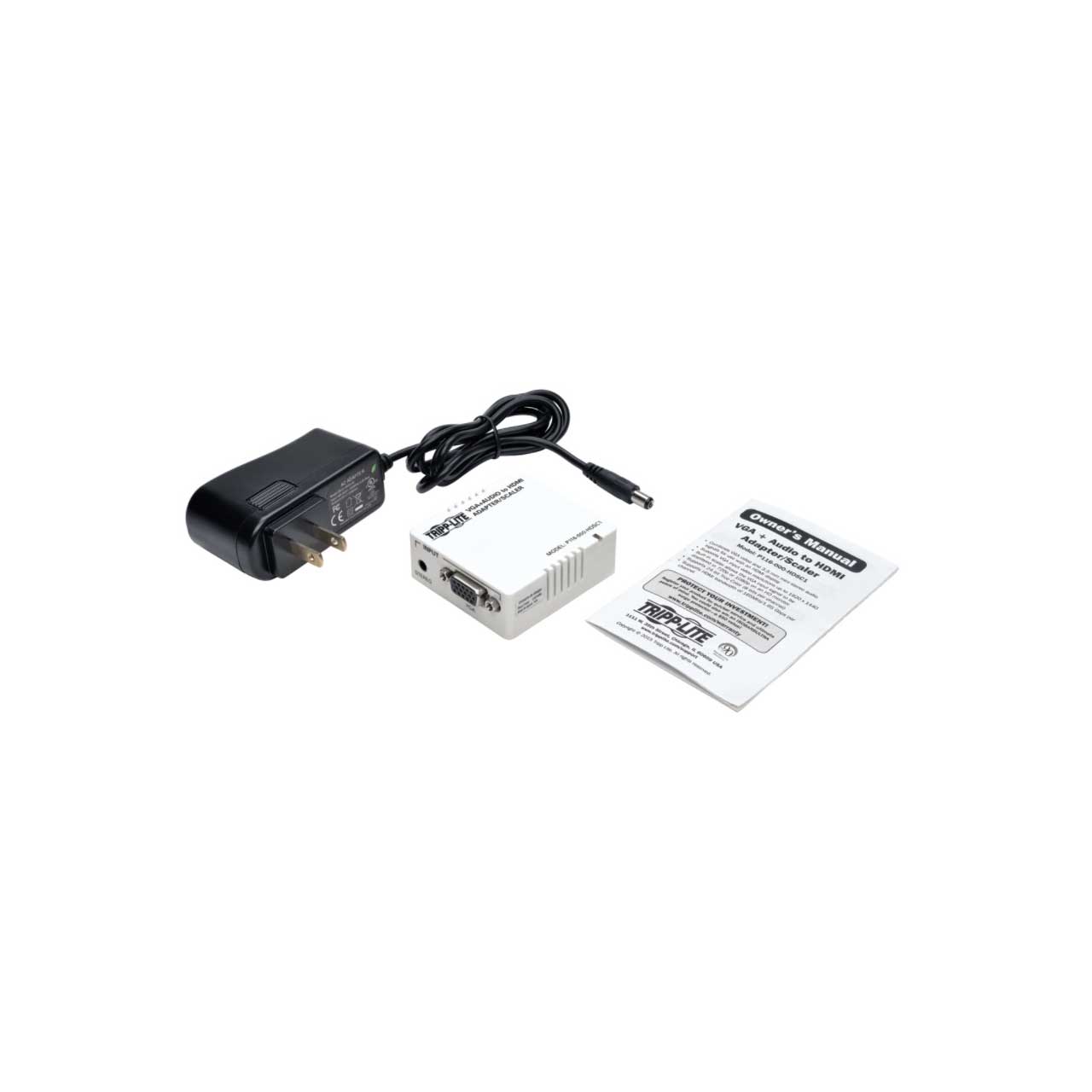

• Item Includes:

  • P116-000-HDSC1 VGA with Audio to HDMI Converter/Scaler
  • External Power Supply with NEMA 1-15P Plug (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 2A, 4 ft.)
  • Owner’s Manual


• Warranty:

  • 1 Year


• GTIN:

  0037332188335
