Tripp Lite P136-06N-HDV-4K DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converter Adapter 4K x 2K HDMI

ITEM #: TRL-P13606NHDV4K MFG #: P136-06N-HDV-4K

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$97.52

Our Price:

$48.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


P136-06N-HDV-4K - Overview

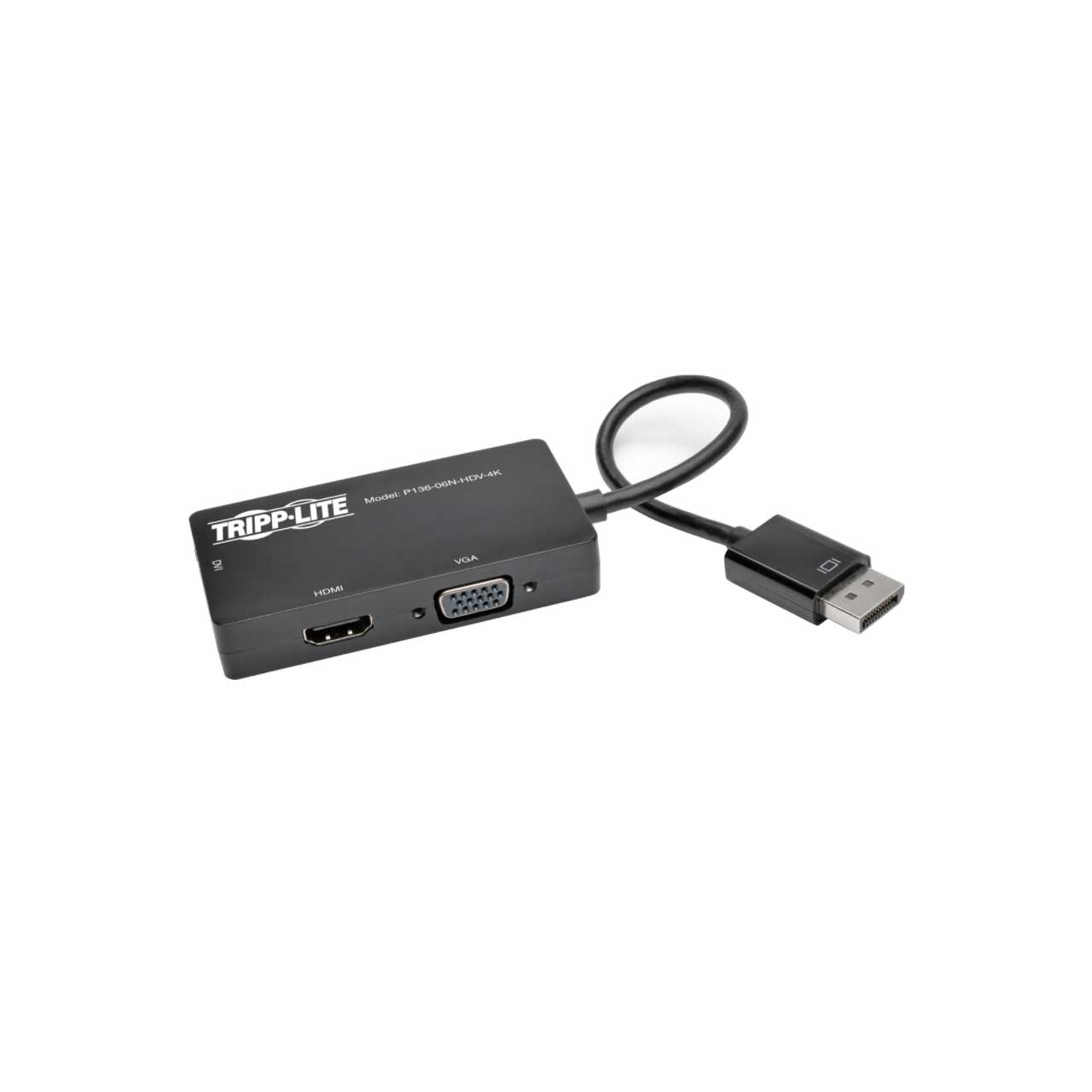

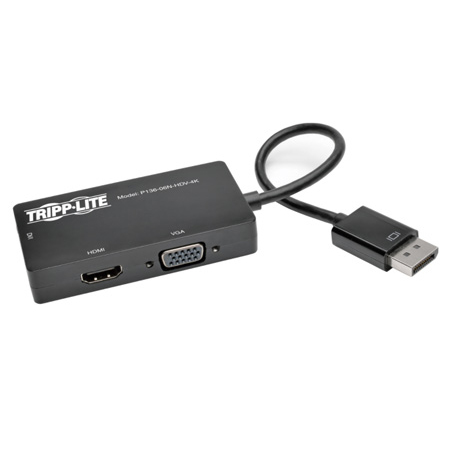

No more carrying around separate adapters for various monitors, projectors and televisions. The Tripp Lite P136-06N-HDV-4K DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converter Adapter connects your laptop or tablet's DisplayPort to a VGA, DVI or HDMI display. The simple all-in-one solution for displaying content on a larger screen, the P136-06N-HDV-4K is ideal for trade shows, classrooms, lecture halls and other presentations.

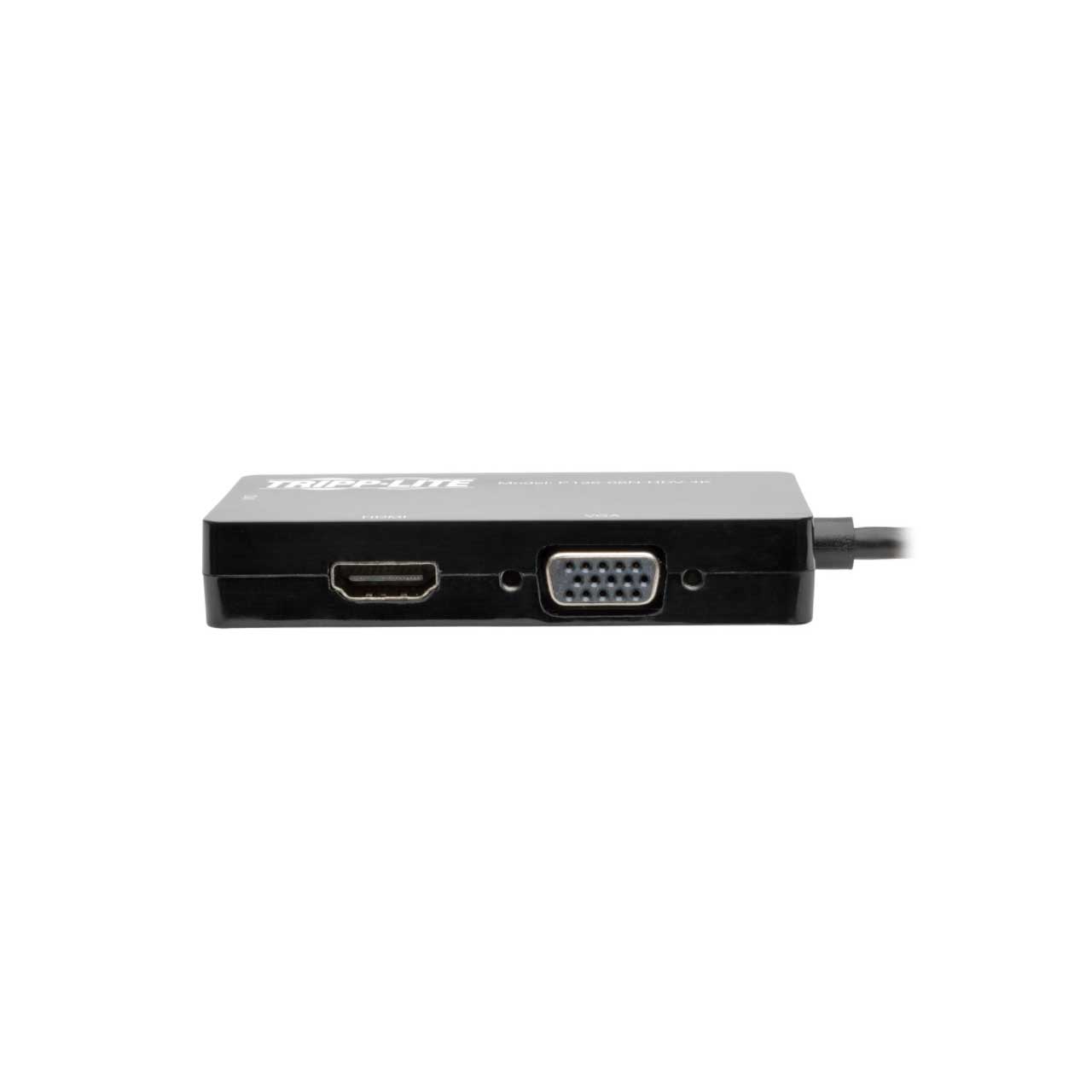

The all-in-one unit contains separate female DVI, HD15 and HDMI ports. It supports video resolutions up to 1920 x 1080 (DVI); 1920 x 1200, including 1080p (HD15); and 3840 x 2160 (HDMI). It also supports 36-bit Deep Color (12 bits per channel). The passive adapter requires the connected computer to have a DP++ (DisplayPort++) port.

The P136-06N-HDV-4K is compatible with laptops, tablets and other devices equipped with a female DisplayPort. It's completely plug-and-play with no software, drivers or external power supply needed. With its small size and built-in cable, the P136-06N-HDV-4K is perfect for stowing in your laptop bag and carrying to school, the office or the latest trade show.

System Requirements:
The P136-06N-HDV-4K is a Passive adapter, and requires the connected computer to have a DP++ ( Displayport ++ ) port.

  • Features:

    • Recommended for trade shows, classrooms, lecture halls and other presentations
    • DVI port supports video resolutions up to 1920 x 1080 (1080p)
    • HD15 port supports video resolutions up to 1920 x 1200, including 1080p
    • HDMI port supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
    • Supports 36-bit Deep Color (12 bits per channel)
    • 7.1 Audio Surround Sound only supported by HDMI
    • No software, drivers or external power supply required
    • Small enough to stow in laptop bag or briefcase
    • Passive adapter requires connected computer to have DP++ port

  • Specifications:

    • Physical
    • Color: Black
    • Shipping Dimensions (hwd / in.): 3.94 x 5.51 x 0.91
    • Shipping Weight (lbs.): 0.16

      Connections
    • Side A - Connector 1: DISPLAYPORT (MALE)

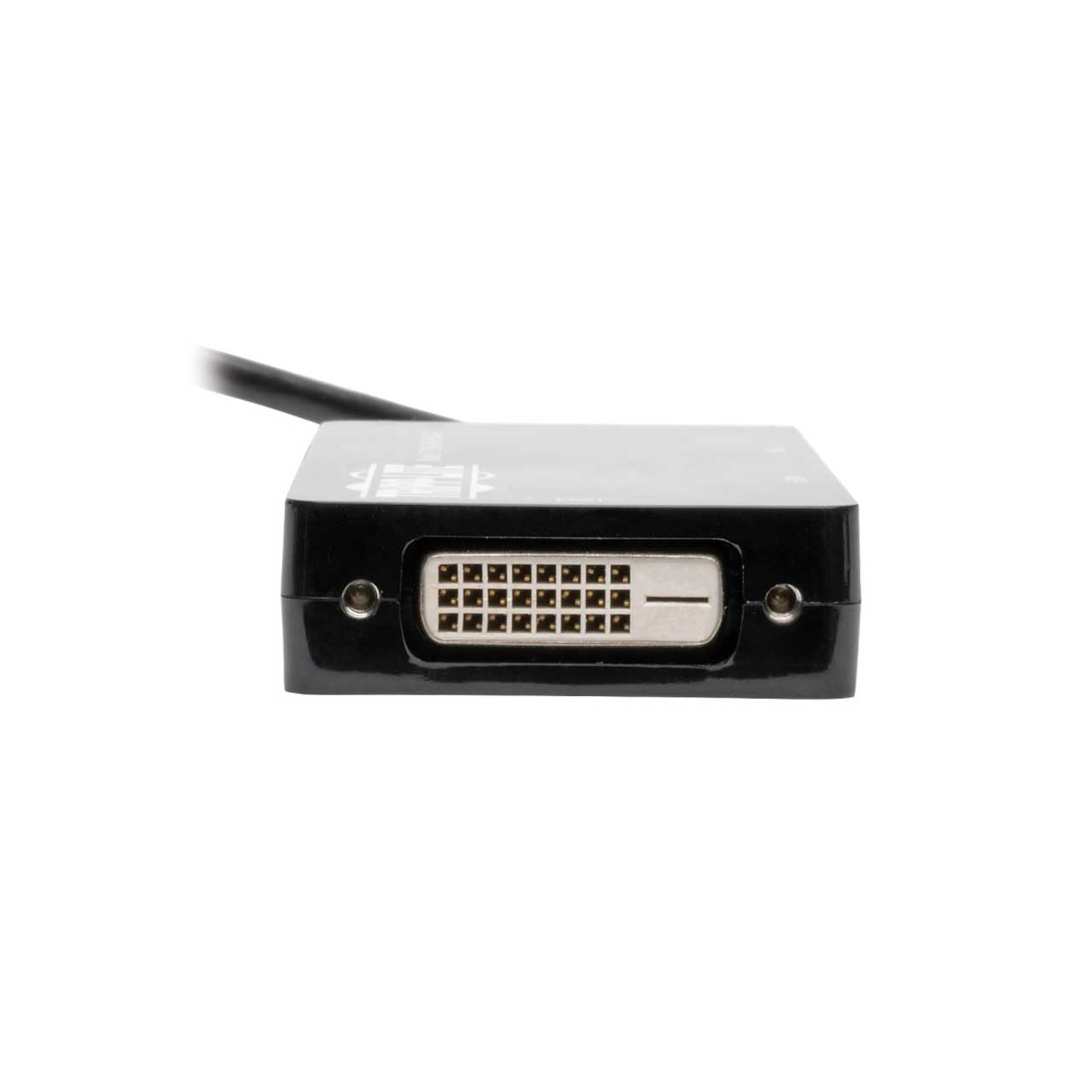

    • Side B - Connector 1: DVI-D DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
    • Side B - Connector 2: HD15 (FEMALE)
    • Side B - Connector 3: HDMI (FEMALE)

      Features & Specifications
    • Technology: DVI; HDMI; VGA/SVGA; DisplayPort

  • Item Includes:

    • 1x P136-06N-HDV-4K DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converter Adapter, 6 in.
    • 1x Owner's manual

  • Warranty:

    • 1 Year

  • GTIN:

    0037332190840
