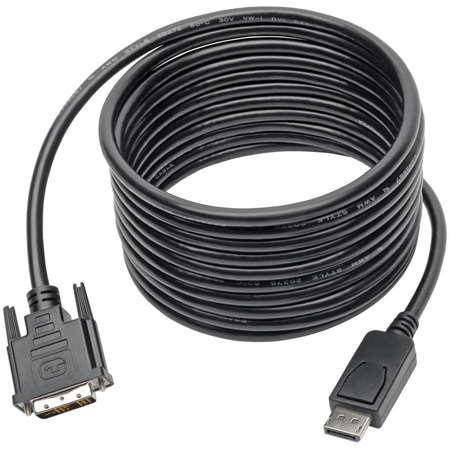

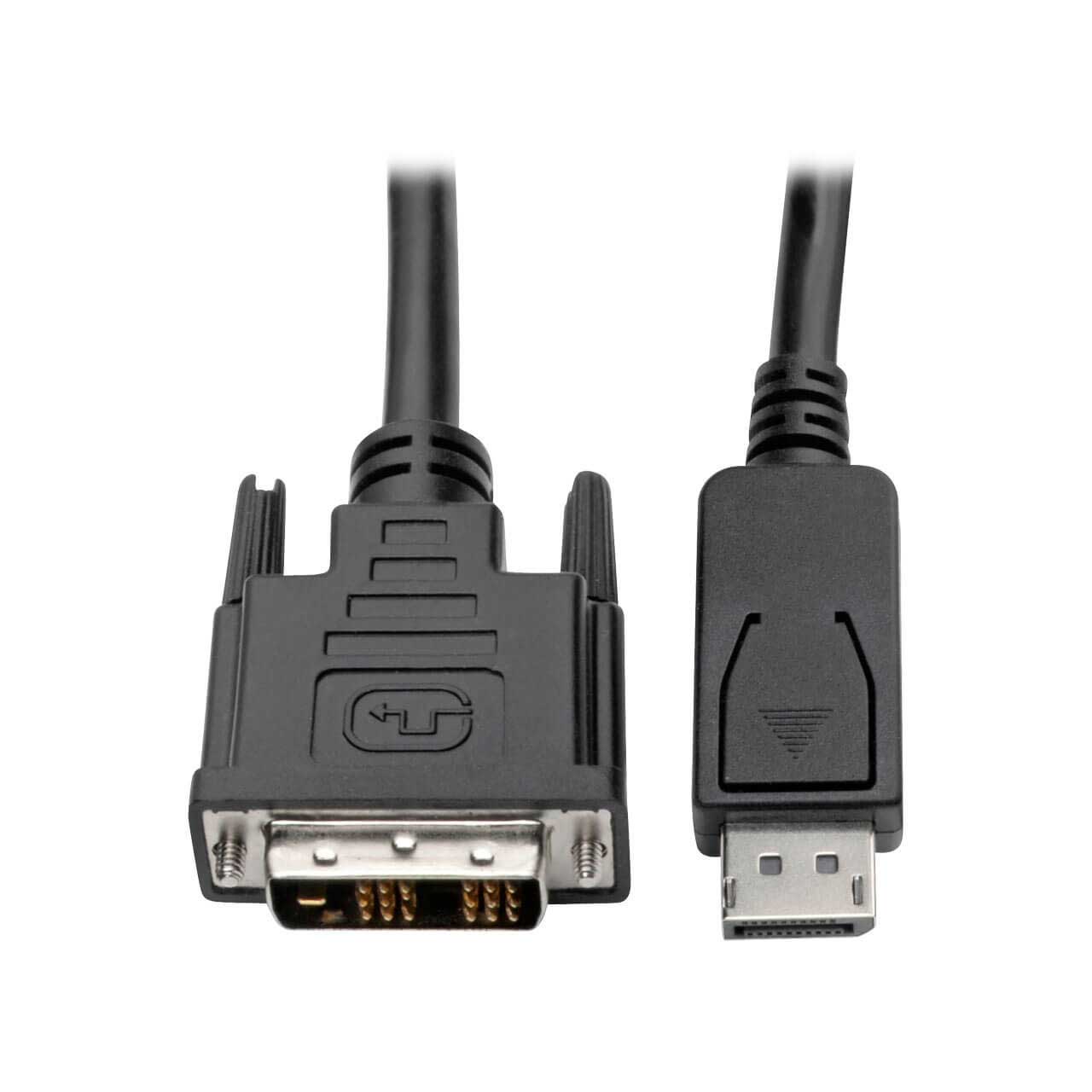

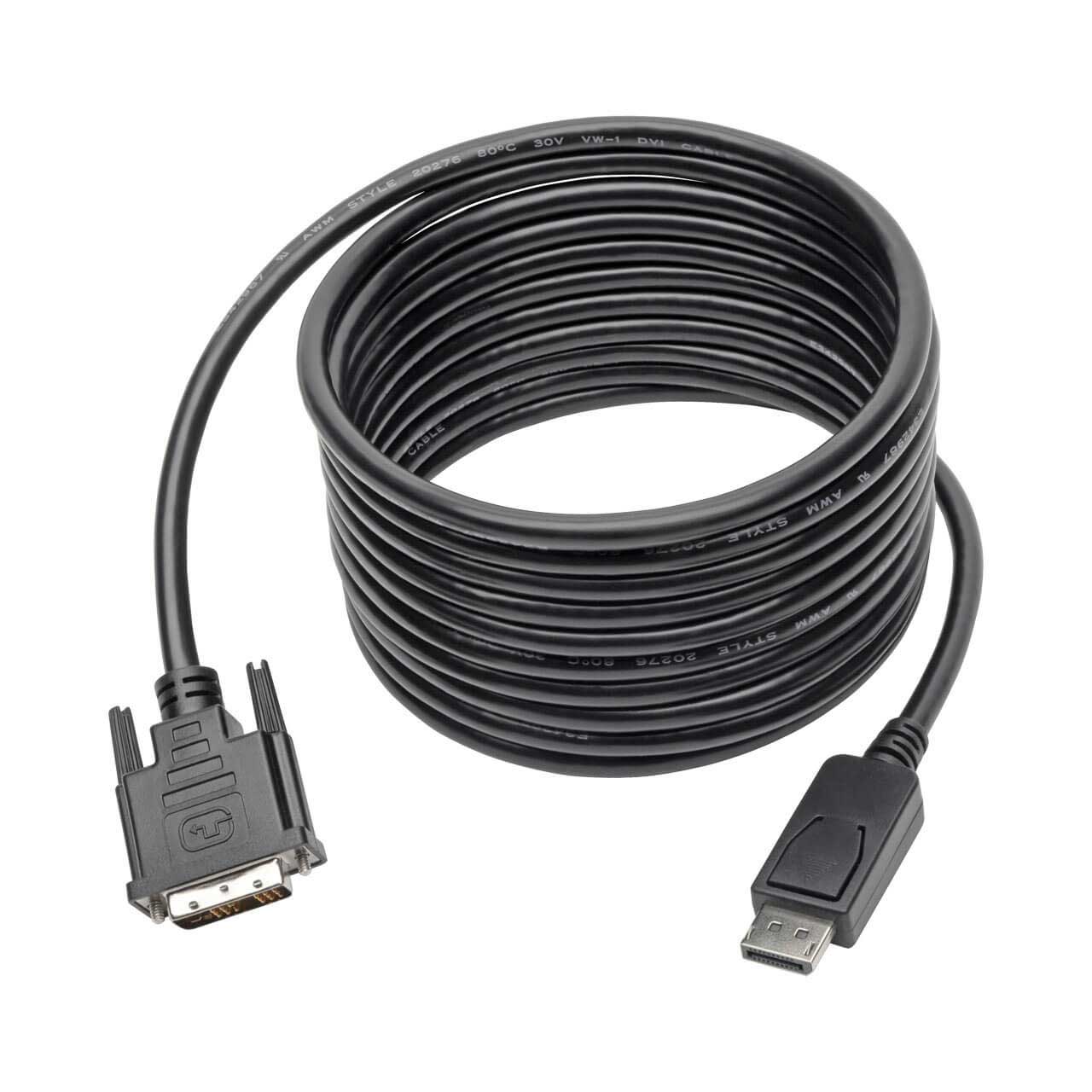

Tripp Lite P581-015 Displayport to DVI Cable with Latches to DVI-D Single Link Adapter (Male/Male) - 15 Foot

ITEM #: TRL-P581-015 MFG #: P581-015

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$90.75

Our Price:

$42.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


P581-015 - Overview

This Tripp Lite P581-015 is a 15-foot DisplayPort to DVI-D cable connects the DisplayPort output on your PC, laptop or Ultrabook to the DVI-D single-link input on your monitor, projector or television. No separate adapter or cable is needed. This allows you to continue using your existing DVI-D display for video without the expense of buying a new DisplayPort monitor.

The P581-015 is ideal for the office, classrooms, lecture halls and anywhere else you may need to connect your DisplayPort source to a DVI monitor. It also allows you to conveniently connect an additional monitor to your home or office workspace. The DisplayPort to DVI-D cable with durable molded ends supports high-definition video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz.

Applications:
Use your existing DVI display with a new DisplayPort computer to avoid the expense of a new DisplayPort monitor
Add a second monitor to your home or office workspace
Video presentations in a classroom, lecture hall or conference room
System Requirements
Source device with DisplayPort output that supports DisplayPort++
Display device with DVI-D input
Not for use with MST Hubs. For compatibility with MST Hubs, use a DisplayPort 1.2 compliant product, such as P581-006-V2.

  • Features:

    • Outputs DisplayPort video to your current DVI display to avoid expense of new monitor
    • Delivers HD video quality at resolutions up to 1920 x 1200 (including 1080p) @ 60 Hz
    • Extended 15 ft. length convenient for connecting to projectors and other far displays
    • Plug-and-play operation with no software required for easy, immediate installation
    • Passive adapter requires connected computer to have DP++ port for signal pass-through

  • Specifications:

    • Input
    • Cable Length: 15'

      Physical
    • Color: Black
    • Shipping Dimensions (HxWxD): 9 x 7 x 0.50"
    • Shipping Weight: 0.70Lbs

      Environmental
    • Operating Temperature Range: 32° to 158°F (0° to 70°C)
    • Storage Temperature Range: 14° to 158°F (-10° to 70°C)
    • Operating Humidity Range: 10 to 85% RH, Non-Condensing
    • Storage Humidity Range: 5 to 90% RH, Non-Condensing

      Connections
    • Side A - Connector 1: DISPLAYPORT (MALE)
    • Side B - Connector 1: DVI-D SINGLE LINK (MALE)
    • Connector Plating: Nickel
    • Contact Plating : Gold

      Features & Specifications
    • Technology: DVI; DisplayPort

  • Item Includes:

    • 1x P581-015 DisplayPort to DVI-D Adapter Cable - M/M, DP w/Latches, 1920 x 1200 (1080p) @ 60 Hz, 15 ft.

  • Warranty:

    • 3-year limited warranty

  • GTIN:

    0037332213570
