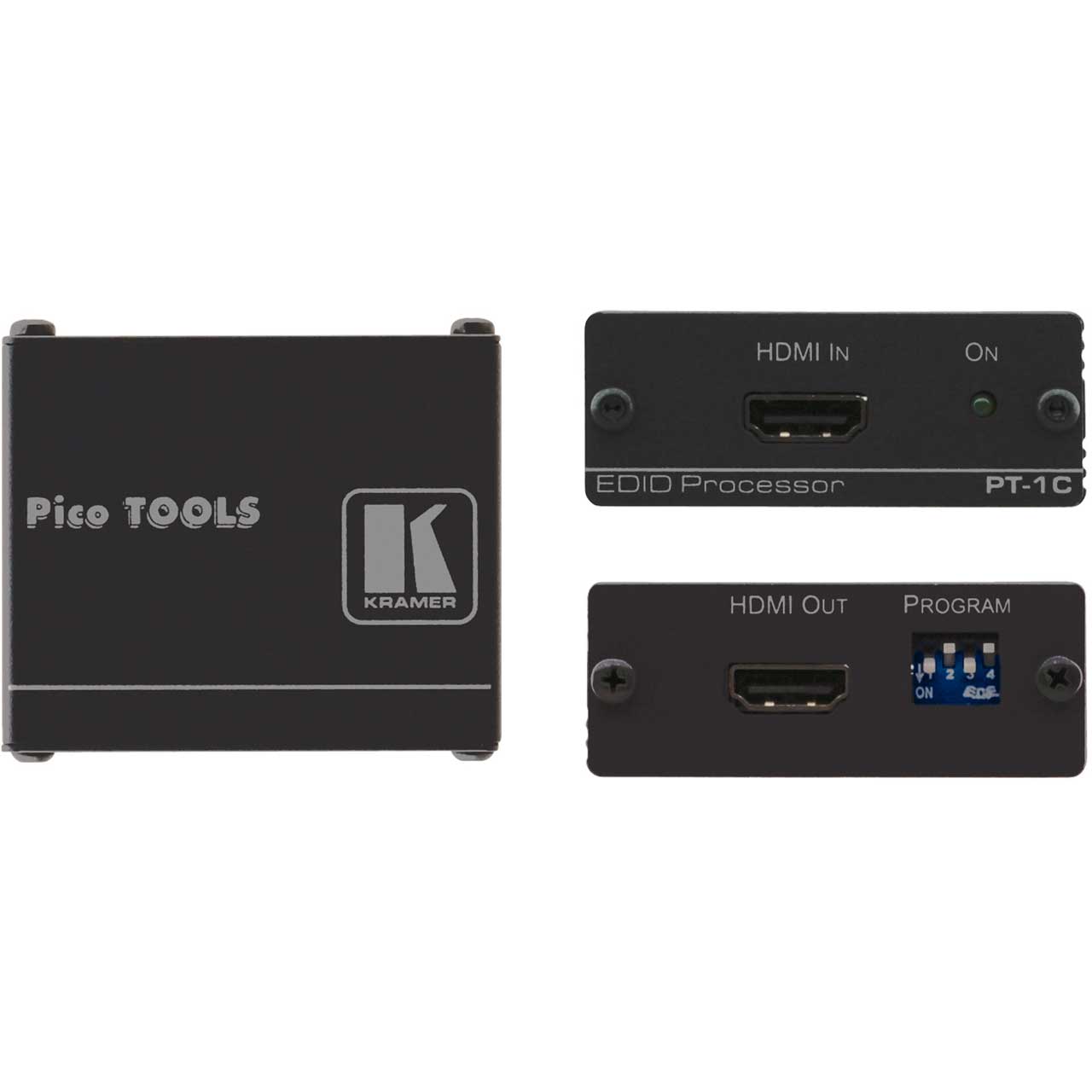

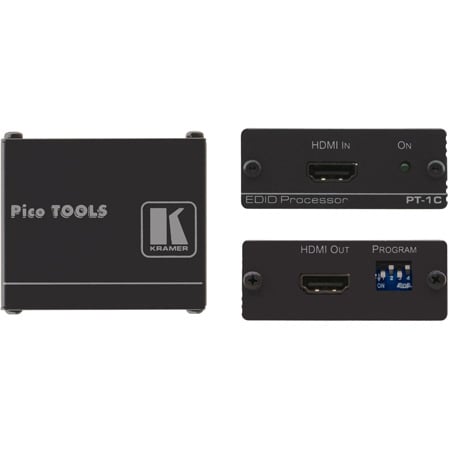

Kramer PT-1C 4K HDR HDMI EDID Processor

PT-1C - Overview

4K HDR EDID Processor

• Features:

  • Max. Data Rate - 17.82Gbps (5.94Gbps per data channel).
  • Max. Resolution - 4K@60Hz (4:4:4).
  • HDMI Compatible.
  • Compliance with HMDI Standards - HDR10, HDCP 2.2.
  • Line Powered Device - Power taken from the HDMI line, no power supply is needed.
  • Indicator - Power LED.
  • Controls - Four program DIP-switches control desired functions


• Specifications:

  • INPUT
  • 1 HDMI connector


  • OUTPUT
  • 1 HDMI connector


  • MAX DATA RATE
  • 17.82Gbps (5.94Gbps per data channel), 4K compatible


  • STANDARDS SUPPORTED
  • Supports HDR10, HDMI and HDCP 2.2


  • CONTROLS
  • 4 DIP-switches


  • INDICATOR
  • Power LED


  • POWER REQUIREMENTS
  • Takes power from the HDMI line


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • PT-1C EDID Processor
  • 4 Rubber Feet


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063064167
