Ocean Matrix OMX-01HMET0002 Extender Set - HDMI Over Single CAT5e/6/7 with IR - 328 Feet

ITEM #: OMX-01HMET0002 MFG #: OMX-01HMET0002

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Ocean Matrix
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$99.95

Our Price:

$94.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    OMX-01HMET0002 - Overview

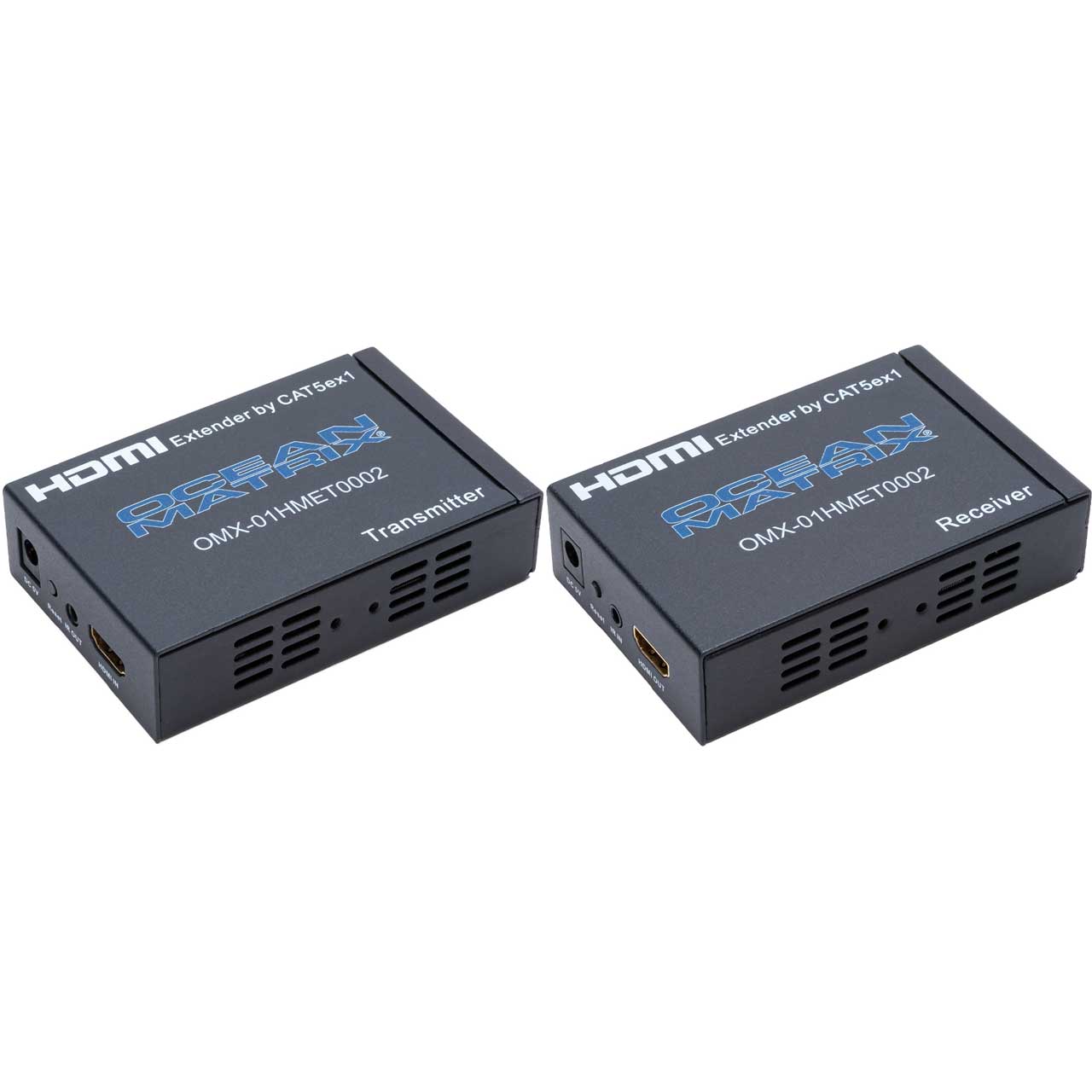

    Extend your 1080p HDMI signals throughout your network with the Ocean Matrix OMX-01HMET0002 HDMI Over IP Extender. The system sends 1080P@60Hz HDMI up to 328 feet over a single CAT5e/6/7 cable. The system supports IP network switches as well as deep Color (12 bit) video and digital audio with a bandwidth up to 225MHz.

    For complete control, especially in digital signage systems or sports bar applications, the OMX-01HMET0002 handles unidirectional IR transmission to allow you to easy control the remote source. Fully compatible with Dolby Digital, DTS 5.1, and Dolby Digital+.

    • Features:

      • HDMI Audio/Video over a Single CAT5e/6/7 Cable
      • Equalizes & Recovers Incoming TMDS Data
      • Transmission Distance (CAT5e/6/7): 1080P@60Hz up to 328 feet
      • One-Direction IR Control from Display to Source
      • Supports IP Switch/Hub/Router
      • Rugged Black Powder-Coated Metal Enclosure
      • LED Power Indicator
      • CE, RoHS Certified


    • Specifications:

      • Compliance: HDMI 1.3b, HDCP 1.4, DVI 1.1
      • Video Resolutions: up to 1080p@60Hz
      • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2 / Color Depth: 10-bit, 12-bit
      • Audio Formats: PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+

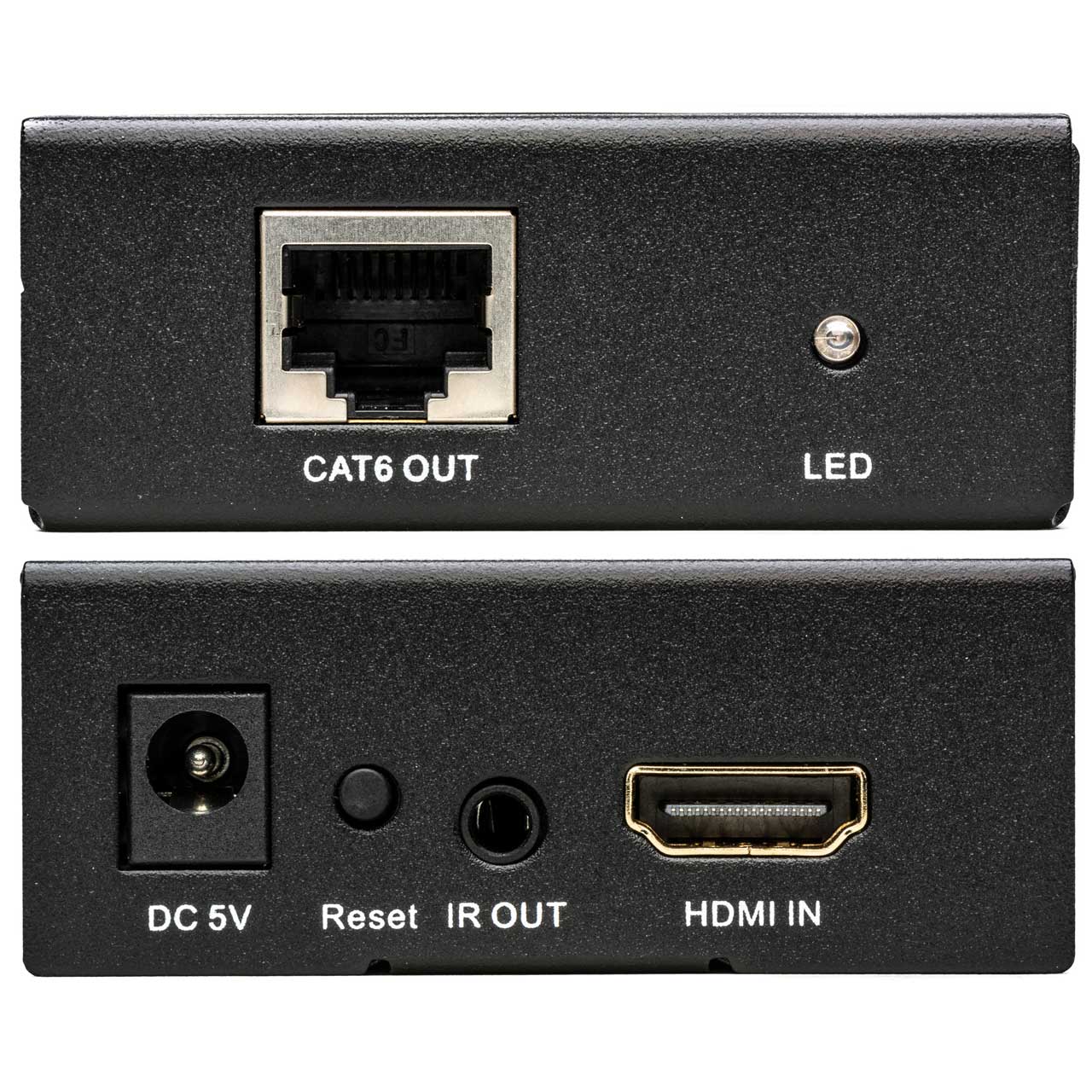

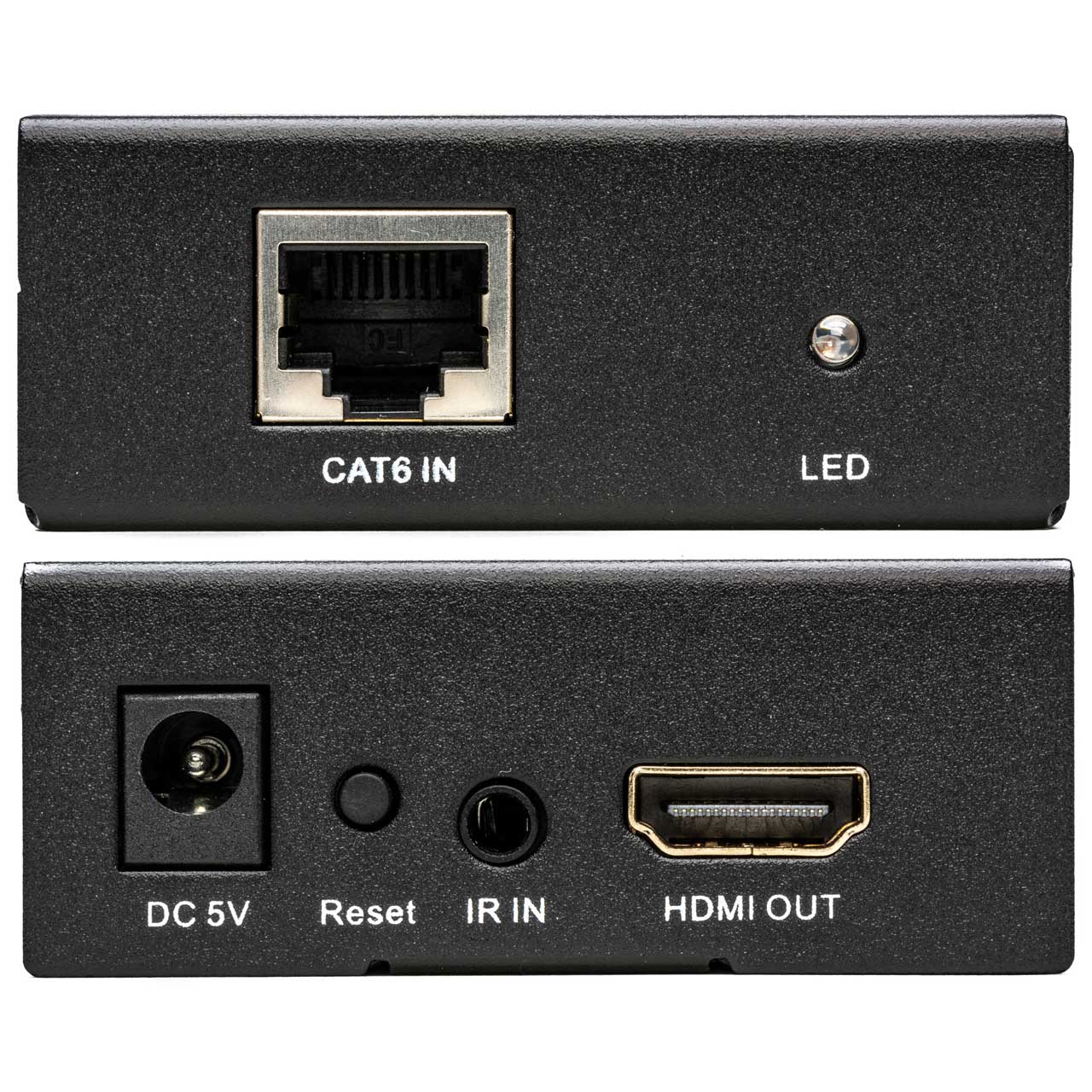

      • Inputs: TX - 1-HDMI Type A / RX - 1- RJ45, 1-3.5mm Stereo Mini-Jack (Infrared Emitter)
      • Outputs: TX - 1- RJ45, 1-3.5mm Mini-Jack (Infrared Emitter) / RX - 1-HDMI Type A
      • Power Consumption: TX - 2W / RX - 2.5W
      • Dimensions (each): 4.0 x 2.6 x 1.0 in
      • Weight (each): 10.58 oz


    • Item Includes:

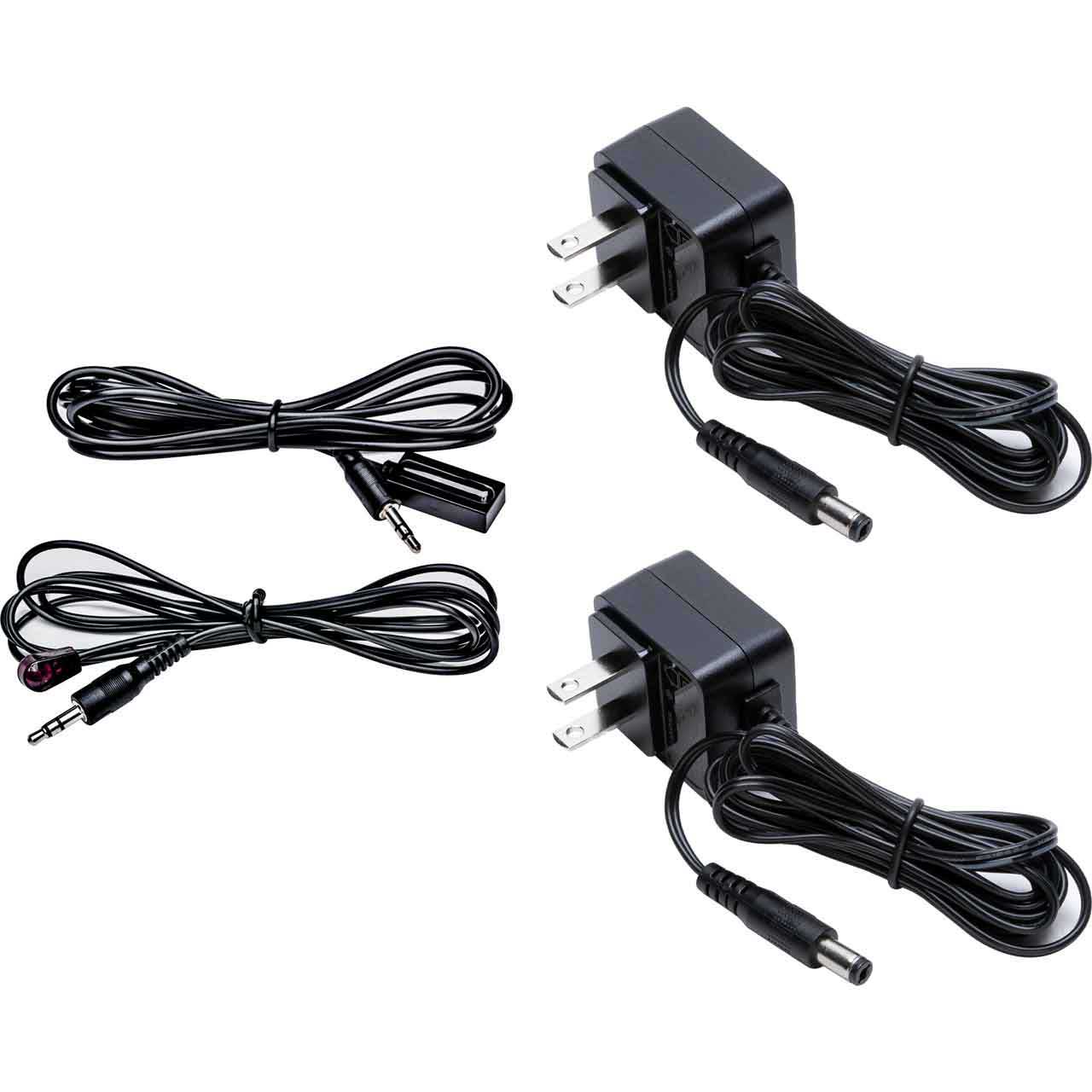

      • 2- 5V/1A Power Supply, 2 Pair of IR Blasters


    • Warranty:

      • 1 Year
