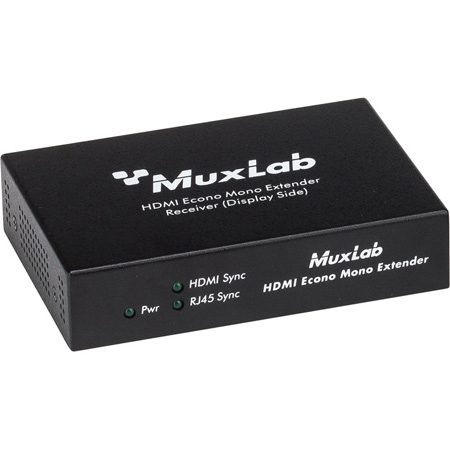

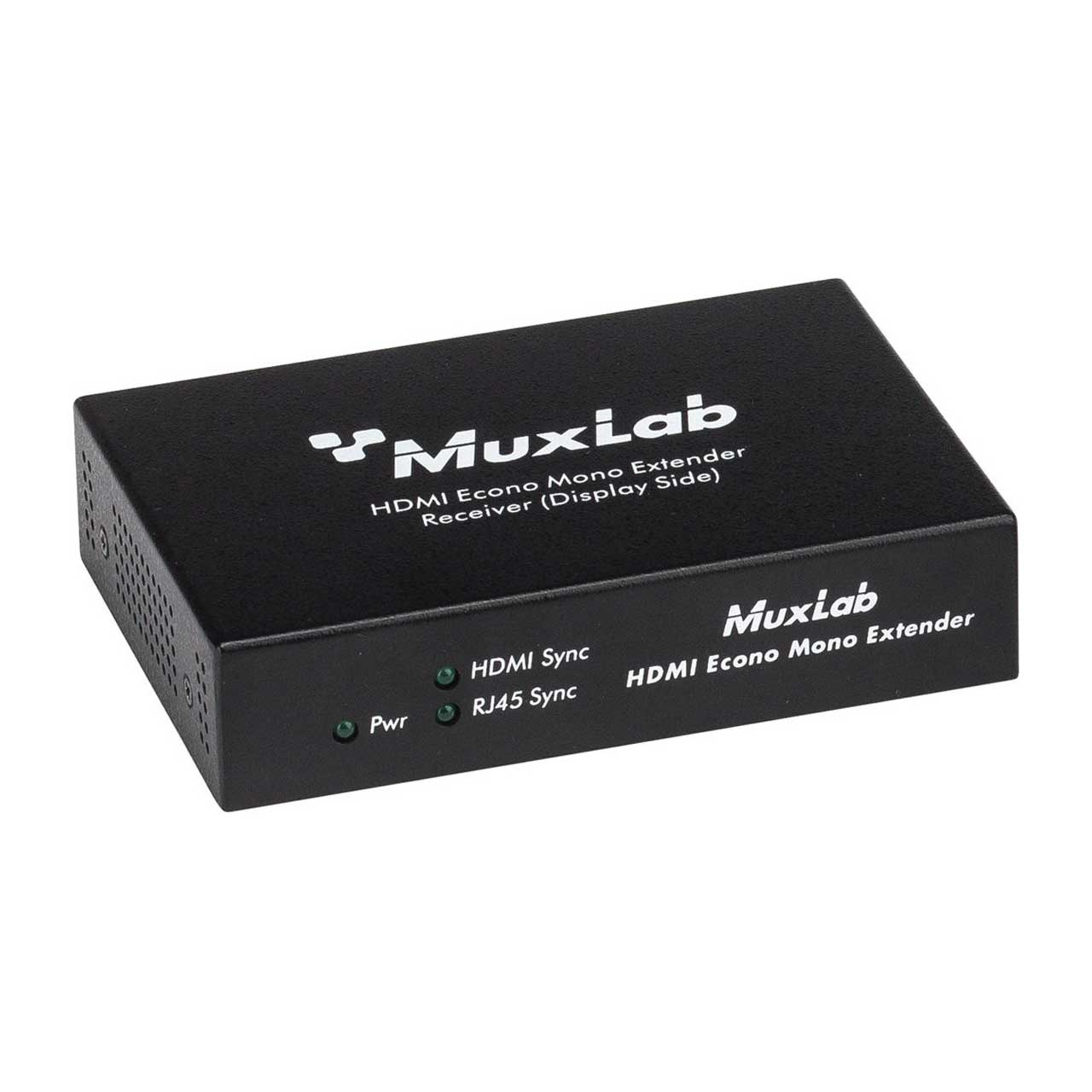

MuxLab 500451-RX HDMI Mono Receiver

ITEM #: MUX-500451-RX MFG #: 500451-RX

Primary Image
MuxLab Inc
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$186.00

Our Price:

$128.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

500451-RX - Overview

The HDMI Extender Kit 500451-RX allows HDMI equipment to be connected up to 131ft (40m) at 4K/30 (4:4:4) or 4K/60 (4:2:0) resolutions, or 230 ft (70 m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. For ease of cabling the extender kit features PoE (PD), including PoC, on both the transmitter and receiver. This kit comes with one (1) transmitter, one (1) receiver, one (1) IR Emitter, and one (1) IR sensor.

  • Features:

    • Supports 1080p deep color and full 3D to distances of up to 230 ft (70m) over single Cat5e/6
    • Supports 4K @ 24/25/30Hz (4:4:4) and 4K/60 (4:2:0) to distances of up to 131 ft (40m) over single Cat5e/6
    • Supports Bi-directional IR pass through
    • Supports all digital audio modes
    • PoE (PD) & PoC on both the transmitter and receiver
    • Includes IR emitter and IR sensor (carrier-wave)
    • Compatible with 500451 (non PoE version)


  • Specifications:

    • Environment: HDMI 1.4a (3D)
    • Devices: DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
    • Transmission: Transparent to the user
    • Bandwidth: 340MHz
    • Signals: HDMI 1.4a protoco
    • Cable: One (1) Category 5e or better twisted pair cables required.
    • Power Supply: One (1) 110-240V/48VDC power supply with interchangeable blades
    • Power Consumption: Transmitter: 1.6 Watt Receiver: 3.2 Watt
    • Temperature: Operating: 0° to 40° C; Storage:-20° to 85° C
    • Humidity: up to 95% non-condensing.
    • Enclosure: Metal
    • Dimensions: 4.40” x 3.00” x 1.00”
    • Weight: 1.4 lbs
    • Compliance: Regulatory: FCC, CE, RoHS
    • Warranty: 2 years


  • Item Includes:

    • 1x MuxLab 500451-TX HDMI Mono Transmitter


  • Warranty:

    • 2 Years


  • GTIN:

    0627699804513
