BZBGEAR BG-EXH-70C 4K UHD HDMI Extender Over CAT5e/6/7 with Bi-directional IR and Zero Latency up to 230 Feet

ITEM #: BG-EXH-70C MFG #: BG-EXH-70C

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$109.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BG-EXH-70C - Overview

With a new IPCOLOR technology (a global leading and innovative protocol for UHD video digital transmission with lossless compression) the BZBGEAR BG-EXH-70C extender is capable of transmitting HDMI signals with zero latency across distances of up to 70 meters (230 ft) over a single Cat6/6a/7 cable.With 18Gbps bandwidth it supports many video resolutions up to 4K 60fps 4:4:4 HDR as well as modern audio formats as DTS-HD, Dolby Digital 5.1CH and Dolby TrueHD 7.1CH.Bidirectional IR passthrough adds a layer of convenience for control - you can control your source (like a cable box or BlueRay player) from the TV side and control your TV from the source side (when using 3rd party control systems).Another great feature is an audio de-embedding from HDMI signal. Using the S/PDIF output on the receiver you can connect your local audio system. More to that you can switch to use ARC function which will de-embed audio from the TV (when you are using smart-tv functions, not an extended HDMI). Aluminum housing and integrated surge protection provides more durability for your setup.

  • Features:

    • Stunning Image Quality Supports resolutions up to 4K@60Hz
    • Long Distance Transmit 4K HDR 4:4:4 signals up to 230ft over CAT6/6a/7
    • Multiple Audio Formats Supports LPCM, DTS-HD, DTS Audio, Dolby Digital, and Dolby TrueHD
    • Bi-Directional IR Control devices via IR from either the transmitter or receiver side
    • HDMI Loop-Out Connect an additional display to the transmitter
    • Surge Protection Integrated surge protection increases reliability
    • Audio Extraction - Digital audio can be extracted via the optical audio port Plug and Play - Easy setup, no drivers to install Zero Latency

  • Specifications:

    • Technical

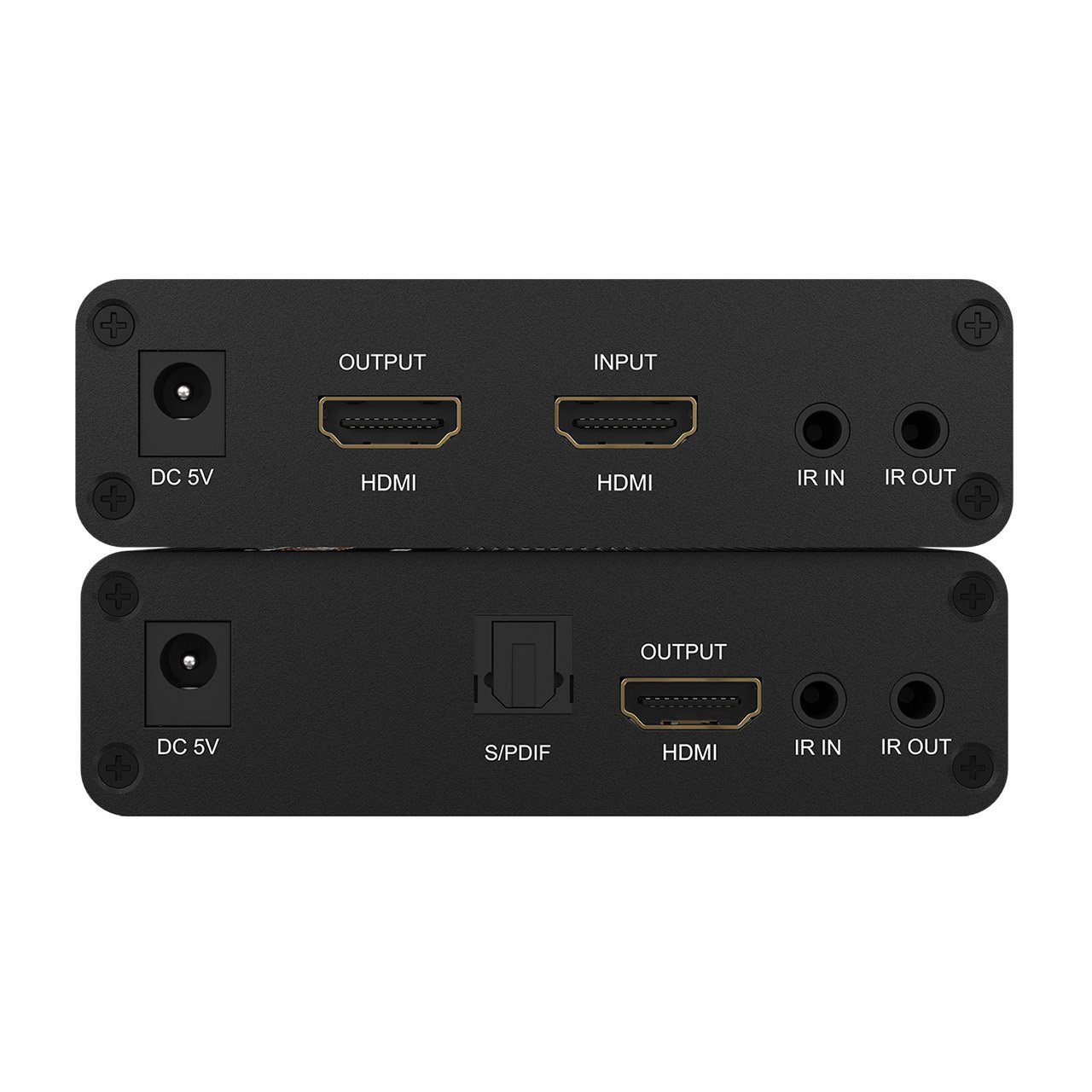

    • Transmitter Inputs:
      - 1x HDMI
      - 1x DC2.1
      - 1x 3.5mm jack (IR)
    • Receiver Inputs:
      - 1x DC2.1
      - 1x RJ45
      - 1x 3.5mm jack (IR)
    • Transmitter Outputs:
      - 1x HDMI
      - 1x RJ45
      - 1x 3.5mm jack(IR)
    • Receiver Outputs:
      - 1x HDMI
      - 1x RJ45
      - 1x 3.5mm jack (IR)
      - 1x Optical
    • HDMI Compliance: HDMI2.0, compatible HDMI1.4
    • HDCP Compliance: HDCP2.2, compatible HDCP1.4
    • Transmission Medium: CAT6/CAT6A/CAT7
    • Transmission Distance: CAT6/6A/7 Transmission 70 meters
    • Video Bandwidth: 18Gbps
    • Resolution Support: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
    • Audio Support: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 7.1CH
    • Input TMDS Signal: 0.7~1.2Vp-p
    • Input DDC Signal: 5Vp-p
    • HDMI Connector: Type A 19 Pins, Female
    • Network Cable Standard: CAT6/CAT6A/CAT7, follow IEEE-5688 standard

      Mechanical
    • Housing:
      - Transmitter: Aluminium alloy material+crystal panel
      - Receiver: Aluminium alloy material+crystal panel
    • Dimensions (LxWxH):
      - Transmitter: .2" x 3.9" x 1.0" (106mm x 99mm x 26.2mm)
      - Receiver: .2" x 3.9" x 1.0" (106mm x 99mm x 26.2mm)
    • Weight:
      - Transmitter: 0.46lbs (210g)
      - Receiver: 0.46lbs (210g)
    • Power Supply:
      - Transmitter: 5V/2A
      - Receiver: 5V/2A
    • Power Consumption:
      - Transmitter: 4W
      - Receiver: 4W
    • Operation Temperaure: -4°F - 140°F (-20°C - 60°C)
    • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
    • Relative Humidity: 0% - 90% (no condensation)

  • Item Includes:

    • 1x BG-EXH-70C HDMI Extender Transmitter
    • 1x BG-EXH-70C HDMI Extender Receiver
    • 1x User Manual
    • 1x Wideband IR TX
    • 1x Wideband IR RX
    • 2x 5V2A DC Power Supply
    • 8x Mounting brackets
    • 18x Screws

  • Warranty:

    • 3 Year Limited Warranty

  • GTIN:

    0850023208354
