Hall Technologies ULTRA-V-1S 4K UHD HDMI Splitter/Extender over 1 CAT6 to 328-Foot

ULTRA-V-1S - Overview

• Features:

  • Supports high resolution HDMI video including FHD (1920x1080), WQHD (2560x1440), and 4K UHD (3840x2160)

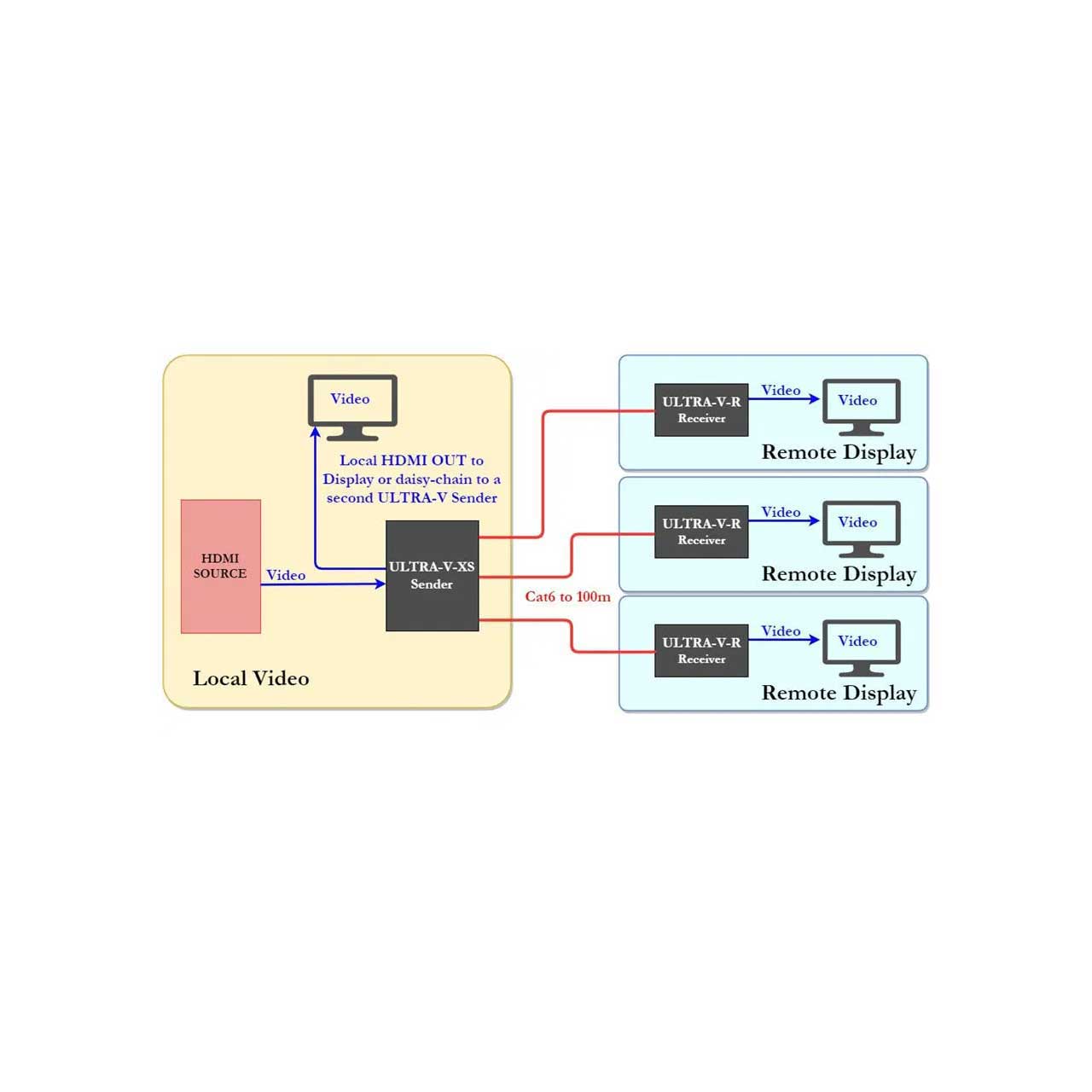

  • Local HDMI outputs at all Senders to connect to a local display, or to daisy-chain a second ULTRA-V Sender
  • 1,4, or 8 outputs to distribute video to multiple locations
  • No video calibration required; no video quality reduction due to cable length


• Specifications:

  • Video Standards
  • DVI (single link)
  • HDMI 1.4 video specifications including 12 bit color depth, 3D video
  • HDCP 1.4

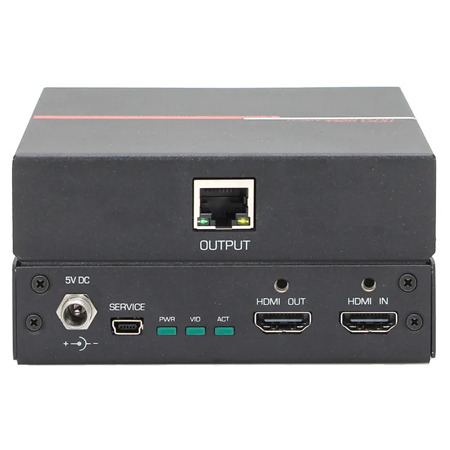

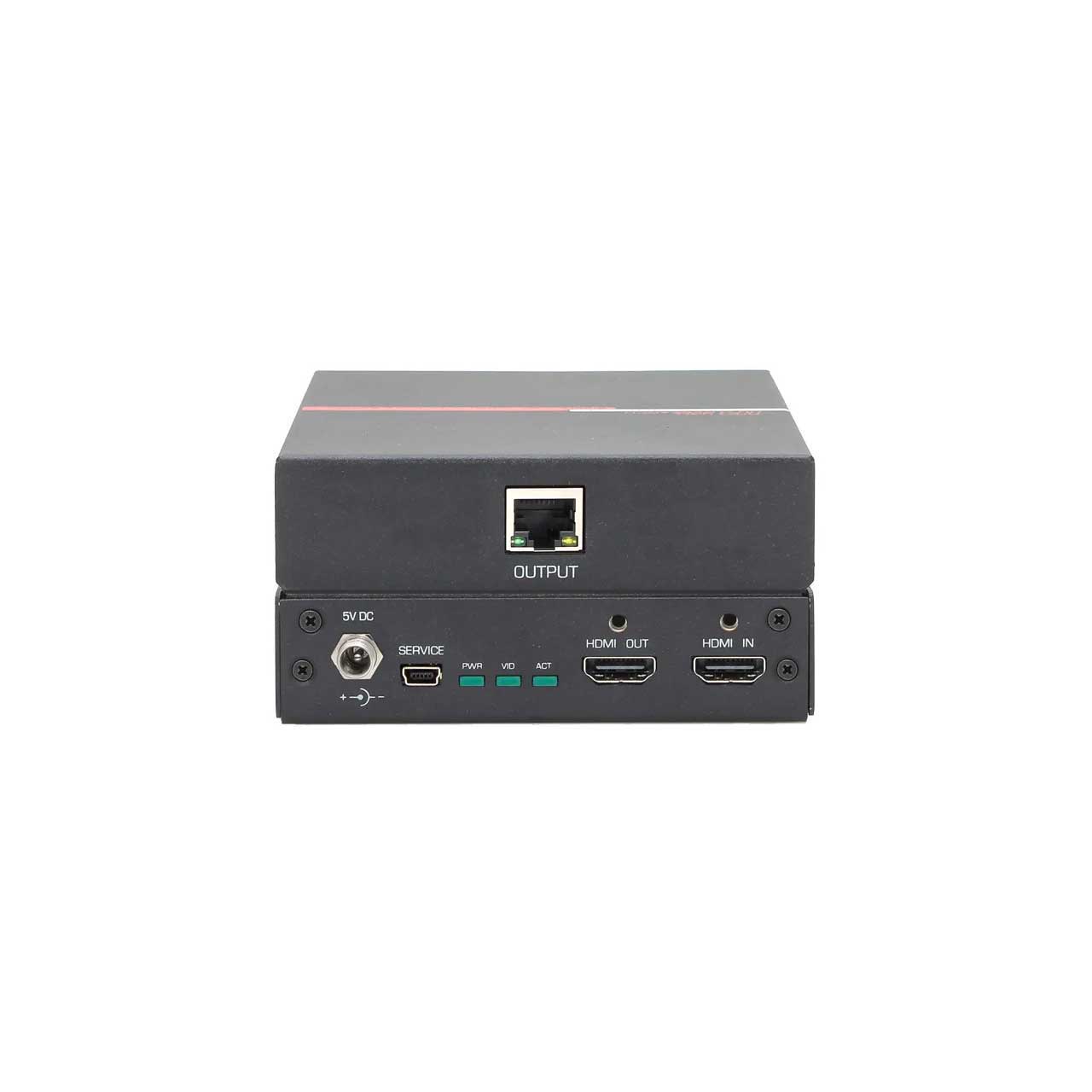

    Connectors
  • (1) HDMI Input
  • (1) HDMI Output
  • (1) RJ45 Output
  • (1) Mini-USB Service Port
  • (1) 2.0MM Locking DC Power Input

    Resolutions
  • DVI Signal: VGA (640x480) thru WUXGA (1920x1200)
  • HDTV Signal: 480p through 4K60 4:2:0 (Interlaced resolutions are not supported)

    Refresh Rates
  • 60 Hz for resolutions up to and including HD (1920x1080) and WUXGA (1920x1200)
  • 30 Hz for resolutions above and including QHD (2560x1440)

    Power
  • 5V DC, 4.0 A Power Supply

    General
  • Storage Temperature: -40 to +158°F (-40 to +70°C)
  • Operating Temperature: +32 to +122°F (0 to +50°C)
  • Humidity: 10% to 90%, non-condensing
  • Power: 5V DC, 4.0 A Power Supply
  • Cooling: Convection
  • Enclosure type: Metal (Steel)
  • Dimensions (LxWxH):
    Model Only: 5.50 x 4.40 x 1.27"
    Shipping: 5.30 x 8.70 x 3.10"
  • Weight:
    Model Only: 1.01Lbs (0.46kg)
    Shipping: 2.8Lbs (1.3kg)
  • Safety: CE
  • EMI/EMC: CE, FCC Class A
  • MTBF: 90,000 hours (estimate)
