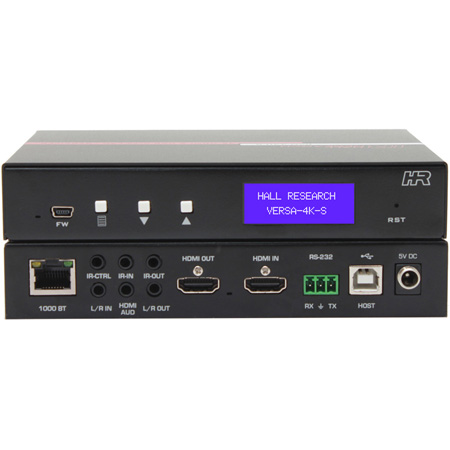

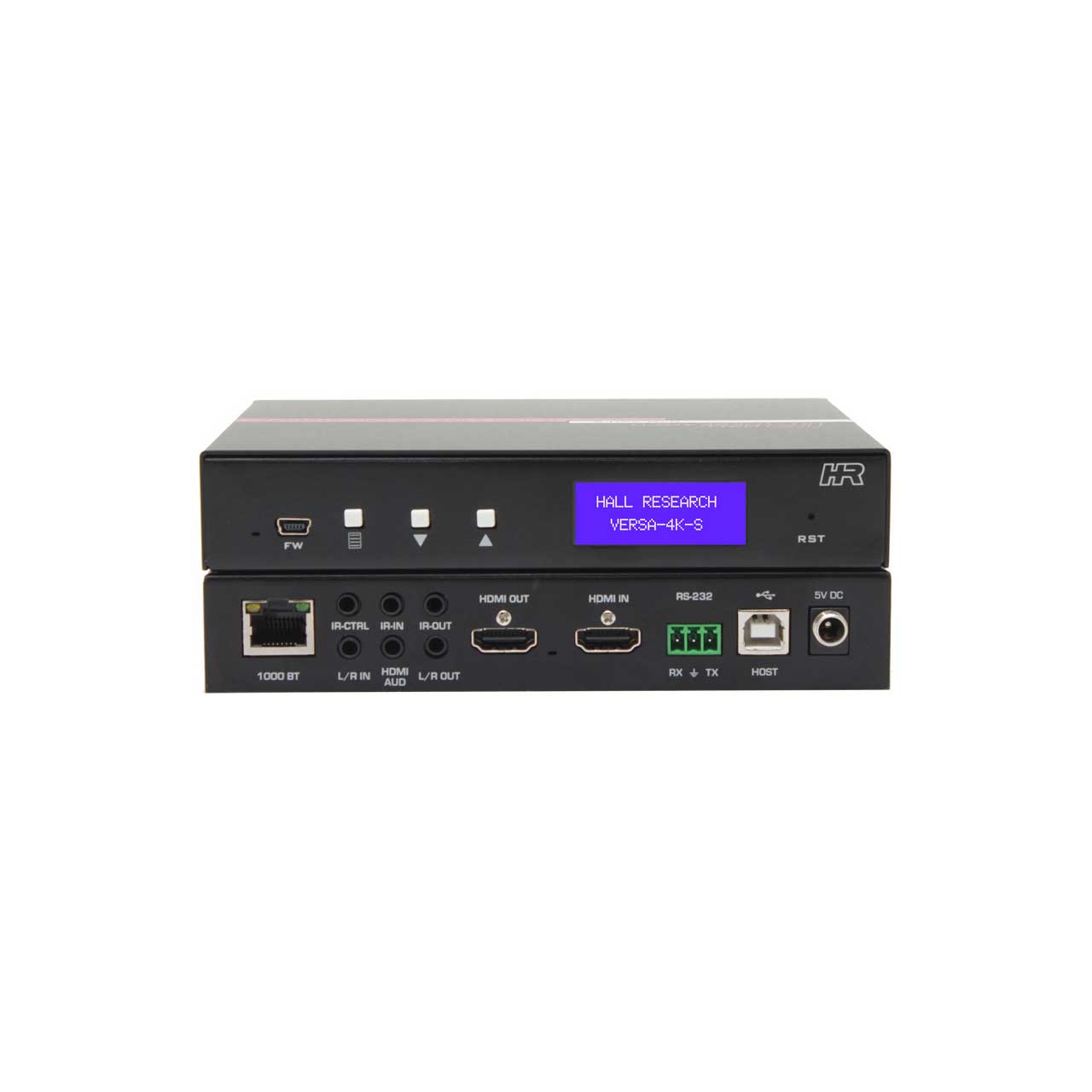

The VERSA-4K-S is a sender / encoder unit for the VERSA-4K video & USB extension system. the VERSA-4K provides the means to extend and switch multiple HDMI video and USB data to virtually an unlimited number of receivers on a simple Gigabit network. Bidirectional IR, RS-232, and auxiliary stereo audio can also be extended. Advanced features include, low latency video and audio, CEC and Serial over IP for control, video wall processor to expand and split 4K video on to multiple screens, video rotation and flipping (horizontal and vertical), USB Device class filtering for excluding specific USB device types such as USB flash drives, automatic KVM switching, Telnet and webGUI control, Dynamic Virtual Matrix™ (DVM) operation, PoE (power over Ethernet) support, and more.

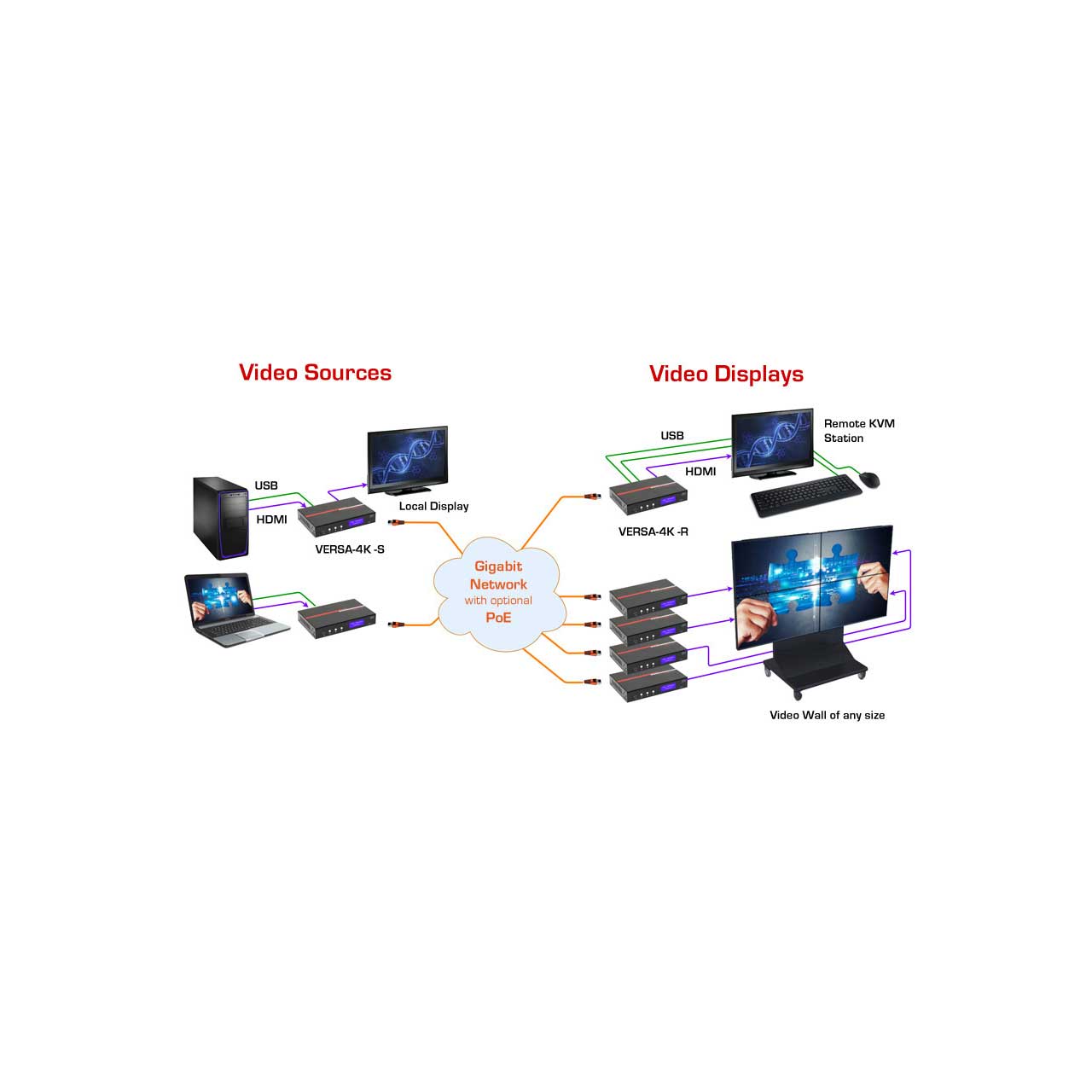

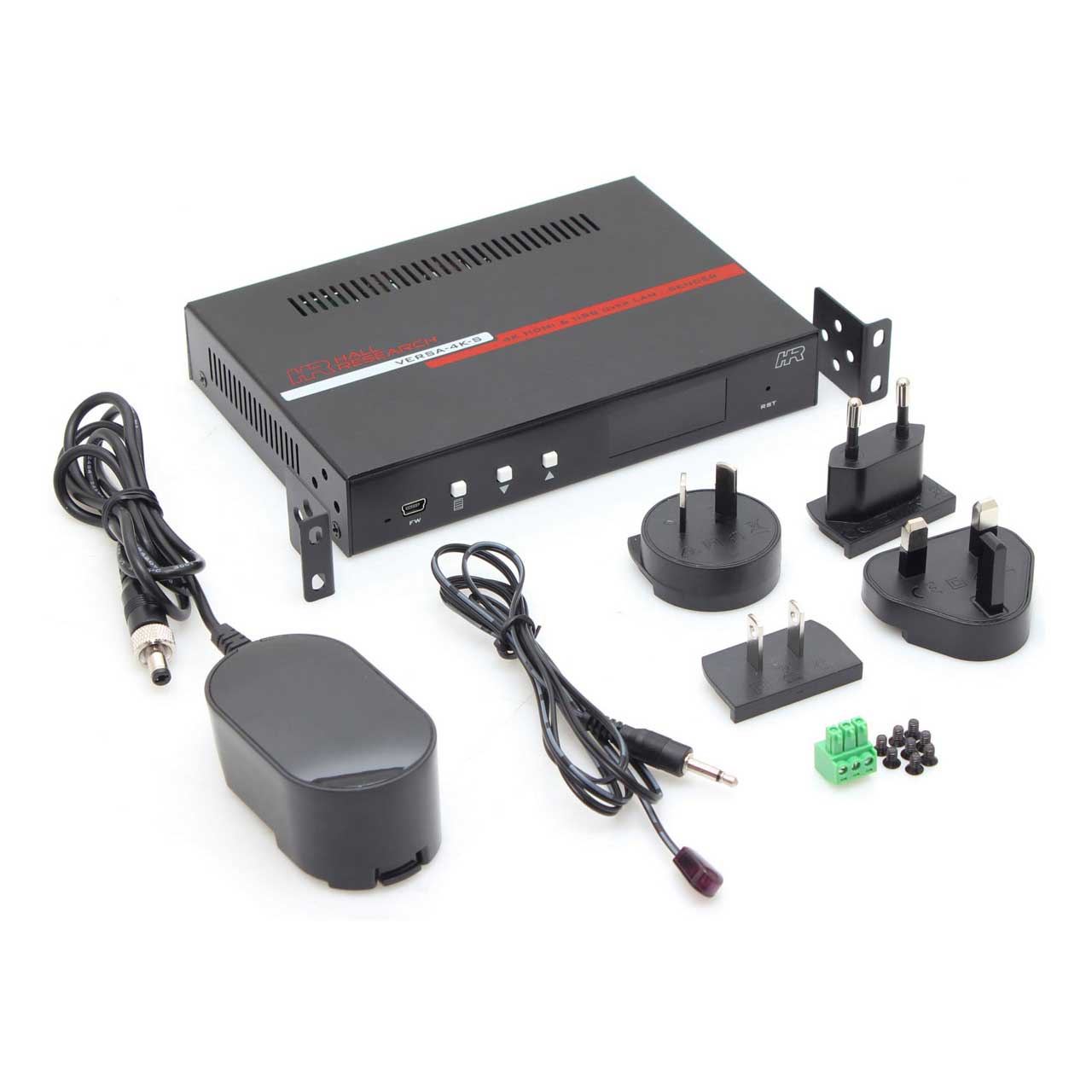

In a 1-to-1 setup (one Sender to one Receiver) no external network equipment is needed, just connect a Cat6 cable up to 120 meters (400 ft) between the two ends. In a many-to-many setup, a dedicated gigabit network switch (with IGMP and Jumbo-frame support) is required. Each VERSA-4K includes a power supply adapter, however, if the network switch provides PoE, connection of the power adapter is not required. Users can route the video from upto 64 senders to virtually unlimited receivers.
The Sender can accept any HDMI resolution including 4K, 60 Hz 4:4:4 with HDCP 2.2 and it includes an HDMI video loop output together with extracted HDMI audio in analog format for maximum flexibility. The Receiver also includes extracted HDMI audio output and provides a scaled video output with maximum resolution of 4K, 30 Hz 4:4:4 . There are 4 USB ports available on the Receiver, 2 dedicated for use with keyboard and mouse (auto switching based on user activity) and 2 general purpose USB 2.0 port that support touch screens, memory devices, audio capture, and many other USB device functions.
Both the Sender and Receiver provide a two-line front panel character-LCD that can be used to easily configure parameters such as IP settings, video multicast channel selection, assignment of device names, and more. Receivers also include an IR remote controller that can be used to easily switch the video among Senders. Free PC GUI is available with many unique and advanced features to ease setup and configuration. The VERSA-4K is perfect for applications such as: Interactive digital signage, KVM extension, virtual matrix switching, USB over LAN extension, and much more.
