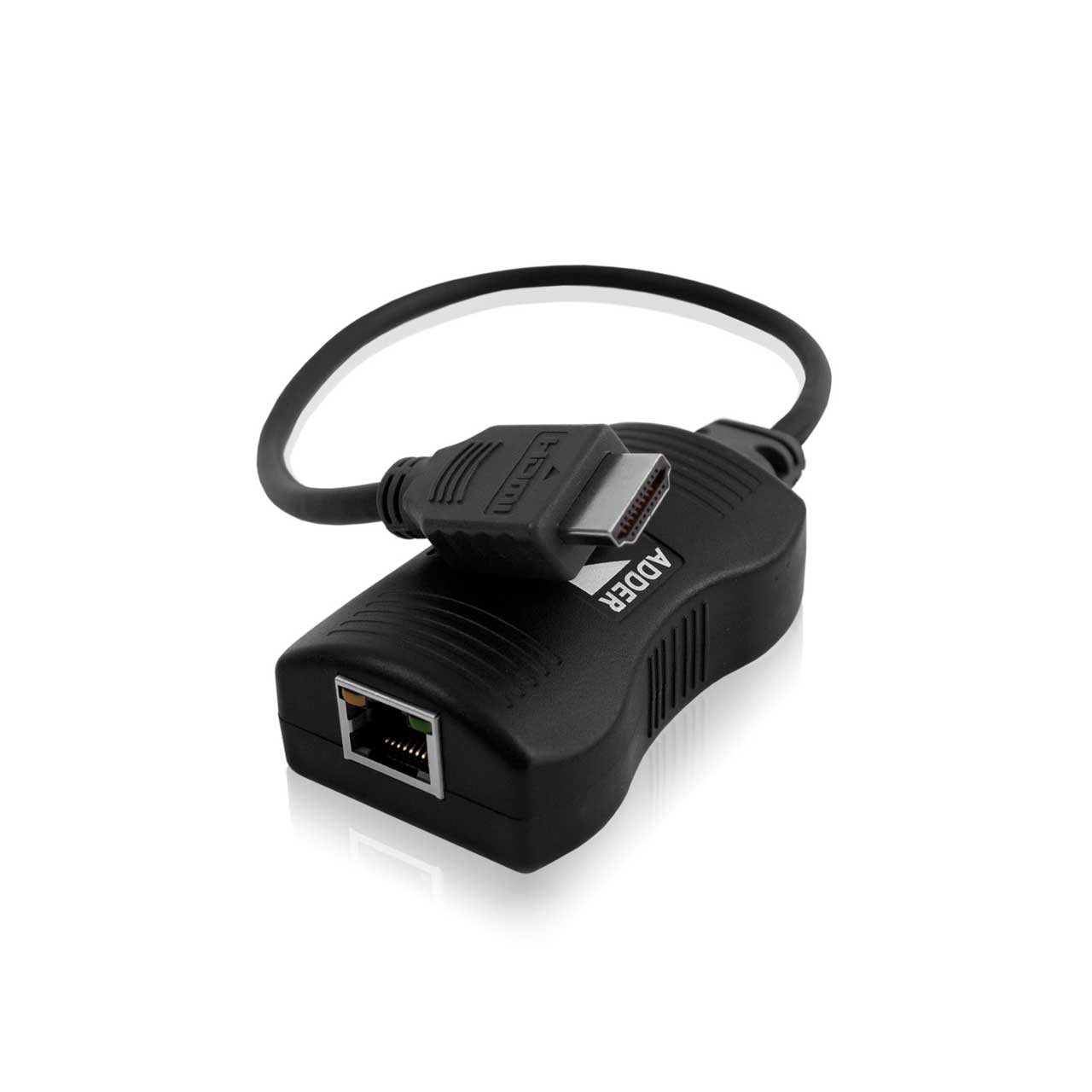

ADDERLink ALDV100R Digital AV HDMI Extender Single Receiver

ALDV100R - Overview

Pixel perfect digital video

• Features:

  • Pixel perfect digital video: ALDV100 uses an uncompressed communication system whereby the pixels of every frame are sent without loss. Resolutions up to 1920x1200 @60Hz (WUXGA) are supported. Additionally, the High-bandwidth Digital Content Protection (HDCP) of the HDMI standard is supported.

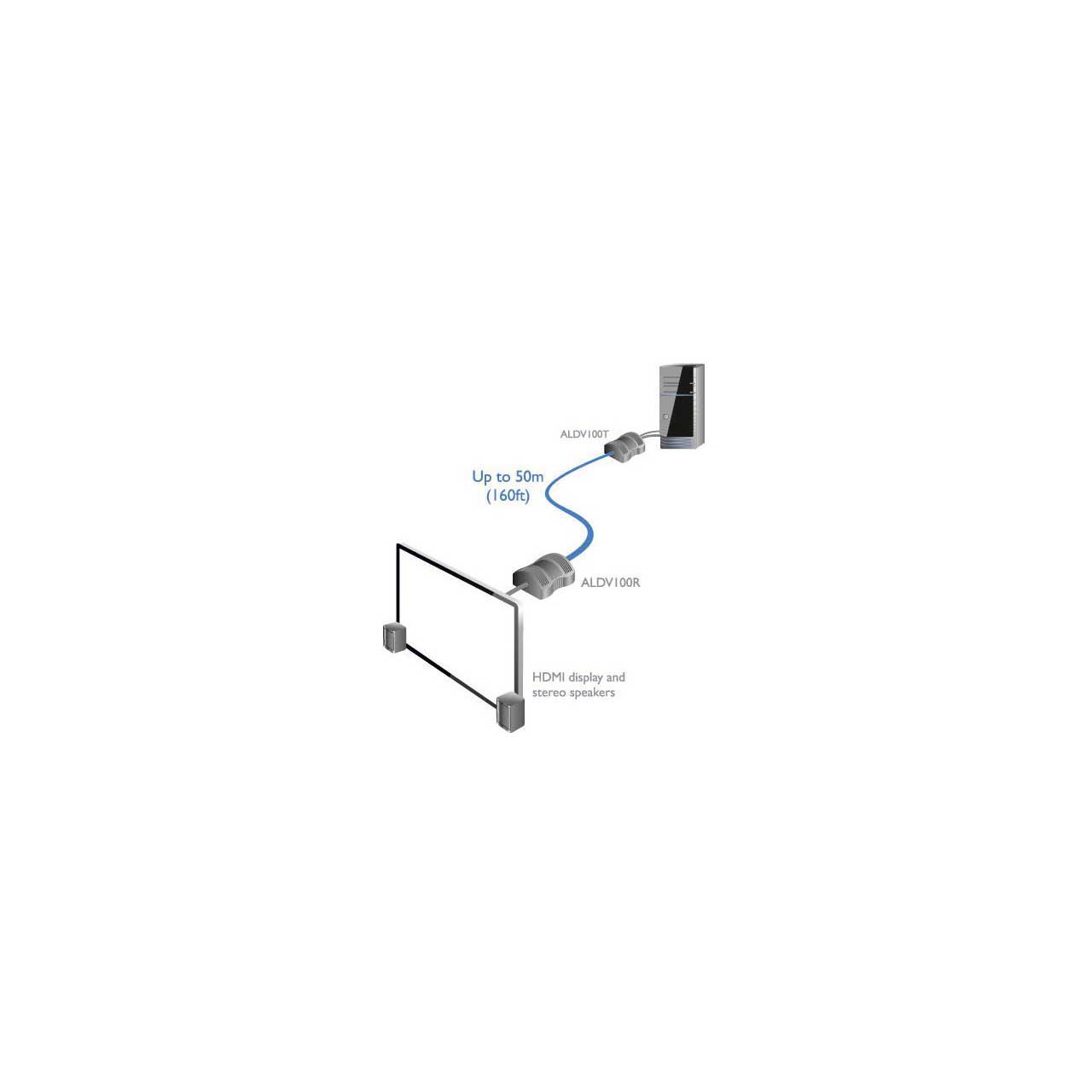

  • Up to 50 meters over a single CATx cable: Video, audio and power all pass along a single cable, providing a maximum of 50 meters extension. The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates. Please see the table on reverse for details.
  • Highly energy efficient - No external power supplies are required: The ADDER Link DV100 is designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and hence the support infrastructure required is kept to an absolute minimum.

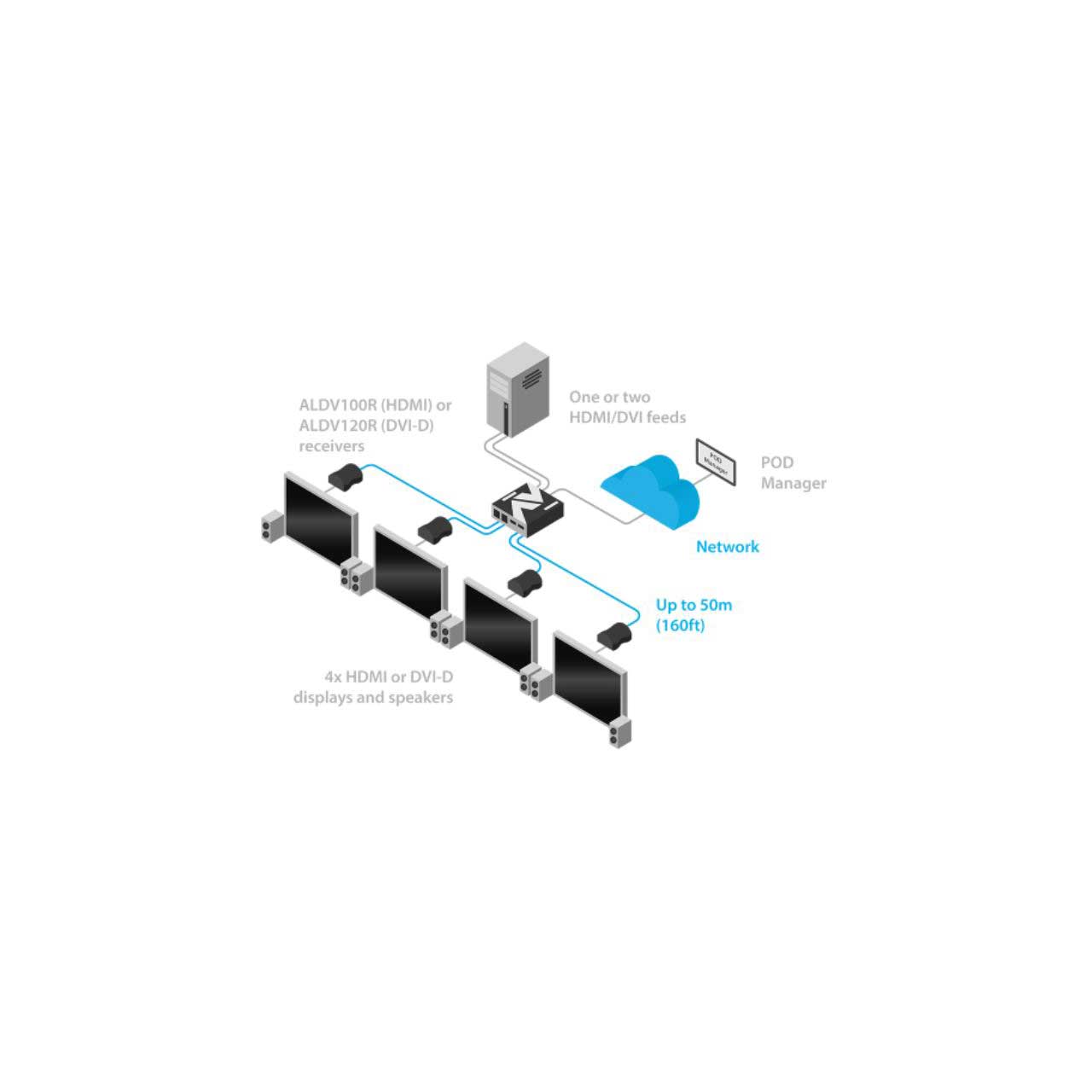

  • Digital audio: Supports eight channels of HDMI audio. Mix-n-match The whole ADDER Link DV family of extenders share a common advantage of cross connection. The HDMI transmitters (ALDV100T) of the family can seamlessly be connected to the DVI-D receivers (ALDV120R) and vice versa.
  • EDID management: The system has intelligent EDID management to allow the true characteristics of the display to be passed back to the computer.
  • Plug and Play: ADDER Link DV100 extenders are delivered in a zero config g state so you can connect their two units and start working with them straight away. There’s no need for drivers or software to be installed.
  • Built to last: Adder Technology have a well-earned reputation for creating products that perform well and stay the course. ADDER Link DV100 is no exception and features tough, yet lightweight ABS enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.


• Specifications:

  • Environmental:
  • Operating Temperature: 0-40°C (32 to 104°F)


  • Power:
  • USB Powered: 5VDC -2.5W for both RX and TX units combined


  • Connectors:
  • Receiver Unit: HDMI Type A Male/HDMI Resolutions:480p, 720p, 1080p/WUXGA (1920x1200) @60Hz: 24-bit color depth


  • Audio:
  • Eight channels of HDMI audio: 16, 20, or 24 bit; 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz


  • Compatibility
  • Hardware: All computers with HDMI and USB connections.
  • Software: All major operating systems
  • Regulatory Approvals: CE, FCC


  • Mechanical:
  • Height:0.8 in. (21 mm.)
  • Width:1.8 in. (45 mm.)
  • Depth:2.5 in. (63 mm.)
  • Weight: Per pair: 0.6 lb (250g)


• Item Includes:

  • ALDV100R package includes 1 receiver unit


• Warranty:

  • 2 Year Limited


• GTIN:

  0997250153214
