ADDERLink ALDV100P Digital AV HDMI HD Video Extender TX/RX Pair

ITEM #: ADR-ALDV100P MFG #: ALDV100P

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Adder Corporation
Free Shipping with $49 Minimum Order

List Price:

$480.00

Our Price:

$432.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ALDV100P - Overview

Pixel-Perfect delivery of digital video and simultaneous audio

The ADDERLink® DV100 - HDMI is an easy to install, highly compact digital video extender system capable of transmitting an HD video stream with simultaneous audio over a single CATx cable via HDMI connection. It allows you to locate your media playback hardware in a secure and temperature-controlled environment. Your valuable systems are kept safely away from the display point environment while maintaining precisely the same user experience.

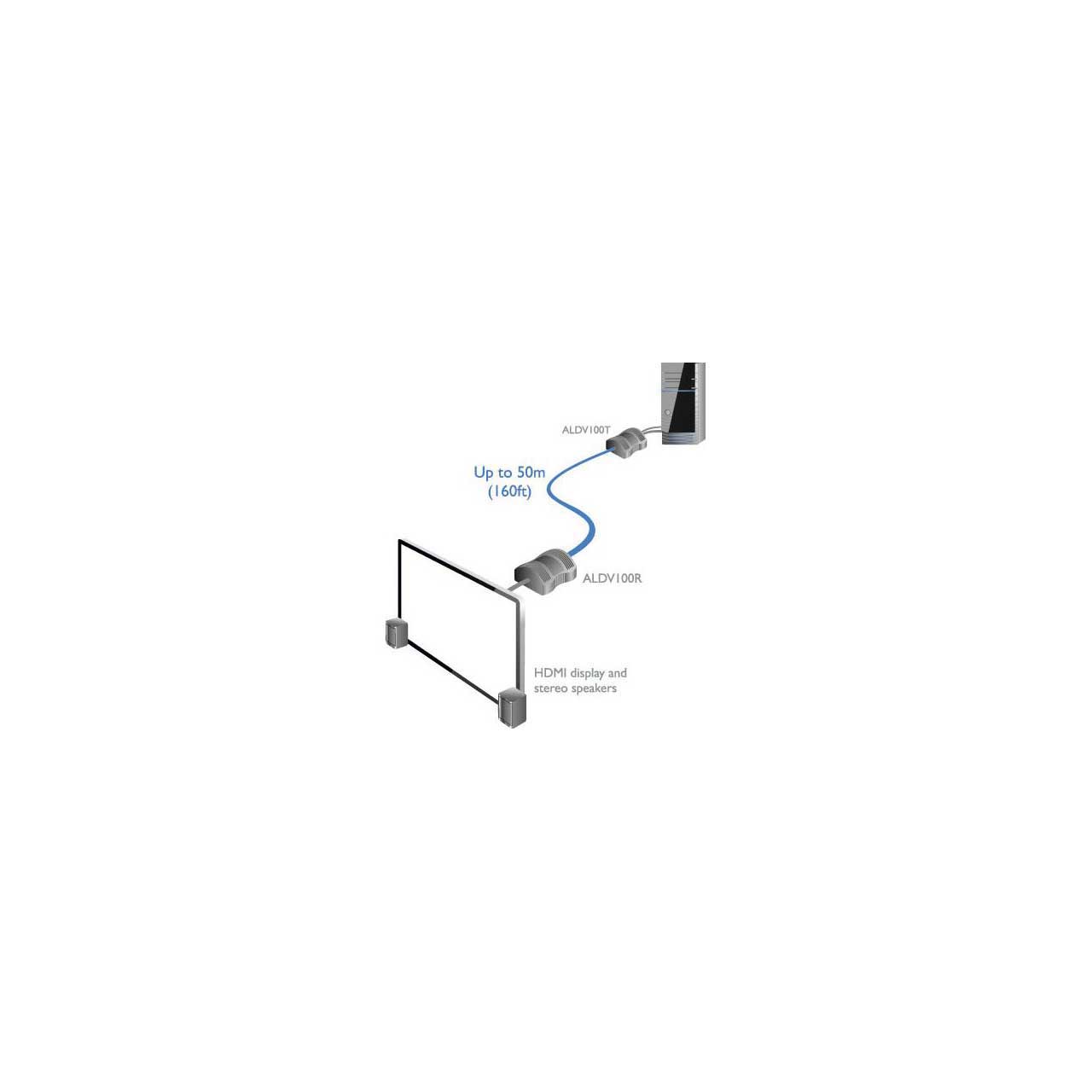

The ADDERLink DV100 allows you to extend HDMI digital video over a maximum of 164 feet/50 meters of twisted pair cable with the minimum of infrastructure and fuss. It is simply powered via USB from the transmitter end, so that no additional power supply is required at the receiver, simultaneously saving time and space as well as making installation very straightforward.

Please Note: Recommended cables are CAT7 shielded with foiled twisted pairs.

  • Features:

    • Pixel-Perfect delivery of digital video and simultaneous audio with optimum clarity.
    • Distributes the exact content seen on the local monitor up to 164 feet/50m over a single CATx cable via HDMI.
    • External power supplies are not needed with the energy efficient design that uses less than an eighth of the power required by some competing systems.

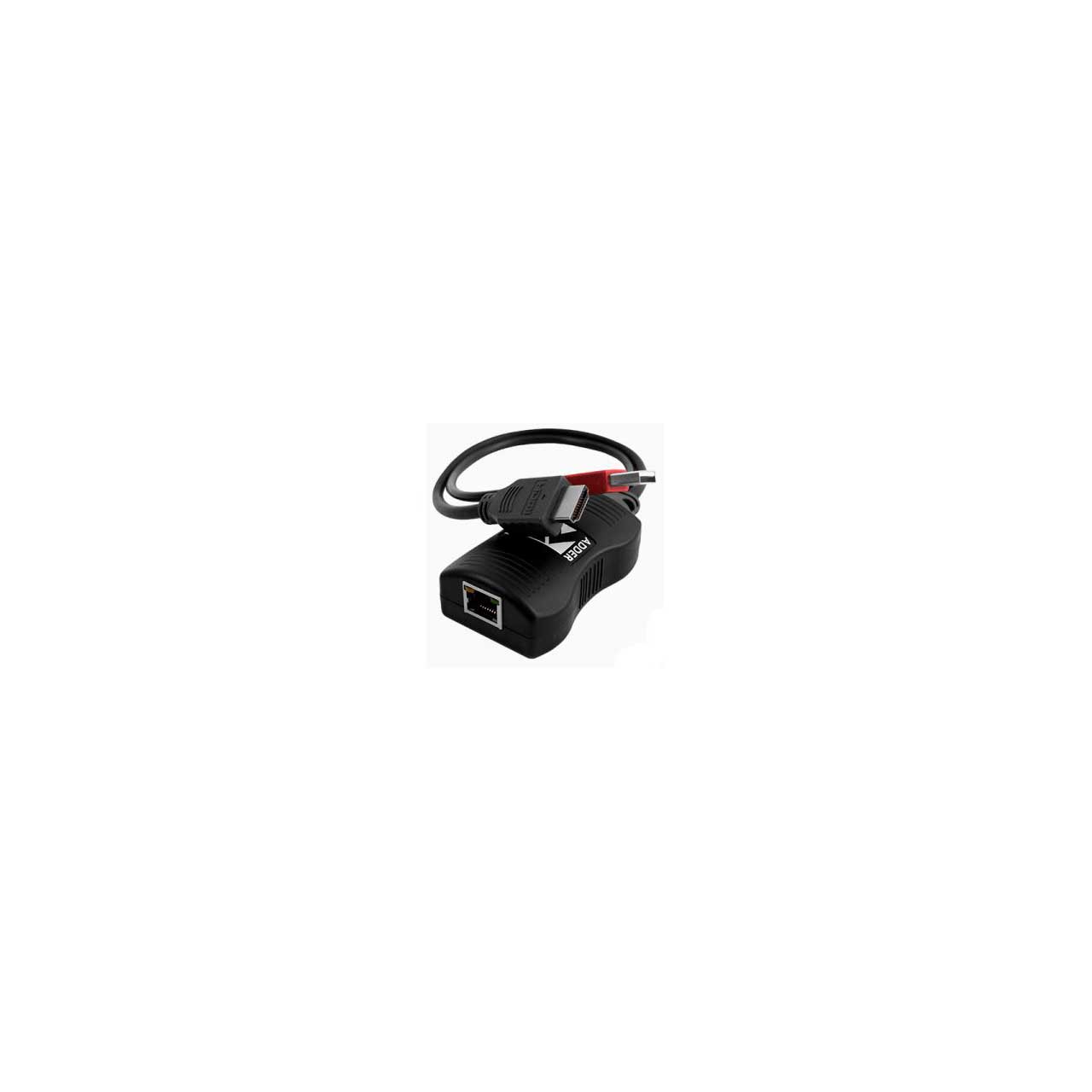

    • Small form factor dongle to ensure optimum space saving.


  • Specifications:

    • Hardware compatibility
    • All computers with HDMI and USB connections - requirement dependent

    • HDMI interface
    • The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920 x 1200) @ 60Hz and 24 bit color depth with reduced blanking

    • Software compatibility
    • All known operating systems

    • Computer connections at transmitter (TX)
    • HDMI male, USB type A (for power only)

    • Display connections at receiver (RX)
    • HDMI male

    • Power
    • USB powered, 5VDC -2.5W for both RX and TX units combined

    • Physical design
    • Injection moulded ABS cases: 45mm / 1.8'' (w) x 63mm / 2.5''(d) x 21mm / 0.8''(h) with 30cm / 12" pigtails, Weight 250g / 0.6 lb per pair

    • Operating temperature
    • 0 to 40°C / 32 to 104°F

    • Approvals
    • CE, FCC

    • Important extension distance Information:
    • Recommended cables are CAT7 shielded foiled twisted pairs


  • Item Includes:

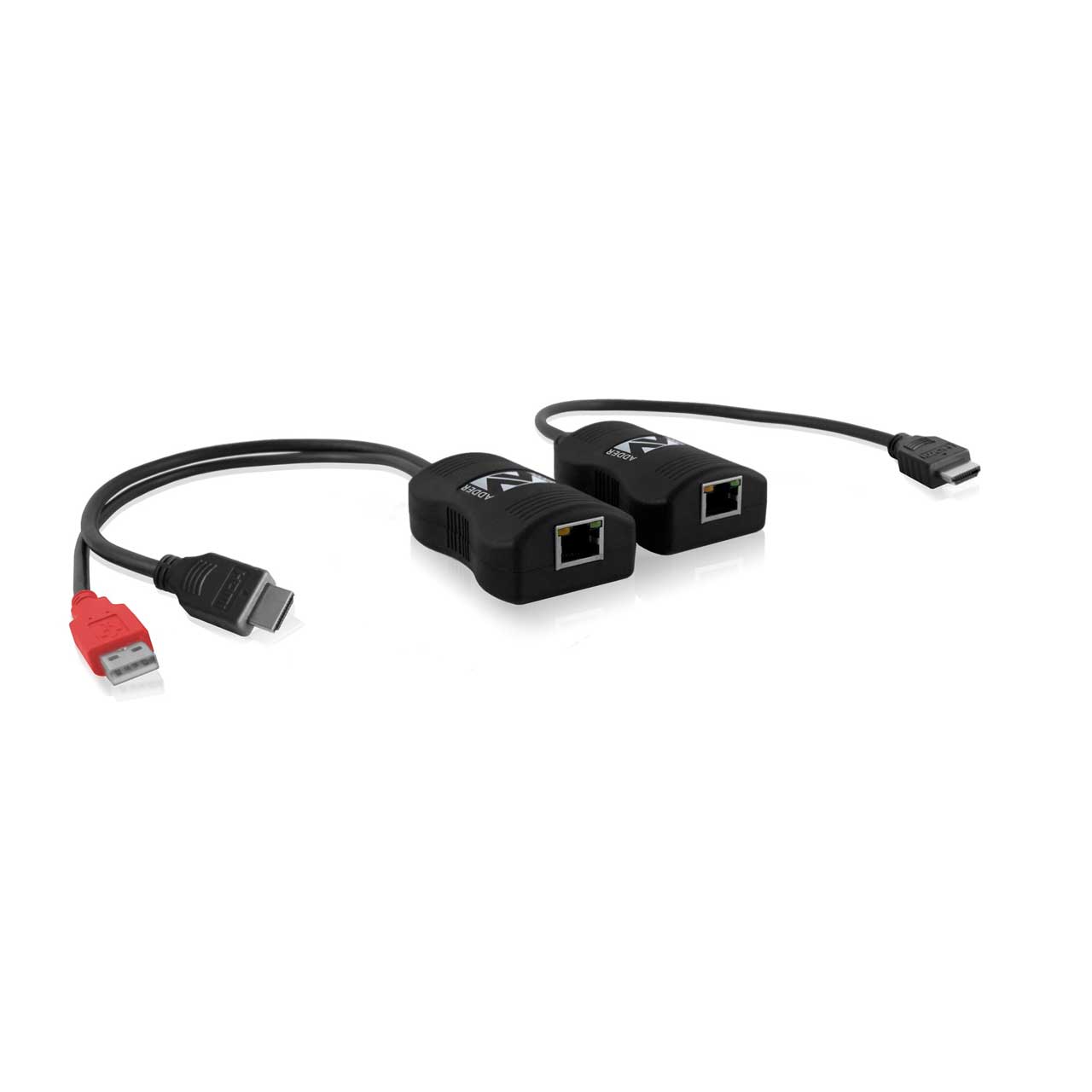

    • ALDV100P package includes: 1 transmitter unit and 1 receiver unit


  • Warranty:

    • 2 Year Limited


  • GTIN:

    0609385498596
