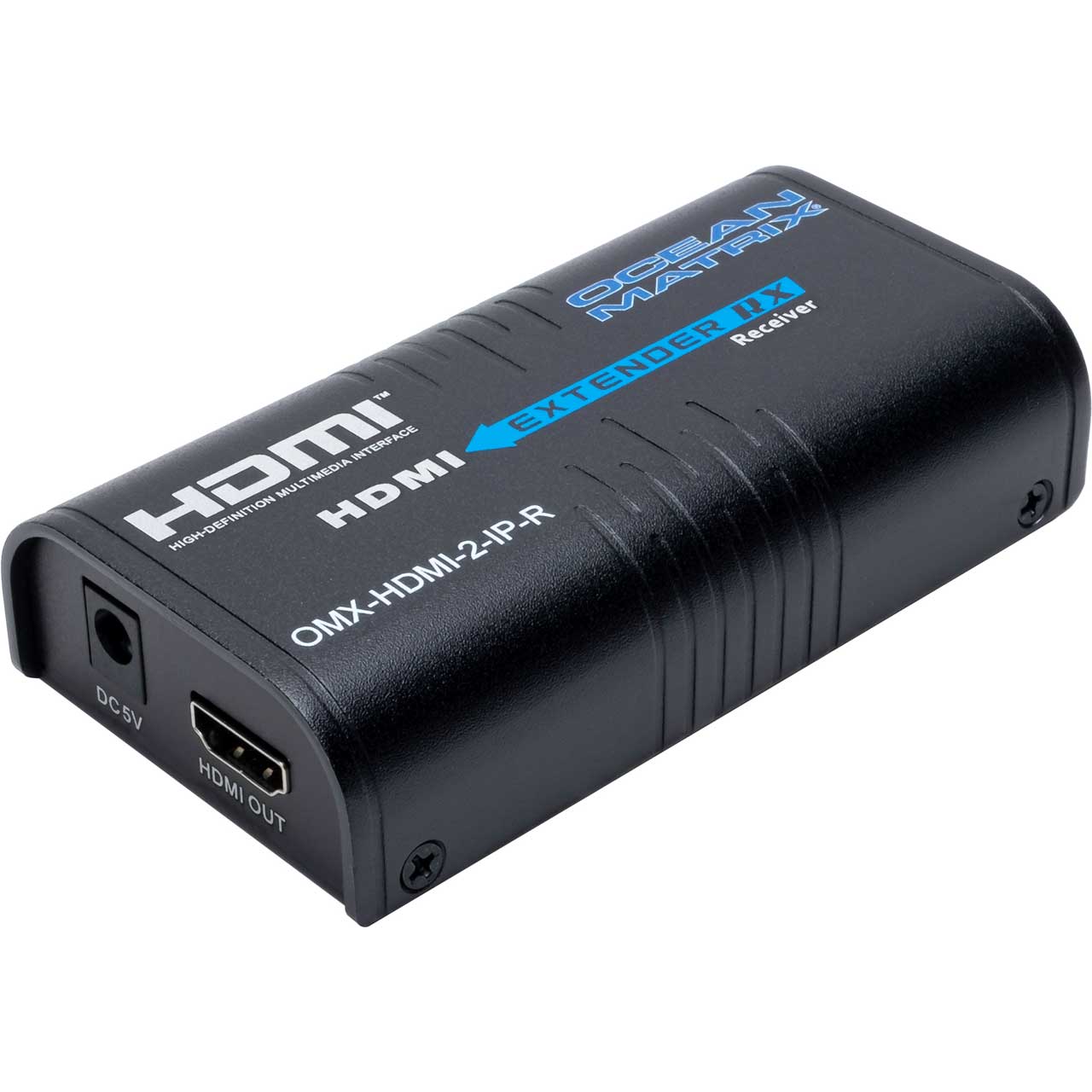

Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Extender / Receiver Only

ITEM #: OMX-HDMI-2-IP-R MFG #: OMX-HDMI-2-IP-R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$79.95

Our Price:

$72.95

Availability: In Stock
iAvailability Description Popup


OMX-HDMI-2-IP-R - Overview

Configure up to 8 transmitter & receiver pairs on the same network!

Please note: This is the Receiver only.

Stream HDMI over your entire network with the Ocean Matrix OMX-HDMI-2-IP HDMI Over IP Converter/Extender. No longer is distance a limitation when sending HDMI. Converts HDMI to standard TCP/IP and transmits the signal over your local area network.

The great advantage of converting HDMI to TCP/IP is that you can now send HDMI over your entire network freeing you of the typical limitations found in send/receive point-to-point systems. The Ocean Matrix OMX-HDMI-2-IP delivers unparalleled performance in PRO-AV projection networks, digital signage systems and educational streaming applications. Now your network is your HDMI network!

The transmitter has a static IP address and can pair with multiple receivers (up to 8). Multiple transmitters and multiple receivers can be paired on the same network.

A VLAN switch is required to operate multiple units (up to 8 transmitter/receiver pairs) with separate IP addresses on the same LAN network.

  • Features:

    • Supports Multiple Receivers (up to 8) from a Single HDMI Extender / Transmitter
    • 36 Bit Deep Color Support
    • May Also be Used as a Standard Point-to-Point (up to 120 meters) Transmit & Receive for On-Location Monitoring & Content Delivery
    • Supports DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD Audio Formats
    • Transmission Rate Supported:10.2Gbps
    • Robust Aluminum Housing

  • Specifications:

    • HDCP Support: HDCP1.2
    • Input HDMI resolution: 480i@60Hz; 480p@60Hz; 576i@50Hz; 576p@50Hz; 720p@50/60Hz; 1080i@50/60Hz; 1080p@50/60Hz;
    • Output HDMI resolution: 480p@60Hz; 576p@50Hz; 720p@50/60Hz; 1080p@50/60Hz
    • Supported Video Color Formats: 24 Bit/Deep color; 30 Bit/Deep color; 36 Bit Deep Color
    • Support audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Max transmission rate: 10.2Gbps
    • Audio signal transmission format: L/R stereo audio
    • TMDS signal: 0.5-1.5Vp-p (TMDS)
    • DDC signal: 5Vp-p(TTL)
    • Input cable length: 5m (AWG26 HDMI1.3 standard cable)
    • Output cable length: 5m (AWG26 HDMI1.3 standard cable)
    • Transmission medium
    • Connector Type: RJ45
    • Twisted Pair Interface: Cat5e/6
    • Transmission distance: Cat6 up to 120m (Cat5e up to 100m)
    • Cabling standards: TIA/EIA568 B
    • Power Supply: 5VDC/1A
    • Power comsumption: <3.6W
    • Dimensions: 4.25"L x 2.25"W x 1.0"H
    • Weight: 0.3 Lbs

  • Item Includes:

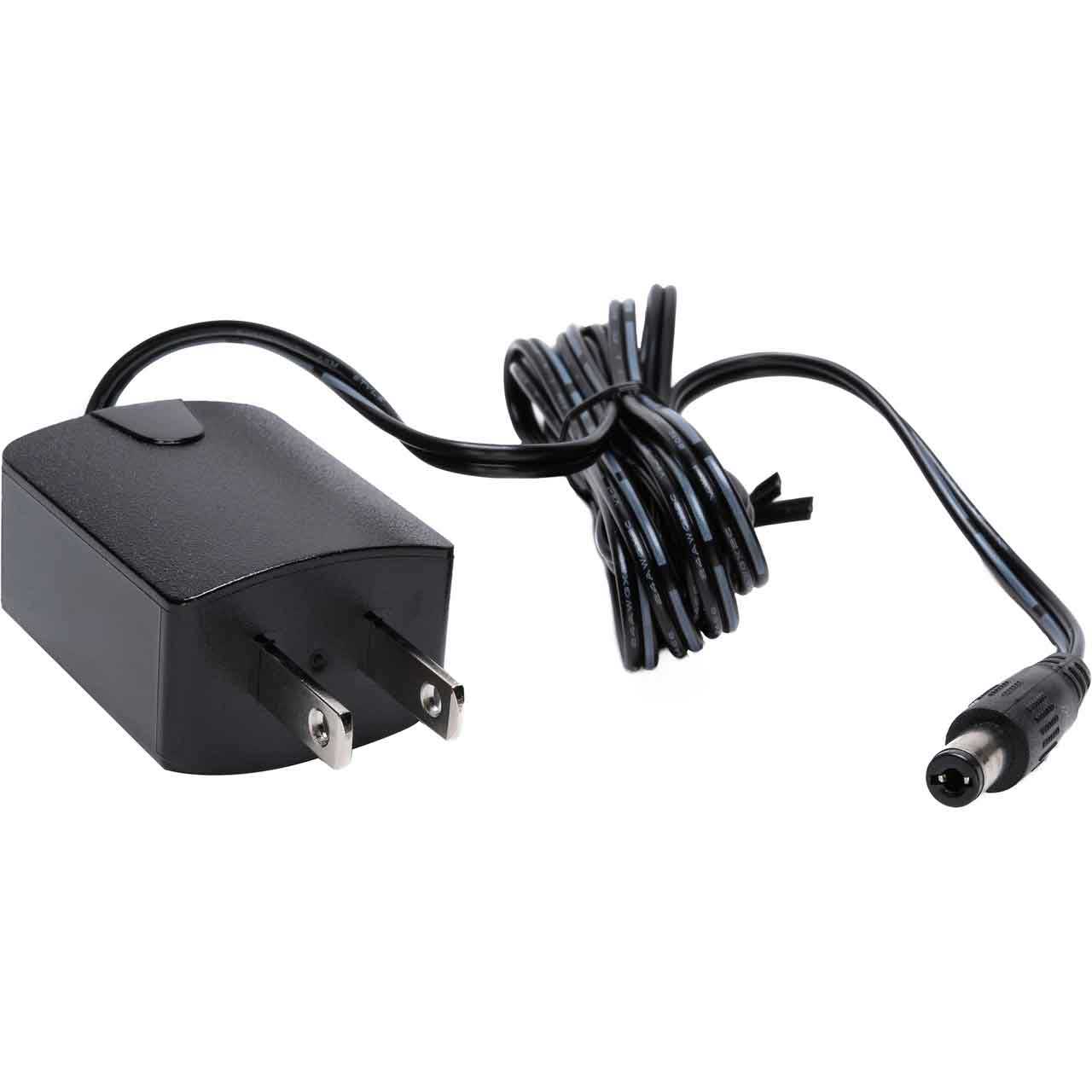

    • Two 5.0V AC/DC Switching Power Supply
