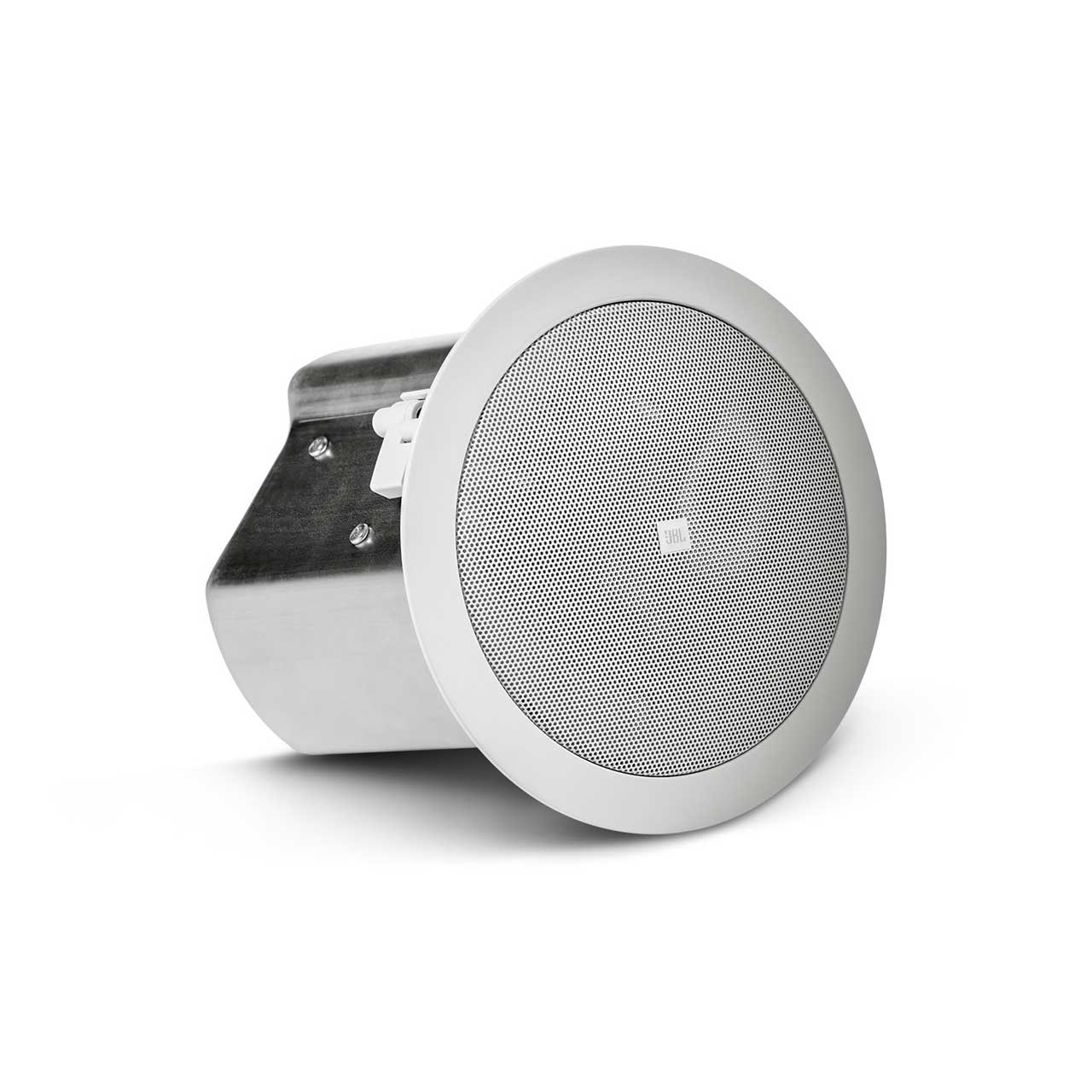

JBL CONTROL 14C/T Compact Ceiling Loudspeaker - White - Pair

CONTROL 14C/T - Overview

• Features:

  • Components:

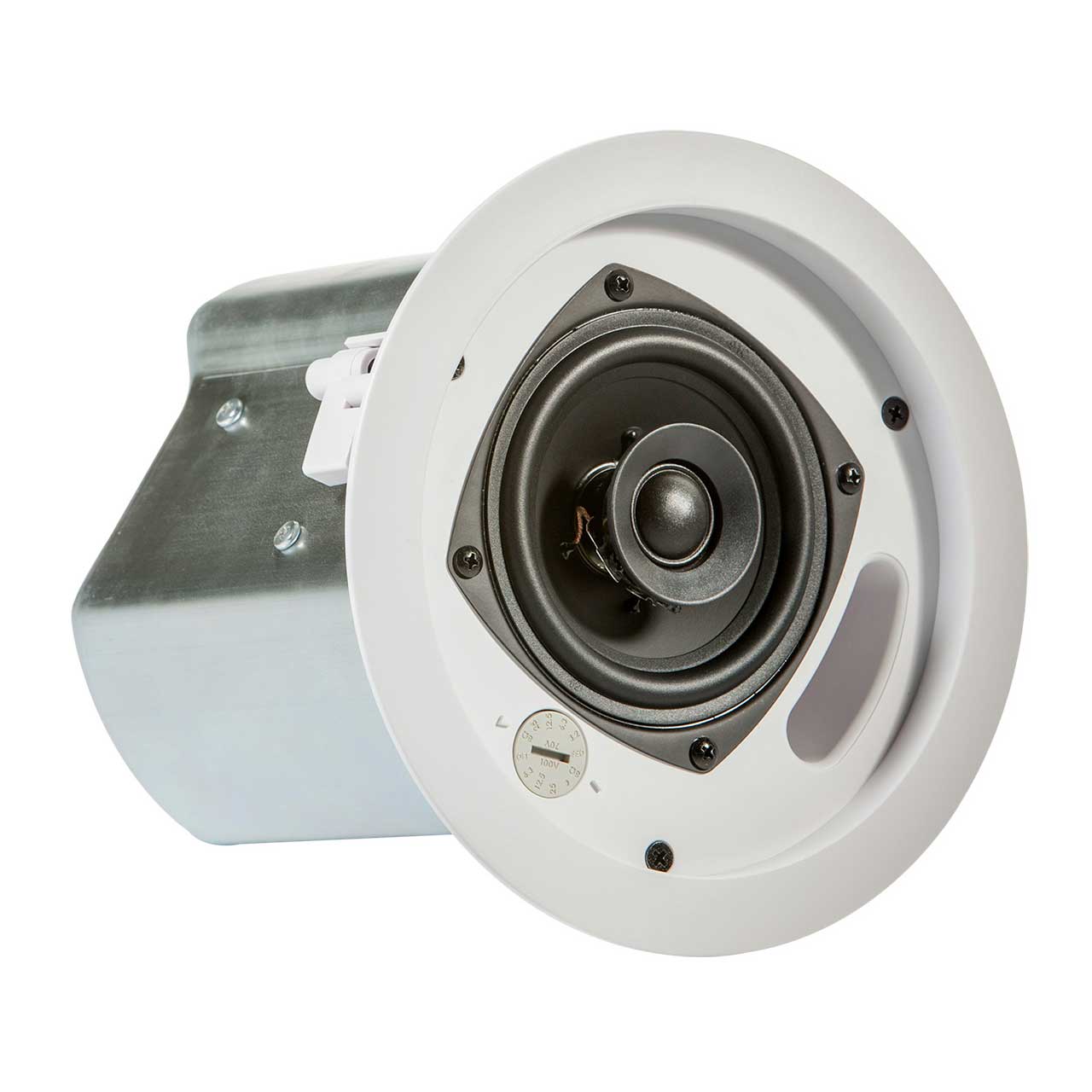

  • 100 mm (4.0 in) high output driver with polypropylene coneand butyl rubber surround
  • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
  • 30 Watts at 8O nominal setting
  • 25W multi-tap at 70V/100V
  • 74 Hz - 20 kHz bandwidth with wide 120° coverage


• Specifications:

  • Frequency Range (-10 dB) 74 Hz - 20 kHz
  • Power Capacity (at low-Z) 60 Watts Continuous Program Power
  • 30 Watts Continuous Pink Noise
  • Transformer Taps 25 W, 12.5 W, 6.3 W @ 70V or 100V
  • (plus 3.2 W @ 70V only)
  • Frequency Response (±3 dB) 100 Hz - 20 kHz
  • Nominal Sensitivity 87 dB
  • Nominal Coverage Angle 120° conical coverage
  • Directivity Factor (Q) 7.6
  • Directivity Index (DI) 8.1 dB
  • Rated Maximum SPL 102 dB @ 1 m (3.3 ft) average, 108 dB peak
  • Nominal Impedance 8 ohms (in direct/bypass 8O setting)
  • Crossover Network 12 dB/oct (2nd order) low-pass to LF driver,
  • 12 dB/oct (2nd order) high-pass to HF driver
  • LF Driver 100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
  • HF Driver 19 mm (3/4 in), highly-damped treated-silk dome, KaptonT voice coil, liquid cooling, wide dispersion waveguide

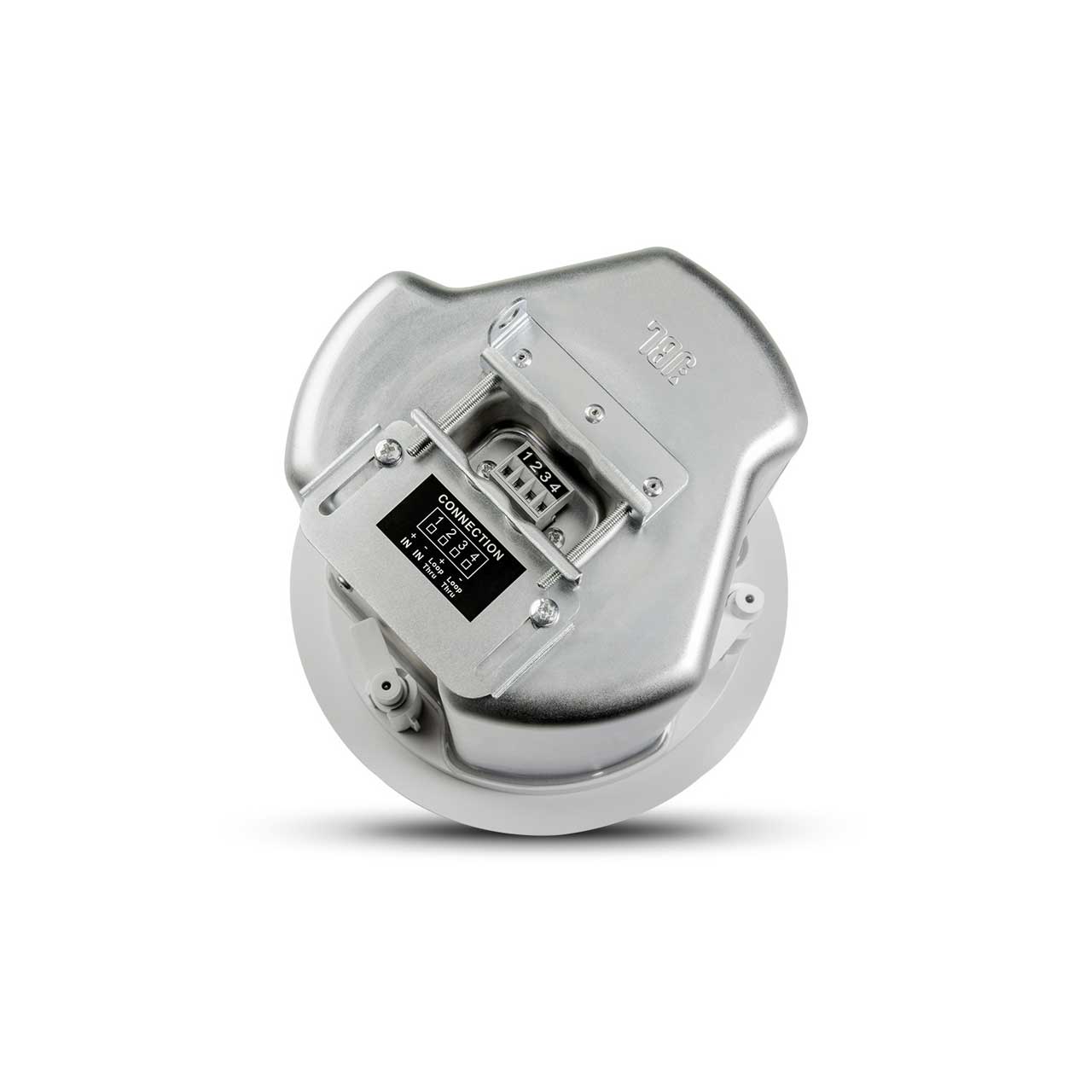

  • Input Connector Removable locking 4-pin connector with screw-down terminals.
  • Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
  • Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated
  • steel backcan
  • Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Dimensions 196 mm diameter x 181 mm depth from back of baffle
  • (7.7 in diameter x 7.1 in depth)
  • Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout
  • template included)
  • Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
  • Safety Seismic Attachment One point, top surface
  • Net Weight 2.2 kg (4.8 lbs, one speaker)
  • Shipping Weight 8.2 kg (17.9 lbs, pair in master carton)
  • Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
  • Optional Accessories MTC-24NC new construction bracket
  • MTC-24MR mud-ring construction bracket
  • MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers)
  • MTC-48TR tile rail for 1200 mm (4 ft) tile spans


• GTIN:

  0050036904551
