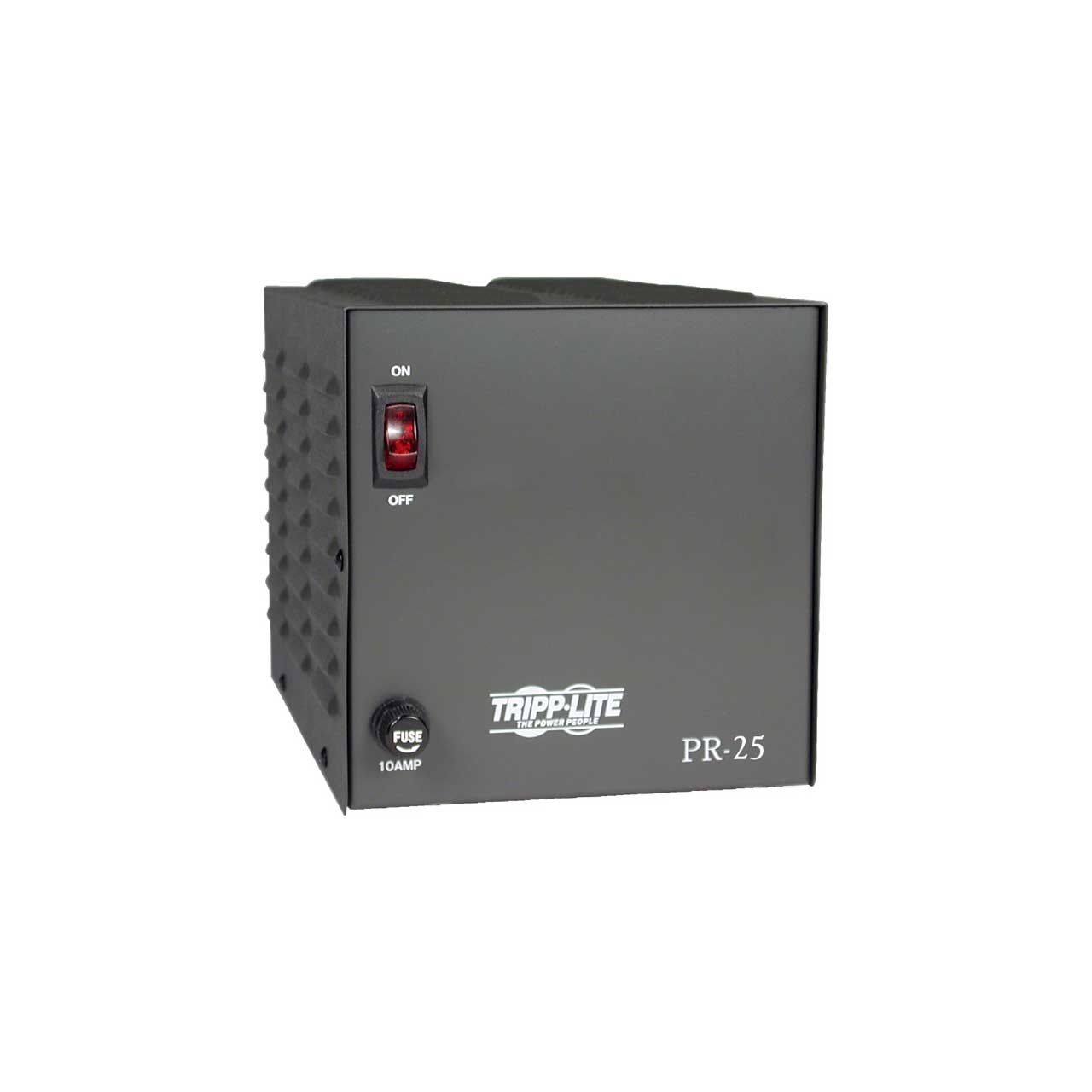

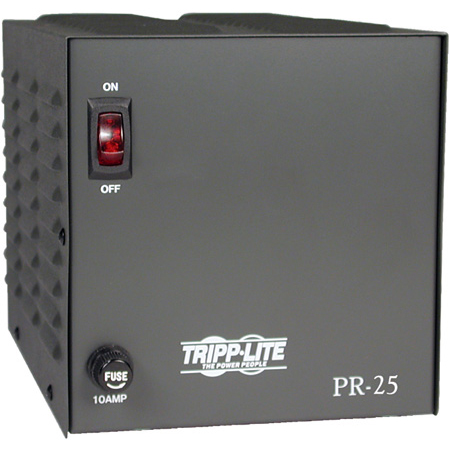

Tripp Lite PR25 TAA-Compliant 25-Amp DC Power Supply 13.8VDC Precision Regulated AC-to-DC Conversion

PR25 - Overview

• Features:

  • Smaller footprint maximizes operating space
  • Crowbar overvoltage protection prevents damage to connected equipment due to overvoltages
  • Automatic time-controlled overcurrent protection in case of overload
  • Solid state, integrated circuit maintains excellent regulation of output voltage
  • Regulated output voltage maintains up to 95% of no load value
  • High quality filtering creates very low ripple/low noise operation
  • Heavy-duty power transformer provides complete isolation from noise on incoming AC power
  • Large heat sinks and vented cabinets supply cool operation for continuous use and long life of the unit
  • Illuminated on/off switch
  • Connectors: Hardwire terminals / Red positive (+), Black negative (-)
  • Working Temperature Range: 32° F to 104° F, 0 to 95% humidity, non-condensing
  • Storage Temperature Range: 5° F to 122° F
  • LED Indicators: Red LED indicates that DC output is being provided
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


• Specifications:

  • Intermittent (Peak) Amps: 25
  • Unit Dimensions (hwd / in.): 6.75 x 6.25 x 10.25
  • Unit Dimensions (hwd / cm): 17.15 x 15.88 x 26.04
  • Unit Weight (lbs.): 19
  • Unit Weight (kg): 8.62
  • Product Warranty Period (Worldwide): 1-year limited warranty


• Item Includes:

  • PR25


• Warranty:

  • 1 Year


• GTIN:

  0037332060037
