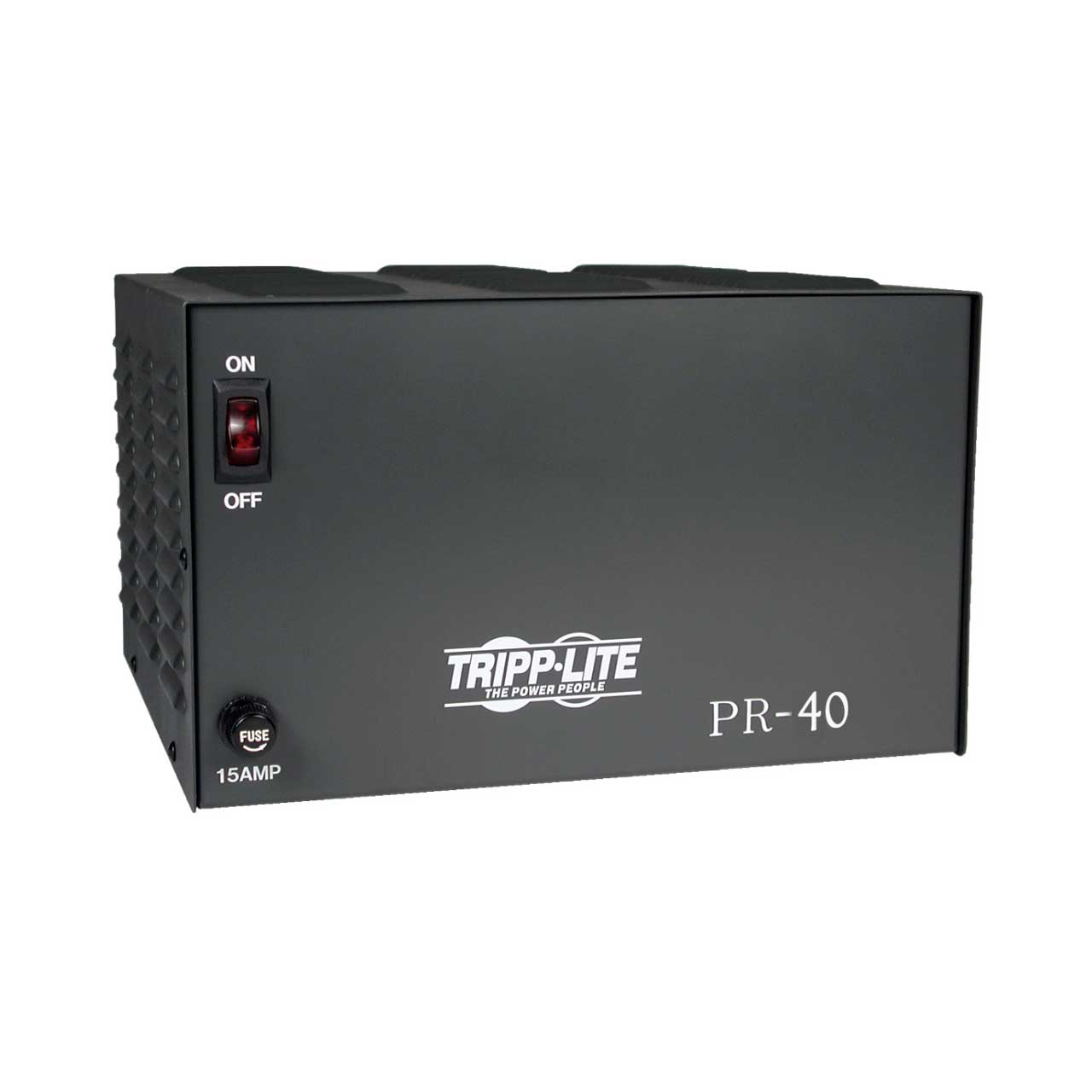

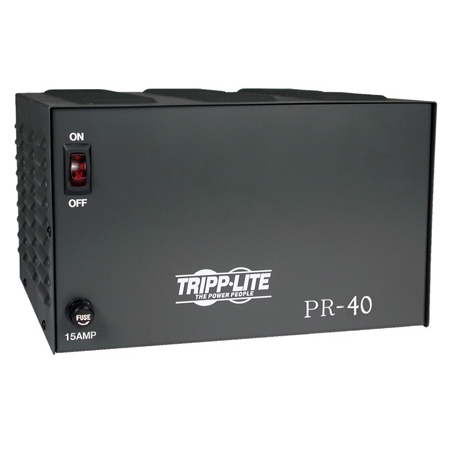

Tripp Lite PR40 DC Power Supply 40A 120V AC Input to 13.8 DC Output TAA GSA

ITEM #: TRL-PR40 MFG #: PR40

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$438.68

Our Price:

$316.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PR40 - Overview

The Tripp Lite PR40 is a space-saving power supply that provides precise DC power from an AC source. It efficiently converts 120 volts AC into 13.8 volts DC. It has a high power density that makes it perfect for a range of applications, like 150/200 watt transmitters, aquariums, VHF/UHF ham radios, commercial/land-mobile radios, point-of-sale displays, low power linear amplifiers, and test bench equipment.

  • Features:

    • Smaller footprint maximizes operating space
    • Crowbar overvoltage protection prevents damage to connected equipment due to overvoltages
    • Current-limiting electronic foldback enables time-controlled automatic overcurrent protection in case of overload
    • Solid state, integrated circuit maintains excellent regulation of output voltage
    • Regulated output voltage maintains up to 95% of no load value
    • High quality filtering creates very low ripple/low noise operation
    • Heavy-duty power transformer provides complete isolation from noise on incoming AC power
    • Large heat sinks and vented cabinets supply cool operation for continuous use and long life of the unit
    • Illuminated on/off switch
    • Connectors: Hardwire terminals/Red positive (+), Black negative (-)
    • LED Indicators: Red LED indicates that DC output is being provided
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

  • Specifications:

    • Intermittent (Peak) Output Amps: 40A
    • Working Temperature Range: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature Range: 5°F - 122°F (-15°C - 50°C)
    • Humidity: 0% - 95% humidity, non-condensing
    • Shipping Dimensions (HxWxD): 7.20" x 11.20" x 15.90"
    • Shipping Weight: 27.60lbs

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0037332060075
