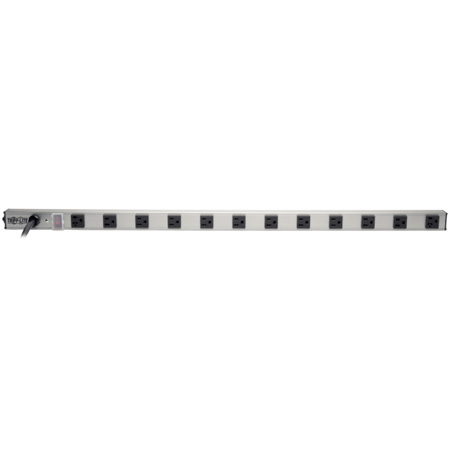

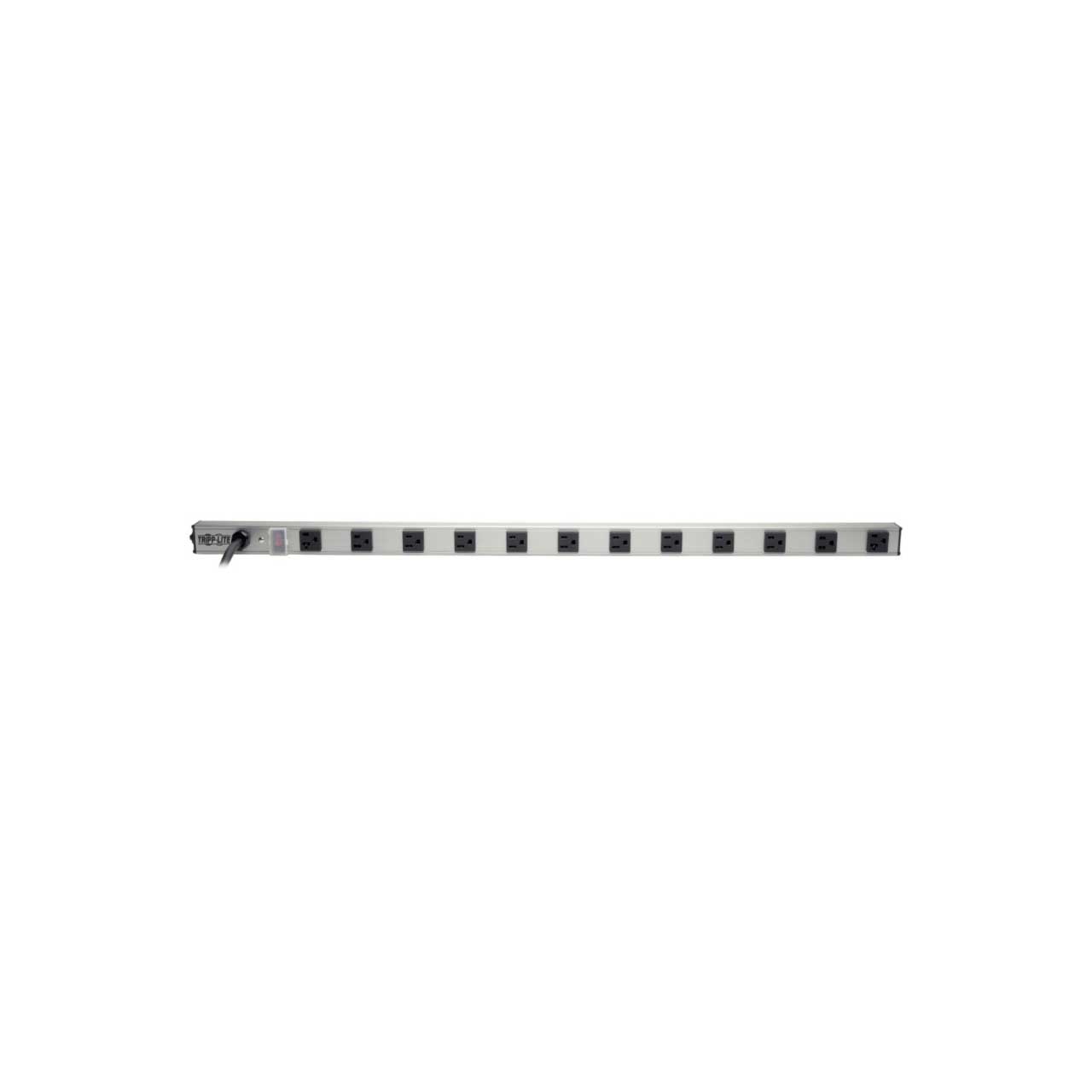

Tripp Lite PS361220 12-Outlet (10-15A & 2-20A) Vertical Power Strip 120V 20A 15 Foot Cord 5-20P 36 Inch

ITEM #: TRL-PS361220 MFG #: PS361220

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$139.00

Our Price:

$101.29

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PS361220 - Overview

Need to power many pieces of equipment in close proximity to one another but don't have enough outlets to power them all? Tripp Lite's PS361220 12-outlet vertical power strip will give you the outlets where you need them, when you need them. The PS361220 contains a 15-ft. (14/3 SJT) cord, 10 standard NEMA 5-15R and 2 commercial-use NEMA 5-20R outlets. Each outlet is spaced 2.64-in. apart (center-to-center) - wide enough for many types of transformers or AC adapters without blocking adjacent outlets. Encased in a rugged, all-metal housing, it comes with mounting clips for either vertical and horizontal mounting, making the PS361220 ideal for a variety of uses in rack-mount, workbench, industrial, office and telecom environments. An illuminated, rocker-style, power switch with a transparent guard prevents accidental turn-offs, while a 20-amp circuit breaker guards against dangerous circuit overloads. To match the decor of most professional settings, it has an extruded aluminum housing with black receptacles.

  • Features:

    • 12-outlet (ten 5-15R & two 5-20R) power strip with a 15-ft. Cord and an industrial-grade 5-20P plug
    • Rated at 1800W, 120V, featuring a 20A resettable circuit breaker to prevent circuit overloads
    • Easy-to-install, vertical or horizontal mounting with included mounting clips
    • Rocker-style, illuminated power switch with safety cover to prevent accidental turn offs
    • RoHS-compliant and certified to meet UL 1363 standards
    • This product is covered by a Lifetime Limited Warranty

  • Specifications:

    • Input
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 20A 120V
    • Input Cord Gauge Type: 12 gauge; SJT
    • Voltage Compatibility (VAC): 120

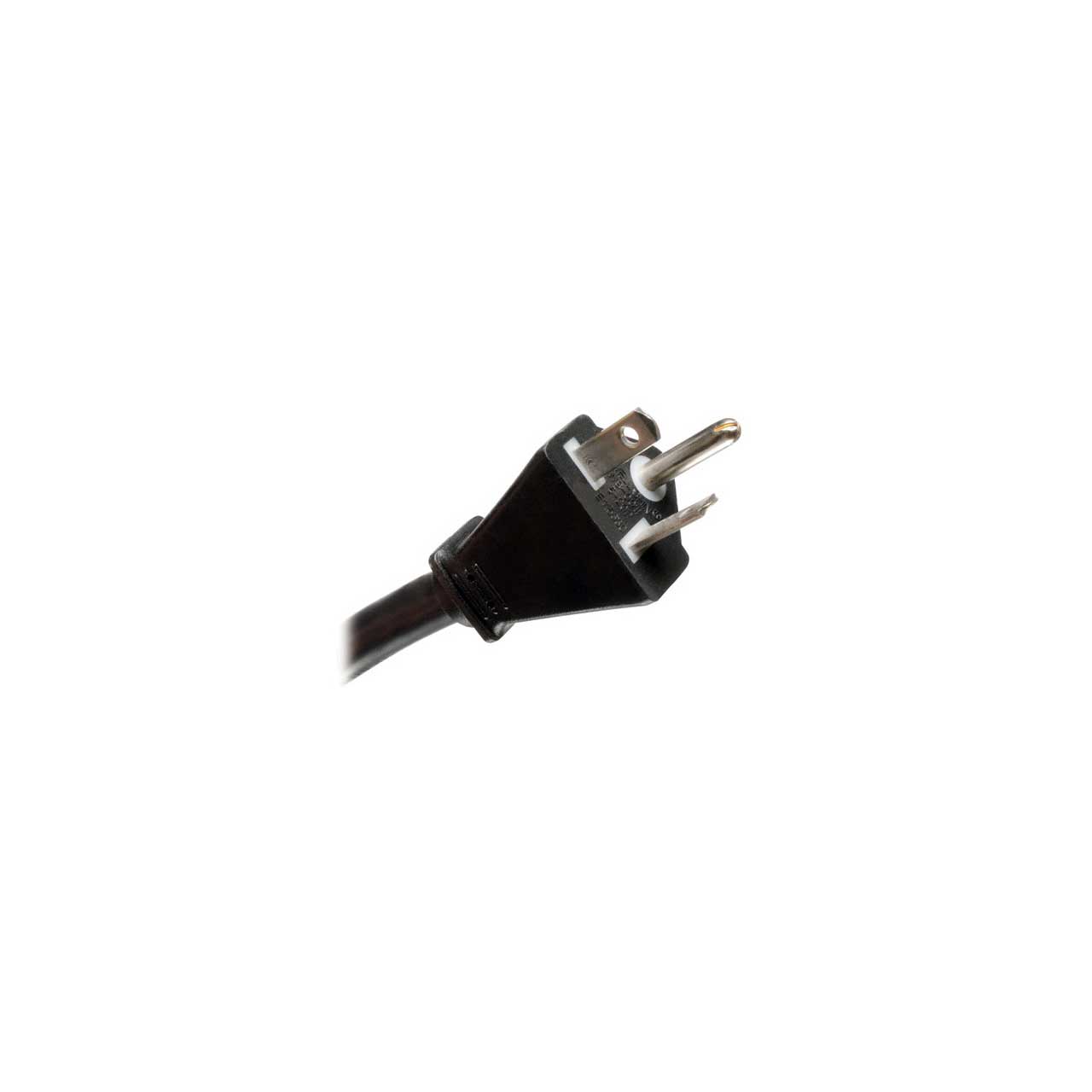

    • Input Plug Type: NEMA 5-20P
    • Input Cord Length (ft.): 15
    • Integrated Cord Clip: No

      Output
    • Frequency Compatibility: 60 Hz
    • Output (Watts): 1800
    • Output Receptacles: (10) 5-15R; (2) 5-20R
    • Circuit Breaker (amps): 20
    • Transformer Accommodation: (6) Yes
    • Right-Angle Outlets: No
    • Outlet Spacing: 2.64 in.

      User Interface, Alerts & Controls
    • Switches: Lighted 2 position switch controls power to all outlets
    • Locking Switch Cover: Transparent on/off switch cover prevents accidental turn-off

      Physical
    • Anti-Microbial Protective Coating: No
    • Color: Silver
    • Color (AC Line Cord): Black
    • Form Factors Supported: Supports vertical or horizontal mounting in rack enclosures, raceways and a variety of other applications

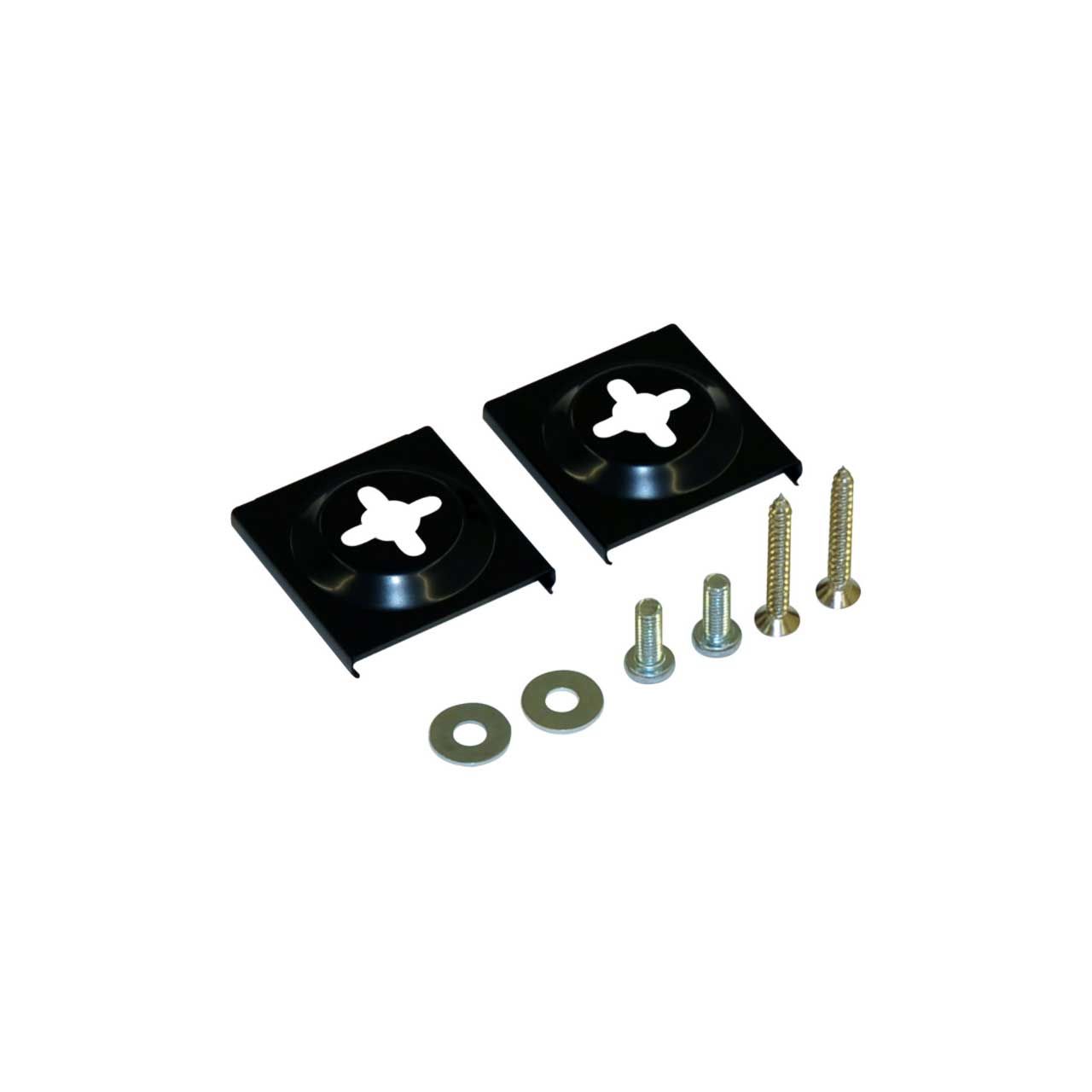

    • Included Mounting Accessories: Includes mounting clips
    • Integrated Keyhole Mounting Slots: No
    • Material of Construction: Aluminum
    • Outlets Measurement (Center to Center): 2.64"
    • Receptacle Color: Black
    • Shipping Dimensions (hwd / in.): 2.40 x 4.40 x 40.00
    • Shipping Weight (lbs.): 4.50
    • Unit Dimensions (hwd / in.): 36 x 1.5 x 1.25
    • Unit Weight (lbs.): 3.79

  • Item Includes:

    • 1x PS361220
    • 1x Mounting hardware
    • 1x Instruction manual

  • Warranty:

    • Lifetime

  • GTIN:

    0037332186638
