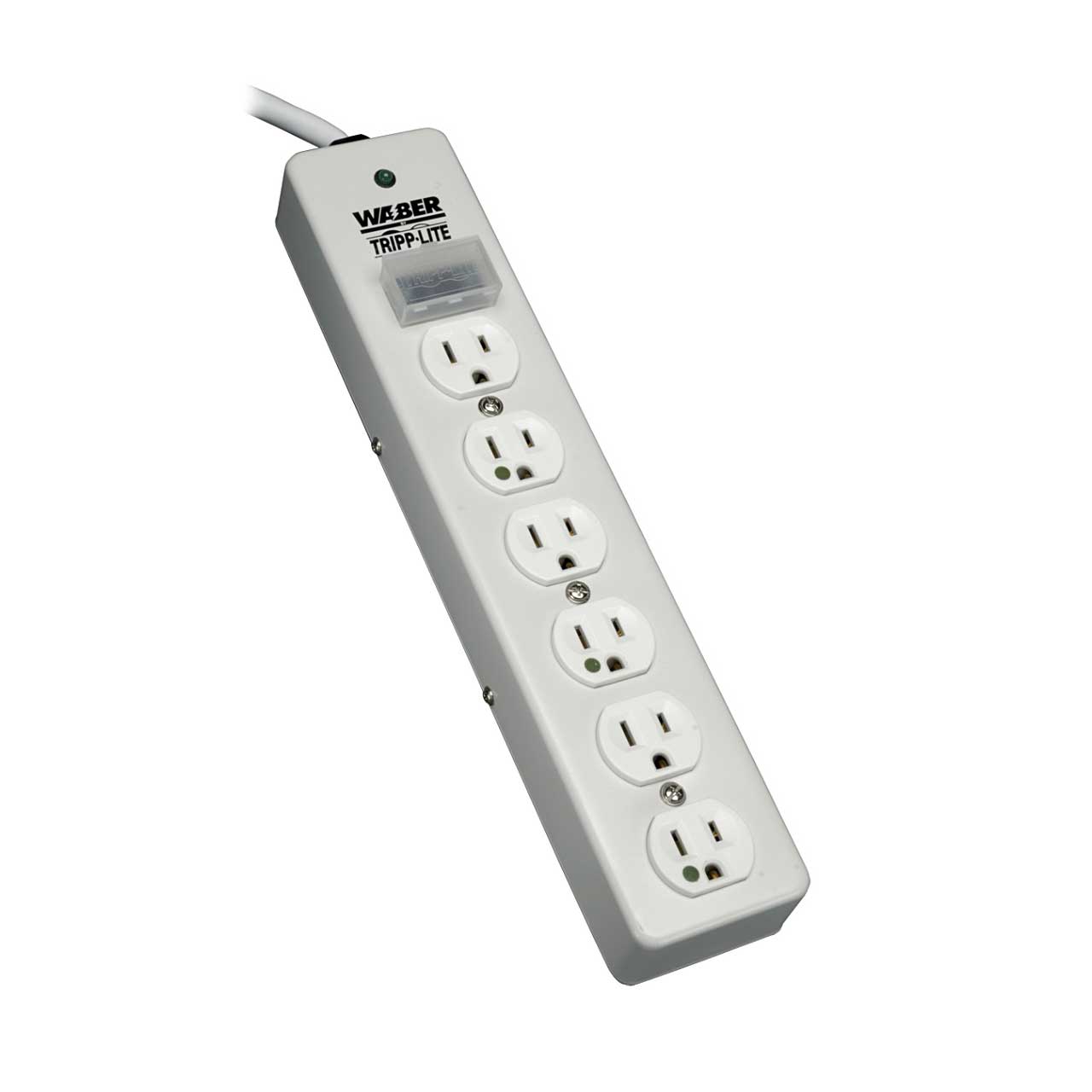

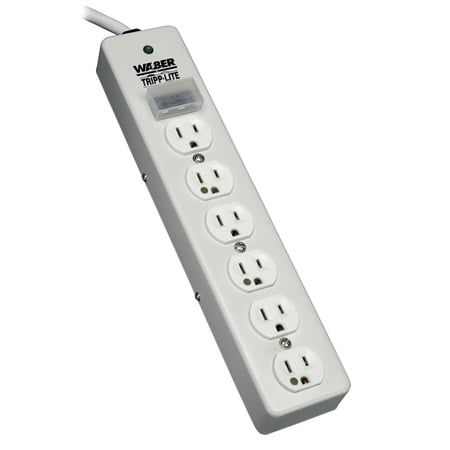

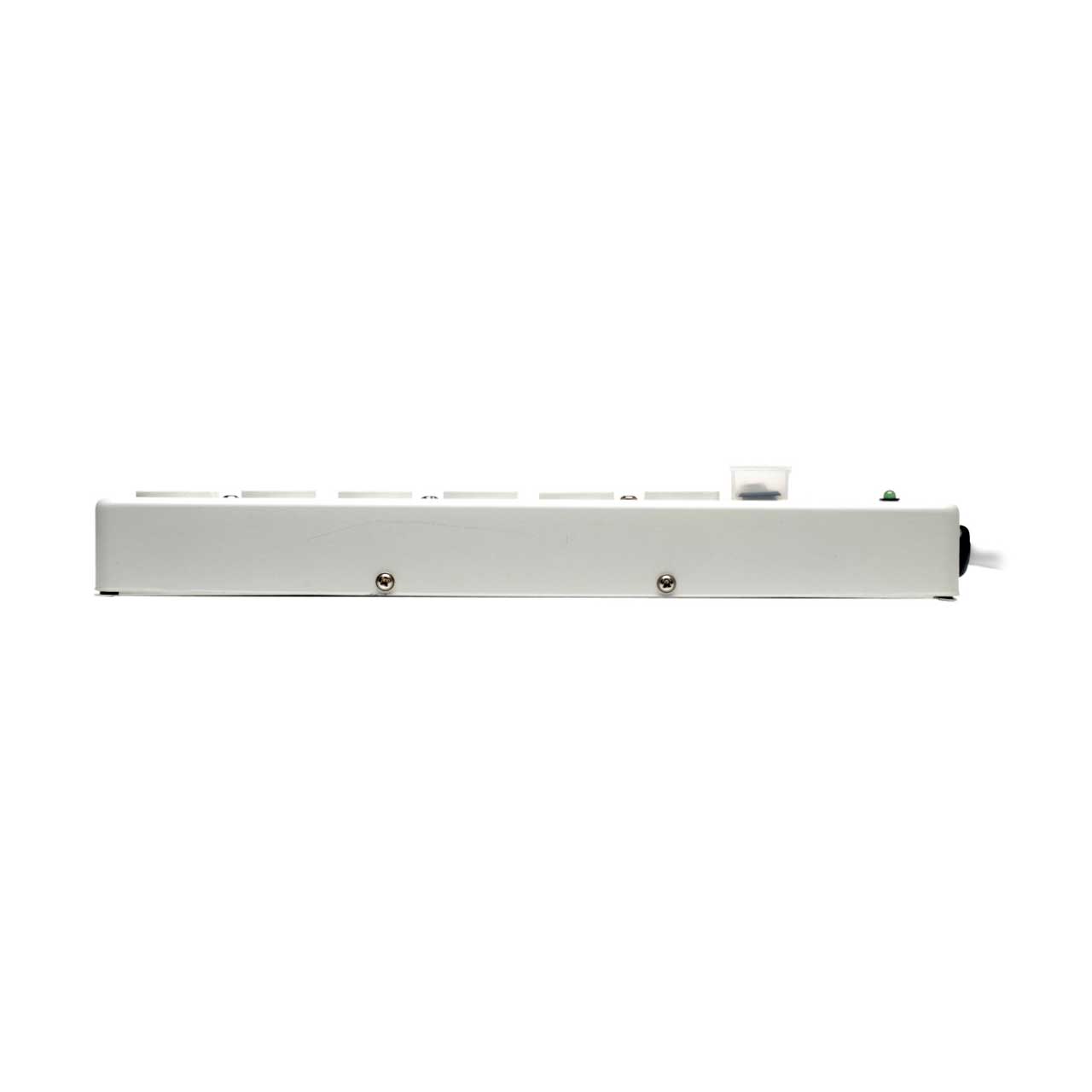

Tripp Lite SPS610HGRA Surge Protector Strip Medical RT Angle Plug 6 Outlet 10ft Cord

SPS610HGRA - Overview

• Features:

  • 1050-joule AC surge suppression rating
  • Rugged all-metal housing withstands years of use without loss of ground path continuity
  • 6 NEMA5-15R Hospital-Grade AC outlets
  • 10-ft. AC cord with integrated, molded right angle Hospital-Grade NEMA 5-15PHG plug


• Specifications:

  • Style Strip
  • Model Type NOT For Patient Areas
  • Frequency Compatibility 50 / 60 Hz
  • Output Receptacles (6) 5-15R-HG
  • Output (Watts) 1800
  • Circuit Breaker (amps) 15
  • Transformer Accommodation Supports 1 large transformer plug accessories without covering remaining outlets
  • USB Charging No
  • Nominal Input Voltage(s) Supported 120V AC
  • Recommended Electrical Service 120V (110-125V)
  • Input Connection Type NEMA 5-15P-HG Hospital-Grade
  • Input Cord Length (ft.) 10
  • Input Cord Length (m) 4.6
  • Voltage Compatibility (VAC) 120
  • Maximum Surge Amps 19500
  • Diagnostic LEDs LINE POWER PRESENT (green)
  • AC Suppression Joule Rating 1050
  • AC Suppression Response Time < 1 ns
  • Protection Modes Includes full normal mode surge suppression
  • Clamping Voltage (RMS) 140V
  • Telephone/DSL Protection No
  • Cable (Coax) Protection No
  • Network (Ethernet) Protection No
  • Shipping Dimensions (hwd / in.) 2.25 x 15 x 6
  • Shipping Dimensions (hwd / cm) 5.7 x 38.1 x 15.24
  • Shipping Weight (lbs.) 3.5
  • Shipping Weight (kg) 1.59
  • Unit Dimensions (hwd / in.) 1.5 x 13.75 x 2.5
  • Unit Dimensions (hwd / cm) 3.81 x 34.9 x 6.35
  • Unit Weight (lbs.) 3.2
  • Unit Weight (kg) 1.45
  • Material of Construction Metal

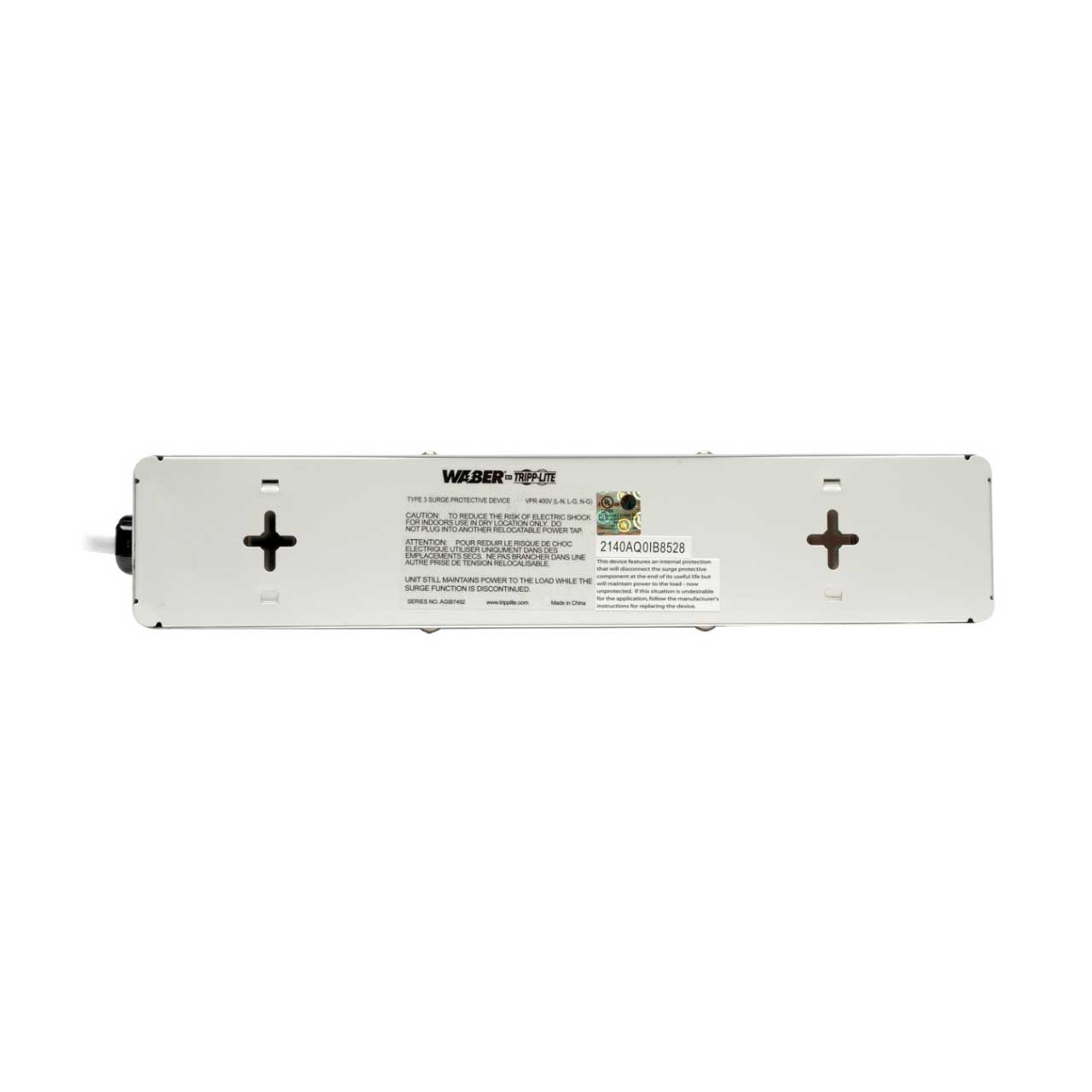

  • Integrated Keyhole Mounting Tabs Includes keyhole mounting tabs and flanges
  • Receptacle Color White
  • Color (AC Line Cord) Gray
  • Right-Angle Plug No
  • UL1449 3rd Edition (AC Suppression) UL1449 3rd Edition (Series Number: AGIB12015SL)
  • UL1363 (Power Tap) UL1363 (Series Number: AGIB12015SL)
  • cUL / CSA (Canada) cUL (Series Number: AGIB12015SL)
  • Product Warranty Period (Worldwide) Lifetime limited warranty


• GTIN:

  0037332167071
