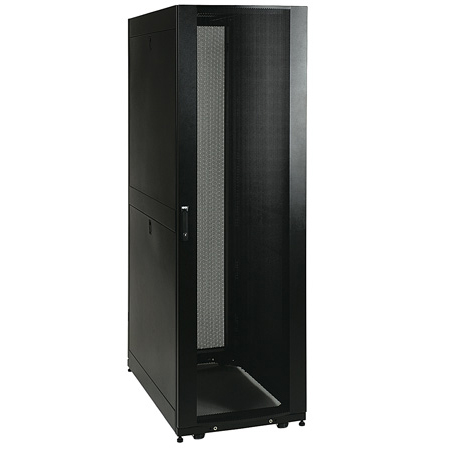

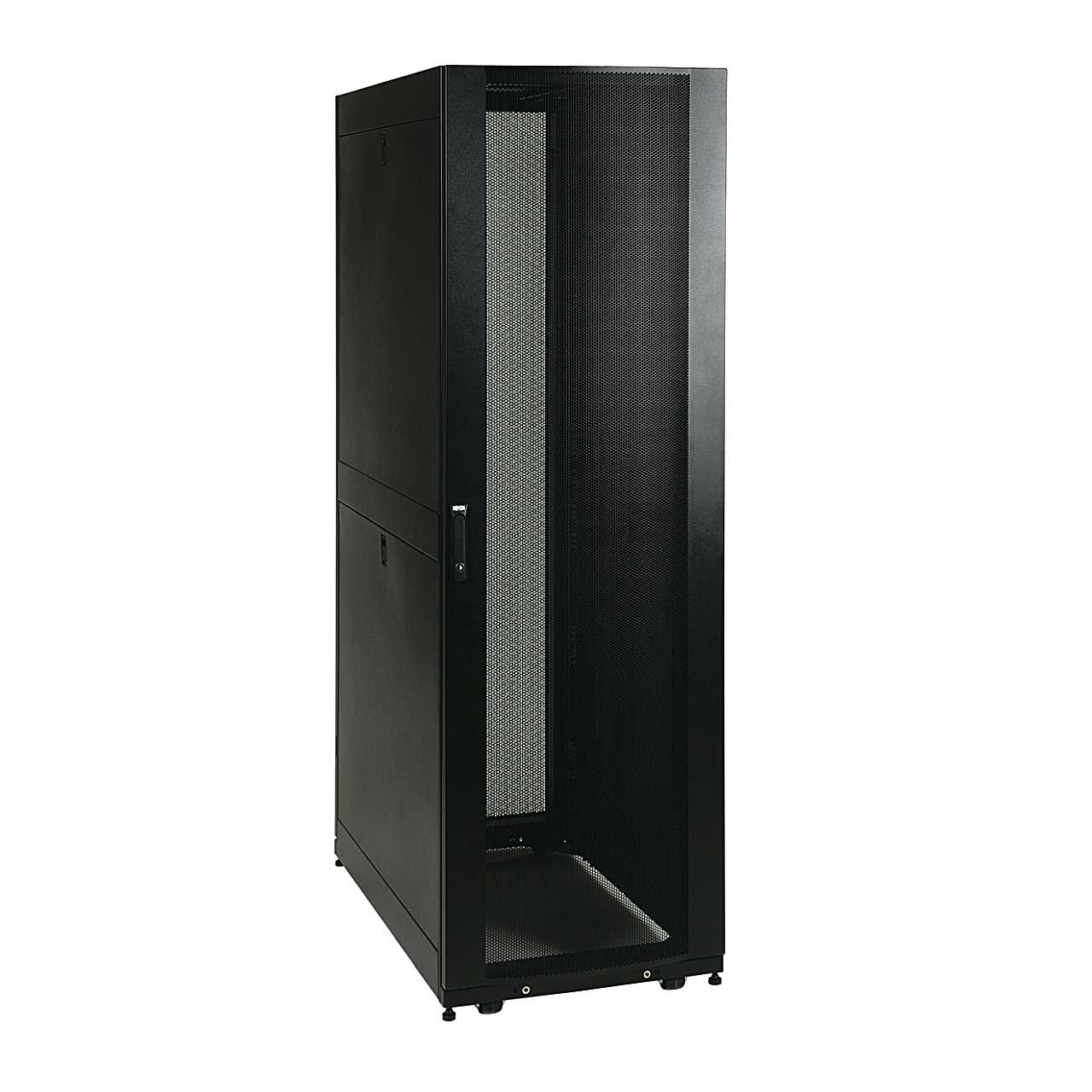

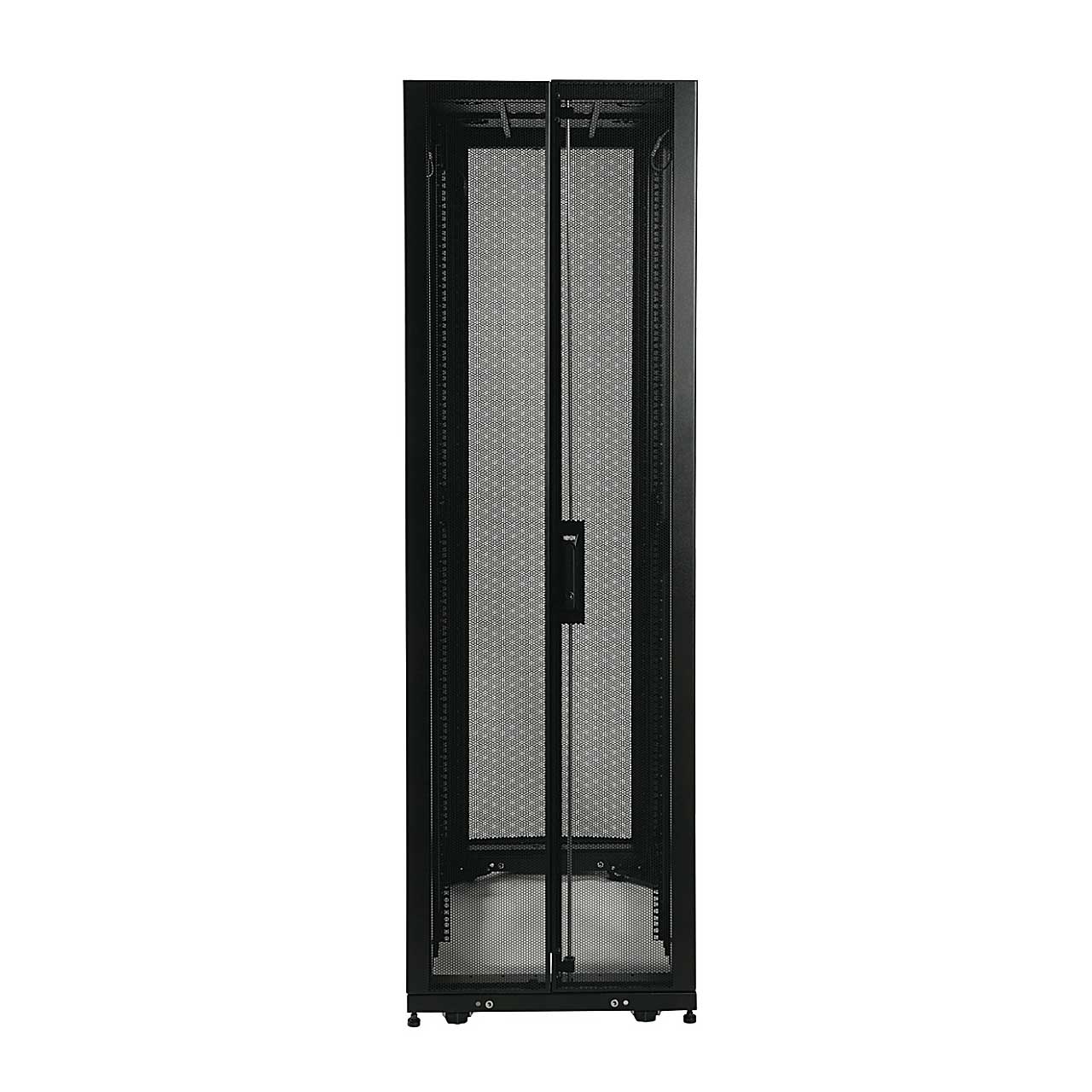

Tripp Lite SR48UBSP1 SmartRack 48U Rack Enclosure on Shock Pallet w/ 3000LB Load Capacity

ITEM #: TRL-SR48UBSP1 MFG #: SR48UBSP1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,216.10

Our Price:

$1,890.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SR48UBSP1 - Overview

48U SmartRack Enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation.SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Designed with provisions to integrate cooling, power distribution and cable management, SmartRack enclosures make ideal homes for mission-critical equipment. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-D compliant 19" equipment. Enclosures ship fully assembled for rapid deployment and roll into place on heavy-duty casters. Toolless mounting slots allow quick installation of PDUs and vertical cable managers. Adjustable mounting rails include an easy-view depth index to eliminate time-consuming measurements. Lightweight modular doors and side panels provide safe, convenient service access. Integrated baying tabs facilitate combining enclosures in rows for standard data center baying applications. SmartRack enclosures hold up to 3000 lbs and support cooling, cable management, power distribution and monitoring features that keep critical servers and network equipment operating nonstop. Perforated doors permit massive front to rear airflow that exceeds servers manufacturer requirements. Enclosures are fully compatible with hot-aisle / cold-aisle data center configurations.

  • Features:

    • This special version of Tripp Lite's 48U SmartRack Enclosure ships mounted on a "shock pallet" that features additional reinforcement and shock-absorbing material for safe loading and re-shipping
    • Heavy-duty ramps (included) allow enclosure to be rolled on and off the pallet during configuration
    • Shipping Capacity: shock-pallet supports up to 1,250 lbs. (281 lbs. SmartRack Enclosure weight + up to 969 lbs. of additional equipment), enabling safe loading and re-shipping
    • Final Installation Capacity: SmartRack Enclosure supports up to 3,000 lbs. of equipment stationary and 2,250 lbs rolling.

  • Specifications:

    • Style Floor Standing
    • Installed Whole System Maximum Rack Depth (in.) 37
    • Installed Whole System Maximum Rack Depth (cm) 94
    • Installed Whole System Minimum Rack Depth (in.) 4
    • Installed Whole System Minimum Rack Depth (cm) 10.16
    • Rack Height (U Spaces) 48
    • Shipping Dimensions (hwd / in.) 95 x 26 x 45
    • Shipping Weight (lbs.) 397
    • Unit Dimensions (hwd / in.) 89 x 29.53 x 43
    • Unit Weight (lbs.) 343
    • Color Black
    • Factory Preset Rack Depth (in.) 27.75
    • Factory Preset Rack Depth (cm) 70.49
    • Hinged (Swings Away from Wall Bracket) No
    • Grounding Lug Front and Back door frames
    • Certifications UL60950; RoHS; CE
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals EIA/ECA-310-A; IEC 60297-3-100; DIN 41494
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332143174


SR48UBSP1 - Required Accessories
