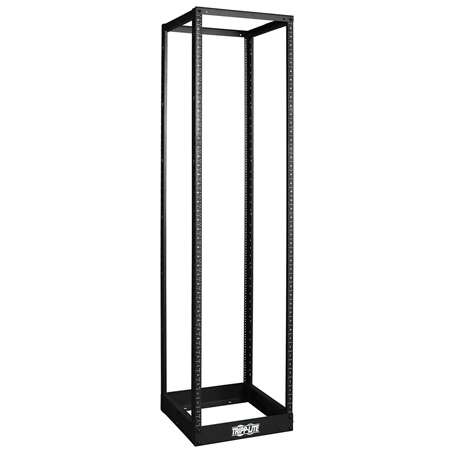

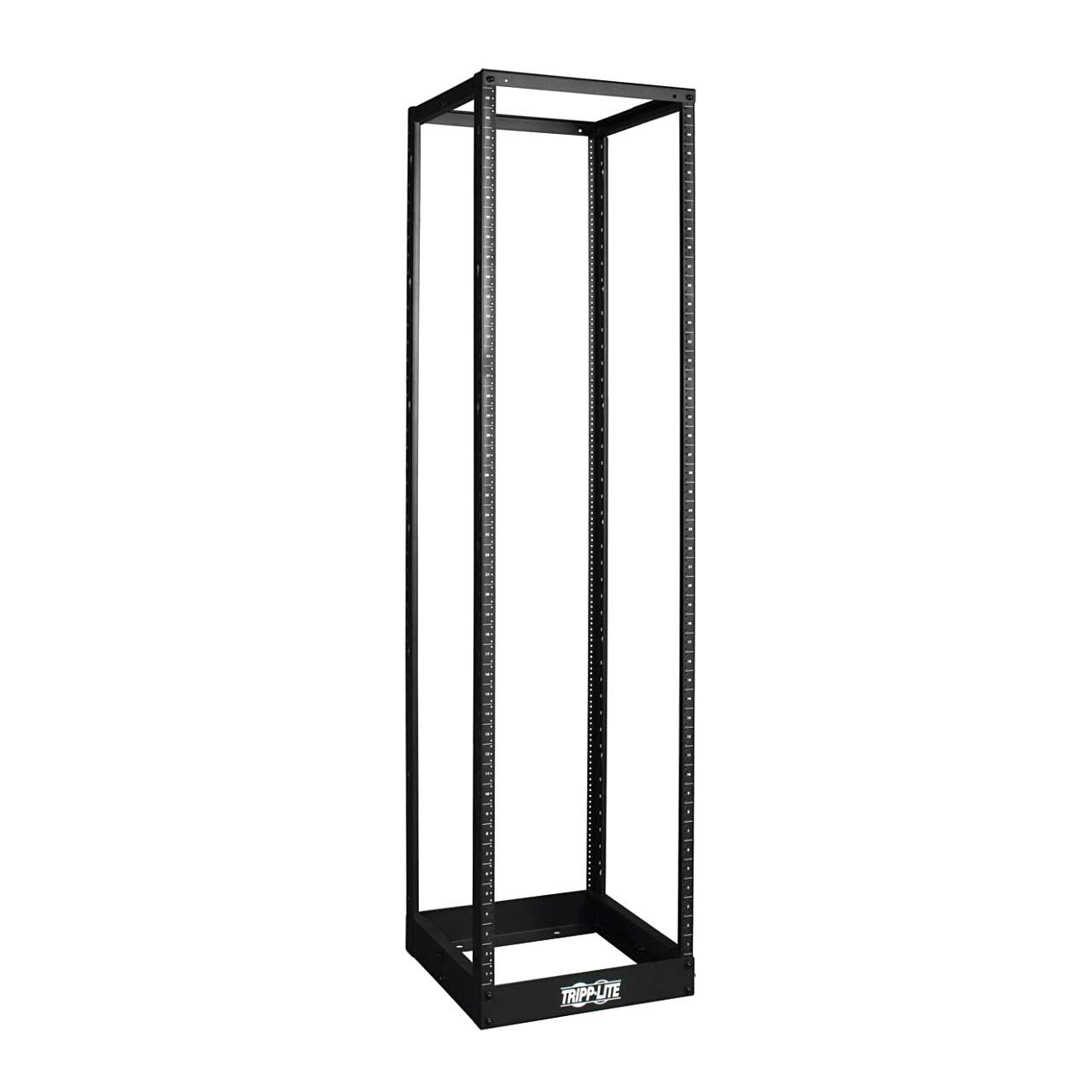

Tripp Lite SR4POST1224 45U 4-Post Open Frame Rack Cabinet Threaded 12-24 Mounted Holes

SR4POST1224 - Overview

• Features:

  • Supports 1000lbs of rackmount equipment
  • Adjustable mounting depth (22 to 39 inches)
  • Textured powder coat finish
  • Heavy-duty cold-rolled steel construction


• Specifications:

  • Style 4-Post
  • Installed Whole System Maximum Rack Depth (in.) 39
  • Installed Whole System Maximum Rack Depth (cm) 99.06
  • Installed Whole System Minimum Rack Depth (in.) 22
  • Installed Whole System Minimum Rack Depth (cm) 55.88
  • Rack Height (U Spaces) 45
  • Shipping Dimensions (hwd / in.) 85 x 6 x 4
  • Shipping Dimensions (hwd / cm) 215.9 x 15.24 x 10.16
  • Shipping Weight (lbs.) 70
  • Shipping Weight (kg) 31.5
  • Unit Dimensions (hwd / in.) 84.3 x 20.3 x 22-39.4
  • Unit Weight (lbs.) 69
  • Unit Weight (kg) 31.29
  • Unit Dimensions (cm) 214.12 x 51.56 x 55.9~100.1 (depth adjustable)
  • Color Black
  • Weight Capacity - Stationary (lbs.) 1000
  • Weight Capacity - Stationary (kg) 453.6
  • Hinged (Swings Away from Wall Bracket) No
  • Grounding Lug Includes a set of screws, bolts, and washers to secure a user-supplied grounding wire to Front and Back frames
  • NOM (Mexico) Tested to NOM (Mexico)
  • Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
  • Product Warranty Period (Worldwide) 5-year limited warranty


• GTIN:

  0037332159830
