Tripp Lite 12U Low-Profile Wall-Mount Rack Enclosure Cabinet Removable Side Panels 25H x 24W x 18D

ITEM #: TRL-SRW12U MFG #: SRW12U

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$534.40

Our Price:

$346.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SRW12U - Overview

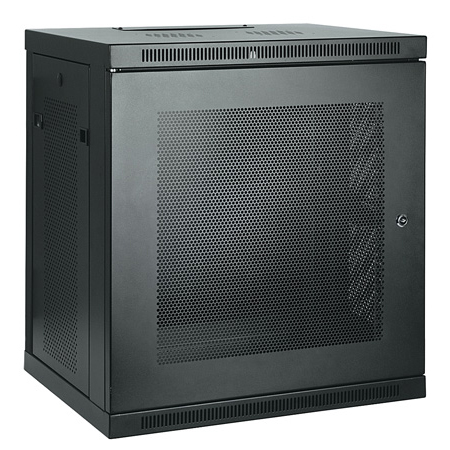

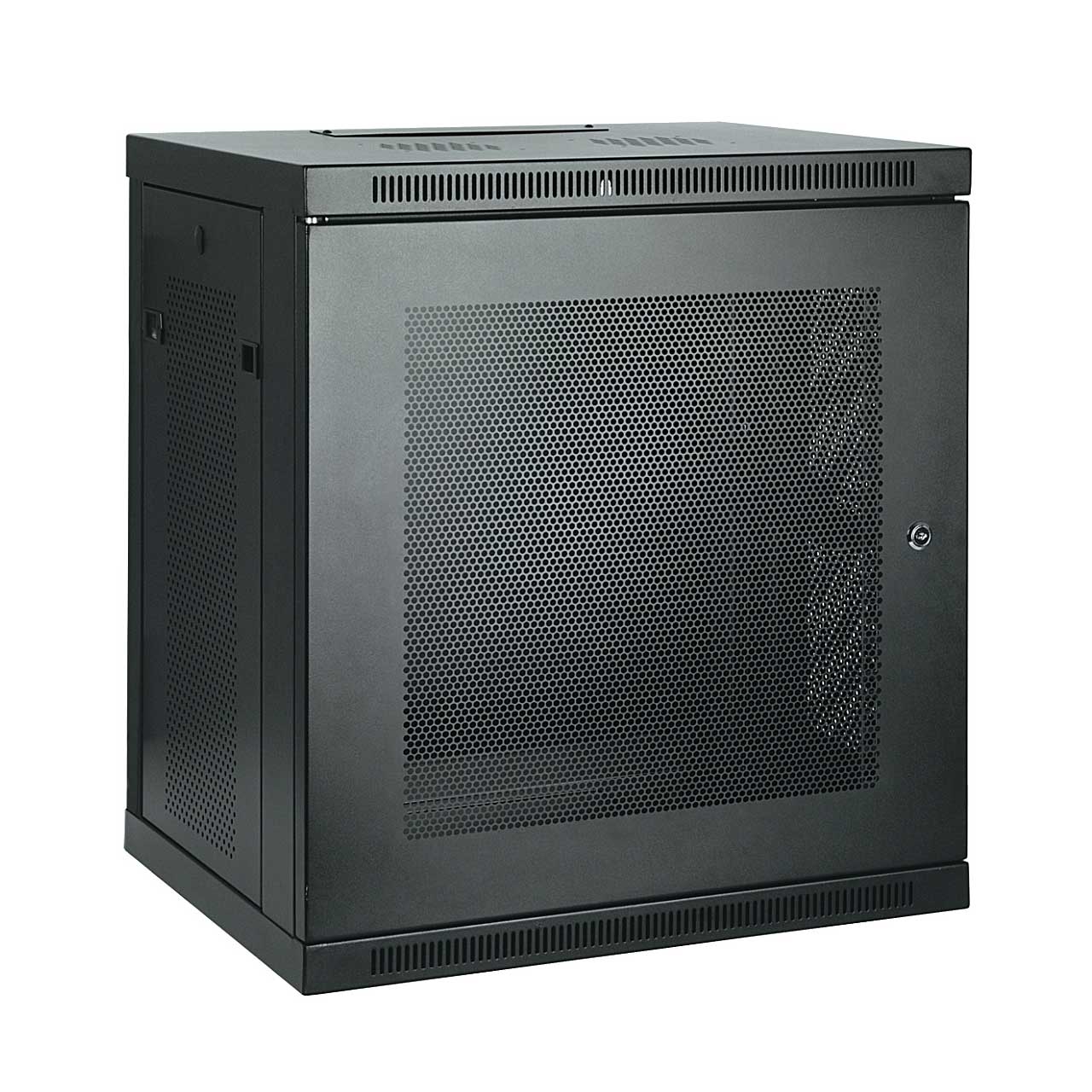

The SRW12U 12U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall.

  • Features:

    • 12U wall-mounted enclosure

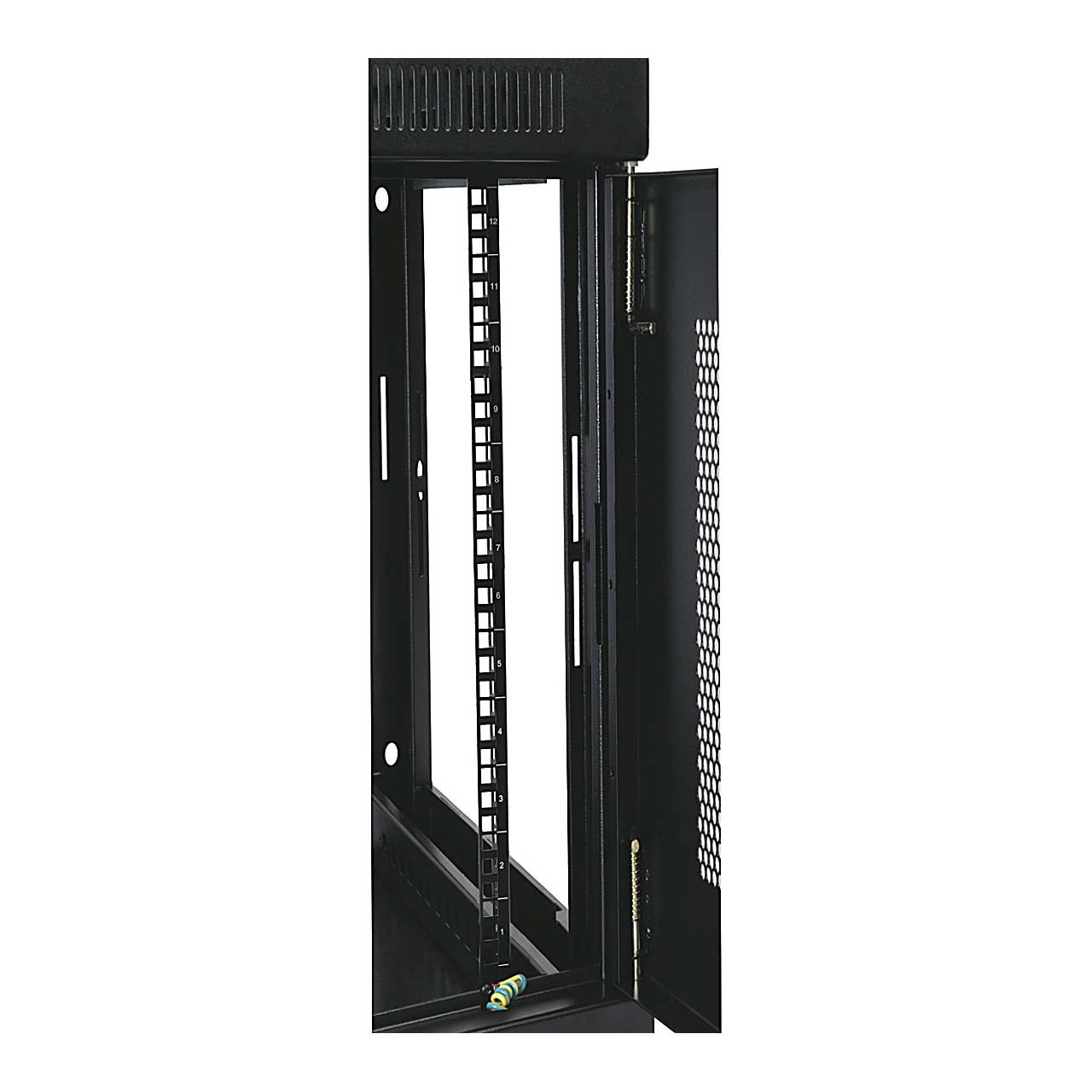

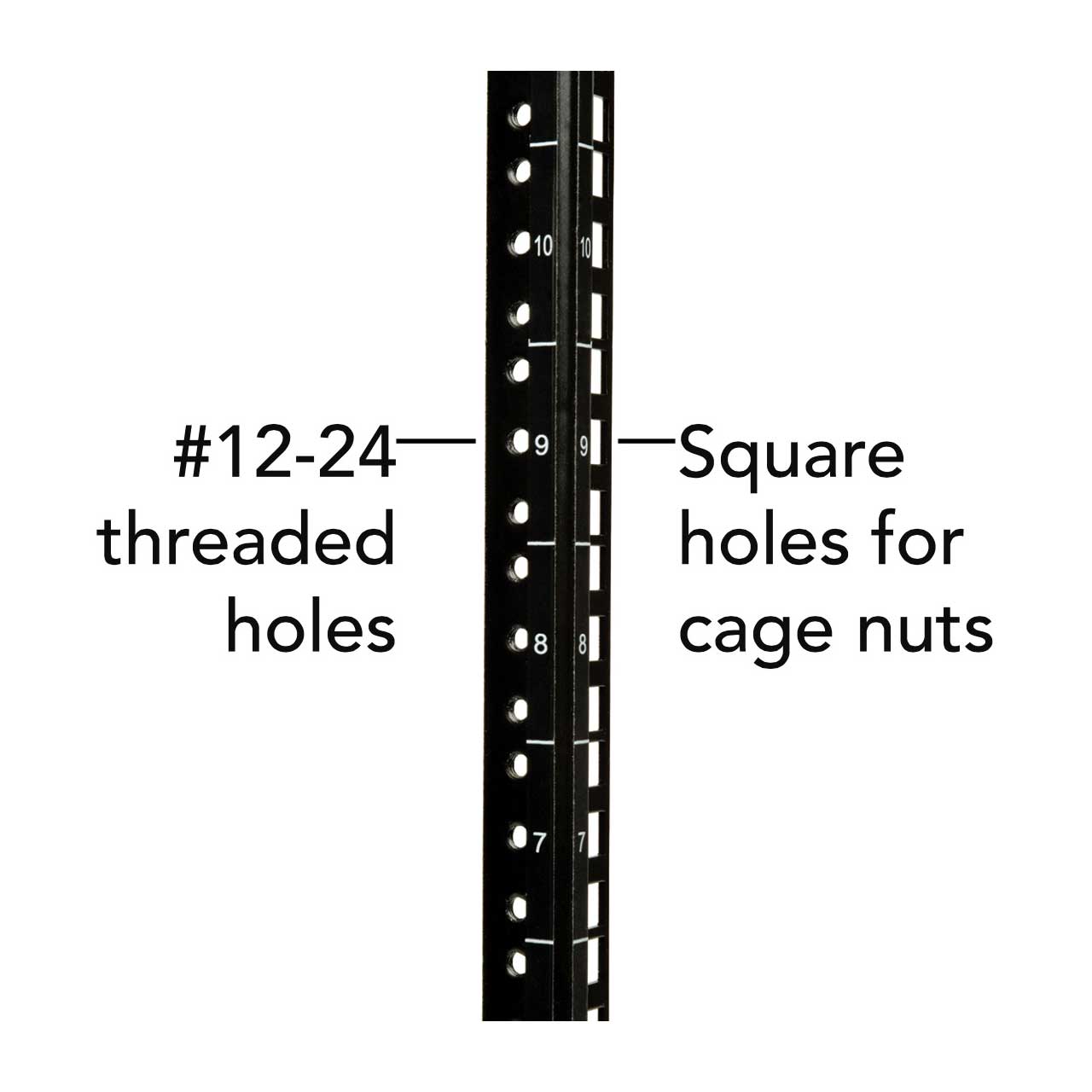

    • Adjustable mounting depths up to 17" by 2 front vertical rackmount rails
    • Ventilated front door and side panels for increased airflow
    • Locking, reversible front door

  • Specifications:

    • Style Wall Mounted
    • Installed Whole System Maximum Rack Depth (in.) 16.5
    • Installed Whole System Maximum Rack Depth (cm) 41.9
    • Installed Whole System Minimum Rack Depth (in.) 3
    • Rack Height (U Spaces) 12
    • Shipping Dimensions (hwd / in.) 27.95 x 26.38 x 20.67
    • Shipping Dimensions (hwd / cm) 71 x 67 x 52.5
    • Shipping Weight (lbs.) 55.1
    • Shipping Weight (kg) 25
    • Unit Dimensions (hwd / in.) 25.08 x 23.63 x 17.69
    • Unit Weight (lbs.) 48.5
    • Unit Weight (kg) 22
    • Unit Dimensions (cm) 63.7 x 60 x 44.93
    • Color Black
    • Weight Capacity - Stationary (lbs.) 200
    • Weight Capacity - Stationary (kg) 90.7
    • Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
    • Hinged (Swings Away from Wall Bracket) No
    • Grounding Lug Front and Back door frames
    • Certifications EIA-310-E
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals RoHS
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332174451
