Tripp Lite 12U Low-Profile Wall-Mount Rack Enclosure w/ Clear Acrylic Window Double Hinge Removable Side Panels 25x24x22

ITEM #: TRL-SRW12USG MFG #: SRW12USG

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$701.33

Our Price:

$454.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SRW12USG - Overview

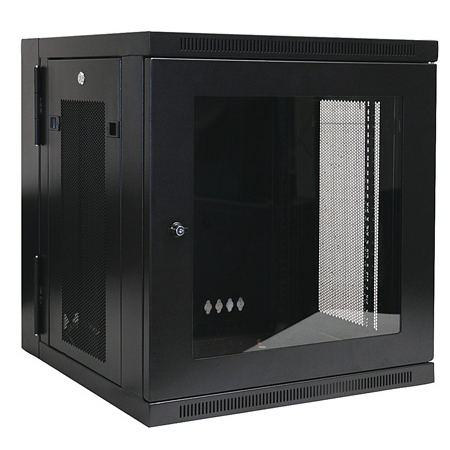

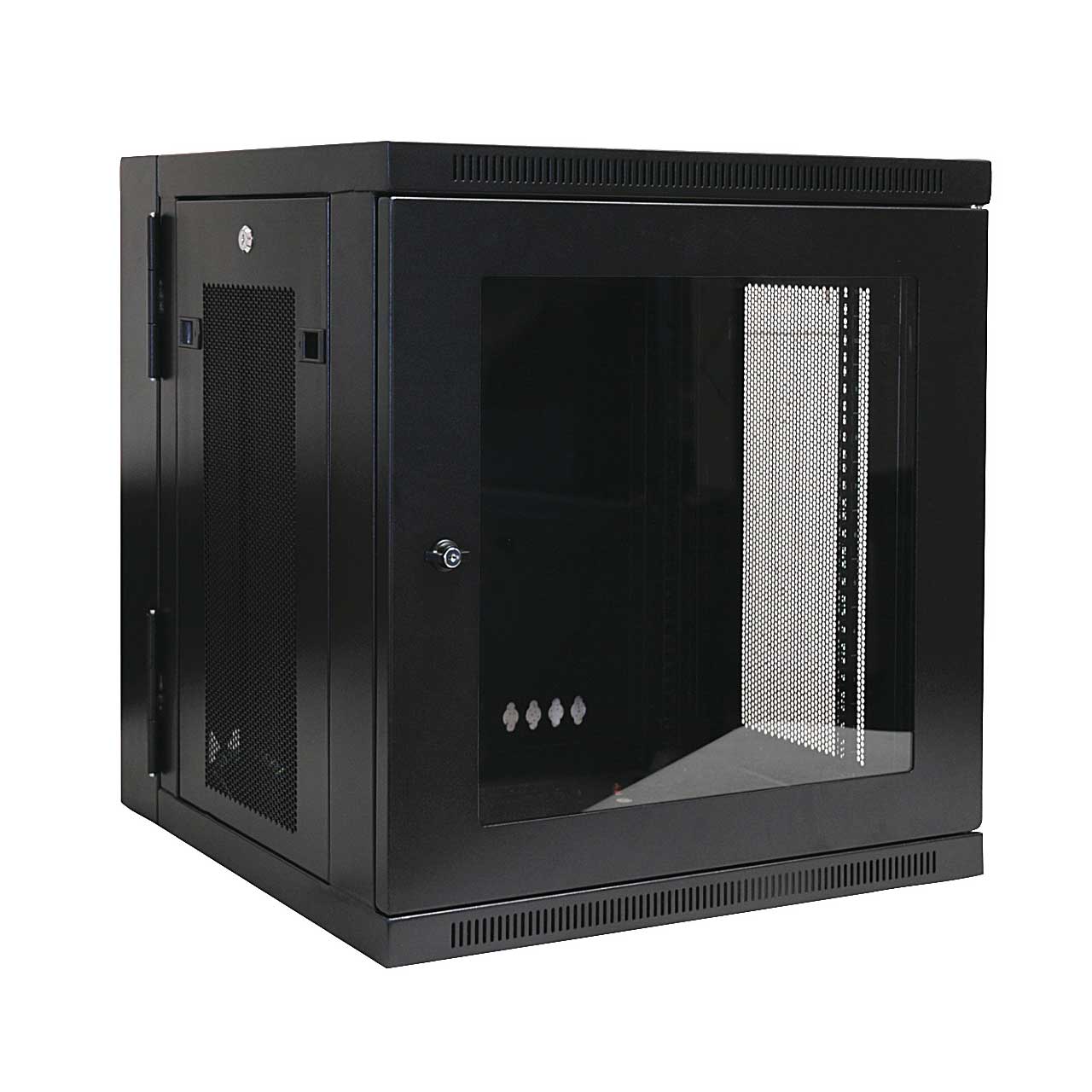

The SRW12USG 12U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door, with Plexiglas® insert, and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

  • Features:

    • 12U wall-mounted enclosure

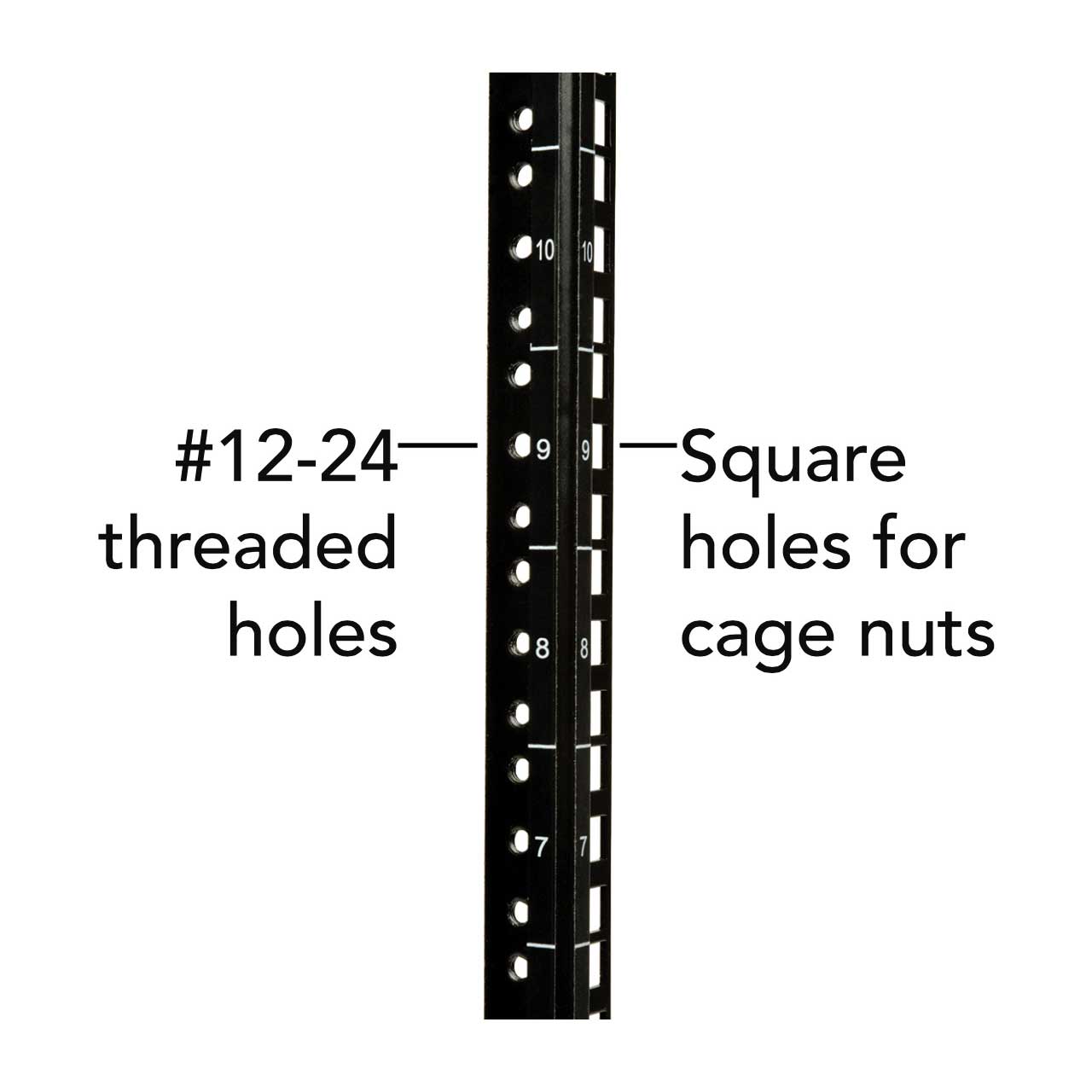

    • Adjustable mounting depths from 3" to 20.5" inches
    • Plexiglas® front door (2.7mm thich) with added ventilation holes retains proper airflow.

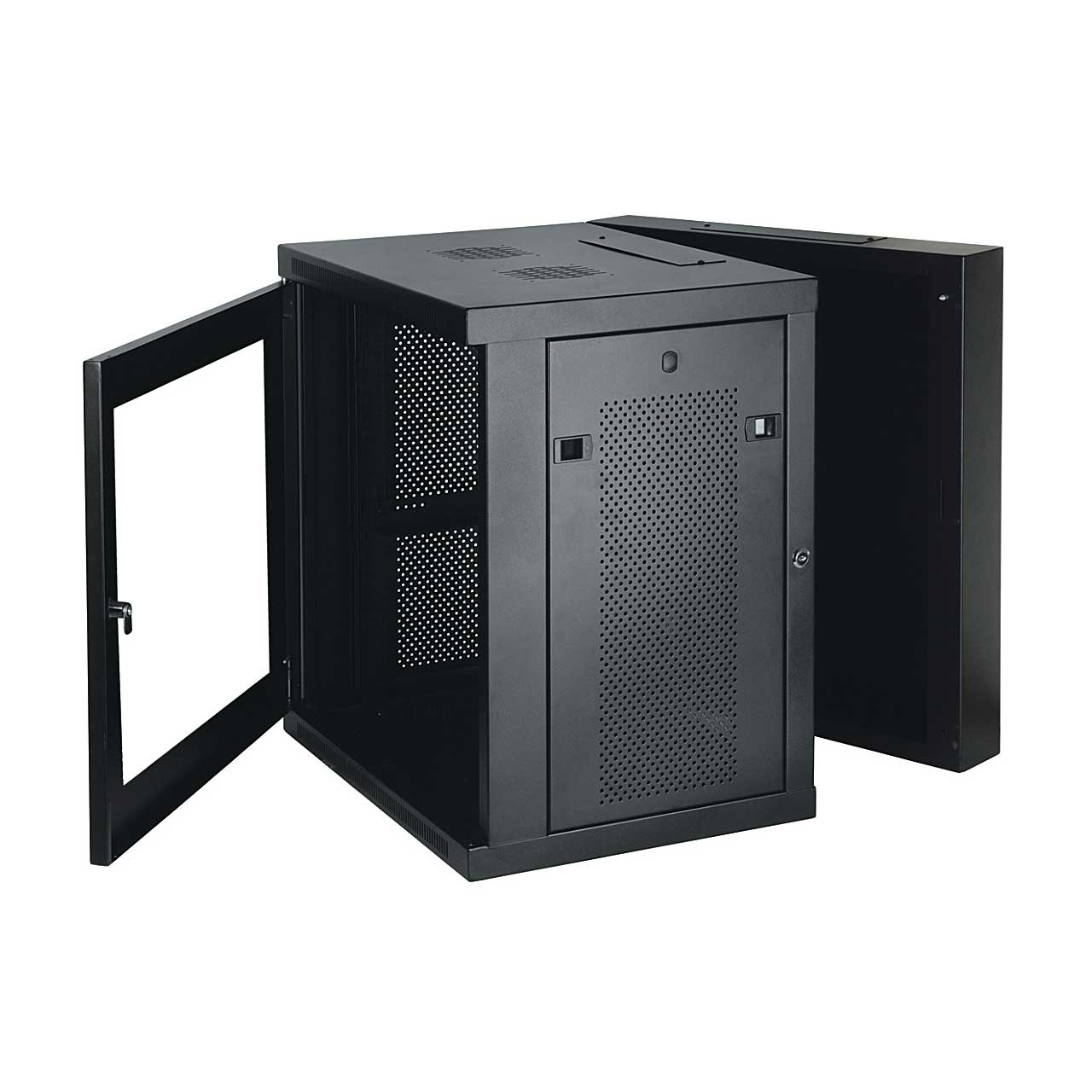

    • Hinged cabinet swings away from wall bracket for easy equipment and cable access

  • Specifications:

    • Style Wall Mounted
    • Installed Whole System Maximum Rack Depth (in.) 20.5
    • Installed Whole System Maximum Rack Depth (cm) 52.07
    • Installed Whole System Minimum Rack Depth (in.) 3
    • Installed Whole System Minimum Rack Depth (cm) 7.62
    • Rack Height (U Spaces) 12
    • Shipping Dimensions (hwd / in.) 27.95 x 26.38 x 24.41
    • Shipping Dimensions (hwd / cm) 71 x 67 x 62
    • Shipping Weight (lbs.) 70
    • Shipping Weight (kg) 31.5
    • Unit Dimensions (hwd / in.) 25 x 23.63 x 21.6
    • Unit Weight (lbs.) 60
    • Unit Weight (kg) 27.21
    • Unit Dimensions (cm) EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD)
    • Color Black
    • Weight Capacity - Stationary (lbs.) 200
    • Weight Capacity - Stationary (kg) 90.7
    • Factory Preset Rack Depth (in.) 10.42
    • Factory Preset Rack Depth (cm) 26.47
    • Hinged (Swings Away from Wall Bracket) Yes
    • Grounding Lug Front and Back door frames
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, IP20 Protection, RoHS
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332154859
