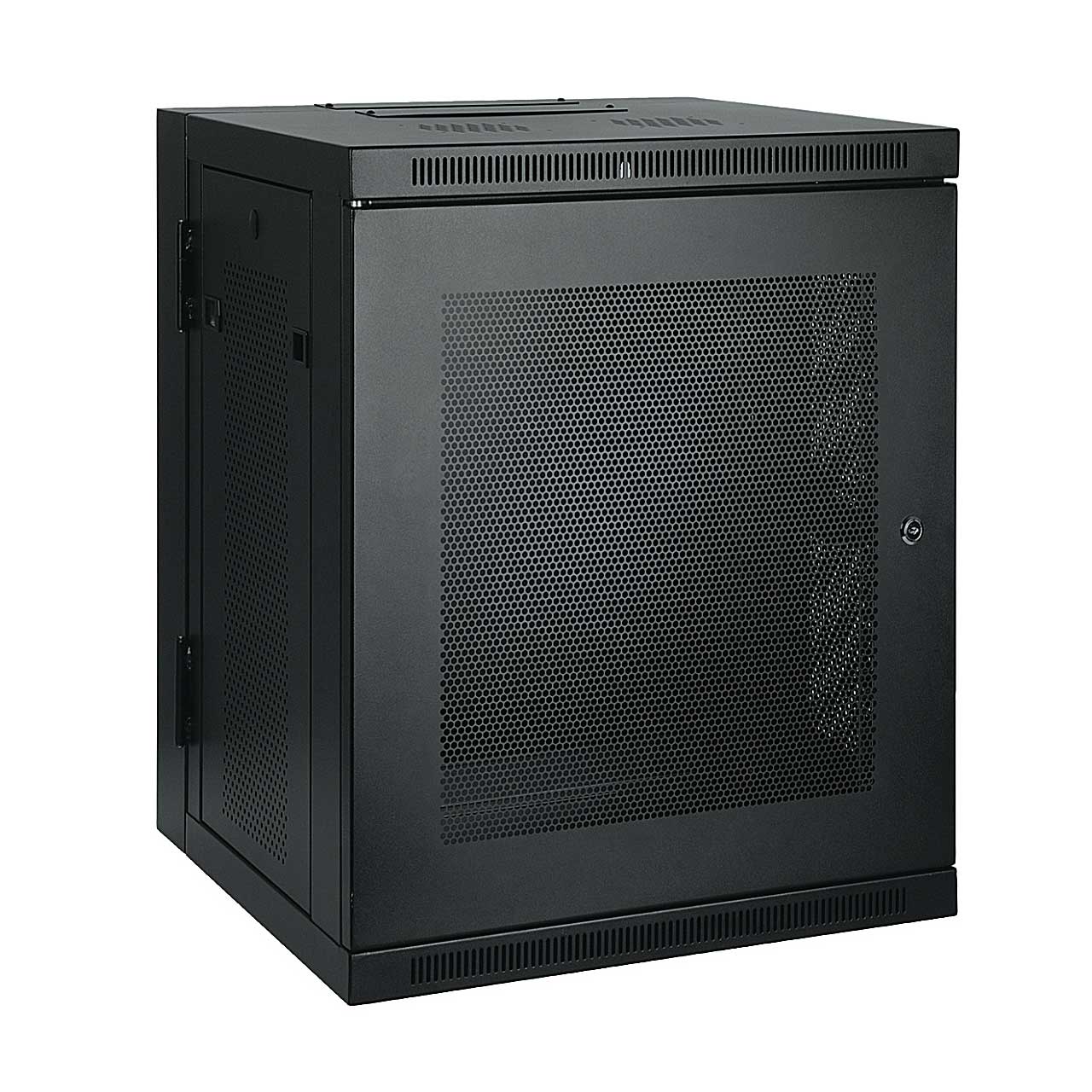

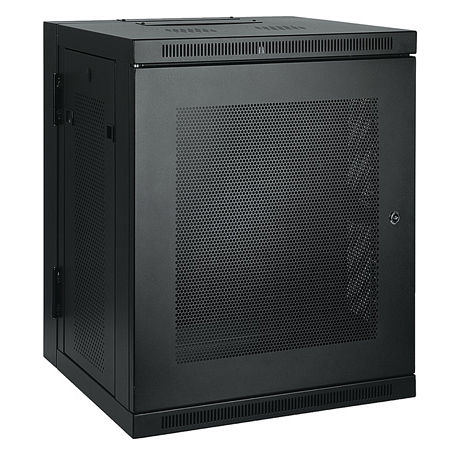

Tripp Lite 15U Low-Profile Wall-Mount Rack Enclosure Cabinet Double Hinge Removable Side Panels 30H x 24W x 22D

ITEM #: TRL-SRW15US MFG #: SRW15US

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$872.36

Our Price:

$564.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SRW15US - Overview

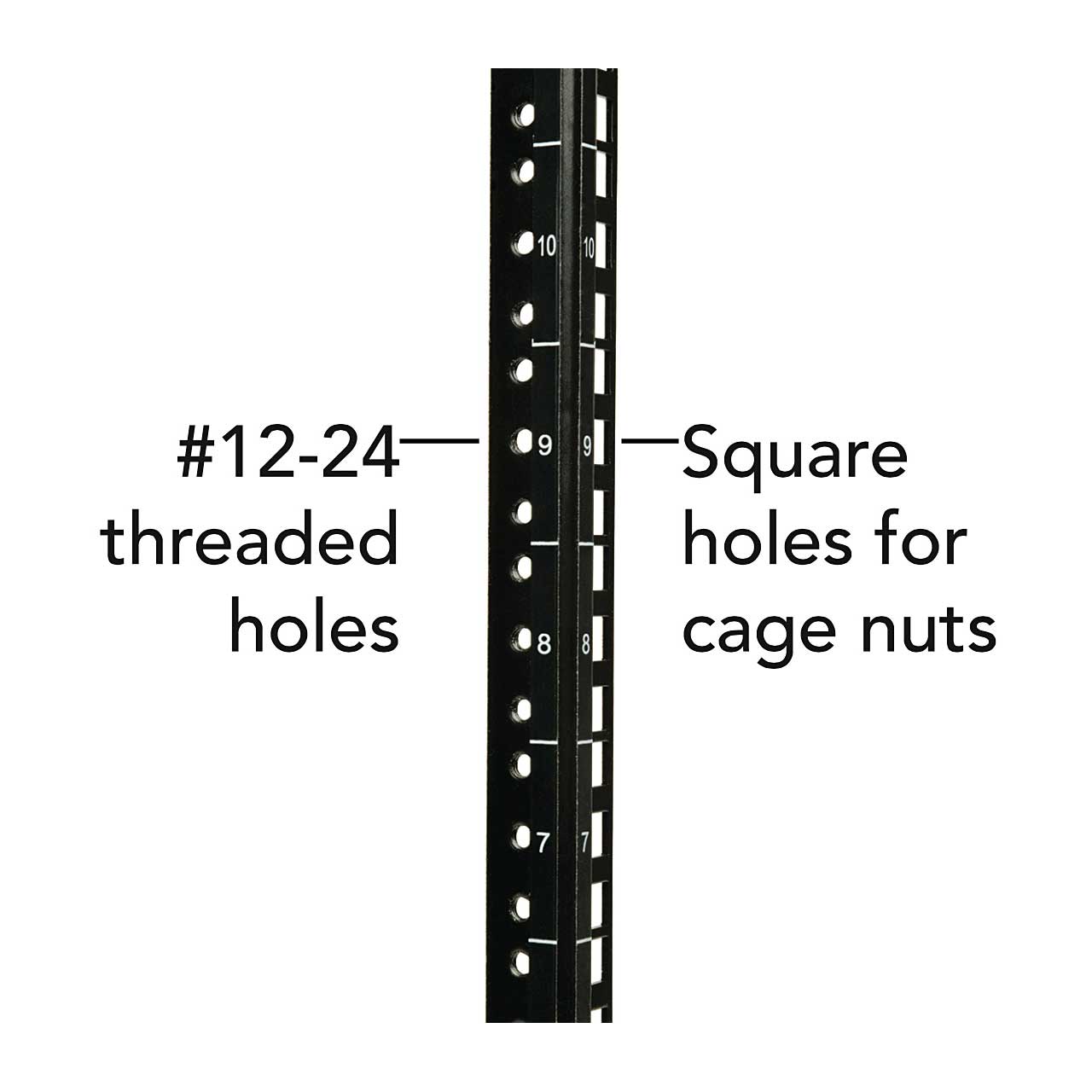

Tripp Lite’s SRW15US Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with limited floor space. Constructed with a hinged wall mounting bracket and a sturdy steel frame, it can accommodate up to 225 lbs. of equipment in 15U of rack space. Four adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment. To allow easy access to rackmounted equipment, the enclosure cabinet is hinged to swing away from the wall mounting bracket. The SRW15US also features perforated lockable side panels and front door, assuring generous airflow to keep equipment operating safely. The front door is reversible and the side panels are removable for easy access to equipment. The top and bottom panels of the enclosure include convenient cable routing ports.

  • Features:

    • 15U wall-mounted enclosure
    • Adjustable mounting depths from 3" to 20.5" inches
    • Ventilated front door and side panels for increased airflow

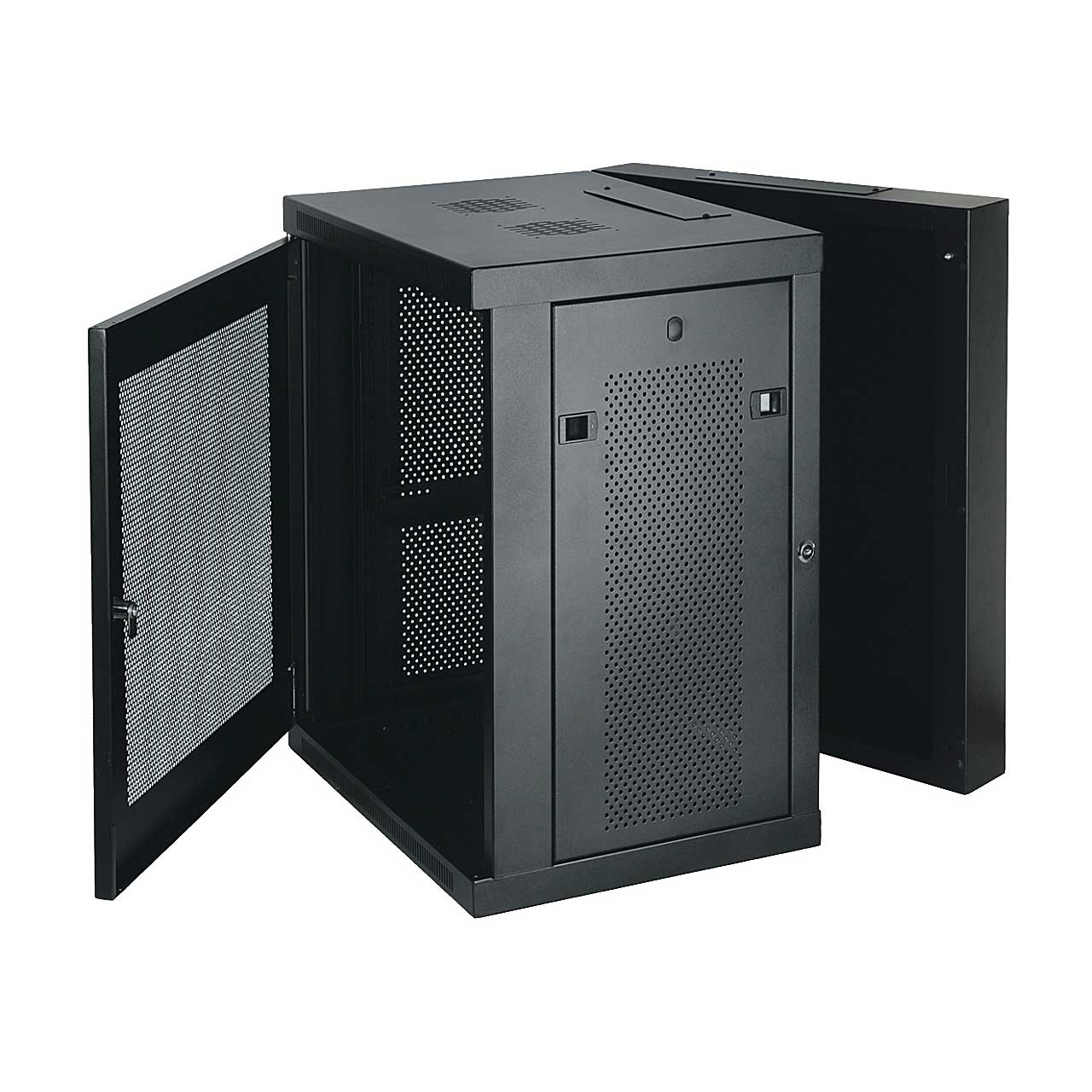

    • Hinged cabinet swings away from wall bracket for easy equipment and cable access

  • Specifications:

    • Style Wall Mounted
    • Installed Whole System Maximum Rack Depth (in.) 20.5
    • Installed Whole System Maximum Rack Depth (cm) 52.07
    • Installed Whole System Minimum Rack Depth (in.) 3
    • Installed Whole System Minimum Rack Depth (cm) 7.62
    • Rack Height (U Spaces) 15
    • Shipping Dimensions (hwd / in.) 33.07 x 26.38 x 24.41
    • Shipping Dimensions (hwd / cm) 84 x 67 x 62
    • Shipping Weight (lbs.) 96
    • Shipping Weight (kg) 43.5
    • Unit Dimensions (hwd / in.) 30.33 x 23.63 x 21.6
    • Unit Weight (lbs.) 88.2
    • Unit Weight (kg) 40
    • Unit Dimensions (cm) EXTERNAL DIMENSIONS: 77 x 60 x 54.9 (HWD)
    • Color Black
    • Weight Capacity - Stationary (lbs.) 225
    • Weight Capacity - Stationary (kg) 102.1
    • Factory Preset Rack Depth (in.) 10.42
    • Factory Preset Rack Depth (cm) 26.47
    • Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
    • Hinged (Swings Away from Wall Bracket) Yes
    • Grounding Lug Front and Back door frames
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals EIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332183866


SRW15US - Required Accessories
