Tripp Lite 18U Low-Profile Wall-Mount Rack Enclosure Cabinet Double Hinge Removable Side Panels 36H x 24W x 22D

ITEM #: TRL-SRW18US MFG #: SRW18US

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,025.00

Our Price:

$663.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SRW18US - Overview

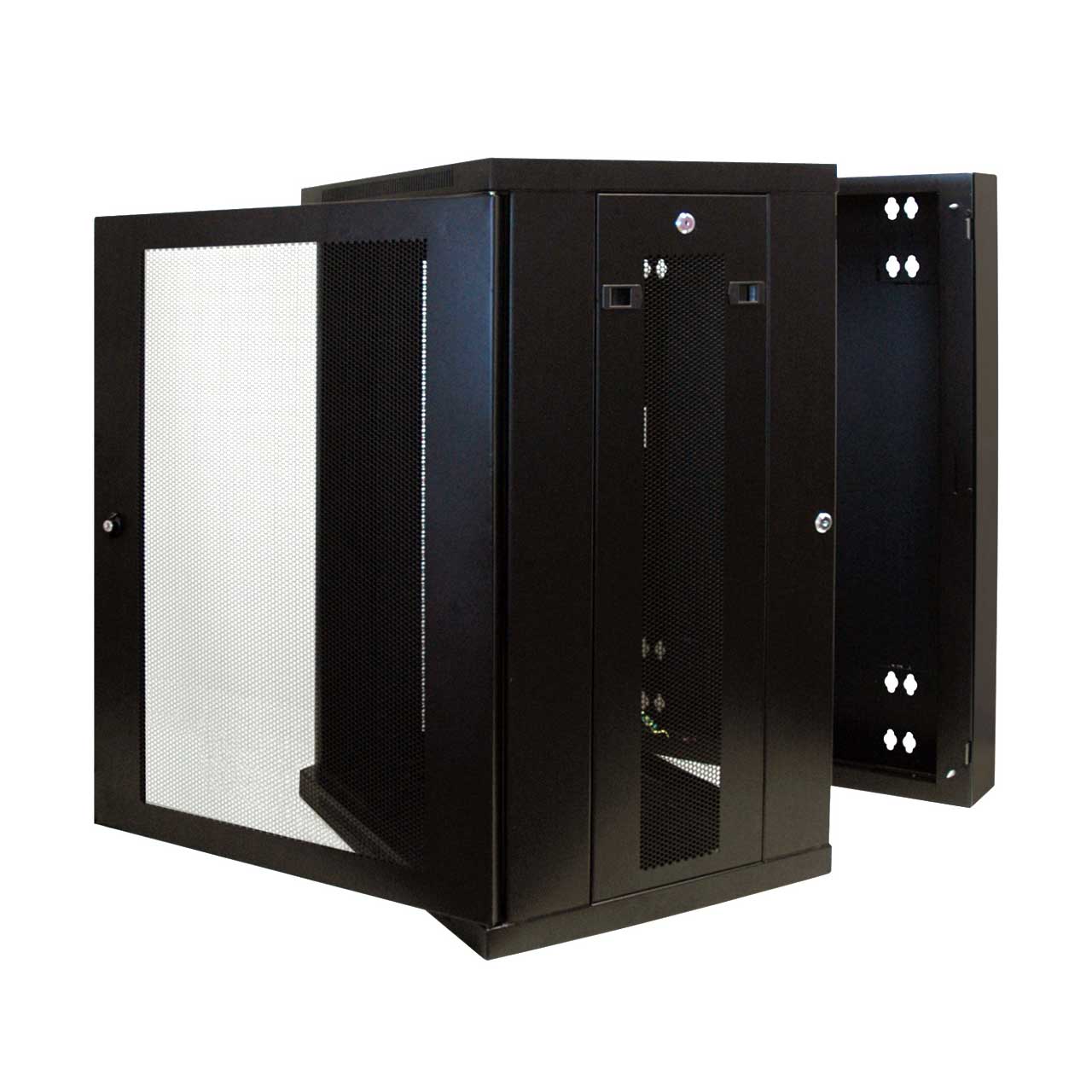

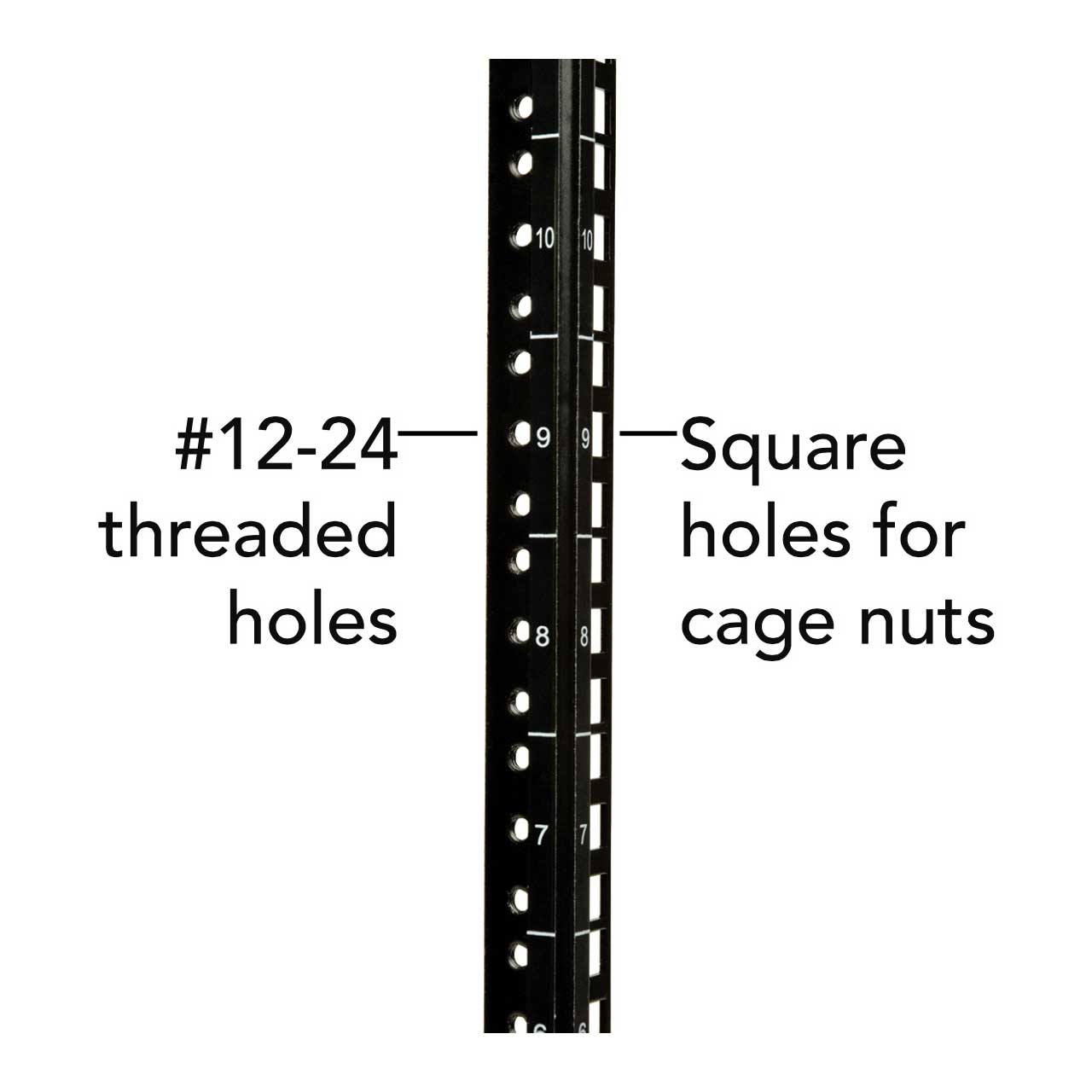

The SRW18US 18U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 18U of standard 19' rackmount equipment. Supports up to 250lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

  • Features:

    • 18U wall-mounted enclosure
    • Adjustable mounting depths from 3" to 20.5" inches
    • Heavy duty construction to handle added leverage
    • Ventilated front door and side panels for increased airflow

  • Specifications:

    • Style Wall Mounted
    • Installed Whole System Maximum Rack Depth (in.) 20.5
    • Installed Whole System Maximum Rack Depth (cm) 52.07
    • Installed Whole System Minimum Rack Depth (in.) 3
    • Installed Whole System Minimum Rack Depth (cm) 7.62
    • Rack Height (U Spaces) 18
    • Shipping Dimensions (hwd / in.) 41.3 x 25.5 x 23.6
    • Shipping Dimensions (hwd / cm) 104.9 x 64.77 x 59.9
    • Shipping Weight (lbs.) 110
    • Shipping Weight (kg) 49.9
    • Unit Dimensions (hwd / in.) 35.6 x 23.6 x 21.6
    • Unit Weight (lbs.) 96
    • Unit Weight (kg) 43.54
    • Unit Dimensions (cm) EXTERNAL DIMENSIONS: 90.42 x 60 x 54.9 (HWD)
    • Color Black
    • Weight Capacity - Stationary (lbs.) 250
    • Weight Capacity - Stationary (kg) 113.4
    • Factory Preset Rack Depth (in.) 9.84
    • Factory Preset Rack Depth (cm) 24.99
    • Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
    • Hinged (Swings Away from Wall Bracket) Yes
    • Grounding Lug Front and Back door frames
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332154835


SRW18US - Required Accessories
