Tripp Lite 6U Low-Profile Wall-Mount Rack Enclosure Cabinet Removable Side Panels 15H x 24W x 18D

ITEM #: TRL-SRW6U MFG #: SRW6U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$318.37

Our Price:

$206.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


SRW6U - Overview

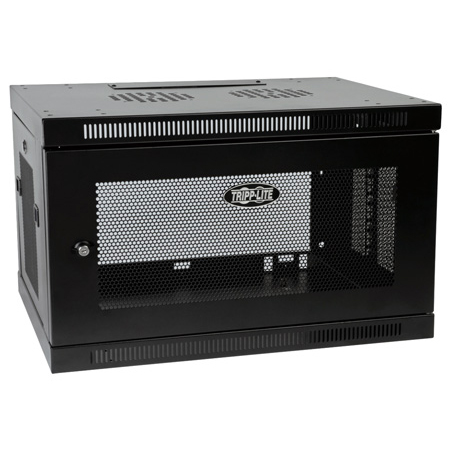

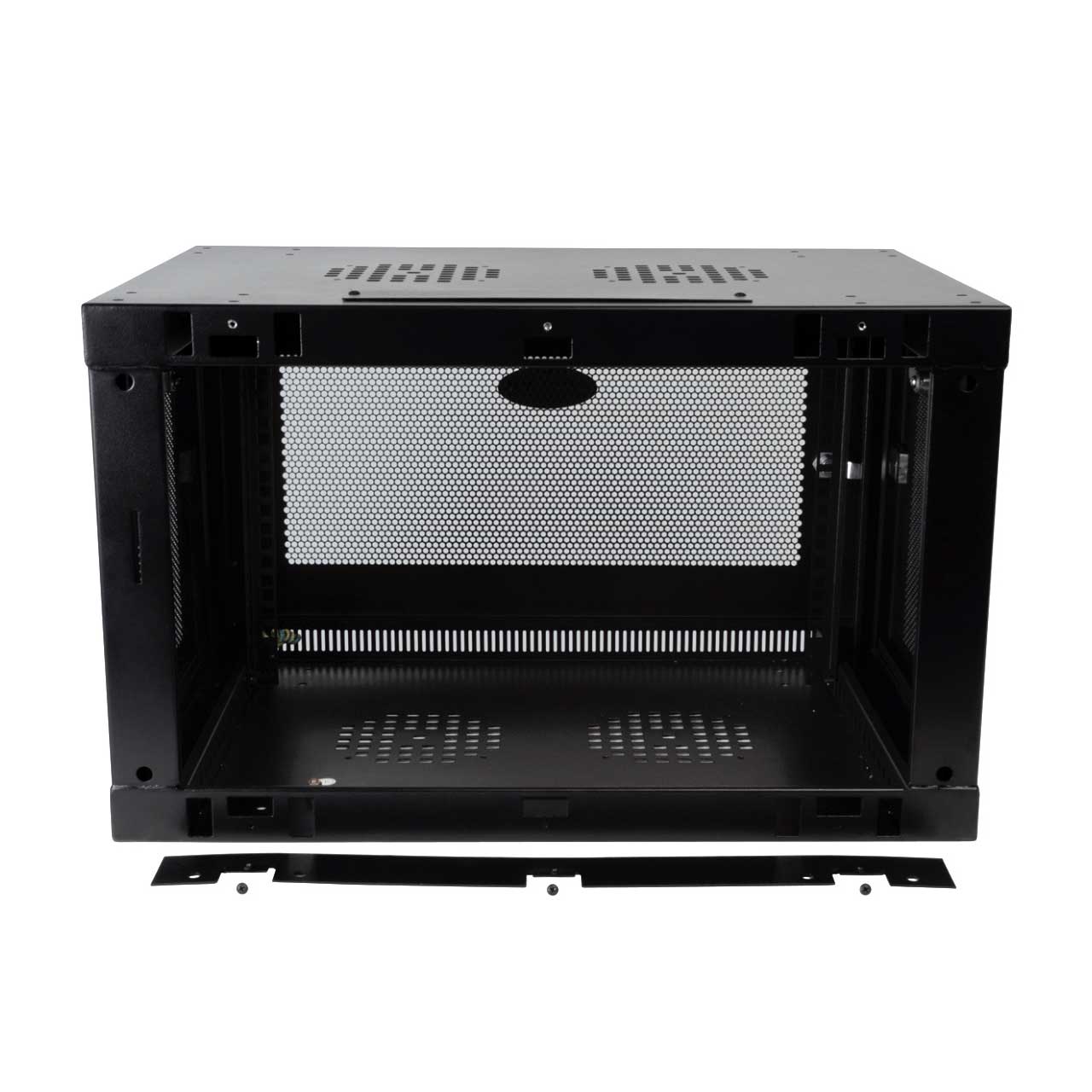

Tripp Lite’s SRW6U Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with limited floor space such as wiring closets, POS stations and offices. Constructed with a sturdy wall mounting bracket and steel frame, it can accommodate up to 140 lbs. of equipment in 6U of rack space. Adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment. The SRW6U features a perforated lockable front door and side panels, assuring generous airflow to keep equipment operating safely. The side panels are removable for easy access to equipment, and the front door is reversible. The top and bottom panels of the enclosure include convenient cable routing ports. The SRW6U ships fully assembled and comes with a 5-year manufacturer’s product warranty.

  • Features:

    • 6U wall-mounted enclosure
    • Ideal for VoIP wiring closets and education venues that require security

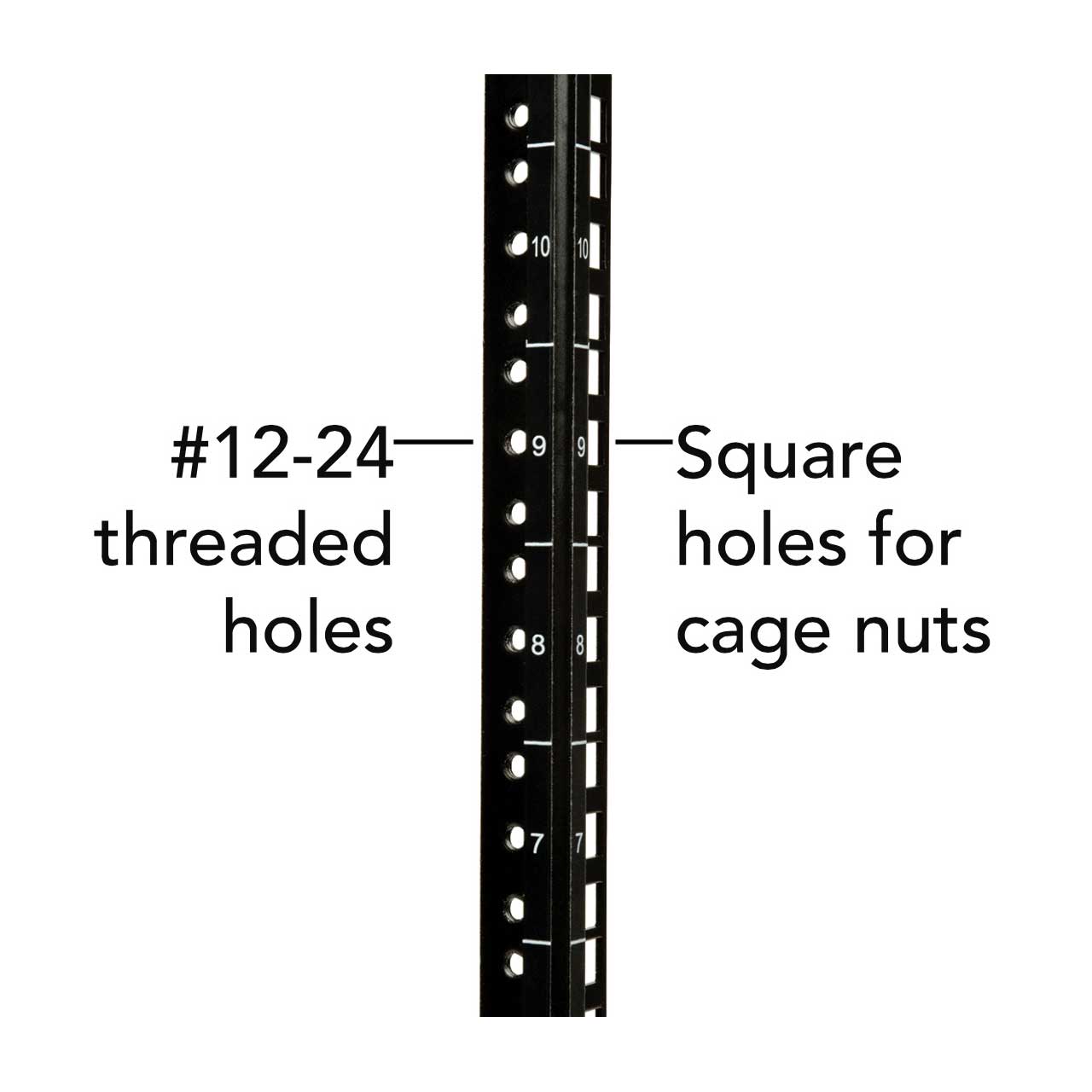

    • Adjustable mounting depths up to 17" by 2 front vertical rackmount rails
    • Ventilated front door and side panels for increased airflow

  • Specifications:

    • Style Wall Mounted
    • Installed Whole System Maximum Rack Depth (in.) 16.5
    • Installed Whole System Maximum Rack Depth (cm) 41.9
    • Installed Whole System Minimum Rack Depth (in.) 3
    • Rack Height (U Spaces) 6
    • Shipping Dimensions (hwd / in.) 17.5" x 26.5" x 20.5"
    • Shipping Dimensions (hwd / cm) 44.45 x 67.31 x 52.07
    • Shipping Weight (lbs.) 32
    • Shipping Weight (kg) 14.5
    • Unit Dimensions (hwd / in.) 14.5 x 23.63 x 17.5
    • Unit Weight (lbs.) 29
    • Unit Weight (kg) 13
    • Unit Dimensions (cm) 36.83 x 60.02 x 44.45
    • Color Black
    • Weight Capacity - Stationary (lbs.) 200
    • Weight Capacity - Stationary (kg) 90.7
    • Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
    • Hinged (Swings Away from Wall Bracket) No
    • Grounding Lug Front and Back door frames
    • Certifications EIA-310-E
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals RoHS
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332154651
