Tripp Lite 5U Low-Profile Vertical-Mount Wall-Mount Rack Enclosure Cabinet 29H x 26W x 10D

ITEM #: TRL-SRWF5U MFG #: SRWF5U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$660.52

Our Price:

$427.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SRWF5U - Overview

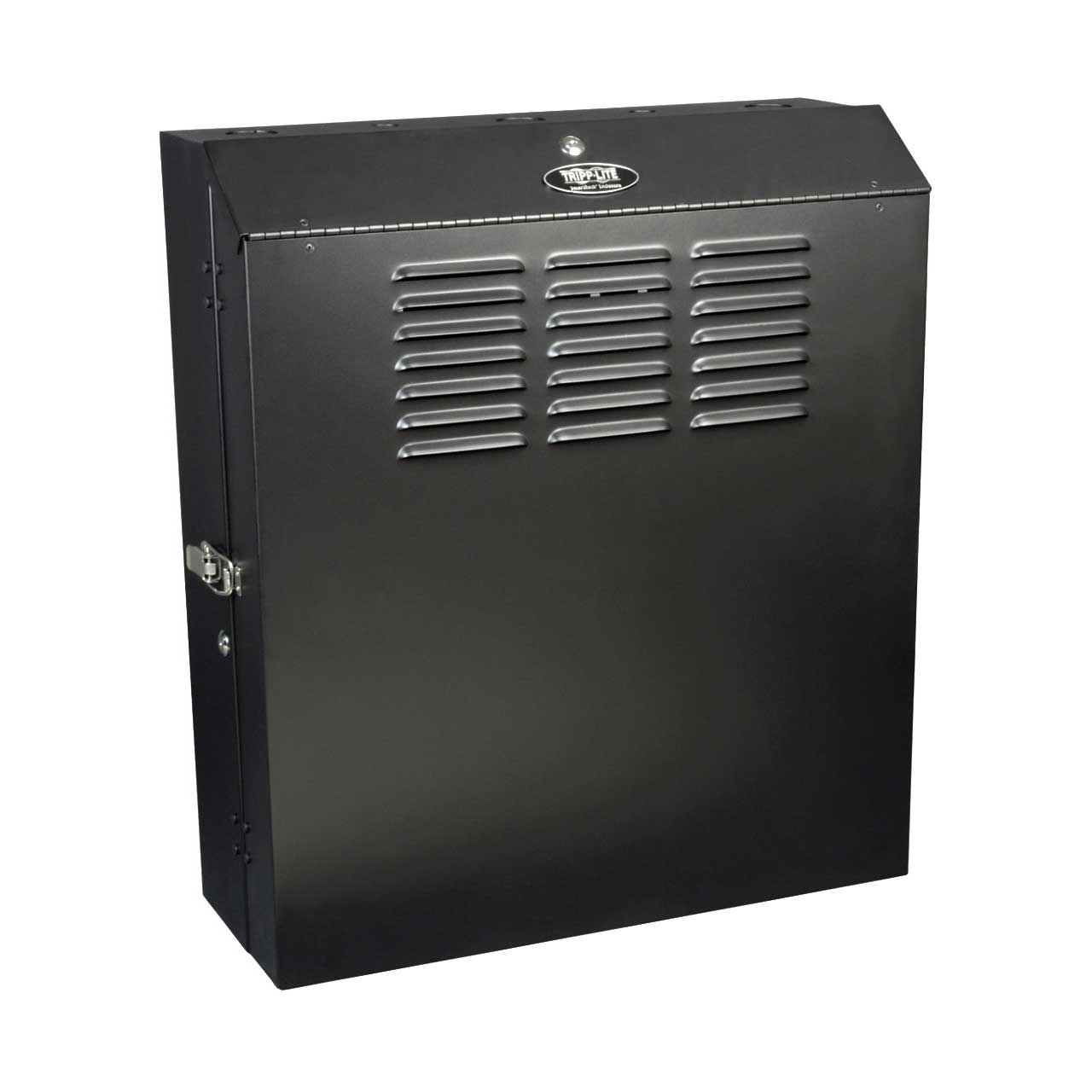

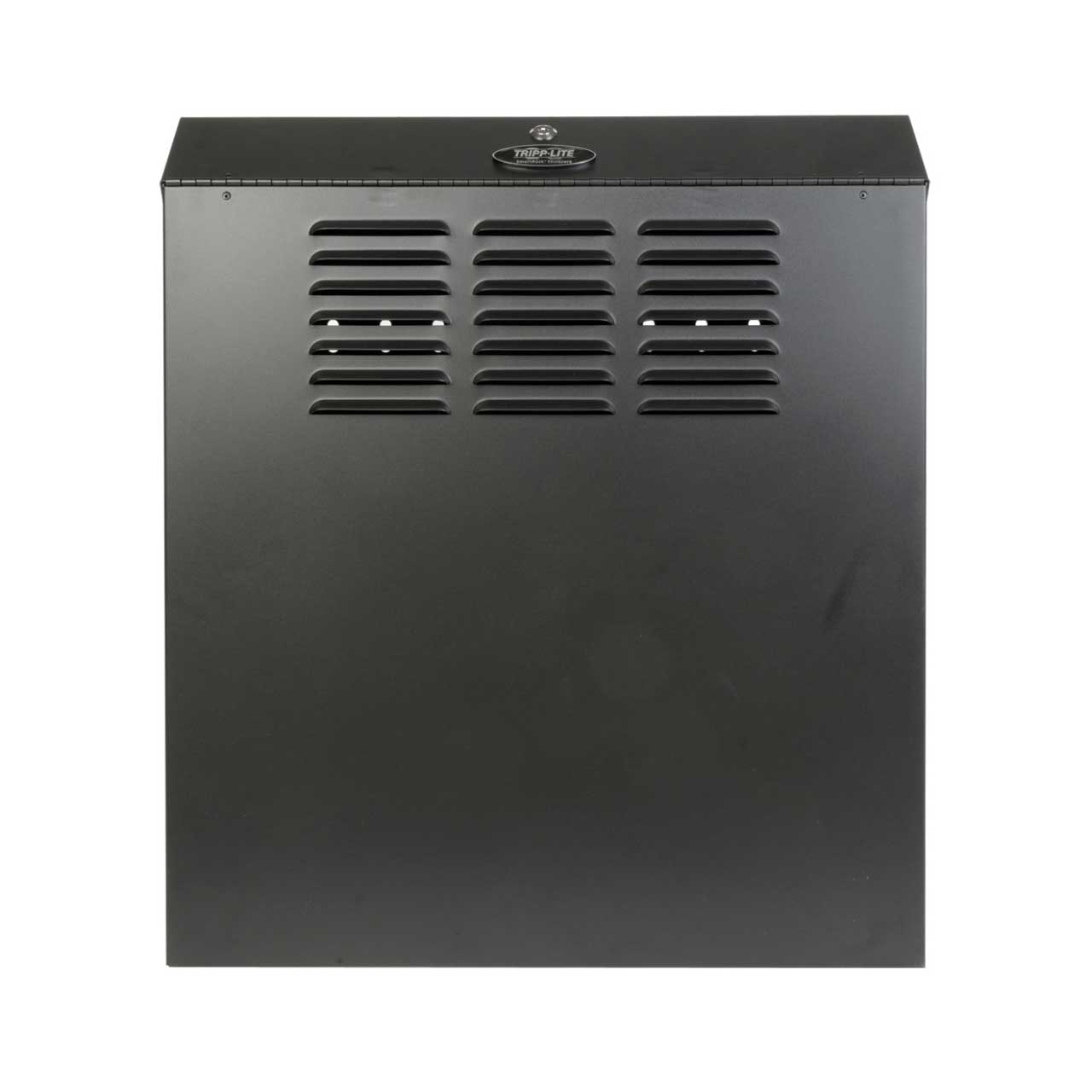

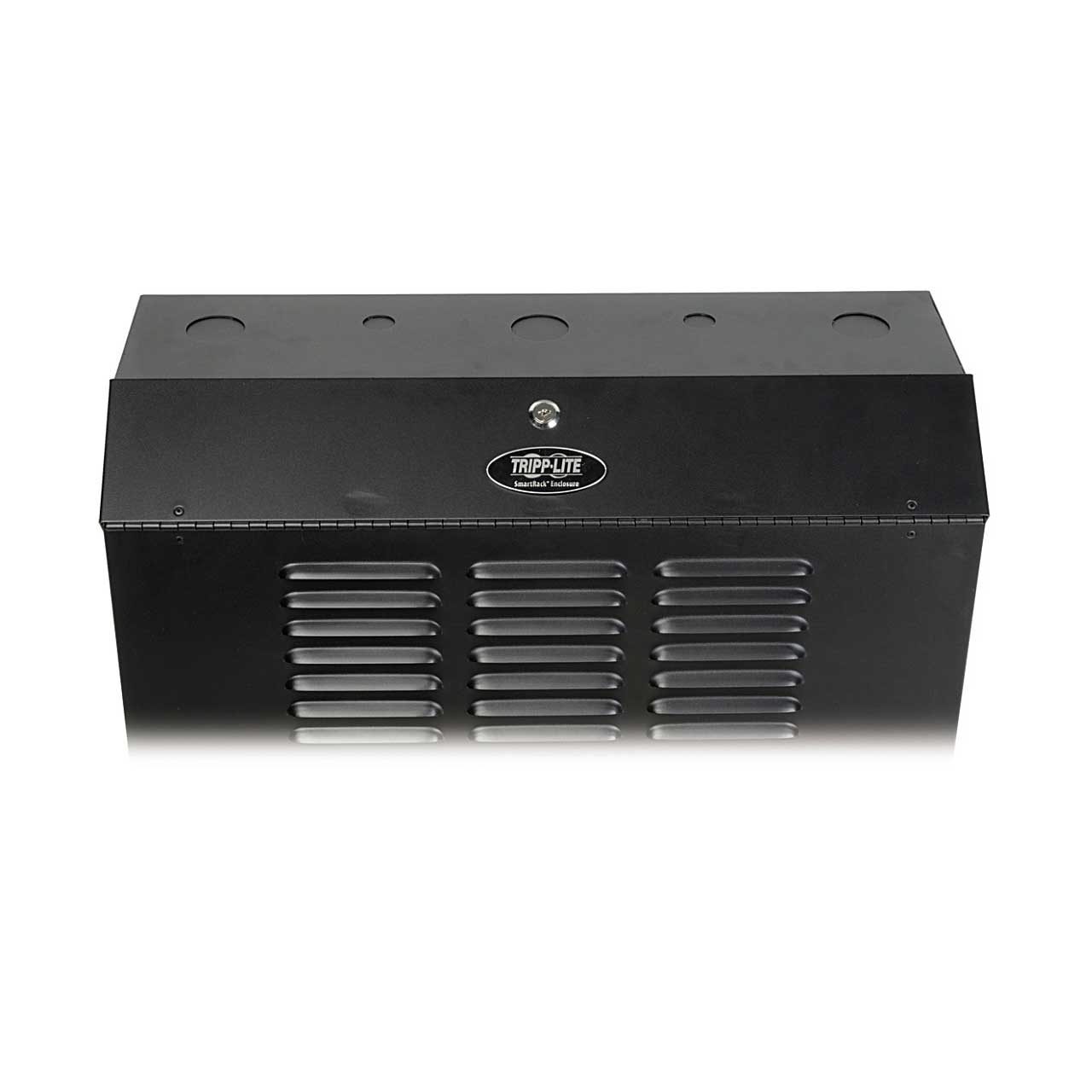

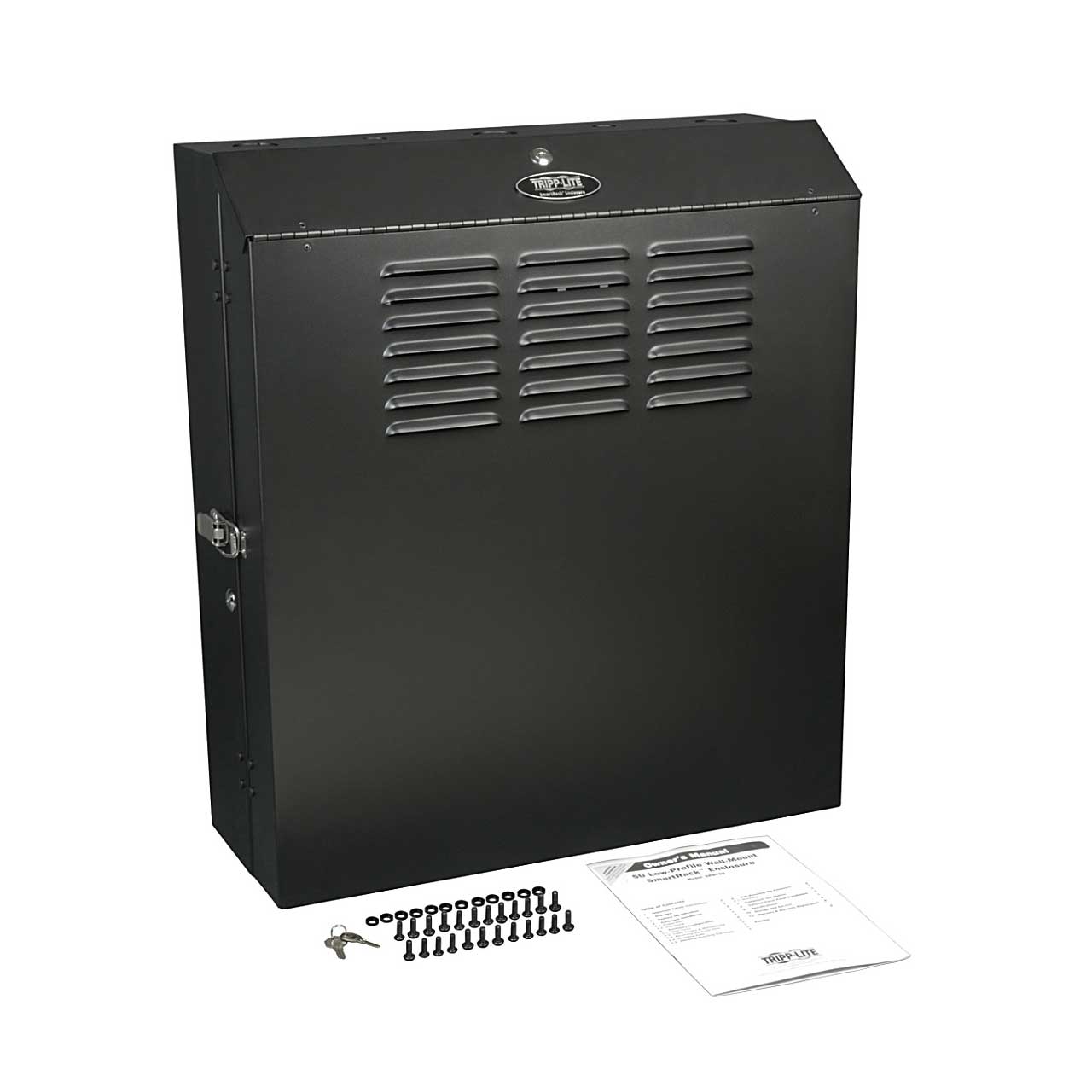

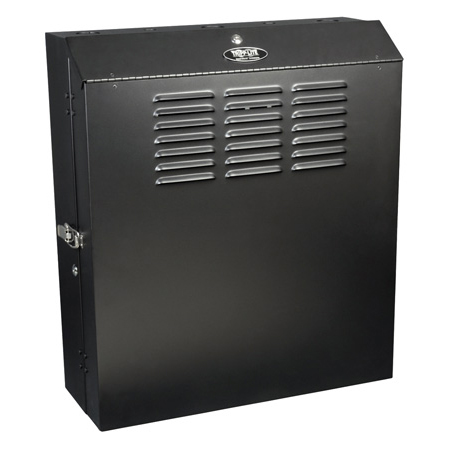

The SRWF5U 5U+2 Low-Profile Wall Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and bottom panels allow generous airflow to keep equipment operating safely. Adjustable horizontal rack rails securely mount 5U of 19" rackmount equipment with M6 or they can be reversed for securing with 12-24 threaded mounting holes. The patch panel mounting brackets provide space for up to 2U of patch panels with integral slide-out feature for easy cable access. Supports up to 150 lbs of equipment.

  • Features:

    • 5U low-profile wall-mounted enclosure
    • Adjustable horizontal mounting depths from 17" to 20" inches

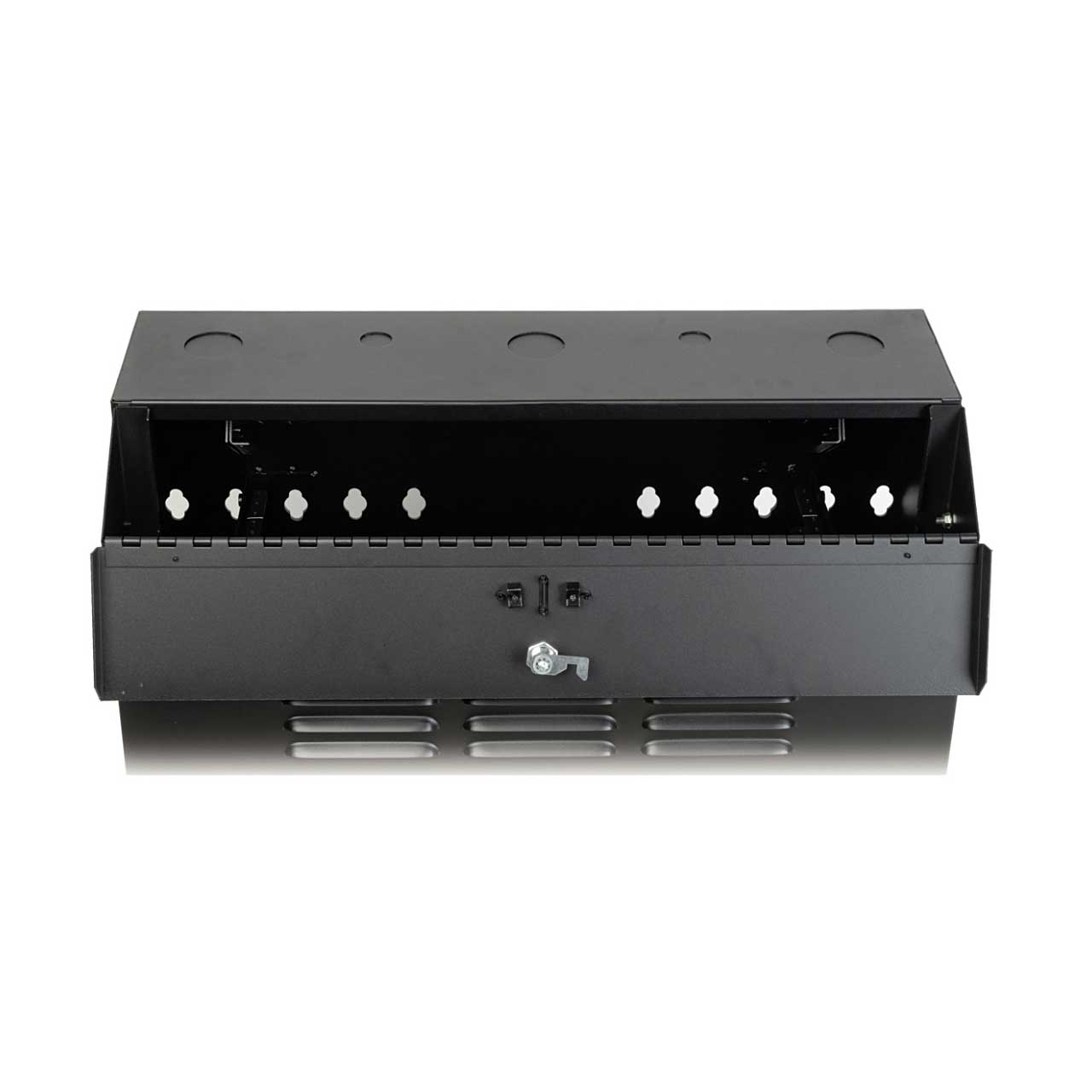

    • Slide-out mounting brackets provides 2U of space for patch panel(s)
    • Ventilated front door and bottom panels for increased airflow

  • Specifications:

    • Style Wall Mounted
    • Installed Whole System Maximum Rack Depth (in.) 20
    • Installed Whole System Maximum Rack Depth (cm) 50.8
    • Installed Whole System Minimum Rack Depth (in.) 17
    • Installed Whole System Minimum Rack Depth (cm) 43.18
    • Rack Height (U Spaces) 5
    • Shipping Dimensions (hwd / in.) 31.5" x 27.6" x 12"
    • Shipping Dimensions (hwd / cm) 80.01 x 70.10 x 30.48
    • Shipping Weight (lbs.) 49
    • Shipping Weight (kg) 22.1
    • Unit Dimensions (hwd / in.) 28.8 x 25.6 x 9.7
    • Unit Weight (lbs.) 29
    • Unit Weight (kg) 13
    • Unit Dimensions (cm) 73.15 x 65.02 x 24.64
    • Color Black
    • Weight Capacity - Stationary (lbs.) 150
    • Weight Capacity - Stationary (kg) 68
    • Hinged (Swings Away from Wall Bracket) No
    • Certifications EIA-310-E
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals RoHS
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332163981
