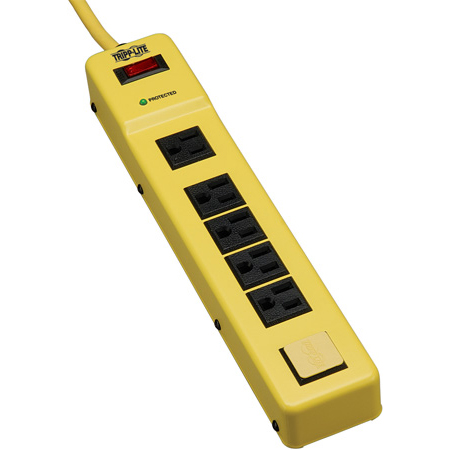

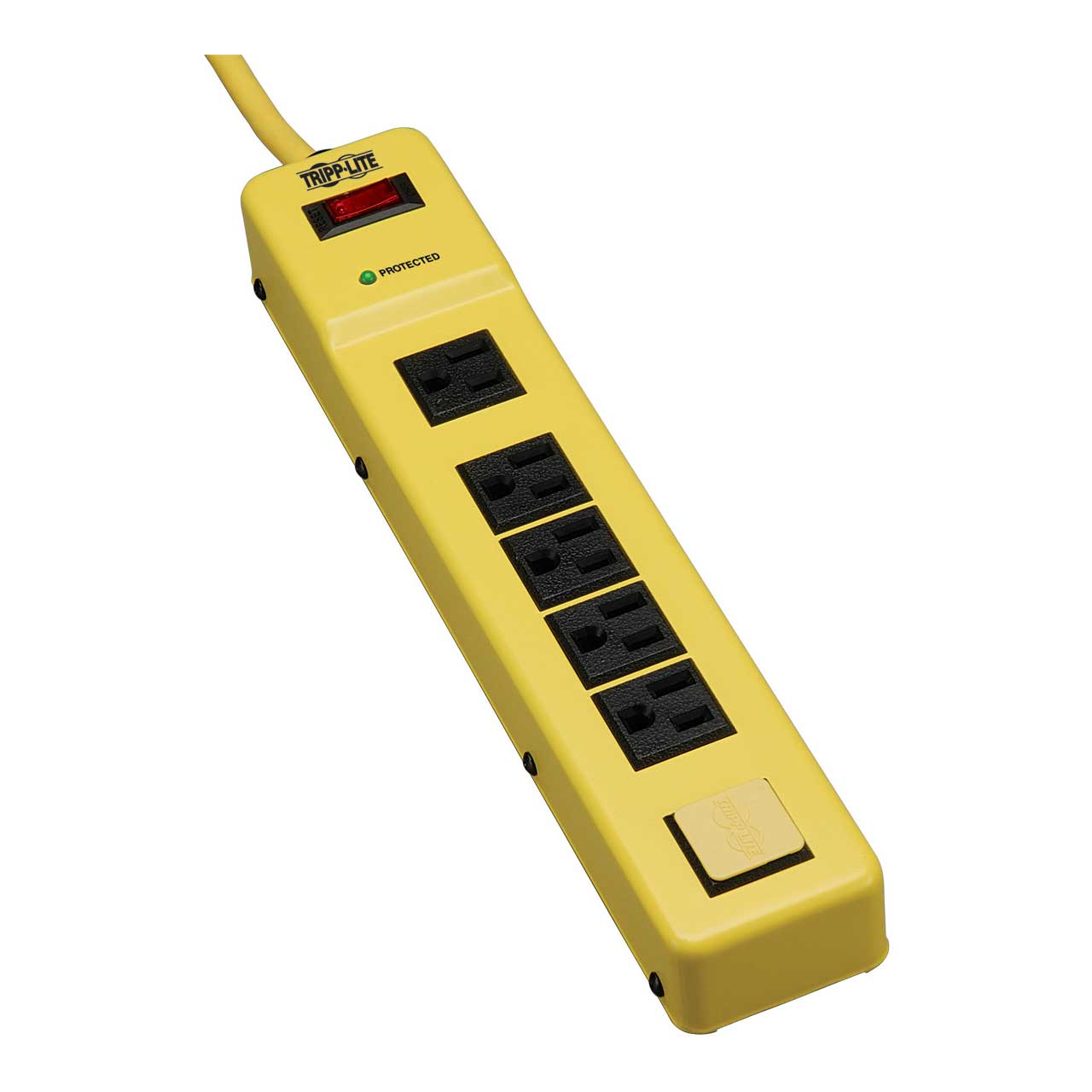

Tripp Lite TLM626SA Protect It 6-Outlet Industrial Safety Surge Protector 6 Foot Cord 900 Joules Outlet Covers

TLM626SA - Overview

• Features:

  • 6 outlets protect connected equipment against damaging surges, spikes and line noise
  • 6-ft. grounded cord reaches distant outlets
  • Lighted ON/OFF switch with integrated circuit breaker provides power control over connected equipment. Breaker protects against dangerous system overload.
  • Protected LED - If this green LED ever goes out, Tripp Lite will replace your surge suppressor under warranty at no charge!
  • Convenient transformer outlets accommodate multiple transformers without blocking other outlets.
  • 4 safety covers shield unused outlets from debris and accidental contact.
  • Rugged metal case stands up to the harshest environments.
  • Integrated keyhole slots on bottom panel provide convenient wall/desk mounting.
  • 900 joules of surge protection
  • OSHA color guidelines, outlined in Document 1910.145, alert users to hazardous situations, which may cause minor or moderate injury. This Tripp Lite product complies with those guidelines.
  • $10,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
  • Automatic shutoff cuts power to outlets when the protection circuit has been compromised


• Specifications:

  • Frequency Compatibility: 60 Hz
  • Output Receptacles: (6) 5-15R
  • Circuit Breaker (amps): 15
  • Overload Protection: Combo power switch and circuit breaker
  • Transformer Accommodation: Yes (2)
  • Outlet Safety Covers: Yes (4)
  • Outlet Orientation: 1 single row of 6
  • Right-Angle Outlets: Yes
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Connection Type: NEMA 5-15P
  • Input Cord Length (ft.): 6
  • Input Cord Length (m): 1.83
  • Input Cord Gauge Type: 14 gauge, SJT
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 45000
  • Right-Angle Plug: No
  • Switches: Lighted on/off power switch
  • Diagnostic LED Details: 1 green "protected" LED confirms surge suppression is present
  • AC Suppression Joule Rating: 900
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
  • Clamping Voltage (RMS): 150V
  • EMI / RFI Filtering: Up to 20 dB
  • Telephone/DSL Protection: No
  • Cable (Coax) Protection: No
  • Network (Ethernet) Protection: No
  • Shipping Dimensions (hwd / in.): 13.61 x 4.97 x 2.01
  • Shipping Dimensions (hwd / cm): 34.57 x 12.62 x 5.11
  • Shipping Weight (lbs.): 1.7
  • Shipping Weight (kg): 0.77
  • Unit Dimensions (hwd / in.): 12.23 x 2.30 x 1.28
  • Unit Dimensions (hwd / cm): 31.06 x 5.84 x 3.25
  • Unit Weight (lbs.): 1.46
  • Unit Weight (kg): 0.66
  • Material of Construction: Metal
  • Integrated Keyhole Mounting Tabs: Yes
  • Receptacle Color: black
  • Color (AC Line Cord): yellow
  • Outlets Measurement (Center to Center): Distance between standard outlets = 30.40mm; Distance between transformer and standard outlets = 45mm
  • Keyhole Slot Mounting Measurement (Center to Center): 155mm
  • UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
  • cUL / CSA (Canada): cUL
  • Approvals: cULus, RoHS
  • Product Warranty Period (Worldwide): Lifetime limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $10,000 Ultimate Lifetime Insurance


• Item Includes:

  • TLM626SA SAfety Surge Suppressor
  • 4 safety covers
  • Owner's manual


• Warranty:

  • Lifetime


• GTIN:

  0037332140104
