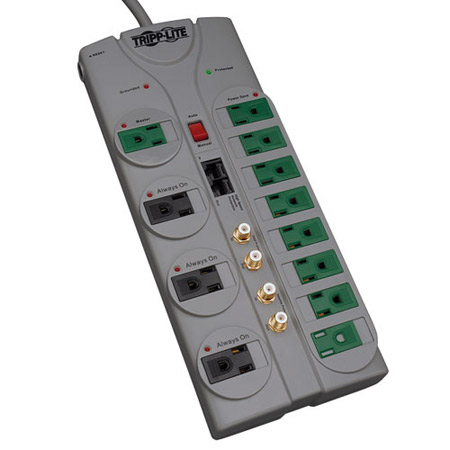

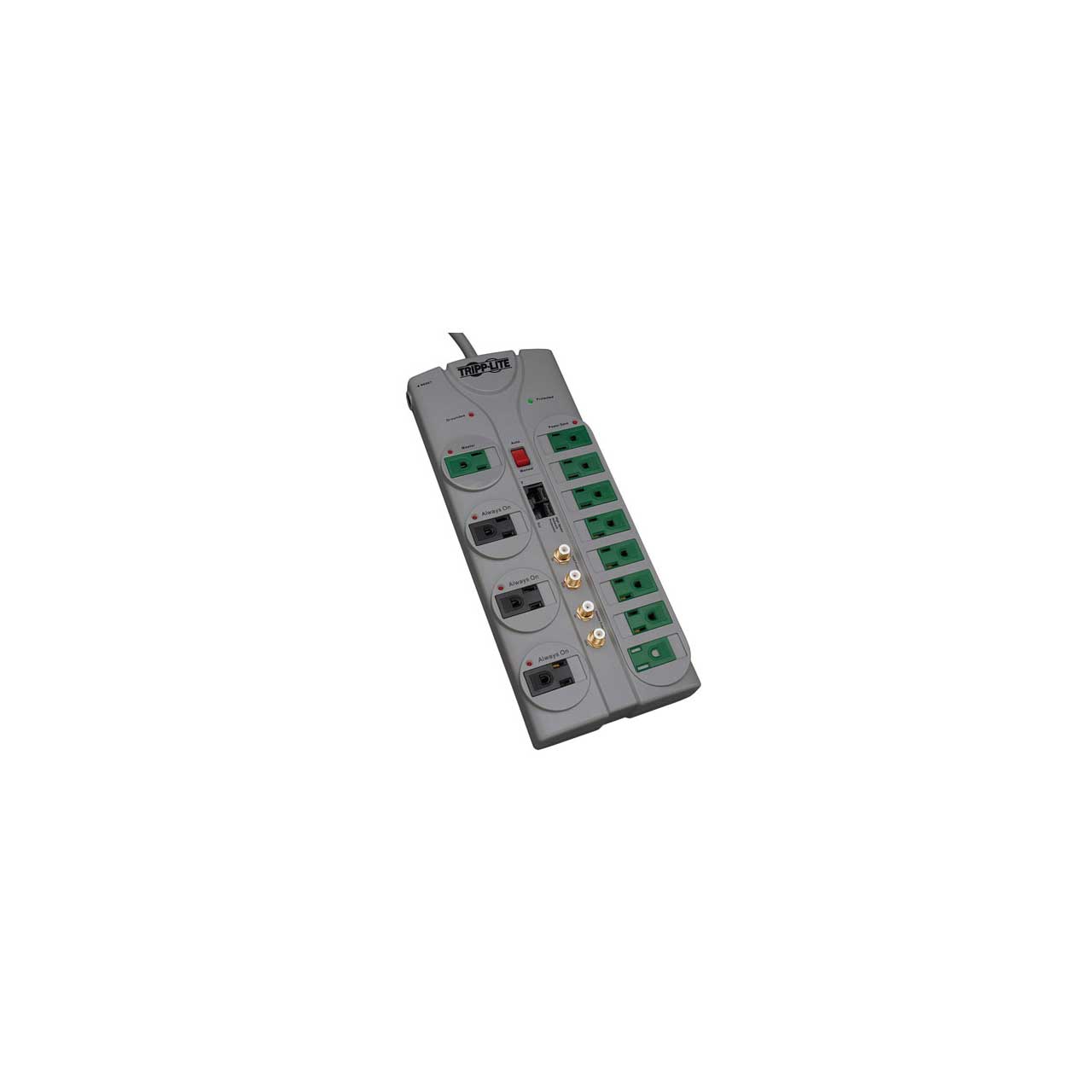

Tripp Lite TLP1210SATG Eco Surge Protector Green 120V RJ11 RJ45 Coax 12 Outlet 10ft Crd

ITEM #: TRL-TLP1210SATG MFG #: TLP1210SATG

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$73.01

Our Price:

$51.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TLP1210SATG - Overview

The TLP1210SATG offers reliable, green surge technology that protects your A/V installations, the environment and your wallet. The TLP1210SATG offers a unique Netbook switch that allows users to select wattage, so these are the only green surge suppressors compatible with all PCs, Notebooks and Netbooks. Energy-saving outlet configuration reduces energy waste (phantom loads) by cutting AC power to unused peripherals. The TLP1210SATG offers 3600 joules of advanced surge protection for all A/V components. You can see and hear the difference: sharper, crisper video; deeper, fuller audio; longer component life spans. Perfect for small-to-medium home/business theater installations: high-definition TVs, satellite and A/V receivers, DVD/CD players and more. 12 outlets (with transformer spacing and sliding safety covers), 2-line coaxial protection and 1-line tel/modem/Ethernet (100BaseT, high-speed) protection safeguard an entire home/business theater system. Includes two diagnostic LEDs and four status LED indicators, color-coordinated holographic outlet/plug labels, 10-ft. cord with a right-angle plug, 6-ft. coaxial cable and 6-ft. network cable. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).

What is the main culprit of electrical surges?
Electrical devices that require lots of power to operate. Depending on the wiring of your Studio or Production suite, you may notice at times that your lights flicker when powerful devices turn on and off, e.g. your air conditioner. When these devices are switched on, they demand a lot of electricity, which puts a lot of strain on the grid and can cause surges.
When should you use a surge protector?
All the time. The real question is really which devices you should connect to a surge protector. You don’t need a surge protector for your desk lamp or your standing fan, but you do want a surge protector for expensive devices that have intricate microprocessors, like computers, DVR's, LED/LCD monitors, power amps, Studio Lighting, Powered Nearfield Speaker monitors, etc. Think of it this way: if there was an electrical surge that destroyed all of the devices connected to your outlets, which lost devices would pain you the most? Plug those into a surge protector. It’s better to be safe than sorry.

  • Features:

    • Energy-saving outlet configuration reduces energy waste (phantom loads) by cutting AC power to unused peripherals
    • Green Outlet Array; "Master" outlet controls power flow for 1 primary and up to 8 peripheral components. "Power Save" outlets cut AC power to 8 connected components when not in use - perfect for non-essential components that do not save settings like DVD players, gaming consoles, amplifiers and speaker systems. "Always On" outlets provide continuous power to 3 critical devices that save settings like DVRs and recorders (TiVo), cable and satellite boxes
    • User-adjustable wattage control switch - allows for high-wattage (over 25W) and low-wattage (over 15W) components to serve as Master device
    • Auto/Manual Switch - allows users to switch between green (auto) power-save mode and standard (manual) surge protection

  • Specifications:

    • Style Strip
    • Output Volt Amp Capacity (VA) 15
    • Output Watt Capacity (Watts) 1800
    • Frequency Compatibility 60 Hz
    • Output Receptacles (12) 5-15R
    • Outlet Type NEMA 5-15R
    • Transformer Accommodation Accommodates 8 transformers
    • USB Charging No
    • Nominal Input Voltage(s) Supported 120V AC
    • Recommended Electrical Service 120V (110-125V)
    • Input Connection Type NEMA 5-15P
    • Input Plug Features Space-saving right-angle input plug
    • Input Cord Length (ft.) 10
    • Input Cord Length (m) 3
    • Input Cord Gauge Type 14 gauge, SJT
    • Voltage Compatibility (VAC) 120
    • Maximum Surge Amps 228000
    • AC Suppression Joule Rating 3600
    • AC Suppression Response Time < 1 ns
    • Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
    • Clamping Voltage (RMS) 150
    • UL1449 Let Through Rating 330, 400, 400
    • EMI / RFI Filtering Up to 40 dB
    • Telephone/DSL Protection Yes
    • Cable (Coax) Protection Yes
    • Cable (Coax) Protection Details 2 line
    • Network (Ethernet) Protection Yes
    • Shipping Dimensions (hwd / in.) 2.05 x 8.66 x 13.39
    • Shipping Dimensions (hwd / cm) 5.21 x 22.00 x 34.01
    • Shipping Weight (lbs.) 2.76
    • Shipping Weight (kg) 1.25
    • Unit Dimensions (hwd / in.) 1.54 x 4.72 x 11.88
    • Unit Dimensions (hwd / cm) 3.91 x 11.99 x 30.18
    • Unit Weight (lbs.) 2.55
    • Unit Weight (kg) 1.16
    • Material of Construction Plastic
    • Integrated Keyhole Mounting Tabs Keyhole mounting slots allow desk or wall mounting
    • Color (AC Line Cord) Black
    • Outlets Measurement (Center to Center) Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm
    • Keyhole Slot Mounting Measurement (Center to Center) Distance between horizontal tabs = 152mm; Distance between vertical tabs = 73.5mm
    • Green Energy-Saving Features Power saving auto-shutoff ECO outlets
    • Right-Angle Plug Yes
    • UL1449 3rd Edition (AC Suppression) UL1449 3rd EDITION
    • UL1363 (Power Tap) UL1363
    • UL497A (Communications) UL497A
    • FCC Part 68 (Communications) FCC Part 68
    • cUL / CSA (Canada) cUL
    • Approvals Exceeds IEEE 587 category A&B specifications
    • Product Warranty Period (Worldwide) Lifetime limited warranty
    • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance

  • GTIN:

    0037332152541
