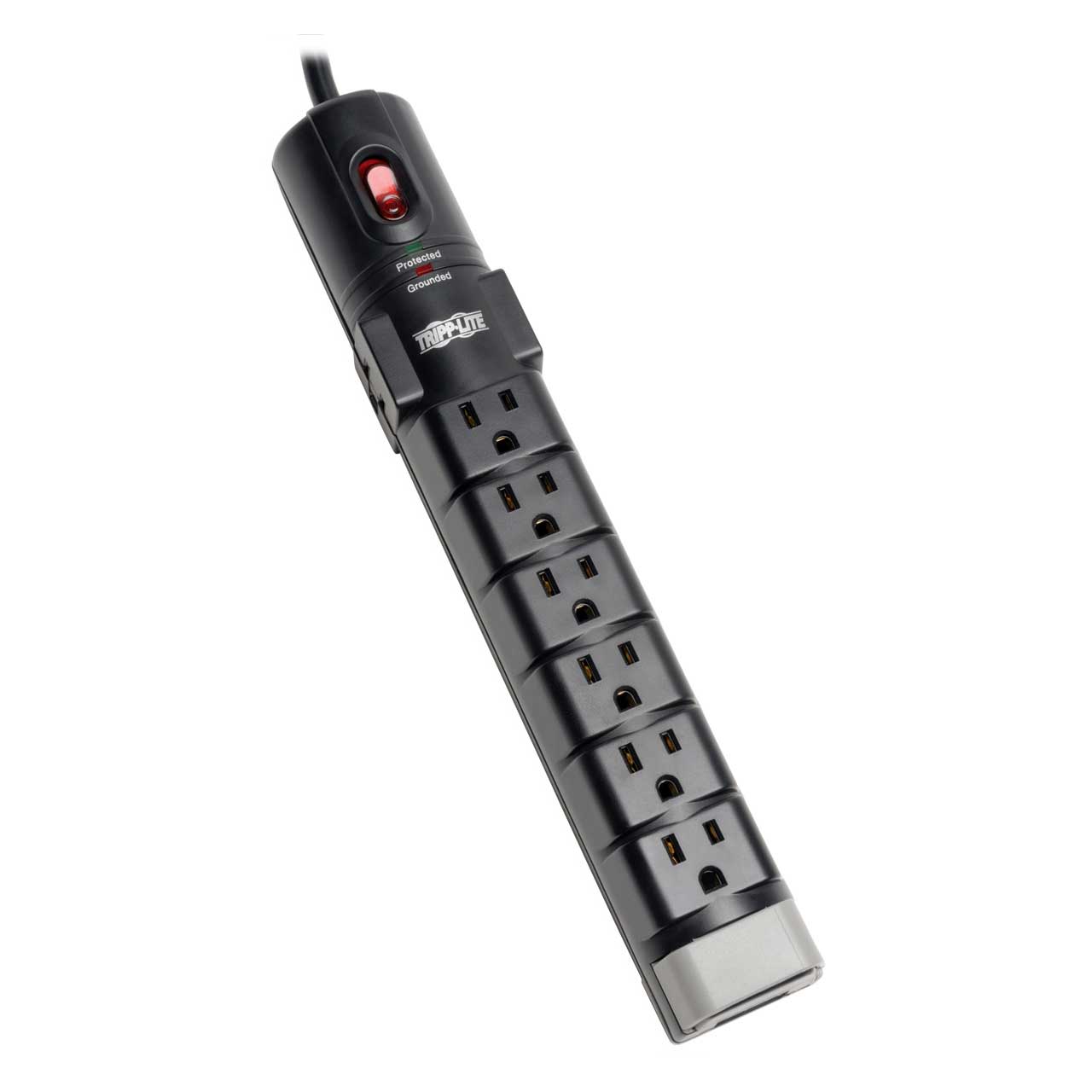

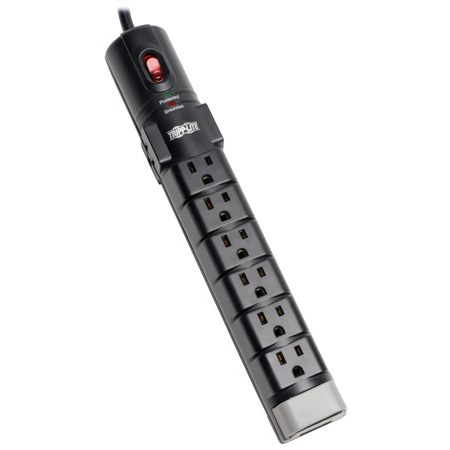

Tripp Lite TLP806TEL Protect It 8-Outlet Surge Protector 6 Foot Cord 2160 Joules Tel/DSL Protection Cord Clip

TLP806TEL - Overview

• Features:

  • 2160 joules AC surge suppression shields equipment from the strongest surges and line noise
  • 8 AC outlets with room for 2 transformer plugs without blocking outlets covers computers and all peripherals
  • Long 6 foot AC line cable with space-saving angle input plug conveniently reaches distant outlets

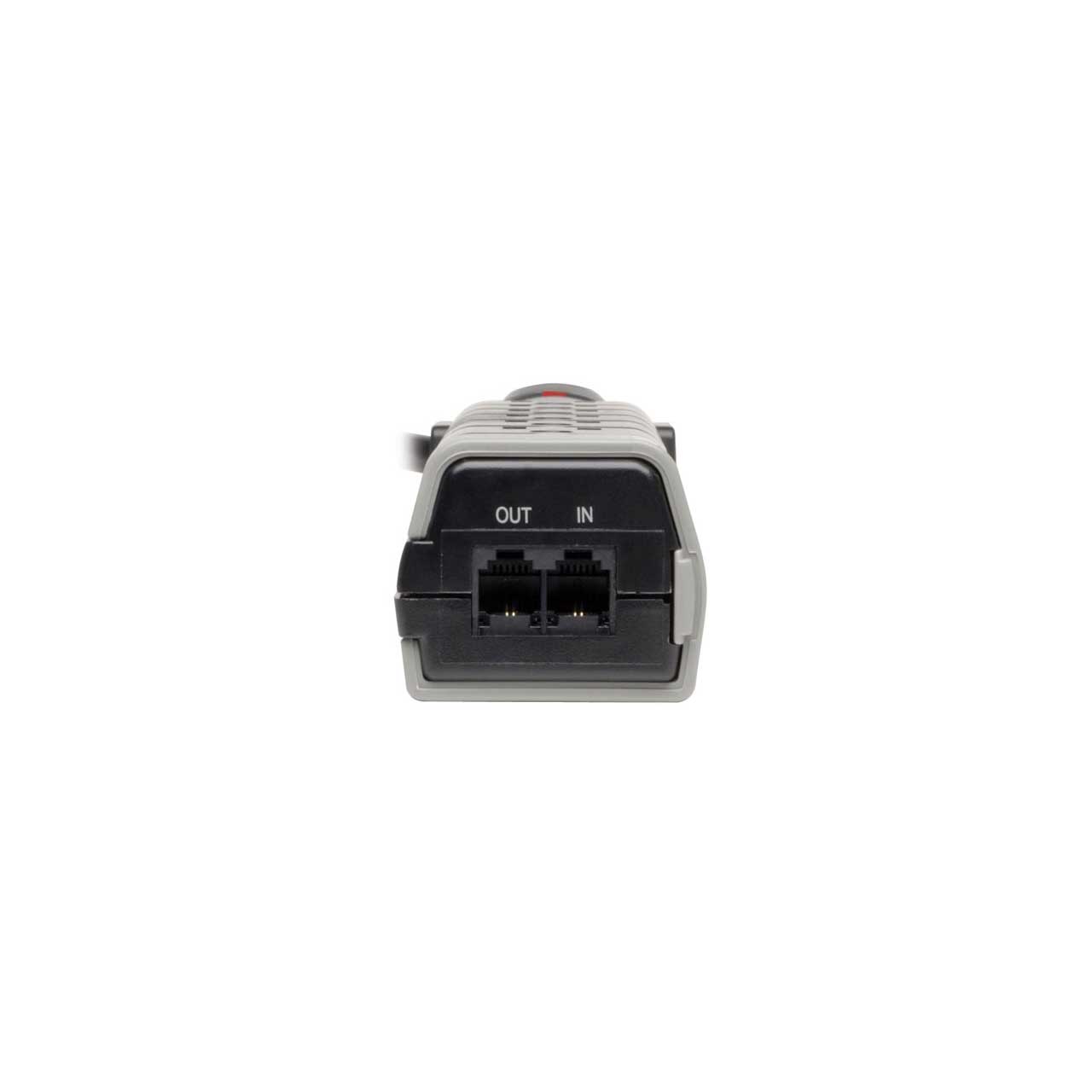

  • Built-in RJ11 jacks (1in/1 out) prevent surges from damaging your modem/fax/phone equipment

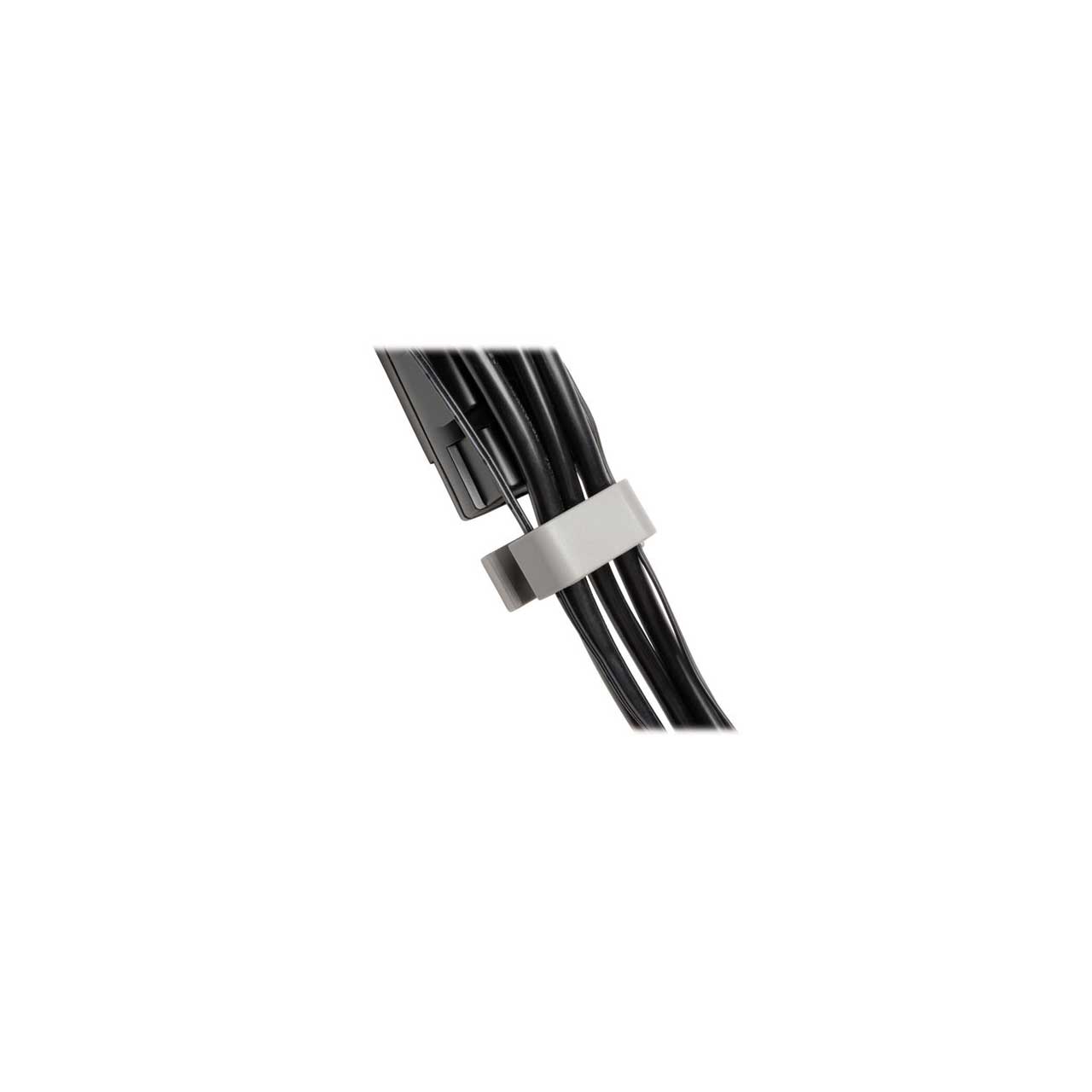

  • Built-in cord management
  • Lighted power switch with integrated 15 amp circuit breaker offers power control and overload protection
  • Diagnostic LEDs confirm outlet grounding and surge suppression status
  • Attractive black suppressor housing with keyhole mounting tabs allow versatile placement options
  • $150,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
  • Automatic shutoff cuts power to outlets when the protection circuit has been compromised


• Specifications:

  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (8) 5-15R
  • Output (Watts): 1800W
  • Circuit Breaker (amps): 15
  • Transformer Accommodation: Supports 2 large transformer plug accessories without covering remaining outlets, accepts up to 6 transformers total
  • Outlet Safety Covers: Includes built-in sliding outlet safety covers

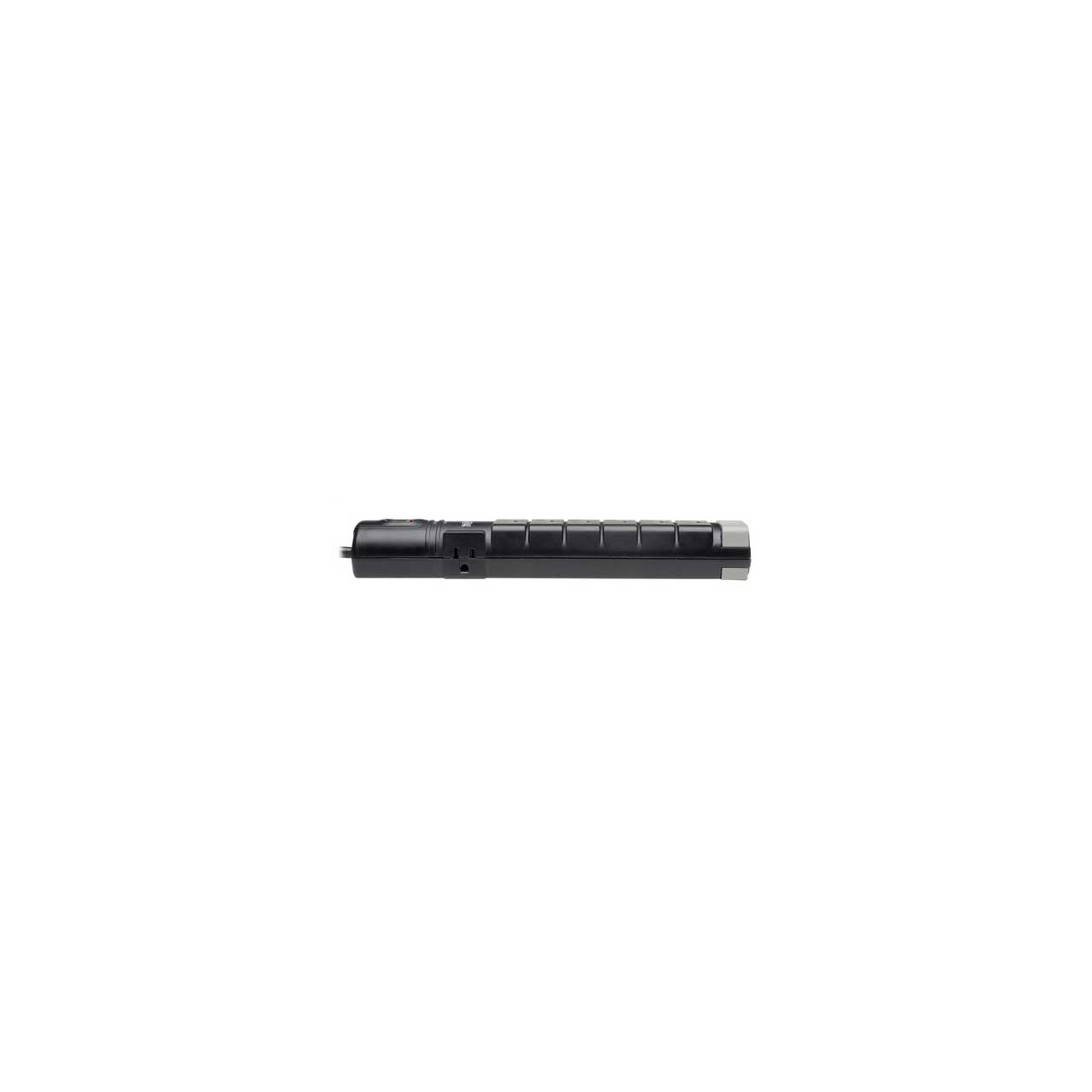

  • Outlet Orientation: Single row of 6, plus 2 for transformer accommodation
  • Right-Angle Outlets: No
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Connection Type: NEMA 5-15P
  • Input Plug Features: Space-saving right angle input plug
  • Input Cord Length (ft.): 6
  • Input Cord Length (m): 1.83
  • Input Cord Gauge Type: 14 gauge, SJT
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 144000
  • Right-Angle Plug: Yes
  • Switches: Combination AC circuit breaker and 2-position red illuminated on/off power switch
  • Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
  • AC Suppression Joule Rating: 2160
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping Voltage (RMS): 150
  • UL1449 Let Through Rating: 330/400/400
  • EMI / RFI Filtering: Up to 40 dB
  • Telephone/DSL Protection: Yes
  • Telephone/DSL Protection Details: 1 line
  • Cable (Coax) Protection: No
  • Network (Ethernet) Protection: No
  • Shipping Dimensions (hwd / in.): 13.78 x 5.13 x 2.40
  • Shipping Dimensions (hwd / cm): 35 x 13.03 x 6.1
  • Shipping Weight (lbs.): 1.5
  • Shipping Weight (kg): 0.68
  • Unit Dimensions (hwd / in.): 1.74 x 2.00 x 12.40
  • Unit Dimensions (hwd / cm): 4.42 x 5.08 x 31.5
  • Unit Weight (lbs.): 1.2
  • Unit Weight (kg): 0.54
  • Material of Construction: Plastic

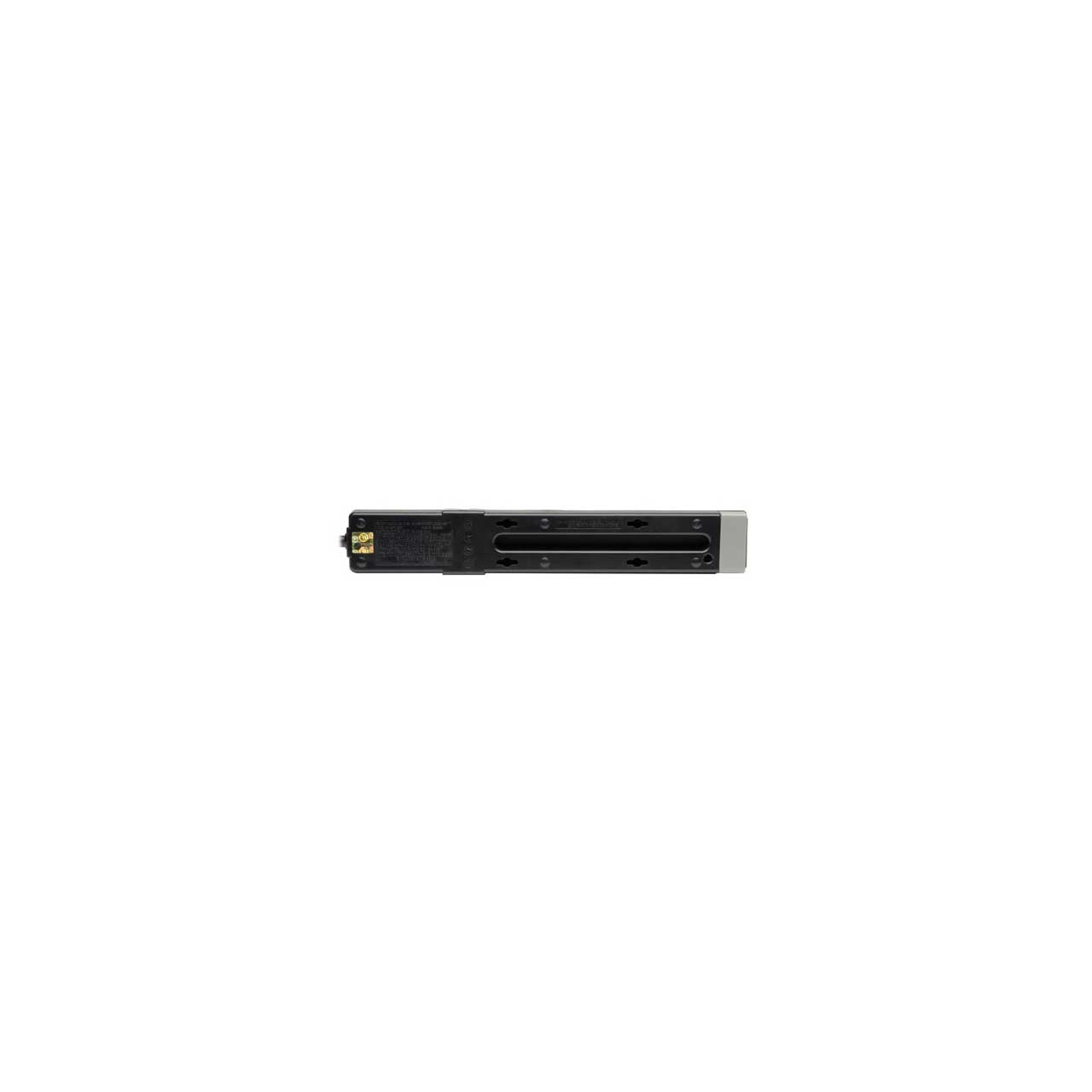

  • Integrated Keyhole Mounting Tabs: Keyhole mounting slots enable wall mounting
  • Receptacle Color: Black
  • Color (AC Line Cord): Black
  • Color: Black
  • Outlets Measurement (Center to Center): 29mm
  • Keyhole Slot Mounting Measurement (Center to Center): Distance between horizontal slots 101.3mm = Distance between vertical slots = 30mm
  • Additional Information: Pair of phone line output jacks serve as a line splitter to enable the protection of two devices sharing a single dialup phone line
  • UL1449 3rd Edition (AC Suppression): UL1449 3RD EDITION
  • UL1363 (Power Tap): UL1363
  • UL497A (Communications): UL497A
  • FCC Part 68 (Communications): FCC Part 68
  • cUL / CSA (Canada): cUL
  • Industry Canada (Communications): Industry Canada
  • Approvals: Exceeds IEEE 587 category A&B specifications
  • Product Warranty Period (Worldwide): Lifetime limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $150,000 Ultimate Lifetime Insurance


• Item Includes:

  • TLP806TEL
  • 6-ft. telephone cord
  • Instruction manual with warranty information


• Warranty:

  • Lifetime


• GTIN:

  0037332175229
