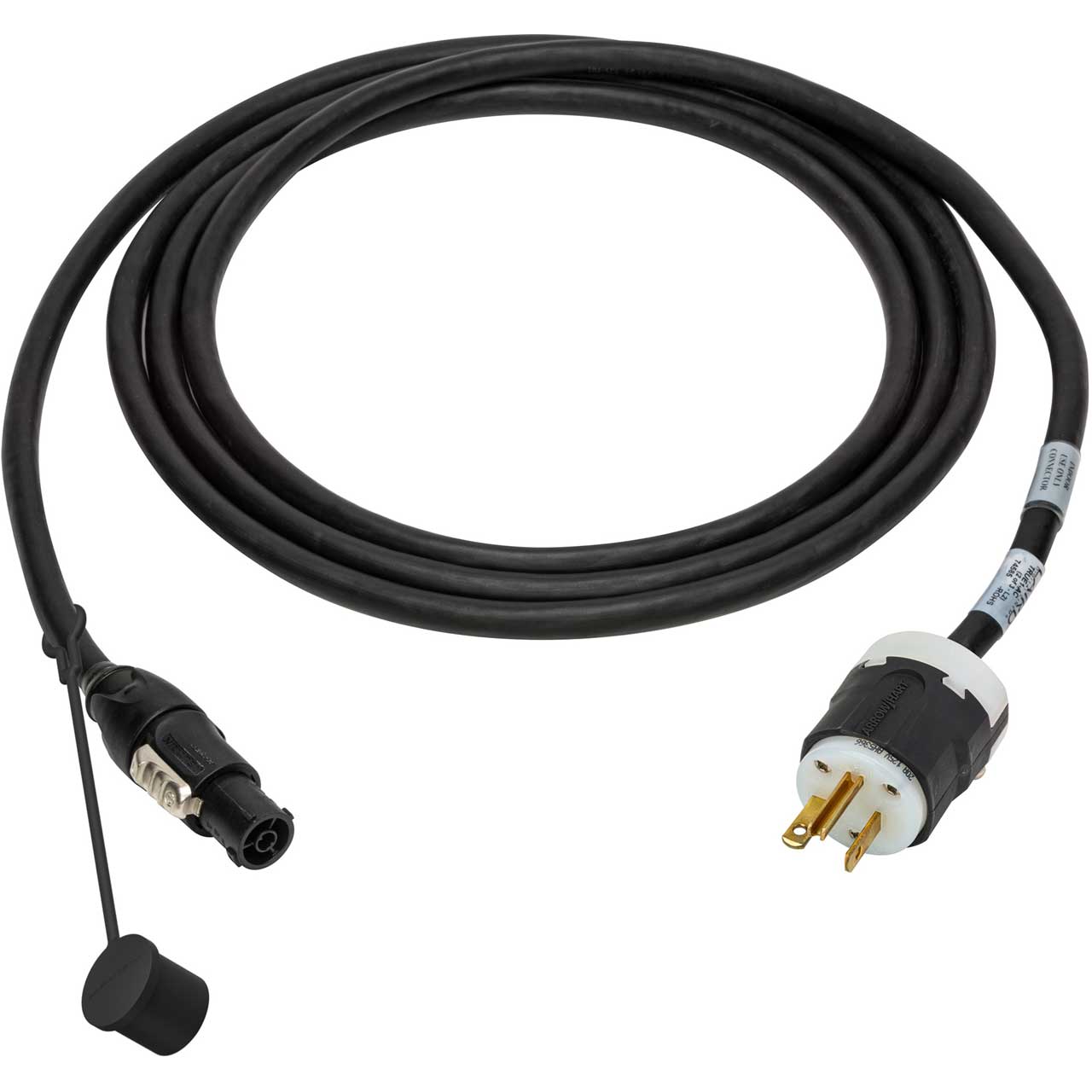

Laird NEUTRIK TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 3 Foot

TRUE1-AC20IN-003 - Overview

• Features:

  • Neutrik powerCON TRUE1 Locking Connector
  • Lanyard Style Rubber Dust Caps
  • NEMA 5-20P AC Plug
  • Rubber jacketed cable provides resistance to water and oil


• Specifications:

  PWR-12/3-TP
  • Conductor Material: Bare Copper Wire
  • Number of Conductors x AWG: 3x12
  • Conductor Insulation: Rubber (EPR)
  • Outer Jacket Material: Rubber (CPE)
  • Current Carrying Capacity: 25A
  • Outer Diameter: 0.425" - 0.476"
  • Nom. Voltage: AC U 300V
  • Temperature:
    - Flexing: -4°F - 194°F (-20°C - 90°C)
    - Static: -40°F - 194°F (-40°C - 90°C)
  • Min Bend Radius:
    - Flexing: 4.76"
    - Static: 2.85"
  • Weight: 0.14lbs/ft

    Leviton 5366C Plug:
  • Amperage: 20A
  • Voltage: 125V AC

    Neutrik Connector
  • Contact Resistance: ≤ 2mΩ
  • Dielectric Strength: 4kVdc/2.8kVac
  • Insulation Resistance: > 0.1GΩ (after damp heat test IEC 68-2-30)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: > 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP65, UL50E Enclosure Type 4 (Mated)
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)


• Warranty:

  • 1 Year
