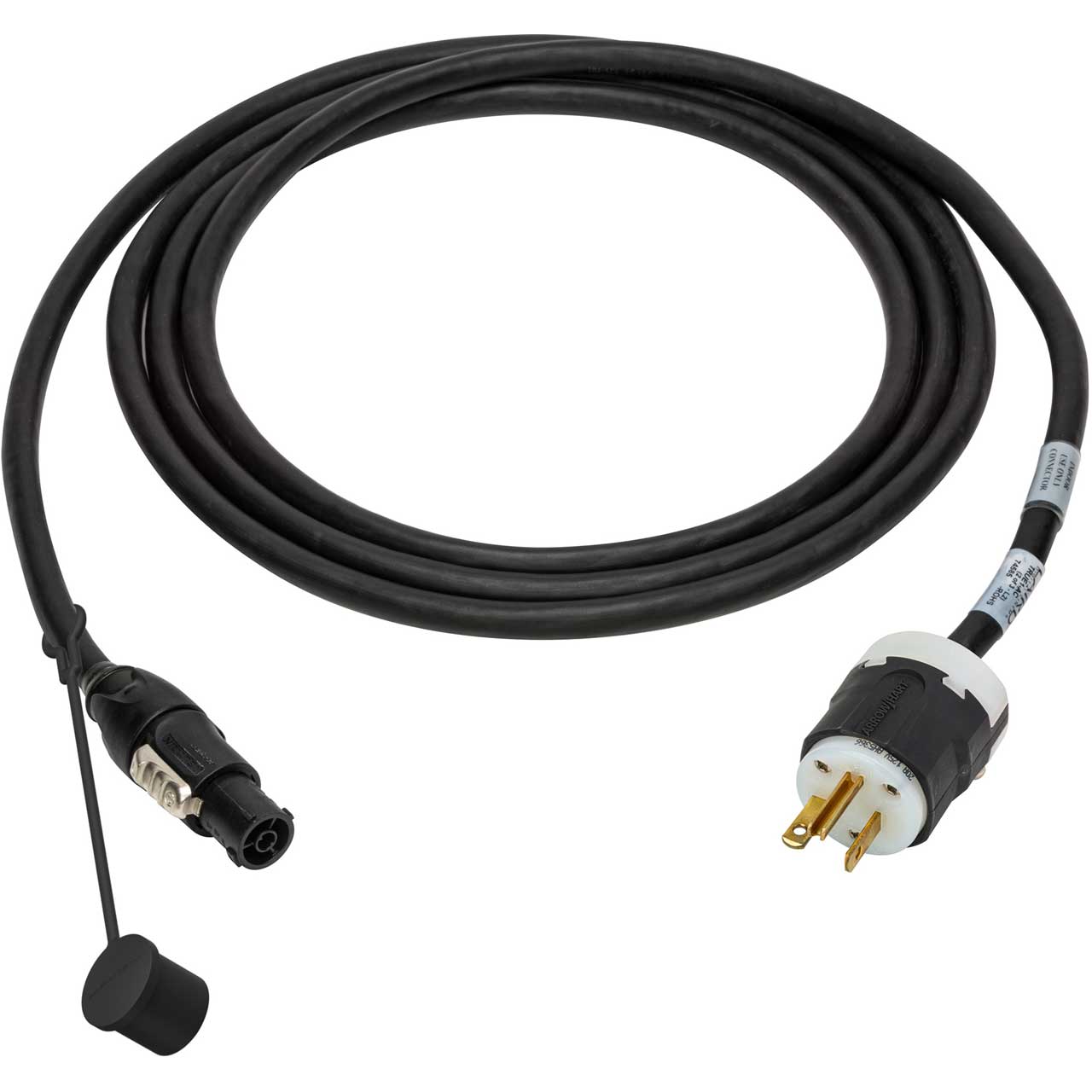

Laird Neutrik TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 10 Foot

TRUE1-AC20IN-010 - Overview

• Features:

  • Neutrik powerCON TRUE1 Locking Connector
  • Lanyard Style Rubber Dust Caps
  • NEMA 5-20P AC Plug
  • Flexibility in Low Temperatures
  • Dust and Water Resistant According to IP65 Rating
  • Water and Oil Resistant
  • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance


• Specifications:

  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
  • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
  • TPrene Jacket - Black
  • 3 conductor colors: Black, White and Green
    Leviton 5366-C AC Plug Cable End:
  • 20 Amp
  • 125V
  • NEMA 5-20P
    NAC3FX-W-TOP
  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: 4 kVdc / 2.8 kVac
  • Insulation Resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: > 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP65, UL50E Enclosure Type 4 (Mated)
  • Temperature Range: -22 °F to 176 °F
  • Rating Europe: EN 60320-1: 16 A 250 V AC
  • Rating USA: UL 498: 20 A 250 V AC


• Warranty:

  • 1 Year
