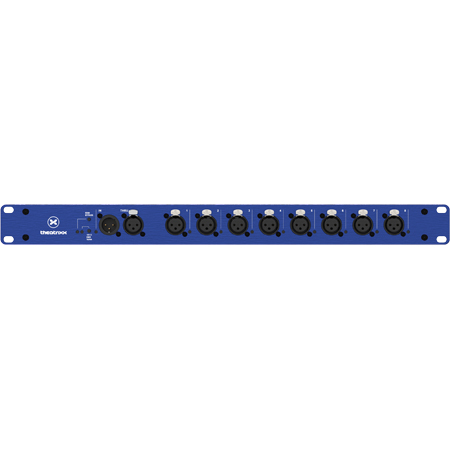

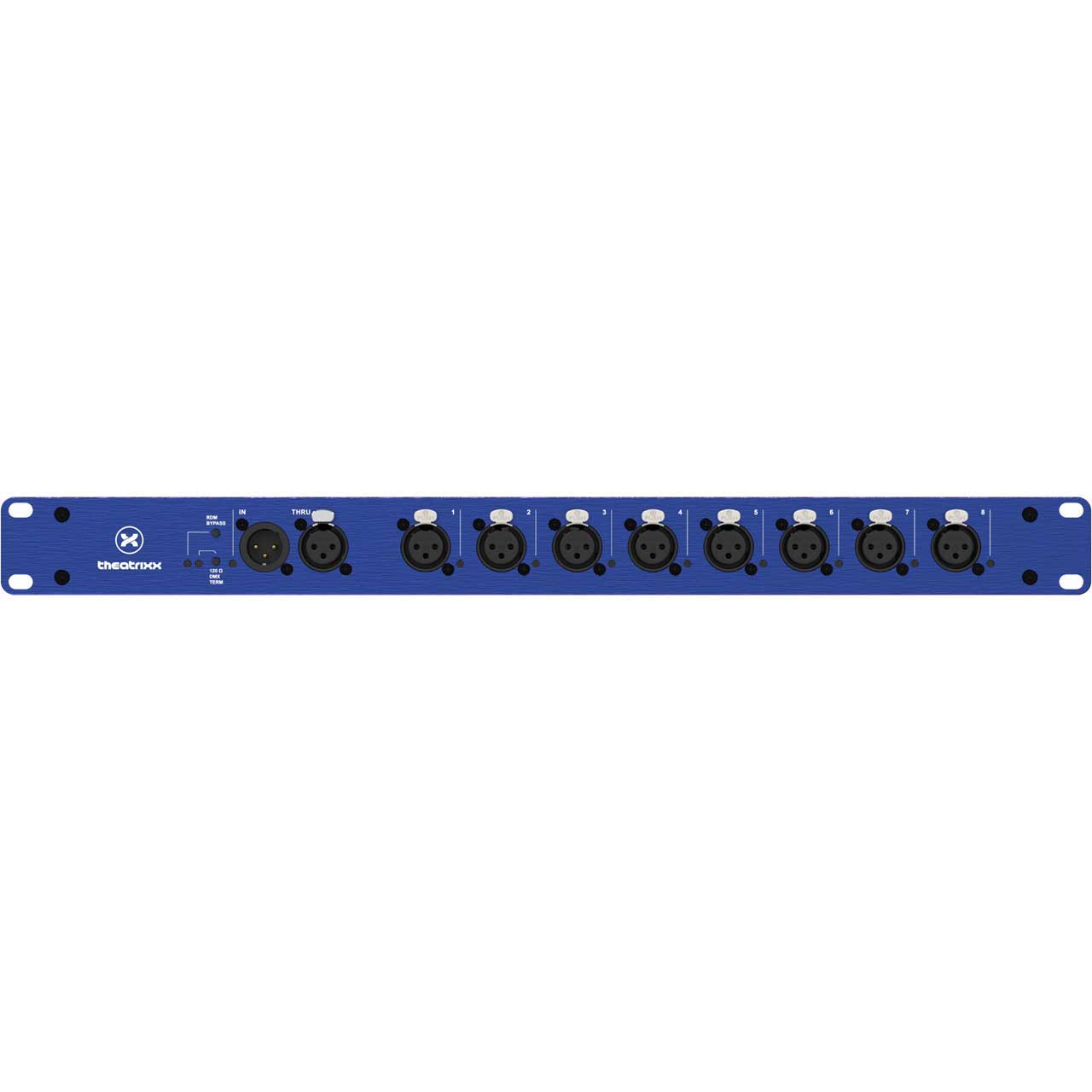

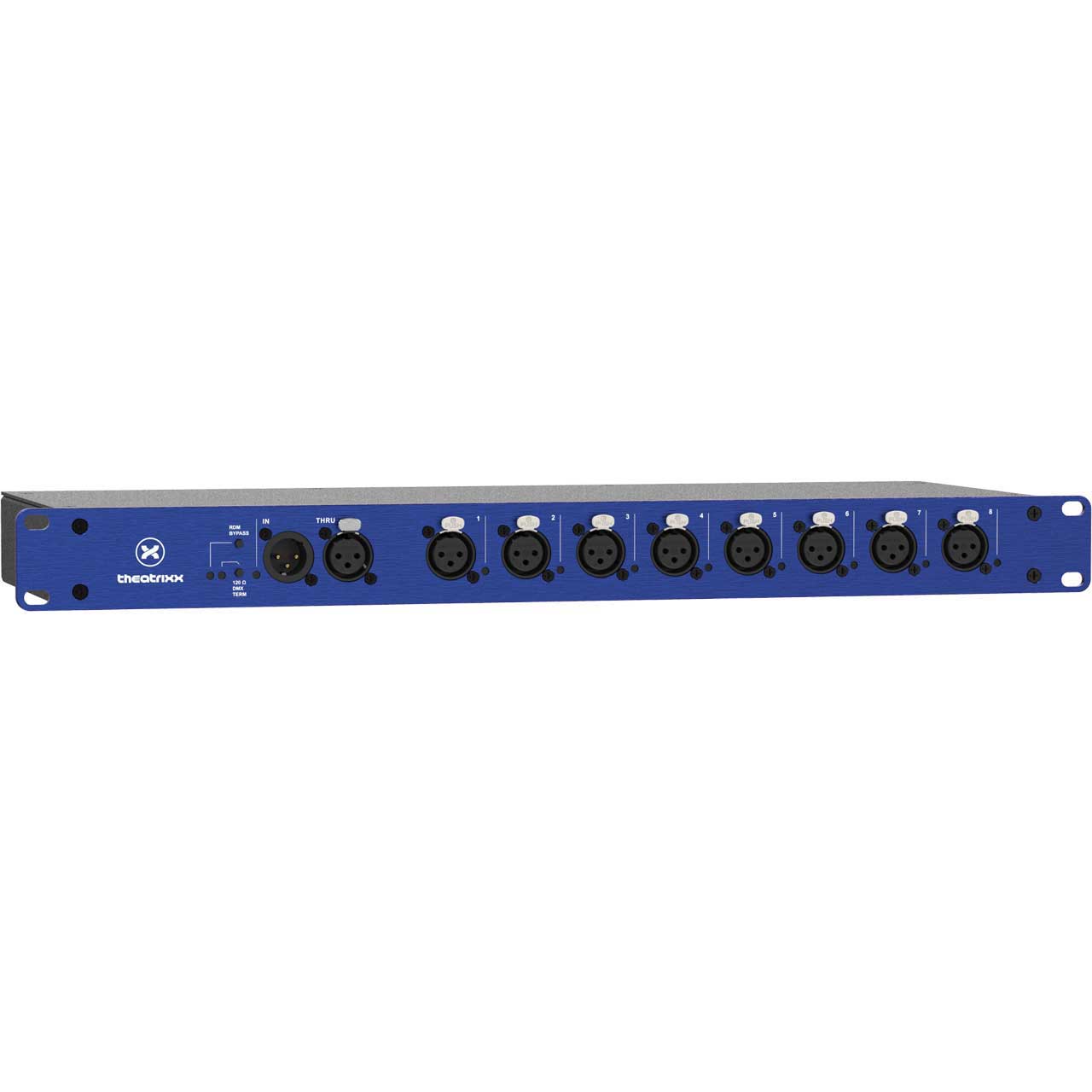

The Theatrixx XVVR-OPTO3 is a high quality DMX/RDM splitter, rugged distribution device for your DMX-512 and RDM signals. The XVVR-OPTO3 is the traditional 1RU with an 8-Channel form factor unit that is compatible with Theatrixx's Award-Winning 8-Bay Reversible Converter System, the product opens up interesting possibilities for high-universe count, high density configurations. For maximal compatibility, the device is offered with a 3-pin XLR connectors.
The input and each output are optically isolated up to 1000 volts, ensuring line failures are contained and do not take down the whole network. RDM data is forwarded to each port, and a special Timing Safe Mode bypasses RDM transmitting and boosts the DMX signal quality to ensure compatibility with older-generation fixtures. It is also a handy troubleshooting feature that can be easily switched on or off at the push of a button.
