tvONE ONErack 1RK-4RU-MOD 4RU Module Plate 1 Module Voltage Selector and 1 Rear Dock Plus Accessories

ITEM #: TV1-1RK4RUMOD MFG #: 1RK-4RU-MOD

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$125.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


1RK-4RU-MOD - Overview

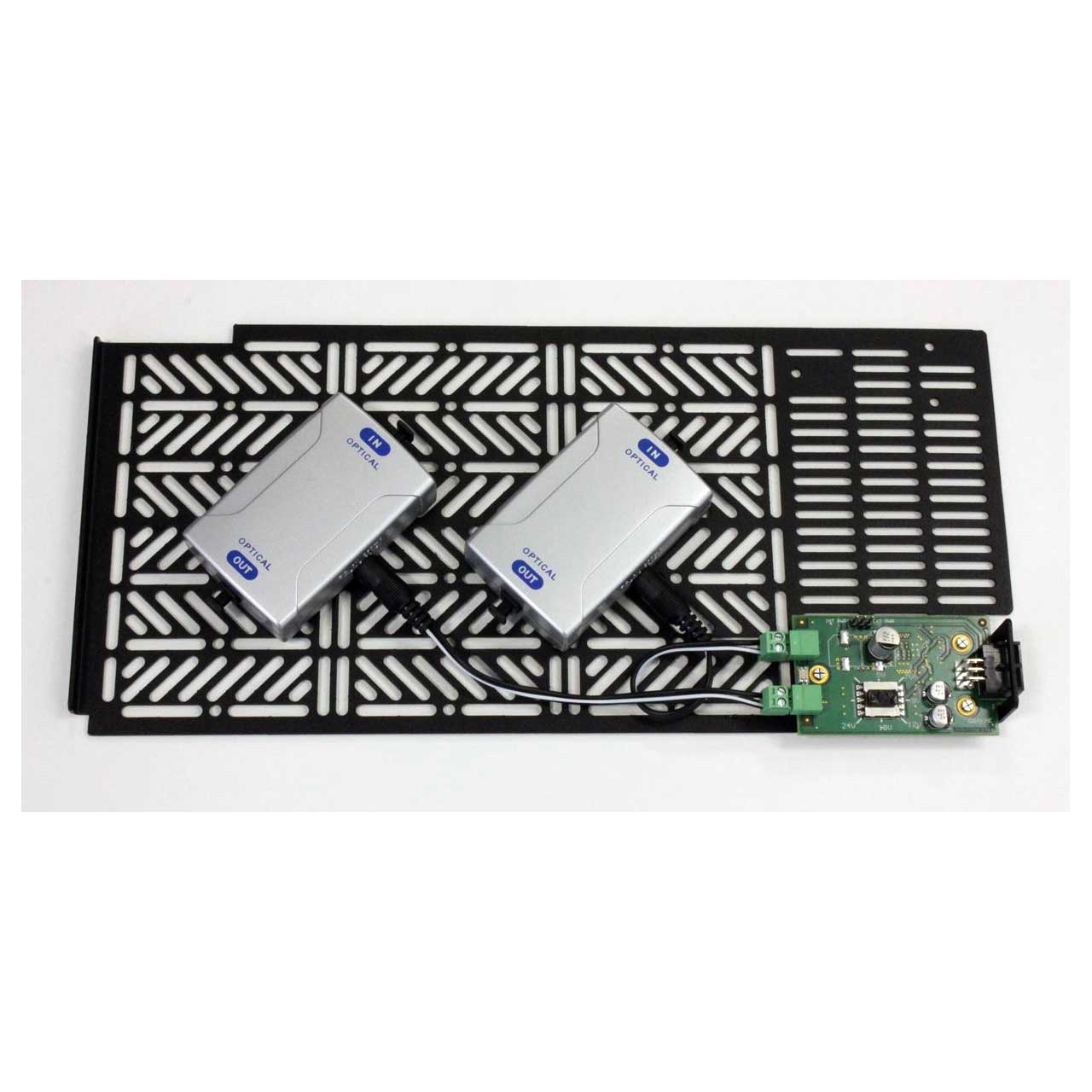

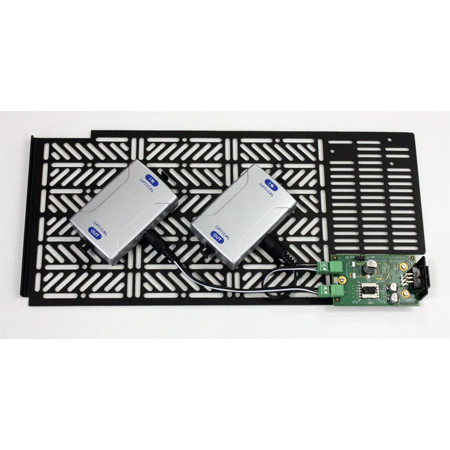

The 1RK-4RU-MOD is a module kit for the ONErack chassis. The ONErack Module kit contains 1 module, 1 Powercircuit, 1 Rear dock, Chassis mounting accessories, and PSU cables. The ONErack Module provides a mounting surface for devices and houses the voltage selector and power docks for the ONErack chassis. ONErack is a universal, powered mounting system that vastly improves rack installation of small devices. tvONE's patent pending design converts randomly sized, externally powered devices from any manufacturer into slide-in modules that can be installed quickly and cleanly and serviced easily. Chassis are available in 4RU, 5RU and 6RU and can hold up to 16 modules with up to 2 voltage selectors each. When using the ONErack Power Supply, each voltage selector, can provide power @ 5v, 7.5v, 9v, 12v, 13.5v, 18v, & 24v up to 35 watts. A pass thru is also available for custom power sources. Each ONErack Chassis can include 1 or more Power Supplies for added power which can also feed additional chassis, providing a clean power solution for all mounted devices. For service, just slide out a failed device, no cable ties, no guessing. Close the front of your ONErack with a Fan cover and keep it all cool. Up to 32 devices in just 4RU, powered and cooled.

  • Features:

    • Slide in module for mounting small devices
    • Includes one Voltage Selector to allow a choice of seven voltages
    • Each Voltage selector provides 35w of power
    • Accessory Voltage Selector (1RK XTRA-PWR) can be attached to give another voltage or additional power

  • Specifications:

    • Main Output Voltage: 28v Dc
    • Main Output Power: 250w
    • Fan Output Voltage: 12v Dc
    • Fan Output Power: 6w
    • Btu: 1195 Btu
    • Certifications: Rohs, Ce, Ul, Fcc Class A
    • Ac Input Voltage: 90-264v Ac
    • Outlets Available: 2x 28v Dc Daisy Chainable (Rear), 2x Fan 12v Dc (1x Front, 1x Rear), 1x 28v Dc Service Output (Front)
    • Airflow: 225 Cfm Max
    • Consumption: 6w Max
    • Speed Adjustment: 100% Down To 50%
    • Power: 12v Dc
    • Certifications: Rohs, Ce, Ul, Fcc Class A

  • Warranty:

    • 1 Year Warranty
