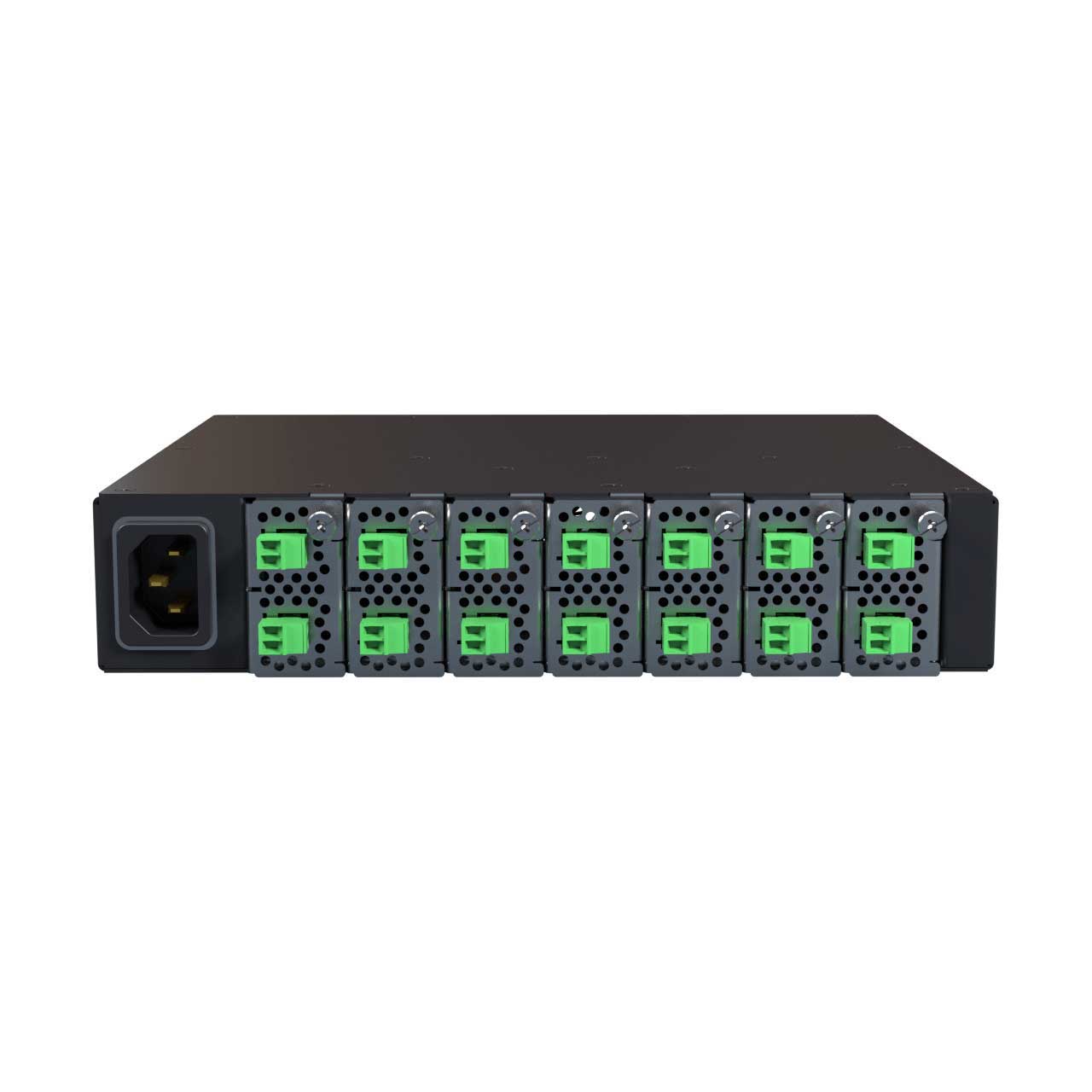

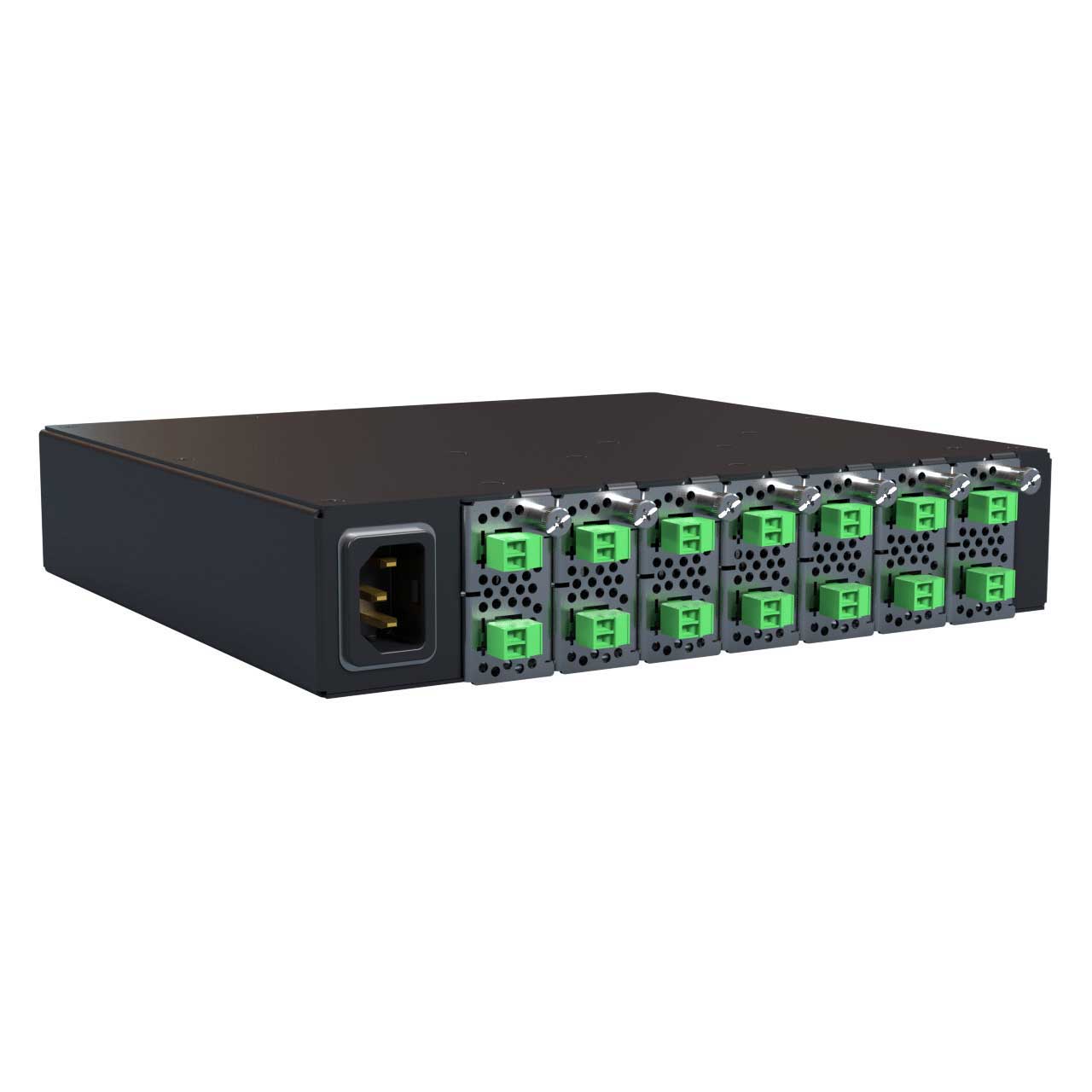

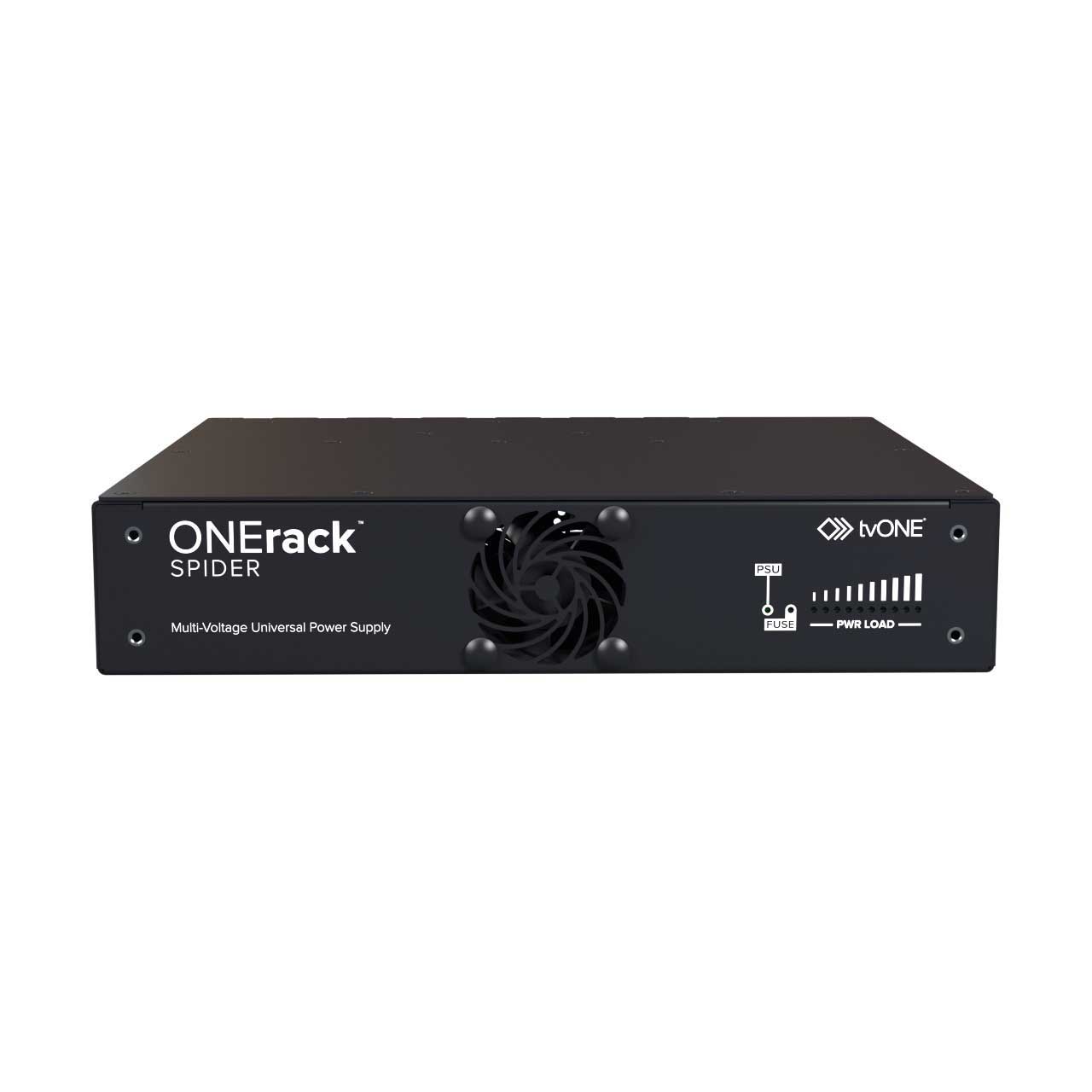

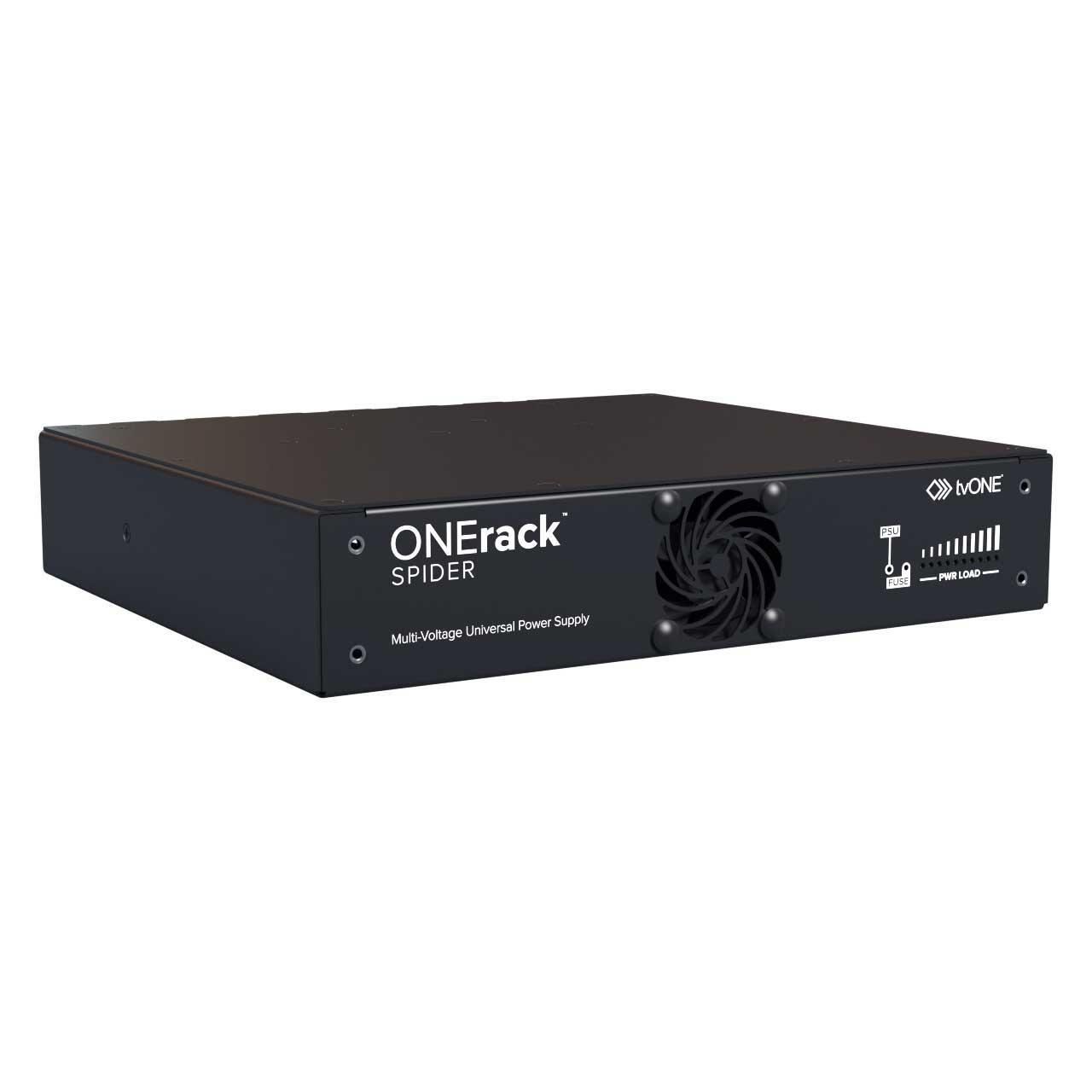

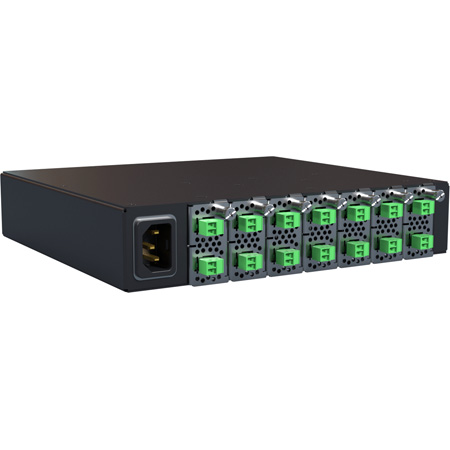

tvONE 1RK-SPDR-HALF-7 ONErack Spider Multi-Voltage Half Rack PSU with 3 Voltage Modules included

ITEM #: TV1-1RKSPDRHALF7 MFG #: 1RK-SPDR-HALF-7

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
tvONE
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,299.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1RK-SPDR-HALF-7 - Overview

tvONE 1RK-SPDR-HALF-7 ONErack Spider optimizes any installation by eliminating unreliable DC wall warts and other power clutter from the rack design, while also providing reliable power to support a mix of 7 different voltage options; 5v, 7.5v, 9v, 12v, 13.5v, 18v, and 24v. This innovative, multi-voltage design takes the award-winning power capabilities from the ONErack system to a smaller more flexible level!

The ONErack spider is available in a 1RU half rack version (7 modules capacity) or rear strip version (23 module capacity) and can be installed at the back or side of the rack to provide the ultimate installation flexibility.

Choose, ONErack Spider for your mission-critical installations in healthcare, higher-education, broadcast and control rooms.

  • Features:

    • Up to 7 simultaneous DC voltages
    • UL compliant
    • 'Zero space' rear mounting options
    • Surge suppression
    • Overload protection
    • Universal DC power for any brand


  • Specifications:

    • Size D+H+W: 195mm x 43.75mm x 218mm (7.6 x 1.7 x 8.58 inches)
    • Weight (empty): 1.95Kg
    • Max Voltage Modules: 7
    • Power Per Module Max: 35w
    • Connectors: 2-pin 3.5 mm detachable terminal block, (2 per module)
    • DC Output Ports: 14 max (2 per module)

      DC Voltages Per Slot
    • 5v@7A, [email protected], [email protected],
    • [email protected], [email protected], [email protected],
    • [email protected]

    • Main Output Power: 250w
    • Active Cooling: yes, front to back
    • Fan Noise: 24dB(A)
    • BTU: 1024 BTU
    • AC Input Voltage: 90-264v AC @ 2.75A max
    • Thermal: 0§ - 40§ C
    • Humidity: 10% to 85%, Non-condensing
    • Altitude: < 2000m
    • AC Surge and Overload: Protection MOV
    • DC Overload Protection: Auto-resetting PTC on each DC output


  • Item Includes:

    • 1x tvONE 1RK-SPDR-HALF-7 ONErack Spider Half Rack PSU - Multi-Voltage PSU Half Rack with 7 Voltage Modules
