RDL TX-AT1 Audio Isolation Transformer - 600 Ohm 1:1

ITEM #: TX-AT1 MFG #: TX-AT1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$168.70

Our Price:

$126.53

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TX-AT1 - Overview

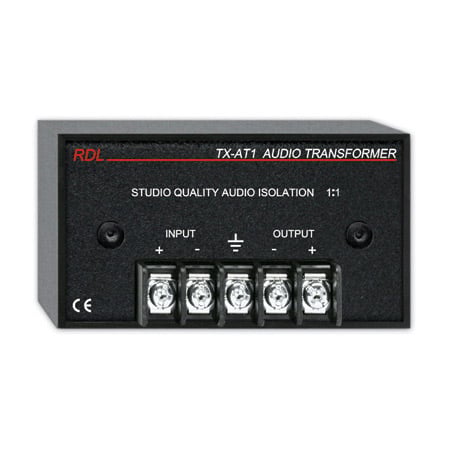

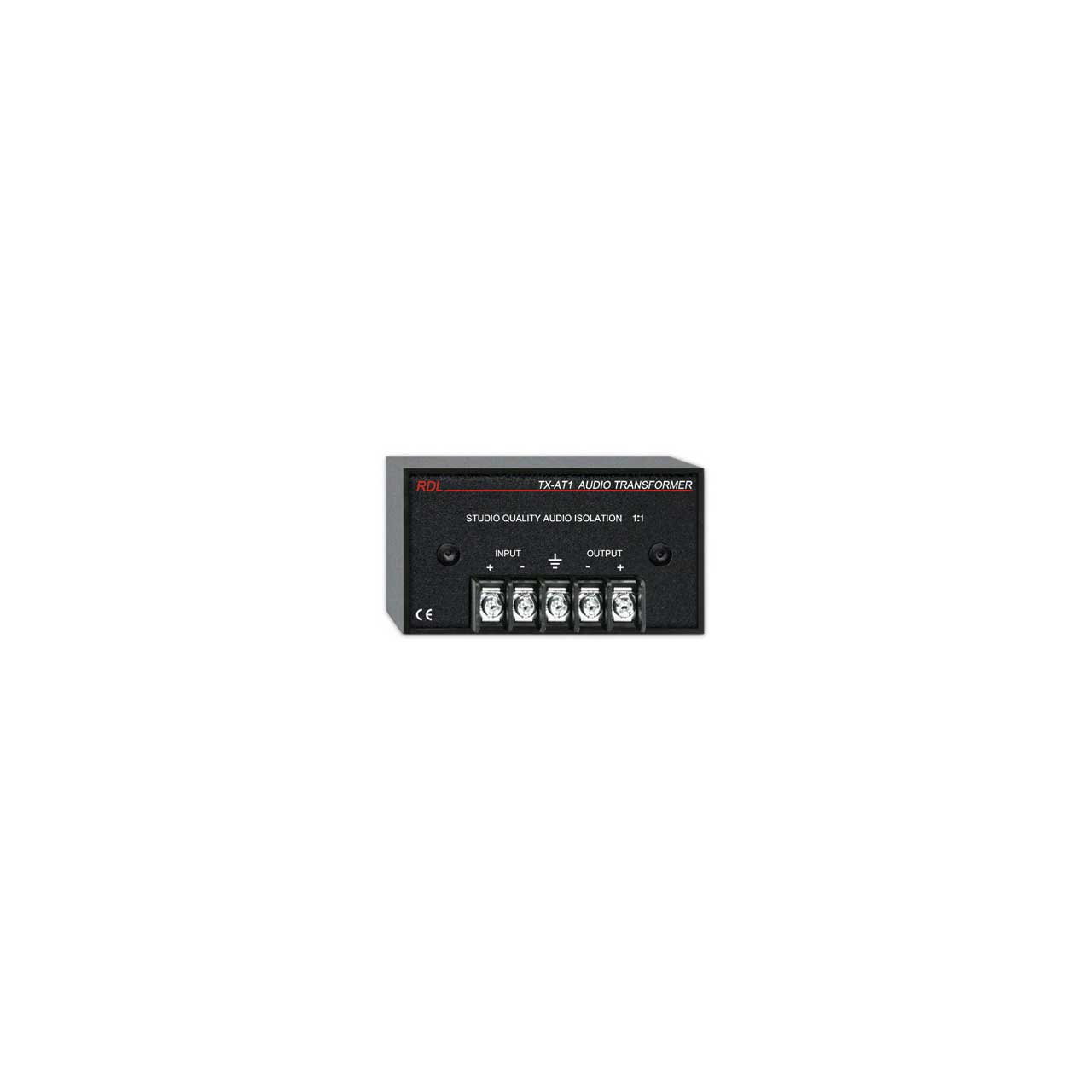

The TX-AT1 is part of the group of versatile Max-TX series products from Radio Design Labs. Max-TX modules are the large format members of the RDL TX family, featuring the superior engineering and components common to RDL products. The durable adhesives provided with the TX-AT1 permit permanent or removable mounting. The TX-AT1 may be rack or surface mounted with optional TX series accessories.

The TX-AT1 is the ideal choice in many applications requiring studio quality transformer coupling between balanced or unbalanced audio equipment and a balanced or unbalanced line. The TX-AT1 is a single-channel (mono) module featuring barrier block connections for the input and output. A studio-quality audio transformer couples the audio input to the audio output. A common ground terminal is connected to the TX-AT1 metal support structure.

A 1:1 audio transformer provides galvanic isolation. The audio transformer has 600 Ohm primary and secondary bifilar windings, though is optimized to be driven from a low-impedance source into a bridging
load. The primary and/or secondary may be wired unbalanced, providing conversion between balanced and unbalanced audio lines. The TX-AT1 delivers the wideband audio, ultra-low distortion, audio clarity and headroom common to studio equipment in a module suited to both studio and general-purpose audio installations.

The TX-AT1's compact size permits mounting in a variety of spaces and in various locations in equipment racks. The TX-AT1 may be mounted where needed, to rack sides or in an equipment rack (either the front or rear rack rails) using a variety of available RDL mounting options. Use the TX-AT1 individually, or combine it with other RDL products as part of a complete audio/video system.

  • Features:

    • Studio Quality Bifilar Audio Transformer
    • Terminal Block Transformer Connections
    • Galvanic Isolation with 1:1 Transformer Coupling
    • Transformer to Drive 600 Ohm Line
    • Convenience of RDL TXs
    • Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
    • THD: < 0.035% (50 Hz to 20 kHz, +4 dBu input)
    • 0.001% (Typ. 1 kHz, +4 dBu input)
    • Input / Output Level: +4 dBu, +22 dBu max.
    • CMRR: > 85 dB (balanced input, 50 to 60 Hz)

  • GTIN:

    0813721016102
