RTS Radiocom TR-16 16 Channel Synthesized Wireless Talent Receiver

ITEM #: TX-TR16 MFG #: TR-16

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
RTS Intercoms
Free Shipping with $49 Minimum Order

Our Price:

$384.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

TR-16 - Overview

The RTS RadioCom TT-16 base station transmitter and the TR-16 beltpack talent receiver is a 16-channel synthesized wireless IFB system. The system is designed to provide a convenient wireless link to on-air talent in the studio or in the field at remote locations. Operating in the low band VHF 64-68MHz range (TV Ch 3 and 4), the units operate reliably at distances of over 350 feet. In unoccupied television channels, up to
five TT-16 transmitters will operate simultaneously within the same location

  • Features:

    • Wireless link from intercom system for cueing, talentIFB and more.
    • 16 channel synthesized transmitter. Up to five (5) frequencies compatible for simultaneous use.
    • Backlit LCD with control buttons.
    • Accepts standard RTS-TW, Audiocom or Clear-Com intercom level inputs.
    • Balanced XLR input connector with level control and viewable meter.
    • Unbalanced ¬-inch line level input connector with level control and viewable meter.
    • Hi/Low Selectable RF output power.
    • Enhanced Dynamic Range (E.D.R.) For improved dynamic audio.
    • Front panel ¬-inch monitor jack with level control.
    • 16 Channel tunability.
    • Backlit LCD with control buttons.
    • High frequency boost compensates for high frequency loss when used with long acoustic tubes.
    • Accepts standard 3.5mm mini stereo/mono ear pieces.
    • Runs on two (2) standard "AA" batteries. Alkaline batteries provide up to 20 hours of continuous use.

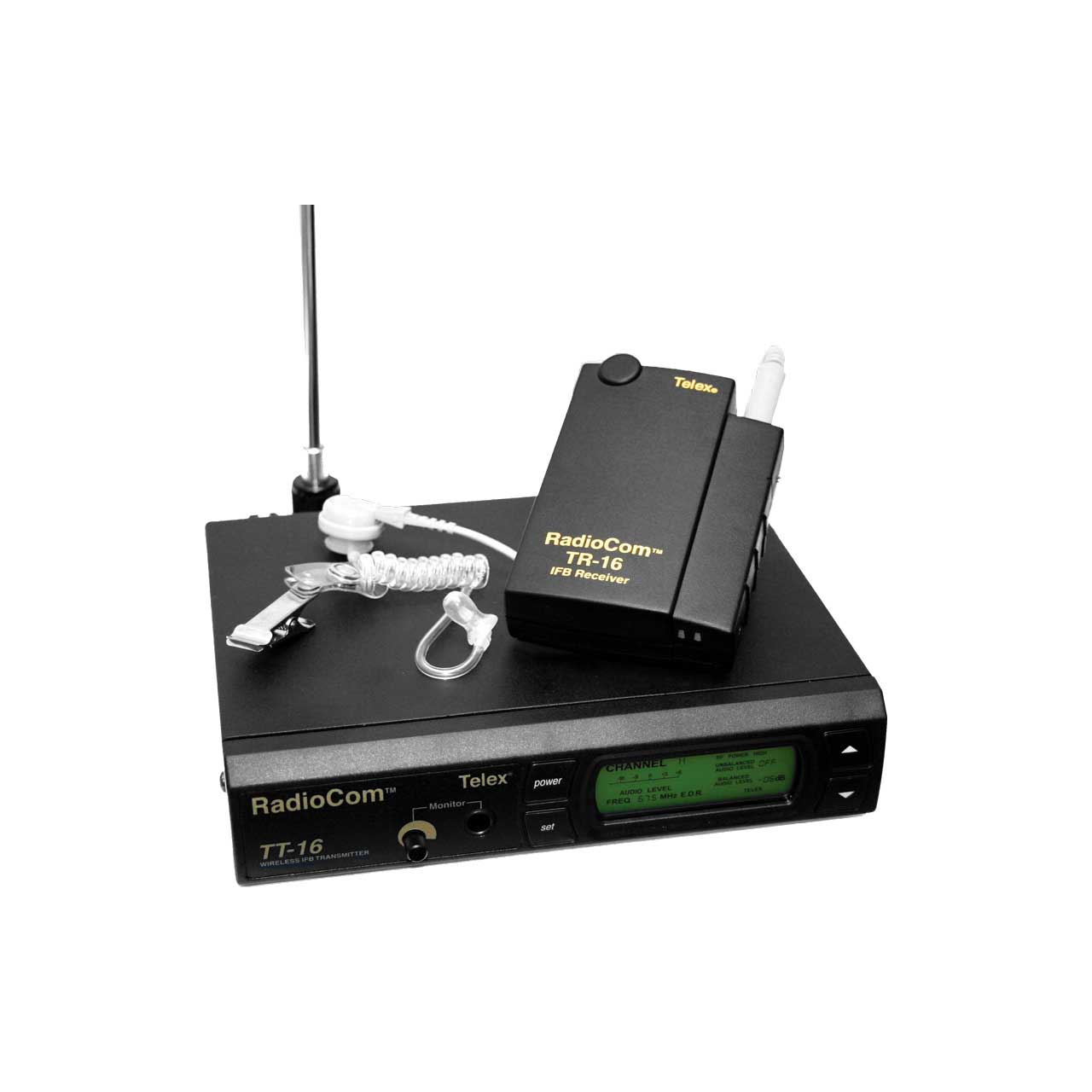

    • Shown with TT-16 transmitter, sold seperately.


  • Specifications:

    • Frequency Range: 64-68MHz (TV 3 & 4).
    • Modulation: FM ±25kHz deviation.
    • Signal to Noise Ratio: Normal -58dB, E.D.R. Enabled -77dB.
    • Frequency Response: 100Hz-10kHz.
    • Temperature Range: 32°F to 122°F (0°C to +50°C).
    • FCC ID: B5DM524.
    • Sensitivity: 0.5uV typical, 1.0uV maximum.
    • Distortion; <2% T.H.D.
    • Audio Output: @ 10% Distortion.
    • Into 8 ohm: 2.0V/15 mW 3.0V/80mW.
    • Into 32 ohm: 2.0V/10mW 3.0V/50mW.
    • Antenna: Omnidirectional in earphone cord.
    • Earphone Connector: 3.5mm stereo or mono.
    • Power Requirements: 2 "AA" Batteries (20 Hours Alkaline), (16 Hours NiMH), (8 Hours NiCAD).
    • FCC: Complies with Part 15.
    • Dimensions: 4in H x 2_in W x 1in D (10.16cm x 6.99cm x 2.54cm),
    • Weight: 4oz (113g).


  • GTIN:

    0800549417914
