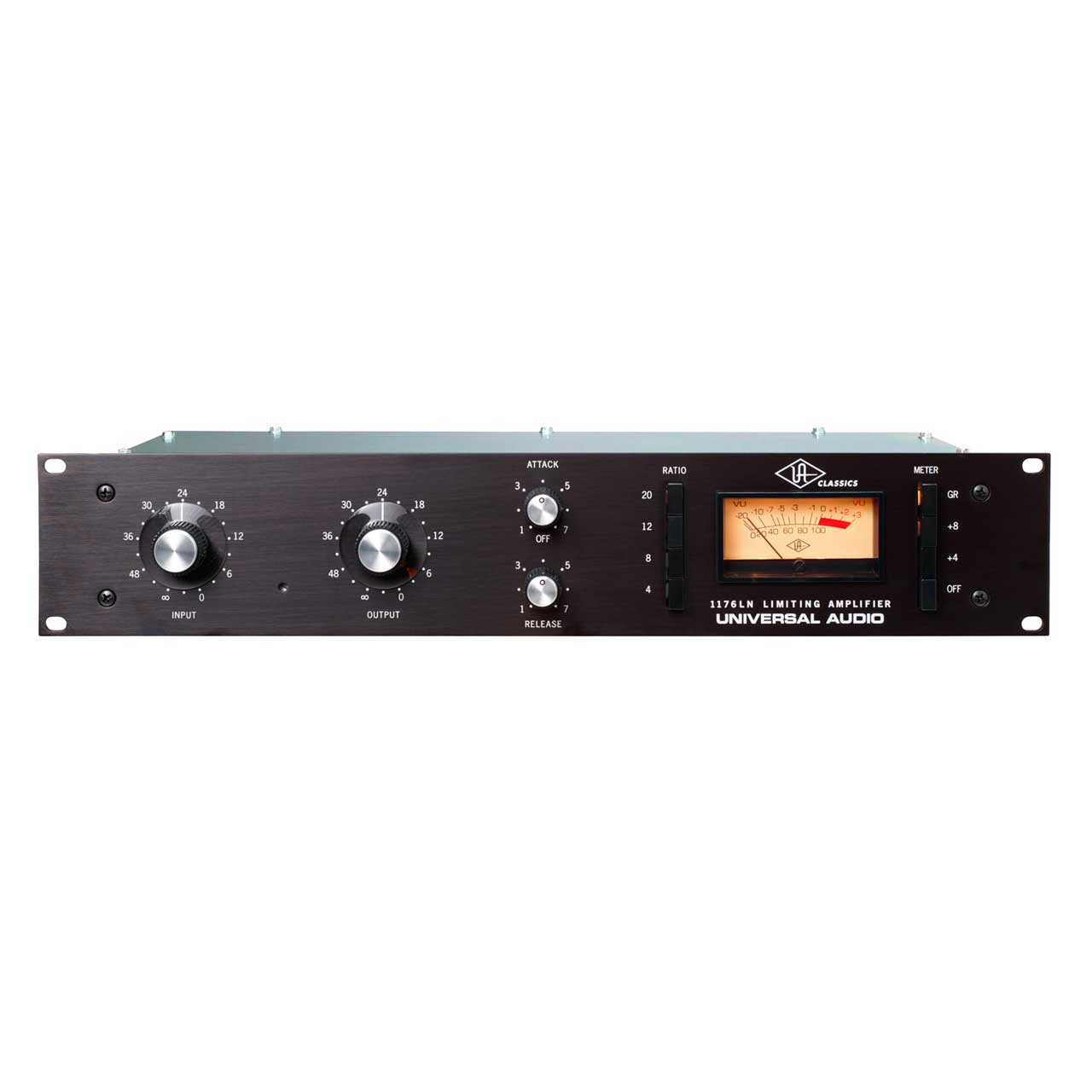

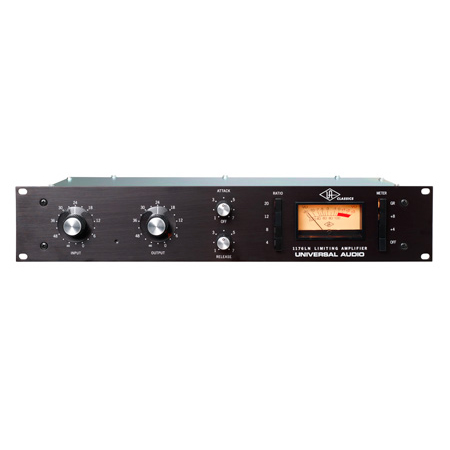

Universal Audio 1176LN Classic Limiting Amplifier

ITEM #: UA-1176LN MFG #: 1176LN

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$3,249.00

Our Price:

$2,599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


1176LN - Overview

The 1176LN Classic Limiting Amplifier is a modern reproduction, yet every effort was made to remain faithful to UA founder Bill Putnam Sr.’s visionary design and intentions. The original UA 1176LN was a major breakthrough in limiter technology - the first true peak limiter with all transistor circuitry offering superior performance with a signature sound - and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176LN - Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that’s continued to grow, for nearly 50 years.

  • Features:

    • True to the original in design, manufacturing and performance
    • Modeled after 1176LN, blackface, D and E revisions
    • Ultra fast attack time -20 microseconds to 800 microseconds
    • Class A line level output amplifier
    • Custom built Putnam-designed output transformer
    • Stereo interconnect operation
    • Hand-built in USA; backed by 1-year limited warranty

  • Specifications:

    • Input Impedance: 600 ohms, bridges-T control (floating)
    • Output Load Impedance: 600 ohms, floating, damping factor 20

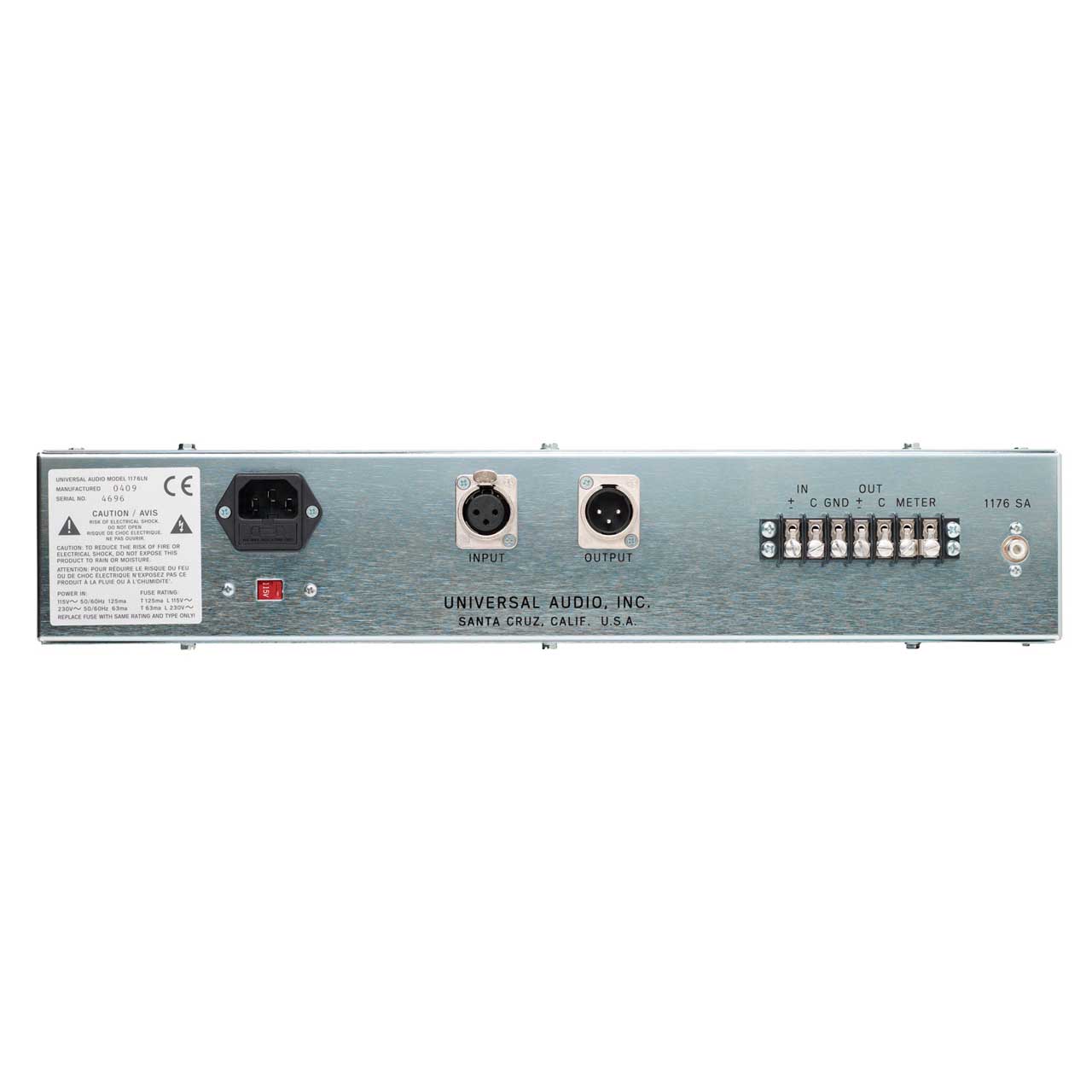

    • External Connections: Jones Barrier terminals and XLR connectors
    • Frequency Response: ± 1 dB 20 Hz to 20kHz
    • Gain: 50 dB
    • Distortion: Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting
    • Signal to Noise Ratio: Greater than 70 dB at +10 dBm
    • Attack Time: 20 microseconds to 800 microseconds
    • Release Time: 50 milliseconds to 1.1 seconds
    • Stereo Interconnection: via 1176 SA Network accessory
    • Meter: dB gain reduction and dB output
    • Power Requirements: 120/240 V
    • Environmental: Maximum operating temperature 160°F
    • Dimensions: 19" Rackmount chassis, 2U

  • GTIN:

    0819937000010
