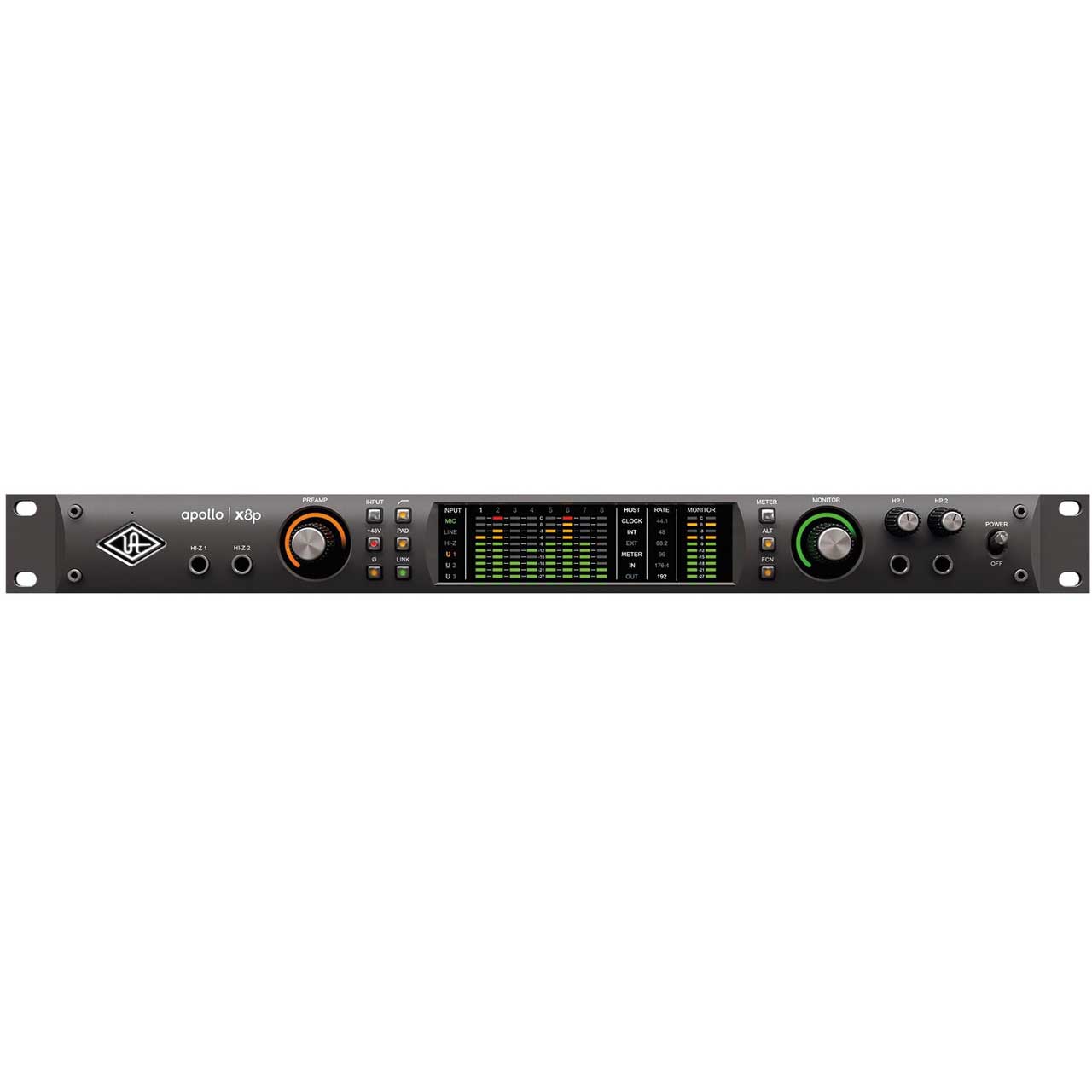

Universal Audio APX8P Apollo x8P 16x22 Thunderbolt 3 Audio Interface (Rack/Mac/Win)

ITEM #: UA-APX8P MFG #: APX8P

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$4,249.00

Our Price:

$3,399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


APX8P - Overview

Produce large sessions with album-ready sounds in realtime.
Apollo x8p
gives engineers and producers recording big projects the same professional analog tones heard on your favorite records with eight onboard Unison™ mic preamps. With elite-class conversion and HEXA Core UAD plug-in processing, Apollo x8p is the only interface that lets you record through preamps from Neve, API, Manley, and more - with near-zero latency - giving you professional sound in a sleek rackmount Thunderbolt 3 audio interface.

Hear Every Detail in your Recordings
Apollo x8p's proven A/D and D/A conversion gives you the same elite-class sound heard on thousands of hit songs and chart-topping albums. Widely praised for its open, natural sonics, Apollo's converters give you the perfect palette to paint your masterpiece.

Record Synths and Vocals through Iconic Preamps
With its eight onboard Unison™ preamps, Apollo x8p is the only interface that lets you track large projects in realtime through preamps and channel strips from Neve, Manley, API, and dozens more, giving you the same rich analog texture as the hardware used on decades of iconic music.

Included Plug-Ins:
UA 610-B Tube Preamp and EQ
Marshall® Plexi Classic Amplifier
Fairchild® 670 (Legacy)
Teletronix® LA-2A Classic Leveling Amplifier (Legacy)
1176SE/LN® Classic Limiting Amplifiers (Legacy)
Pultec® Pro Equalizers (Legacy)
Ampeg® SVT-VR Classic Bass Amp
Precision Mix Rack Collection
UA Precision Enhancer Hz

  • Features:

    • Get professional sound with the widest dynamic range and lowest noise available
    • Record your vocals and synths in realtime through classic mic preamp emulations from Neve, API, Manley, Avalon, and more
    • Link up to four Apollos for 156 channels of premium I/O and control it from Apollo Twin or x4
    • Create with seamless hardware-software integration and analog console modeling in LUNA Recording System

  • Specifications:

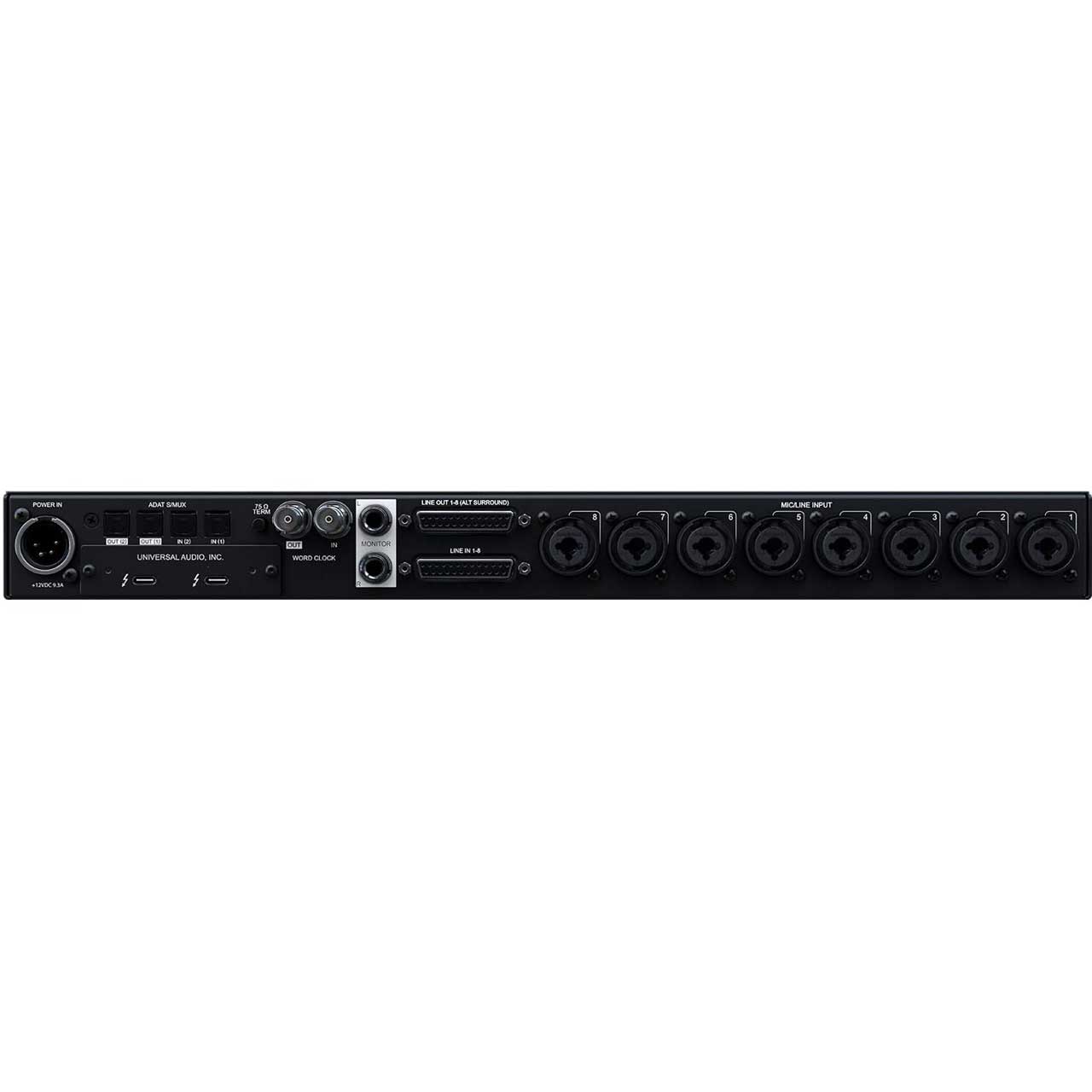

    • I/O Complement
    • Microphone Inputs: Eight
    • High Impedance (Hi-Z): Instrument Inputs Two
    • Analog Line Inputs: Eight
    • Analog Line Outputs (DC coupled): Eight (ten including Monitor outputs)
    • Analog Monitor Outputs (DC coupled): Two (one stereo pair)
    • Headphone Outputs: Two stereo
    • Digital Input Ports (TOSLINK optical): Two (ADAT or S/PDIF, selectable)
    • Digital Output Ports (TOSLINK optical): Two (ADAT or S/PDIF, selectable)
    • Thunderbolt 3 Ports: Two
    • Word Clock: One input, one output

      Electrical
    • Power Supply: External AC-to-DC Power Supply, Level VI compliant
    • AC Input Connector Type: IEC Male
    • AC Requirements: 100V – 240V AC, 50 – 60 Hz
    • DC Connector Type: XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H)
    • DC Requirements: 12 VDC, 6A
    • Maximum Power Consumption: 72W (30W typical)

      Mechanical
    • Temperature Range: 32° to 104°F (0° to 40°C)
    • Dimensions:
      Width: 19" (48.26cm)
      Height (1U rack space): 1.75" (4.45cm)
      Depth, Chassis Only: 12.125" (30.80cm)
      Depth, Including Knob & Jack Protrusions: 13.5" (34.29cm)
      Shipping Box (WxDxH): 23.5 x 17 x 7.5" (59.69 x 43.18 x 19.05cm)
    • Weight:
      Shipping Weight (with box & accessories): 16.6Lbs (7.52kg)
      Weight (bare unit): 9Lbs (4.08kg)

  • Item Includes:

    • 1x Apollo x8p Audio Interface Unit
    • 1x External Power Supply
    • 1x AC Power Cable (IEC), Region Specific
    • 1x Set of (4) Rack-Mount Screws
    • 1x Getting Started URL Card

  • GTIN:

    0819937002465
