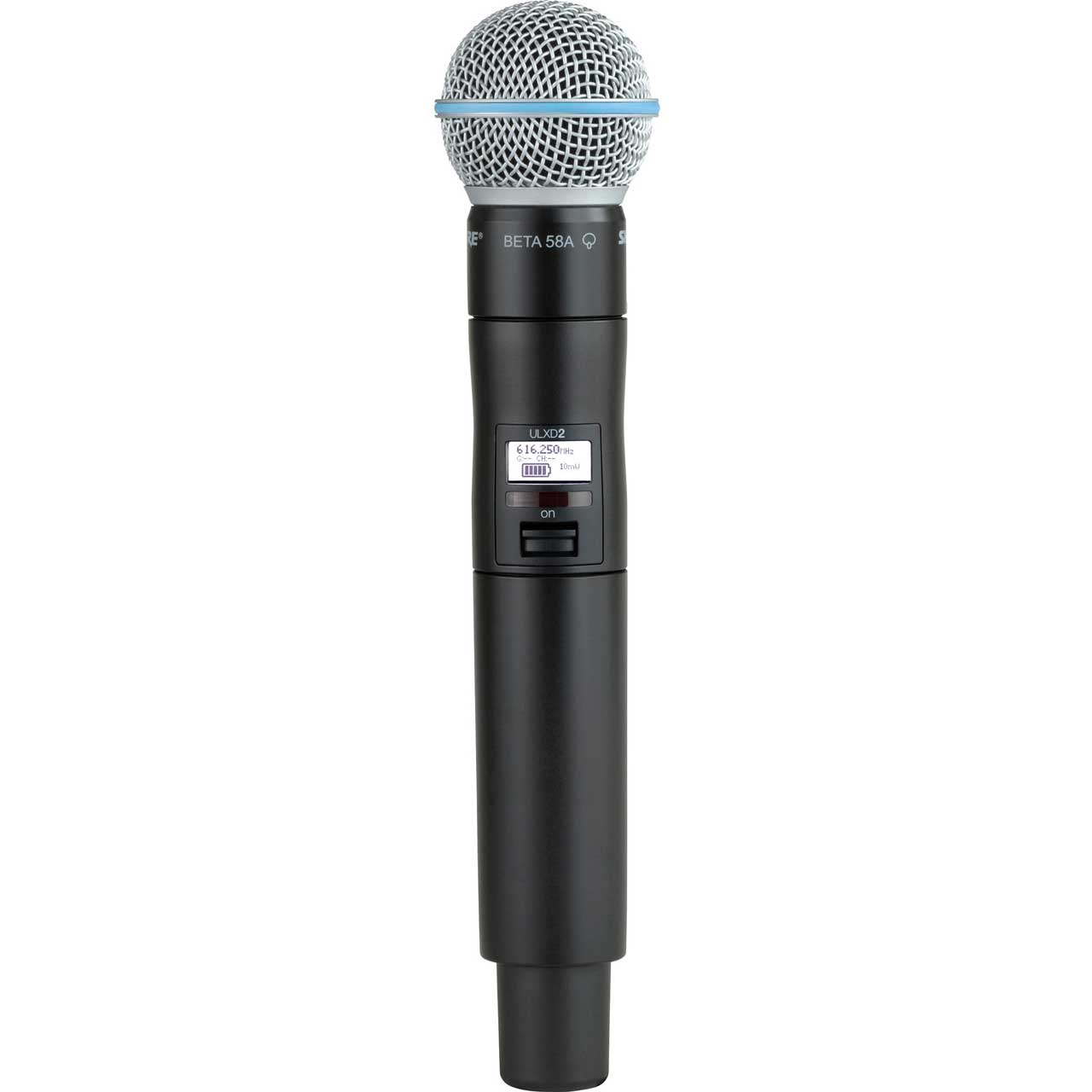

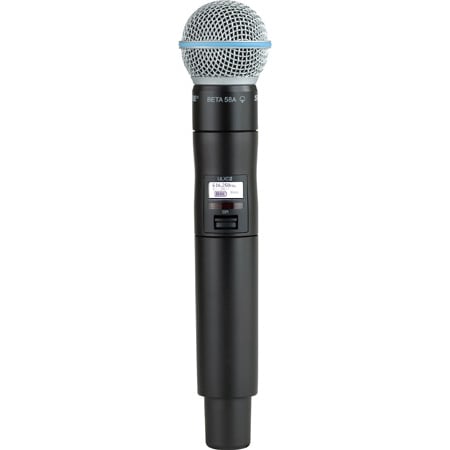

Shure ULXD2-BETA58 Handheld transmitter with Beta 58 mic - G50 470 to 534 MHz

ULXD2/B58=-G50 - Overview

• Features:

  • 30 Hz to 20 kHz range with flat frequency response (actual response is microphone dependent)
  • Interchangeable Shure microphone cartridges, including the legendary SM58
  • >120 dB dynamic range
  • 1, 10, and 20 mW selectable RF output power
  • 5 segment battery fuel gauge
  • Shure lithium-ion rechargeable battery pack provides up to 12 hours of battery life, precision metering, and zero memory effect
  • Up to 11 hours continuous use with 2 x AA batteries
  • Backlit LCD with easy to navigate menu and controls
  • 100 meter (300 ft) operating range
  • Rugged metal construction
  • Frequency and power lockout
  • Frequency range 470 to 534 MHz


• Specifications:

  • General
  • Gain Offset Range: 0 to 21 dB (in 3 dB steps)
  • Battery Type: Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
  • Battery Runtime (@ 10 mW): Shure SB900A: >11 hours; Alkaline: 11 hours
  • Dimensions: 10.9 in. x 2.0 in. (L x Dia.)
  • Weight: 348 g (12.3 oz.), without batteries
  • Housing: Machined aluminum
  • Frequency Range: 470 to 534 MHz

    Audio Input
  • Configuration: Unbalanced
  • Maximum Input Level (1 kHz at 1% THD): 145 dB SPL (SM58), typical (Dependent on microphone type)
  • Preamplifier Equivalent Input Noise (EIN)(System Gain Setting): ≥ +20 120 dBV, A-weighted, typical

    RF Output
  • Antenna Type: Integrated Single Band Helical
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Proprietary Digital
  • Power: 1 mW, 10 mW, 20 mW


• GTIN:

  0042406214209
