Shure ULXS Combo Wireless System G3 - (470 to 506 MHz)

ULXS124-85-G3 - Overview

• Specifications:

  • RF Carrier Range: 470,000-865,000 MHz
  • Working Range: 100m (300ft) typical
  • Audio Frequency Response:
    25 Hz
    -15 kHz, ±2 dB
  • Modulation: ±38 kHz deviation compressor-expander system with pre- and de-emphasis
  • Dynamic Range: >100 dB, A-weighted
  • Image Rejection: 80 dB, typical
  • RF Sensitivity: 1.26 µVfor 12 dB SINAD, typical
  • Spurious Rejection: 75 dB, typical
  • Ultimate Quieting:
    Ref. ±38 kHz deviation with 1 kHz tone
    >105 dB, A-Weighted
  • Total Harmonic Distortion:
    Ref. ±38 kHz deviation with 1 kHz tone
    0.3%, typical
  • Operating Temperature: -4° to 120°F (-20° to 49°C)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
  • Battery Life:8 to 9 hours (9 V alkaline)

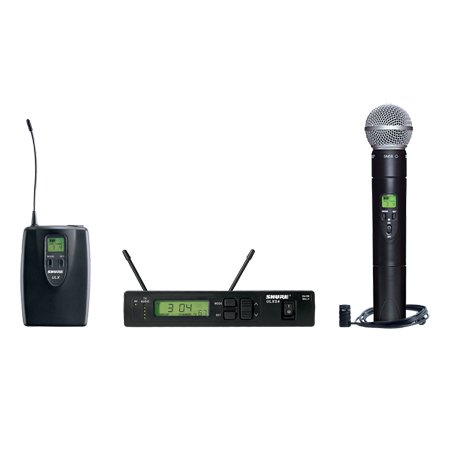

• Item Includes:

  • 1x ULX2/SM58 handheld transmitter
  • 1x WL185 Lavalier microphone
  • 1x ULX1 Bodypack transmitter
  • 1x ULXS4 Standard diversity receiver
  • 1x Tie clip
  • 1x Microphone clip
  • 1x Grip/switch cover
  • 1x Screwdriver
  • 2x Zipper bags
  • 2x 1/4 wave antennas
  • 1x Power supply
  • 2x Batteries (9V)
  • 1x User guide


• GTIN:

  0042406147743
