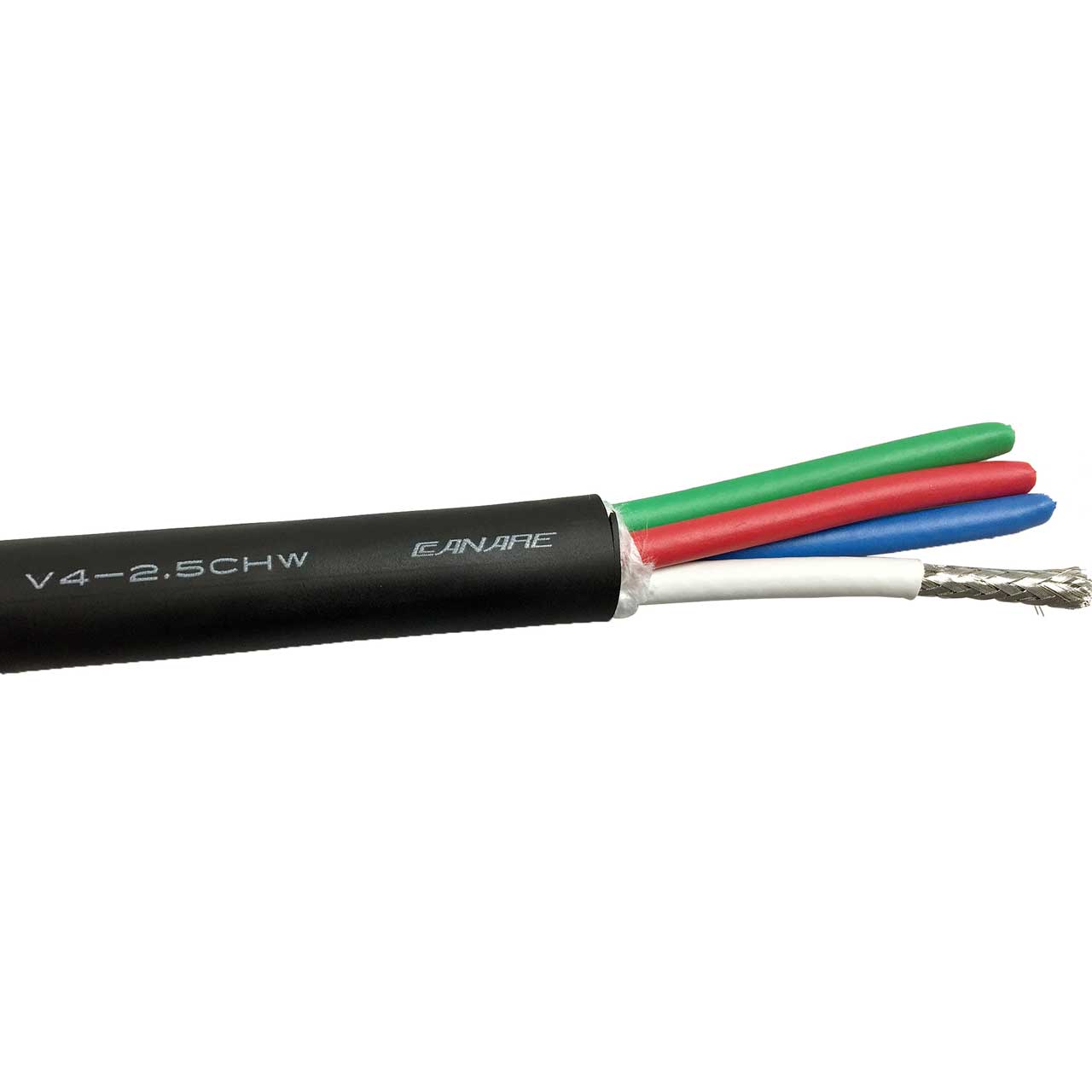

Canare V4-2.5CHW 4-Channel 4K 75-Ohm Coaxial Cable - 328 Foot Roll - Black

ITEM #: V4-25CHW-328 MFG #: V4-2.5CHW

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,557.60

Our Price:

$1,288.55

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


V4-2.5CHW - Overview

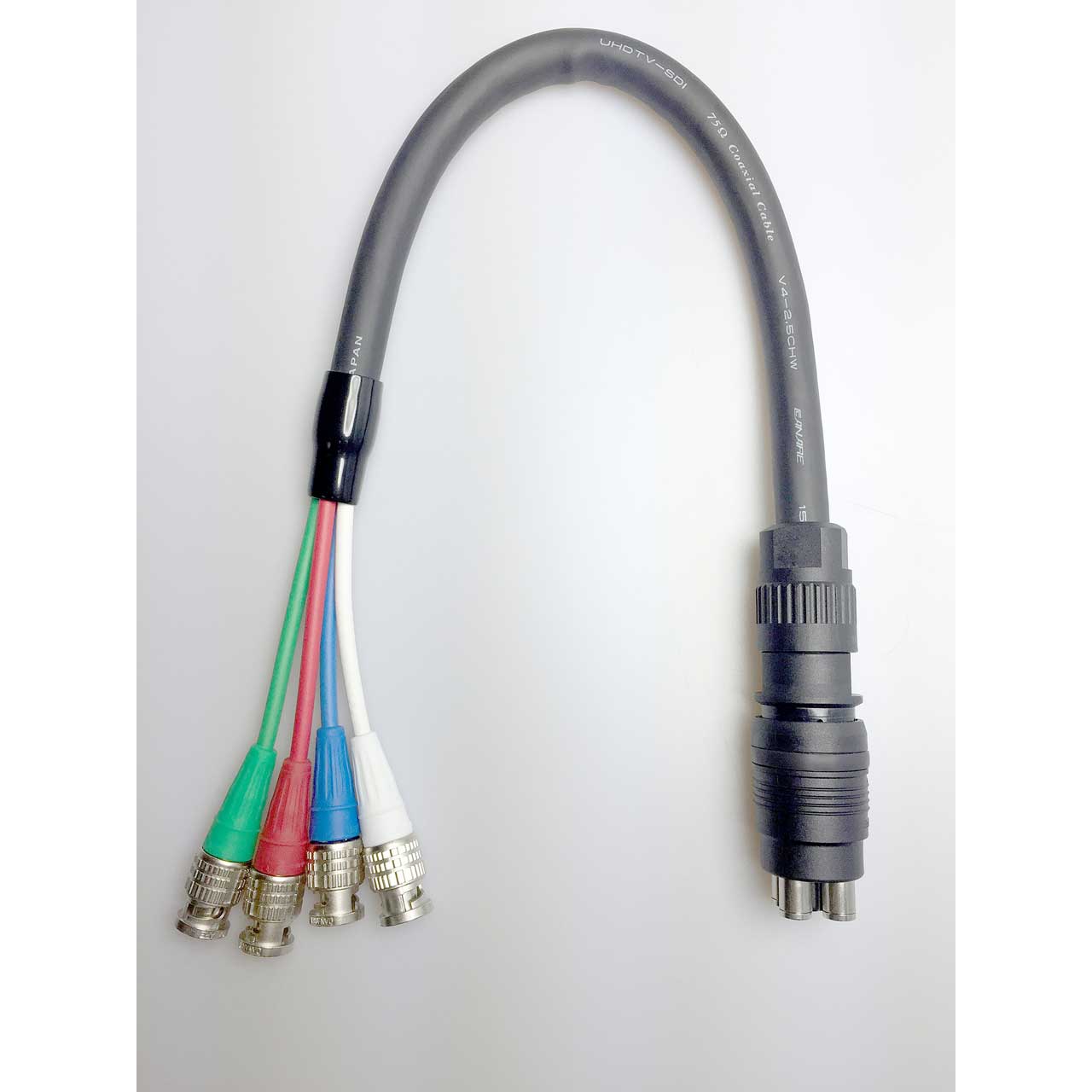

Designed for use with the Canare 4K-DIN connectors, the 4 channel, V4-2.5CHW is flexible 4-channel coaxial for transmission of 4 x 3G-SDI’s 4K signals in a single jacket cable. The flexibility of the V4-2.5CHW cable makes it easier for mobile use. The benefits of such a cable are the lightweight, the rapidity and easiness of the connection and the reliability of the material used. This is designed for professional applications, both fixed and mobile use, delivering a high performance at any time.

  • Specifications:

    • Channels: 4
    • Colors: Red, Green, Blue, White
    • Center Conductor: 22 AWG
    • Center Conductor O.D.: 0.23"
    • Nominal Capacitance: 53nF/km (1kHz)
    • Nominal Attenuation: 3GHz: 77.4 dB / 100 meters
    • Overall Diameter: 0.51"
    • Outer Jacket: Flame Retardant PVC
    • Outer Jacket Color: Black


V4-2.5CHW - Required Accessories
