Vaddio 999-6995-000 WallVIEW HD-USB Pro PTZ Camera

ITEM #: VAD-999-6995-000 MFG #: 999-6995-000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VAD-999-6995-000

999-6995-000 - Overview

The WallVIEW HD-USB PRO is built around the ClearVIEW HD-USB high definition PTZ camera, the world’s first broadcast-quality HD PTZ camera with USB and Ethernet streaming built right into the camera. Now you can directly plug an HD PTZ camera directly into your PC – without the need for a separate capture device. Because the WAllVIEW HD-USB uses standard UVC drivers, no special USB drivers need to be installed. As a result they work seamlessly with any software application running on any OS that supports USB 2.0 devices.

The WallVIEW HD-USB PRO also supports H.264 video streaming. With a built in Ethernet network interface you can now do both IP control and IP Streaming directly from the camera. It supports either RTSP or HLS streaming protocols.

The camera features a 19x optical zoom lens with a 58.1-degree wide angle of view – wide enough to view everyone at a standard conference table, as well as capture an individual from a long distance at 3.2 degrees in a larger room. The zoom range provides great flexibility for a wide variety of applications.

The WallVIEW HD-USB PRO comes with a pair of active USB 2.0 cable extenders and a power extension module are also included for running power, video and control up to 150 feet. If the camera is locally powered, video and control runs up to 300 feet.

  • Features:

    • Outputs include USB 2.0, Ethernet streaming (H.264) and Component HD (YPbPr)
    • Uses standard UVC drivers for USB 2.0
    • 1/3-Type Exmor high-speed CMOS Image Sensor
    • 1.3 Megapixels
    • Powerful 19x Optical zoom lens with a wide angle of view (58.1°) to (3.2°)
    • Extremely low 0.7 LUX
    • Advanced DSP allows user to set a luminance target
    • Slip Clutch Robotics
    • Includes a pair of active USB 2.0 cable extenders and a power extension module are also included for running power, video and control up to 150 feet
    • Locally powered, video and control runs up to 300 feet


  • Specifications:

    • Video Outputs:USB 2.0 (MJPEG), MPEG4/H.264 (IP), Analog Component (YPbPr), CVBS, Resolution up to 1080p/30 (IP) or up to 720p/30 (USB 2.0) and 1080p/60 (YPbPr).
    • USB Interface:Connector: Type-B, USB 2.0 Compliant, Supported Drivers: Standard UVC (no custom drivers).
    • Network Interface:Connector: RJ-45, 10/100 Base-T, Supported Protocols: RTSP Streaming, HLS Streaming (Streaming - Release 2.0).
    • H.264 Resolutions (Release 2.0):CIF, 640x480 (VGA), 480p, 720p/30 1080p/30 (1080p Ethernet only) (Streaming - Release 2.0).
    • User Control:Vaddio IR Remote Commander, On Screen Display for camera set-up, RS-232, Ethernet (webpage).
    • Supported Media Players:Windows Media Player, Apple Quick-Time and VLC Media Player.
    • Supported Browsers:Internet Explorer, Safari, Safari/iOS, Chrome, FireFox.
    • Image Sensor/Min. Illumination;1/3-Type Exmor High-speed, Progressive Scan CMOS Sensor with 1.3 Megapixels, 0.7 LUX (F1.6, 50IRE).
    • Lens/Focal Length;19X Optical Zoom, F=4.5mm wide to 85mm tele (F1.6-F2.9), Min. Focus Distance 1.0m.
    • Horizontal Viewing Angle:58.1° Wide End to 3.2° Tele End - 16:9 Format.
    • Pan Range:Pan: +170 degrees to -170 degrees, Tilt: +90 degrees to -30 degrees, Invertible for Ceiling Mount.
    • Preset Positions:16 (internal), 6 recalled via IR Remote.
    • Extreme USB 2.0 Extension System:Extreme USB 2.0 Remote or TX side powered by the camera, Extreme USB 2.0 Local or RX side powered by thePC Port. Distance: Up to 328.1' (100m) over CAT-5 or better cable, For the full 328.1' (100m) USB 2.0 Extension,
    • local power for the camera is required, the joint solution (Power Extension Module and Extreme USB 2.0 Ex tenders) is limited to 150'(45.7m).
    • Power Extension Module:Module adapts 24 VDC to CAT-5e for extension to the EZ POWER VIDEO Port, extend power up to 150' (45.7m).
    • Mount:Thin Profile Wall Mount P/N: 535-2020-230 with mounting hardware.
    • Operating Temperature:32° to 104° F (0° to 40° C) / 20% to 80% Relative Humidity.
    • Dimensions/Weight:7.81" (198.37mm) H x 6.67" (169.42mm) W x 7.057" (179.25. mm) D / 6.04 lbs. (2.7397kg.).

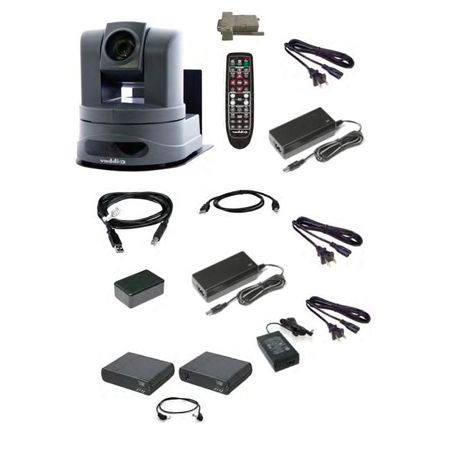

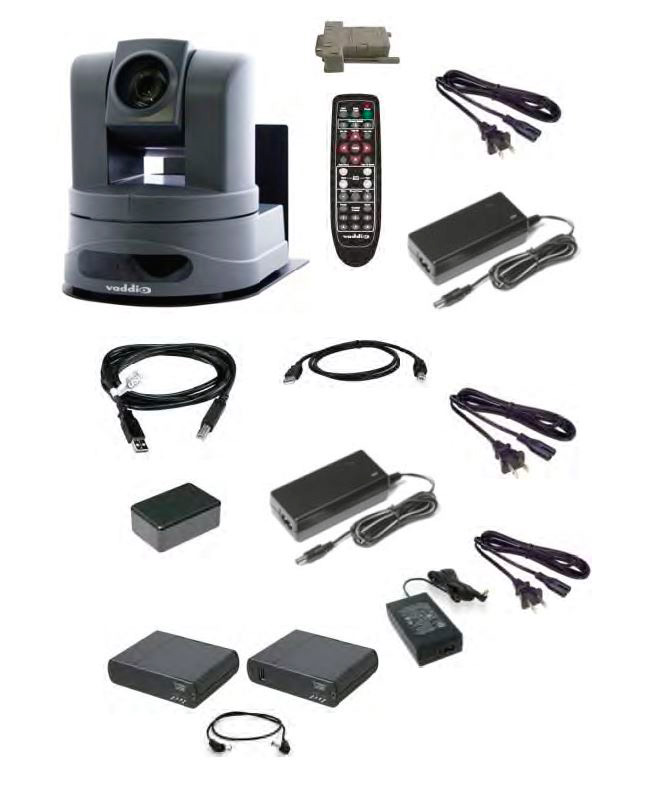

  • Item Includes:

    • One (1) ClearVIEW HD-USB PTZ Camera (998-6990-000).
    • One (1) Vaddio IR Remote Commander.
    • One (1) EZCamera. Control Adapter (RJ-45 to DB-9).
    • One (1) Vaddio PowerRite. 12 VDC, 3.0 Amp Power Supply (camera).
    • One (1) AC Cord Set for North America.
    • One (1) 10­Ý (3.05m) USB 2.0 Type A (Male) to USB B (Male) Cable.
    • One (1) 1­Ý (305mm) USB 2.0 Type A (Male) to USB B (Male) Cable.
    • One (1) North American Power Cord.
    • One (1) Power Extension Module.
    • One (1) 24 VDC, 2.75 Amp PowerRite. Switching Power Supply.
    • One (1) AC Cord Set for North America.
    • One (1) Extreme USB Extender TX.
    • One (1) Extreme USB Extender RX.
    • One (1) 5 VDC Switching Power Supply.
    • One (1) 1­Ý (305mm) EIA-J03 to EIA-J03 Power Cable.
    • One (1) Thin Profile Mount and Hardware for the HD-USB Camera.
    • One VelcroR Strip to mount Extreme USB Extender TX to Camera Mount.
    • Documentation.
