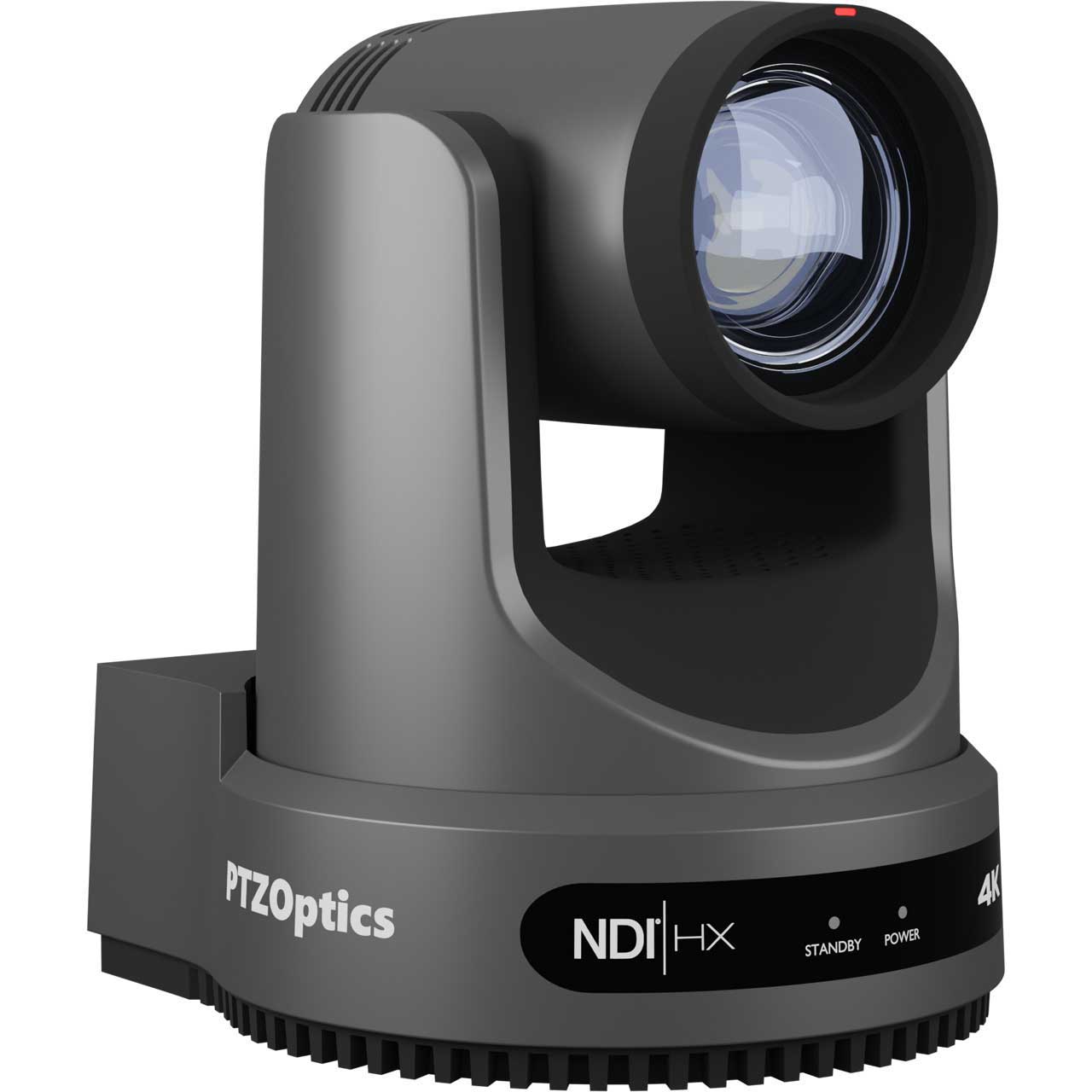

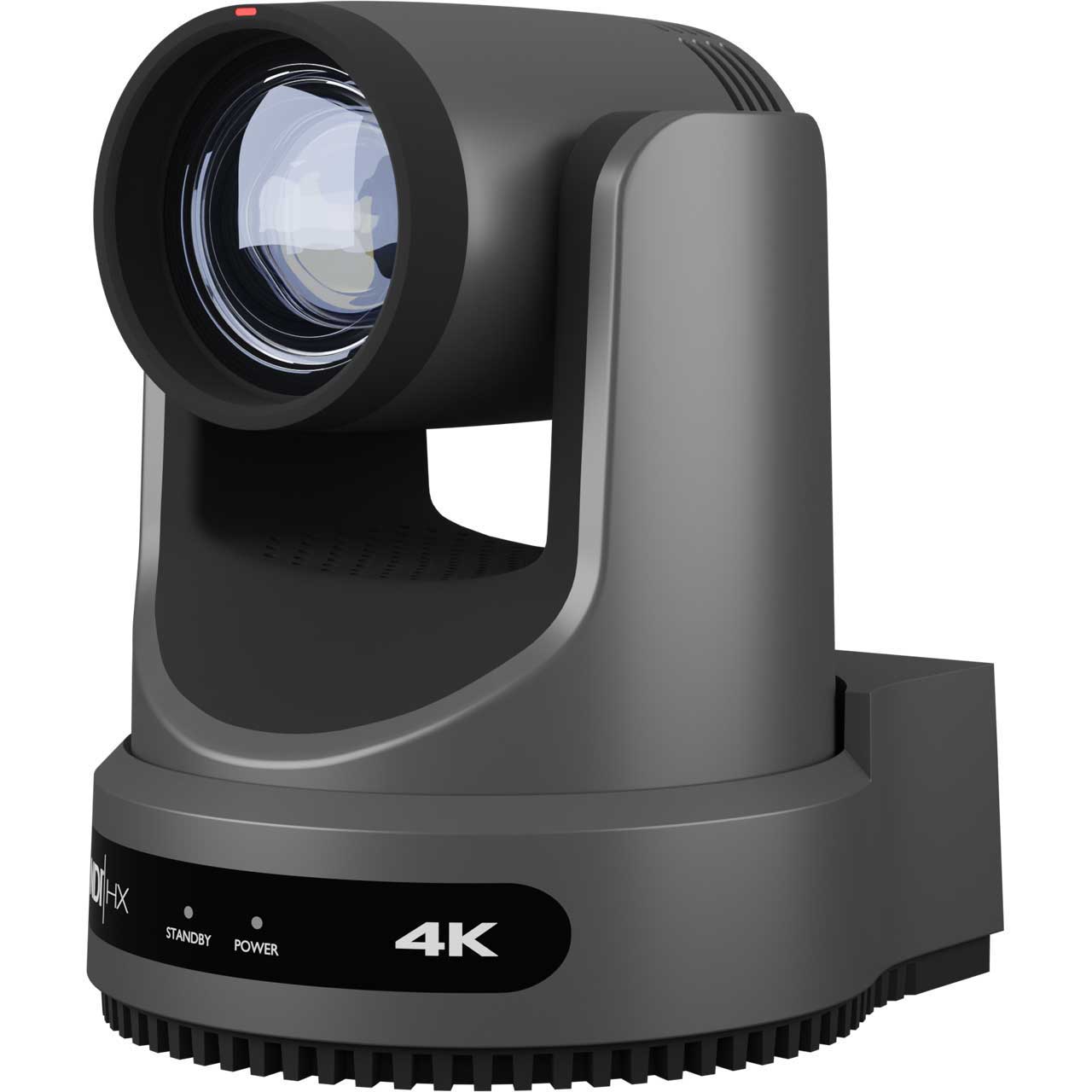

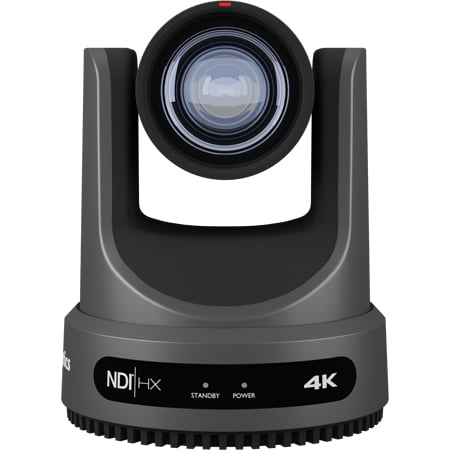

PTZOptics Move 4K 12x Auto-Tracking PTZ Camera with SDI / HDMI / USB and IP - Gray

ITEM #: PTZ-MOVE4K12X-GY MFG #: PT12X-4K-GY-G3

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,979.00

Our Price:

$1,799.00

Availability: In Stock
iAvailability Description Popup


PT12X-4K-GY-G3 - Overview

Native NDI|HX3 Support for 4K up to 60fps!

A New Standard for PTZ Cameras
The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Designed with the Future in Mind
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities -- no need to run software on another computer -- freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Discreet Mounting Options
Mount your PTZ Move camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera's orientation and saves time on installation and setup.

Pan, Tilt, Zoom, Track.
Control your production from behind the scenes - or right in front of them. In addition to the Move 4K's auto-tracking features, users will also have access to our latest Web UI -- updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Users can also take control of their PTZ cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster -- or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

  • Features:

    • Built-In Auto-Tracking
    • Advanced White Balance Modes
    • Wide Dynamic Range
    • Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
    • 3D Noise Reduction
    • SRT Support
    • Up to 4K Resolution @ 60fps
    • Blackmagic Switcher Integration
    • Broadcast Frame Rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94

  • Specifications:

    • Image Sensor & Lens
    • Optical Zoom: 12x
    • Video Sensor and Frame Rate:
      HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
      SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
    • Digital Zoom: Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
    • Field of View: 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide), 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
    • Min. Lux: 0.5 Lux @ (F1.8, AGC ON)
    • Shutter: 1/30s ~ 1/10000s

      Pan/Tilt Movement
    • Pan Speed: 1.7° ~ 100°/s
    • Tilt Movement: +90° to -30
    • Tilt Speed: 1.7° ~ 69.9°
    • Presets: 255 Presets
    • Video Tracking: Supported
    • Image Flip, Mirror and Freeze: Supported

      Power Options
    • Power Supply: DC 12V / PoE+ (802.3at)
    • Input Power: 18W (Max)

      Physical Specifications
    • Material: Aluminum, Plastic
    • Color: Gray
    • Dimensions (W x D x H): 5.57 W x 5.94 x 7.91 in
    • Weight: 3.25 lbs
    • Working Environment: Indoor
    • Operating Temperature: 14°F ~ 104°F
    • Storage Temperature: -40°F ~ 140°F

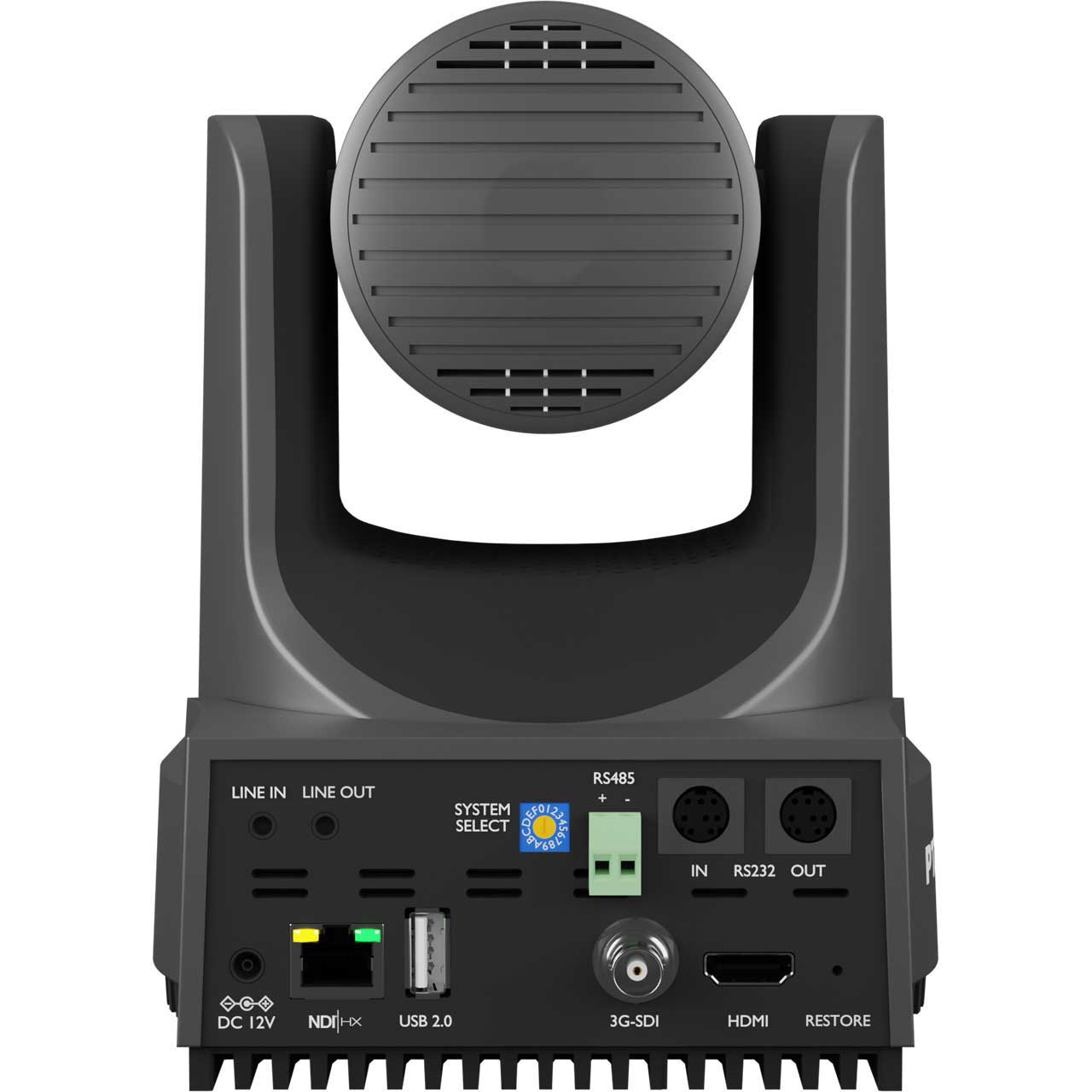

      Rear Board Connectors
    • HD Video Output:
      1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
      1x HDMI: version 2.0
      1x USB 2.0: type A
      1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
    • Audio Interface: 1x 3.5mm Line level Input
    • Communication Interface:
      1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
      1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
      1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
    • Network Interface: RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
    • Power Jack: JEITA type (DC IN 12V)

  • Item Includes:

    • 1x Camera
    • 1x AC Power Supply
    • 1x USB A-A Cable
    • 1x RS232 Cable
    • 1x Quick Start Guide
    • 1x IR Remote
    • 2x AA Batteries

  • Warranty:

    • 5 Year Parts & Labor

  • GTIN:

    0840170500029
