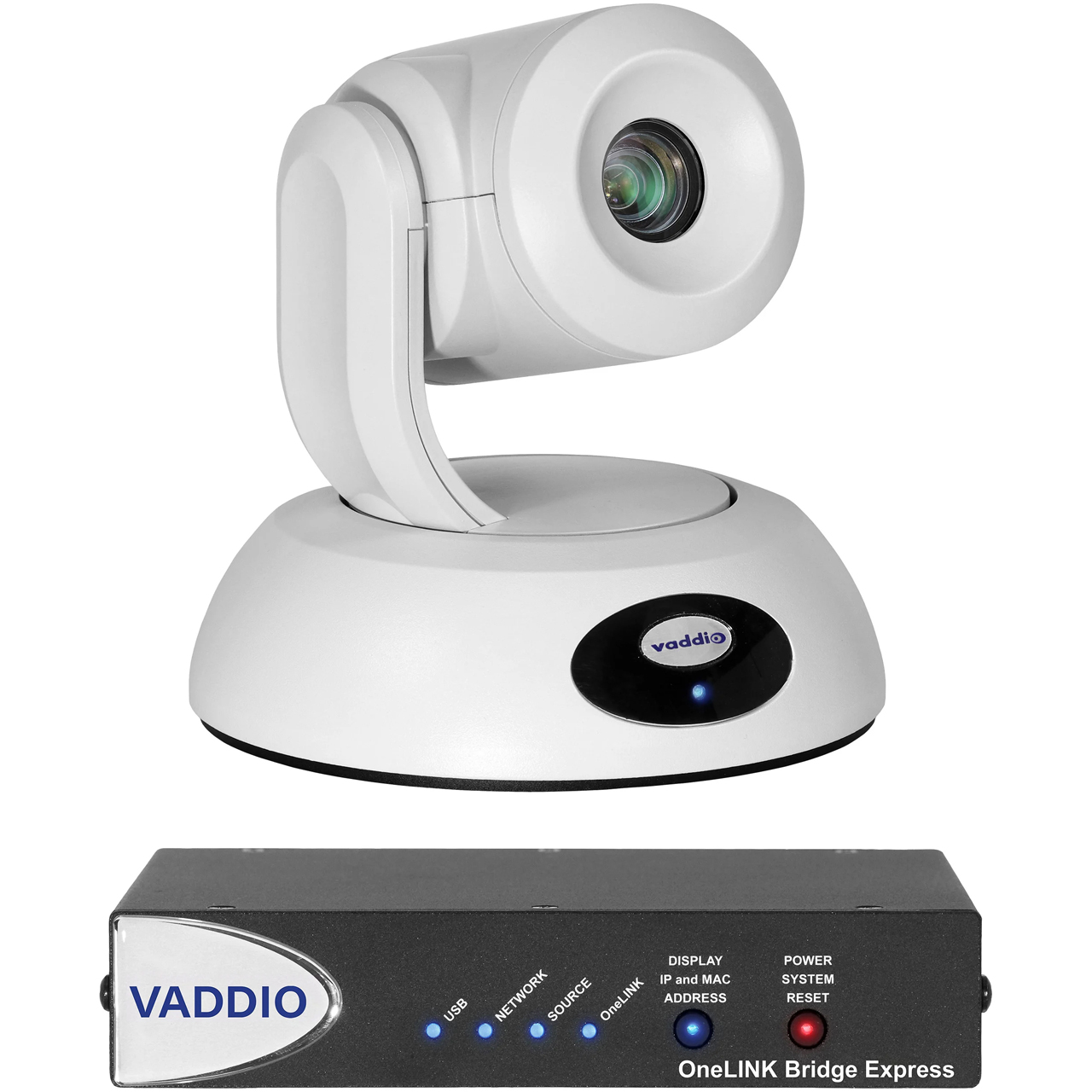

Vaddio 999-99600-270W RoboSHOT 12E HDBT 12x PTZ Camera & OneLINK Bridge Express System HDbaseT/HDMI/IP H.264 - White

ITEM #: VAD-99999600270W MFG #: 999-99600-270W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$6,863.00

Our Price:

$6,176.70

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    999-99600-270W - Overview

    RoboSHOT Elite Series cameras are professional A/V presentation cameras. Simultaneous HDBaseT and IP (H.264) streaming. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view. Includes OneLINK Bridge Express Extension System.

    Vaddio Deployment Tool
    Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voila! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

    Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

    RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

    Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.

    A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera's streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

    The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

    • Features:

      • 12x Optical Zoom
      • 1/2.5-type Exmor R CMOS sensor
      • 70.2° horizontal field of view
      • Simultaneous HDbaseT, HDMI and IP H.264 streaming
      • Remote IP Management
      • Simple, clutter-free camera extension with HDBaseT technology
      • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
      • Bridges audio and video for easy soft-client conferencing
      • Simultaneous HDMI, USB 3.0, and IP Streaming outputs
      • Configurable audio matrix with AEC
      • Up to 1080p/60 resolution available over uncompressed USB

    • Specifications:

      • 3rd Party Control: RS232, Telnet
      • Bridged Signal: Audio and Video
      • Browser-based User Interface for Remote Control: Built-in
      • Camera Type: PTZ
      • Color: White
      • Compatible With: Vaddio
      • Control Method: IR Remote, Joystick, RS232, Telnet, Web UI
      • Estimated Room Size: Medium Room, Small Room
      • Extension System: with OneLINK Bridge Express
      • Extension Type: Camera
      • Field of View: 70.2° Wide End to 6.8° Tele End
      • Field of View Wide: Greater than 70
      • Focus System: Auto, Manual
      • Gain: Auto, Manual
      • Image Sensor Type: 1/2.5-type Exmor R CMOS sensor
      • Input Ports: HDbT, Line Level Audio, Mic Level Audio
      • Invertible: Yes
      • Max Resolution: 1080p 60
      • Minimum Illumination: 1 Lux (F1.6), 100+ Lux Recommended
      • OneLINK Bridge adds: 328ft (100M) Power Video Control Extension
      • Audio Mixer: HDMI, USB 3.0
      • OneLINK Compatibility: Native
      • Output Ports: Audio, HDMI, USB 3.0 Type B
      • Pan and Tilt Range: Pan - ±150°, Tilt - +90° to -30°
      • Pan and Tilt Speed: 0.35°/sec - 120°/sec
      • Pixels: 8.51 Megapixel (8.57 Total MP)
      • Power Cord: US Cord
      • Power Supply: 1.36A, 48VDC
      • Power Type: OneLINK
      • Preset Positions: 16 Custom Home Position
      • PTZ Motors: Silent BLDC Direct Drive Motors
      • Quick-Connect Compatibility: No
      • Signal Type: Audio, HDMI
      • IP Streaming: RS 232, USB 3.0
      • Solution Type: Camera with Extension
      • Special Features: With OneLINK Extender
      • Top Resolution: 1080p 60
      • Tri-Sync Motion: Yes
      • White Balance: Auto, Manual, One Push
      • Zoom: 12x
      • Zoom Range: 10X to 19X
      • Certifications: CE, FCC, HDBaseT, TAA
      • Depth: 6.75 in (17.1 cm)
      • Distance: 328 in (833.1 cm)
      • Height: 6.94 in (17.6 cm)
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Product Weight: 4.85 lbs (2.2 kg)
      • Width: 7.05 in (17.9 cm)

    • Item Includes:

      • 1x RoboSHOT 12E HDBT camera
      • 1x Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
      • 1x Vaddio IR Remote Commander
      • 1x OneLINK Bridge Express Interface
      • 1x 48V power supply with AC cord set(s)
      • 1x EZCamera RS-232 Control Adapter
      • 4x 3-position phoenix-style connectors
      • 1x 6 ft. (1.8m) USB 3.0 cable, type A to B

    • Warranty:

      • 3 year
