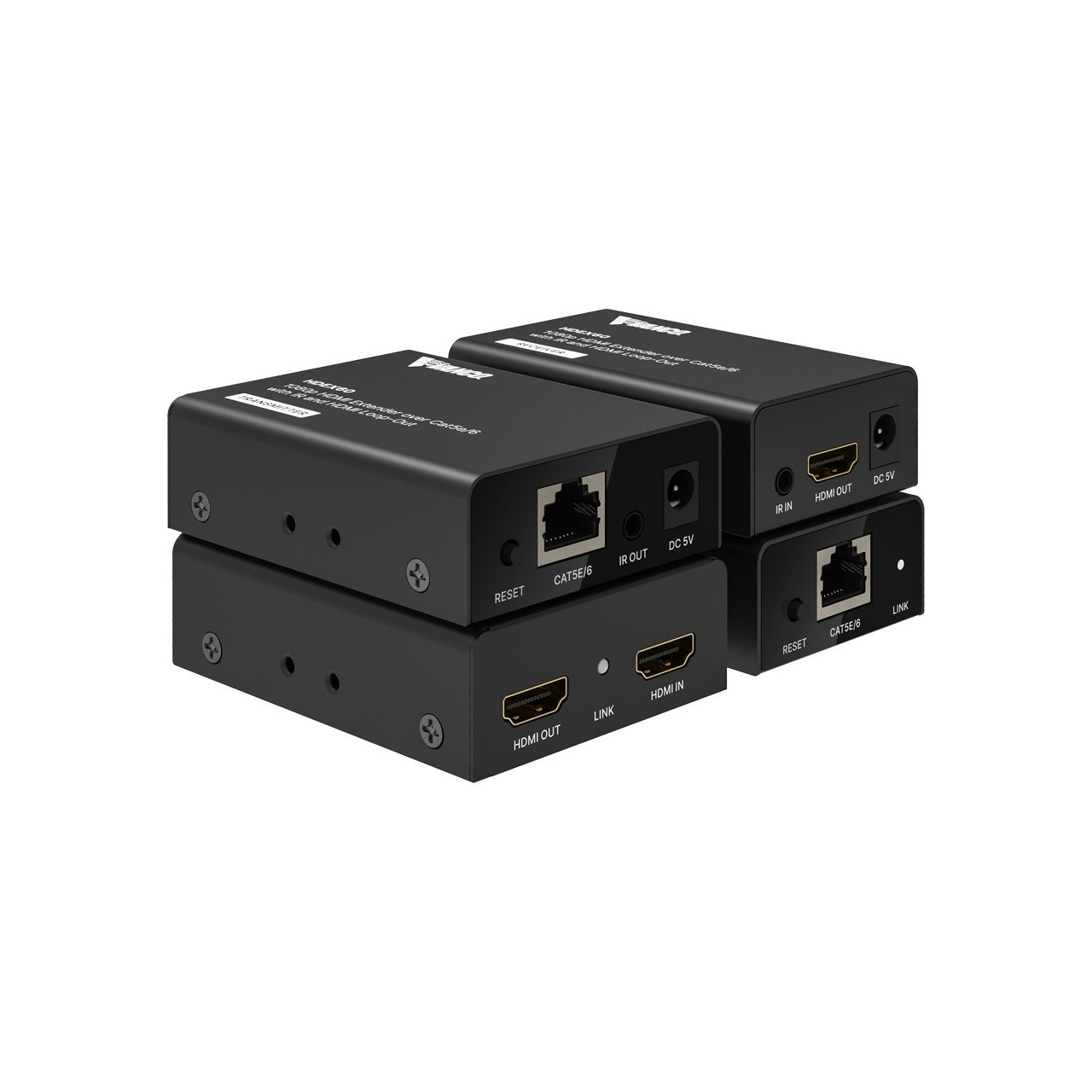

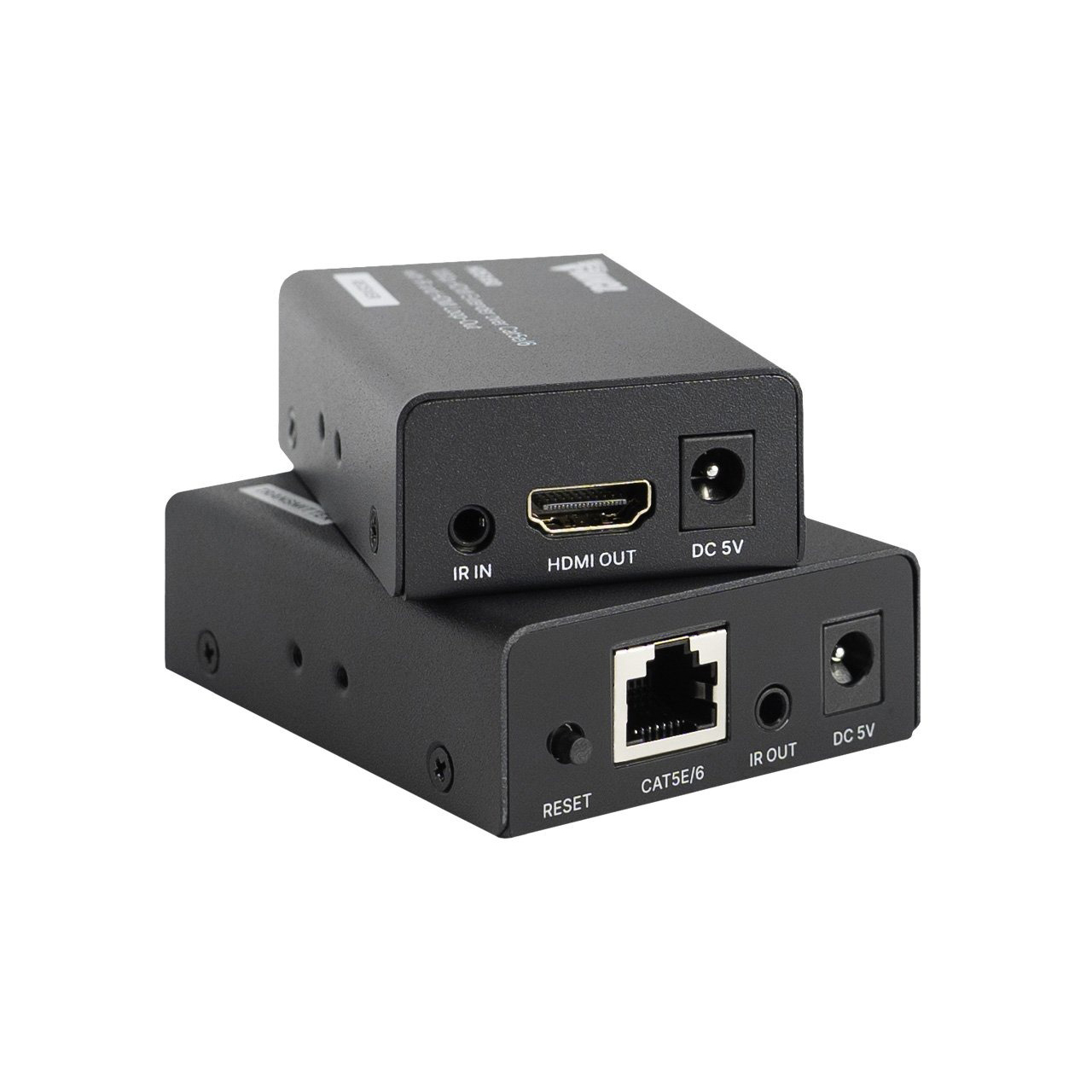

Vanco HDEX60 1080p60 HDMI Extender Over Cat5e/6 Cable with IR / PoE and HDMI Loop-Out - 196 Feet (60m) Distance

HDEX60 - Overview

• Features:

  • 196ft (60m) transmission distance over a single Cat5e/6 cable
  • Power over Ethernet (PoE) allows a single power supply at the transmitter to provide power to the receiver

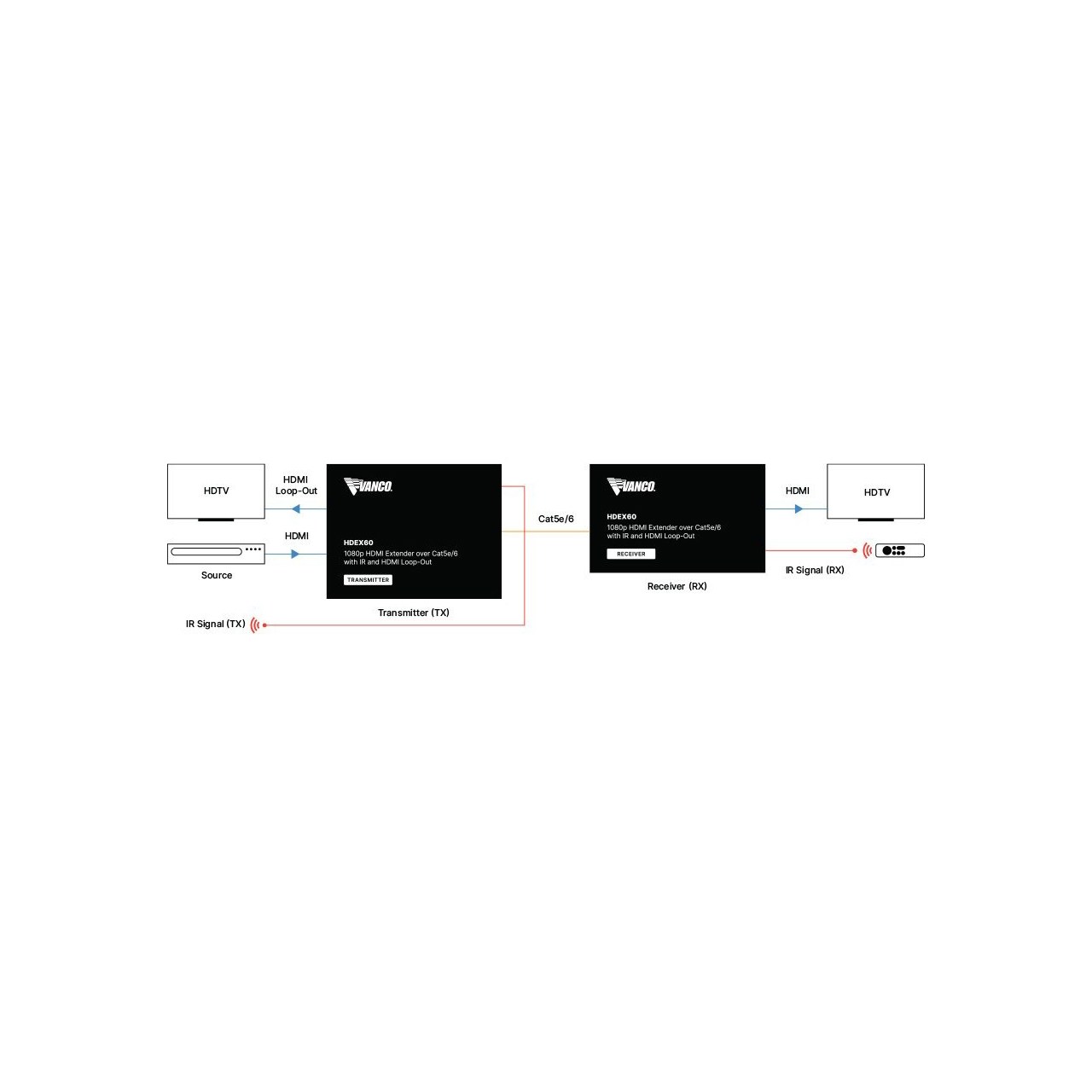

  • HDMI loop-out on the transmitter splits or cascades signals for additional components
  • IR pass-through from the receiver to the transmitter with provided IR cables
  • Supports 1080p @ 60Hz resolutions
  • Compatible with Dolby, DTS, and PCM audio formats
  • Dynamic EDID management
  • HDCP compliant
  • Includes DC 5V/1A power supply and adapter


• Specifications:

  • Signal: Input HDMI signal
  • Input Video Signal: 0.5V - 1.0V/p-p
  • Output Video: HDMI signal
  • DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
  • Cat5e/6 Cable: 60m @ 1080p
  • Vertical Frequency Range: 50/60Hz
  • Interlaced Resolutions: 480i/576i/1080i (50&60Hz)
  • Progressive Resolutions: 480p/576p/720p/1080p (50&60Hz)
  • Operating Temperature: 32°F - 158°F (0°C - 70°C)
  • Operating Humidity: 10% - 85% RH (no condensation)
  • Storage Temperature: 14°F - 176°F (-10°C - 80°C)
  • Storage Humidity: 5% - 90% RH (no condensation)
  • Transmitter Dimensions: 3.2" x 2.45" x 0.9" (81.5mm x 62mm x 24mm)
  • Receiver Dimensions: 3.3" x 1.94" x 0.95" (82mm x 49.5mm x 24.6mm)
  • Weight (combined): 8.5oz (0.242kg)
  • Power Supply: DC 5V/1A
  • Power Consumption (max): 5W


• Item Includes:

  • 1x HDEX60 (TX & RX)
  • 1x IR blaster (TX)
  • 1x IR receiver (RX)
  • 1x DC 5V/1A power supply and adapter
  • 1x Mounting hardware
  • 1x Quick start guide


• Warranty:

  • 2-year
