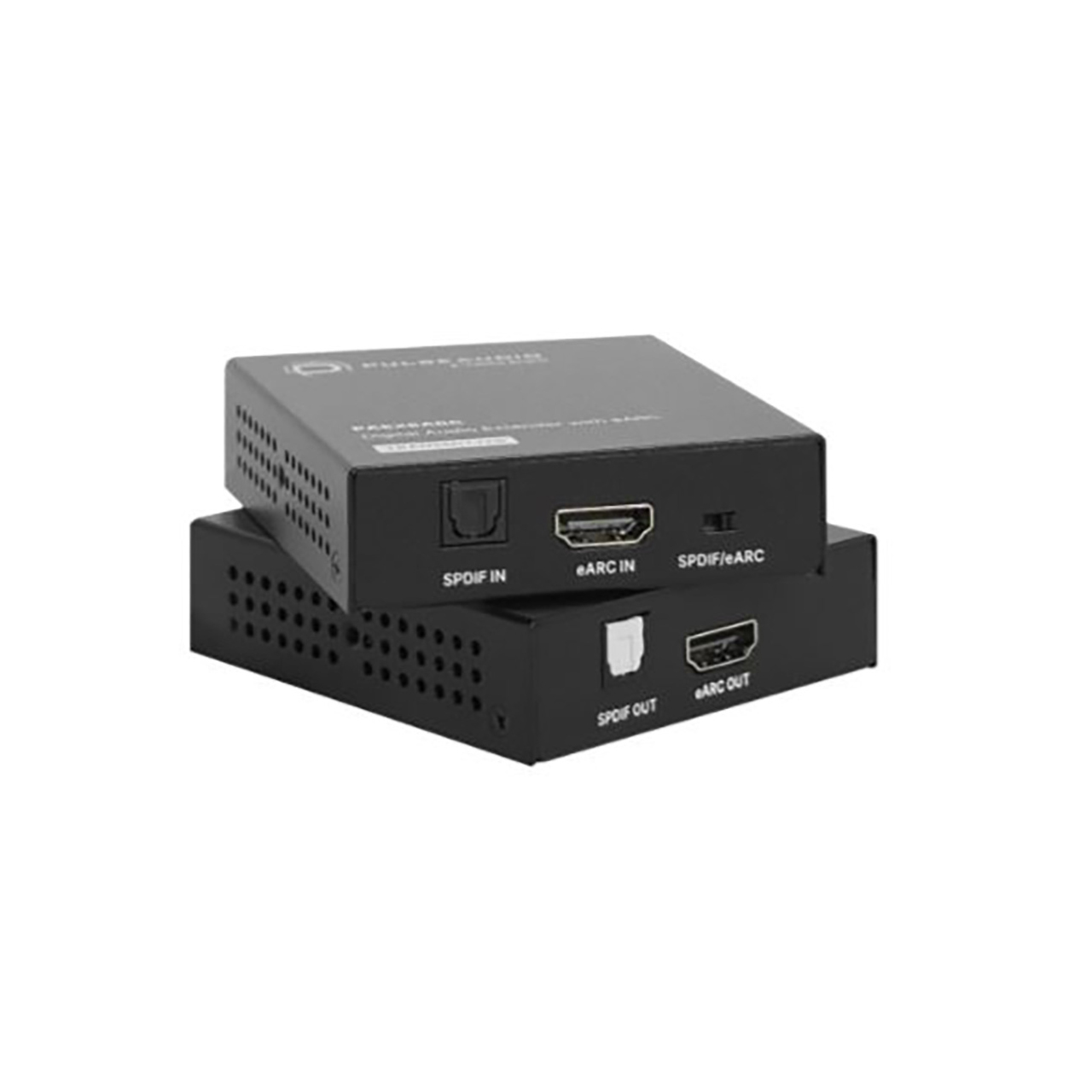

Vanco PAEXEARC eARC Digital Audio Extender Set w/Transmitter and Receiver - 328 feet / 100 meter Transmission Distance

PAEXEARC - Overview

Supports eARC/ARC distribution up to 328ft /100m and Optical Audio distribution up to 656ft / 200m!

• Features:

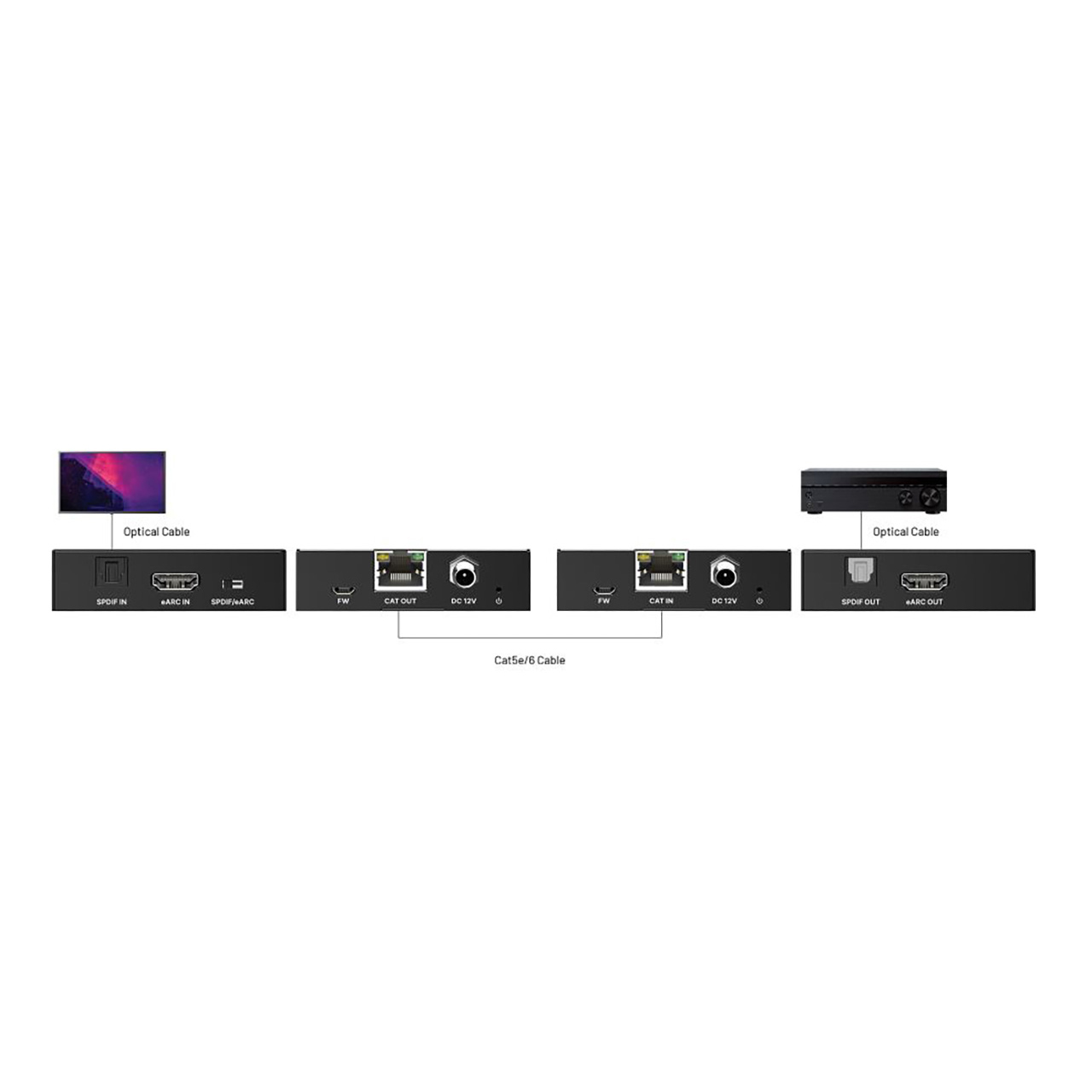

  • Extends eARC/ARC or optical digital audio signals over a single Cat5e/6 cable
  • Supports eARC/ARC distribution up to 328ft (100m)
  • Supports optical audio distribution up to 656ft (200m)
  • Supports CEC pass-through when HDMI eARC/ARC mode is selected
  • SPDIF and HDMI outputs are always live for a truly customized audio solution
  • Features bi-directional PoC (Power over Cable)
  • Selection between HDMI eARC/ARC or optical digital audio via switch on the TX


• Specifications:

  TX Connections
  • Input:
    - 1x SPDIF
    - 1x eARC/ARC In
  • Input Connector:
    - 1x Toslink
    - 1x HDMI
  • Output: 1x CATx Out
  • Output Connector: 1x RJ45
  • Control: 1x Firmware
  • Control Connector: 1x Micro USB

    RX Connections
  • Input: 1x CATx In
  • Input Connector: 1x RJ45
  • Output:
    - 1x SPDIF
    - 1x eARC/ARC Out
  • Output Connector:
    - 1x Toslink
    - 1x HDMI
  • Control: 1x Firmware
  • Control Connector: 1x Micro USB

    General
  • Audio Formats:
    - eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos
    - ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
    - Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
  • Frequency Response - All Audio: 20Hz - 20kHz, < ±0.3dB
  • Sample Rate:
    - SPDIF: 48/96/192kHz
    - HDMI: 48/96/192kHz
  • Transmission Range:
    - SPDIF: Up to 656ft (200m) via CATx
    - HDMI: Up to 328ft (100m) via CATx
    *Optical fiber transmission sampling rate at 96kHz up to 656ft (200m) and 192kHz up to 328ft (100m)
  • External Power Supply: DC 12V, 1A
  • TX & RX Dimensions: 3.15" x 0.83" x 2.91" (80mm x 21mm x 74mm)
  • TX & RX Net Weight: 0.33lbs (150g)
  • Power Consumption: 2.5W (max)
  • Temperature:
    - Operating: 32°F - 104°F (0°C - 40°C)
    - Storage: 14°F - 122°F (-10°C - 50°C)
  • Relative Humidity: 0% - 90%


• Item Includes:

  • 1x Digital audio extender set - TX and RX
  • 1x Power adapter (12VDC, 1A)
  • 1x Mounting brackets and screws
  • 1x Quick start guide
