Belden 1592A CM Rated Cat5e Premise Patch U/UTP Ethernet Cable (200MHz) 4-Pr 24AWG - White - 1000 Foot

ITEM #: BL-1592A-1000WE MFG #: 1592A 0091000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$608.30

Our Price:

$426.93

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1592A 0091000 - Overview

DataTwist CAT-5e Patch Cable - 1000 Foot Roll - Black

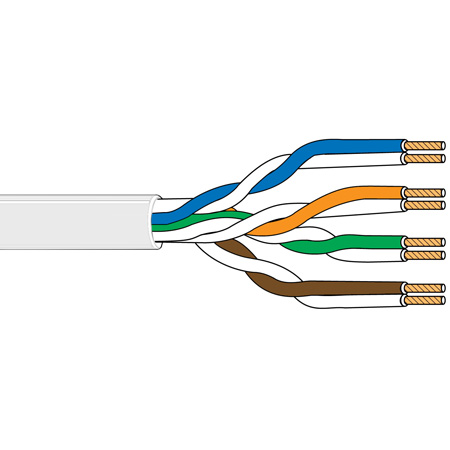

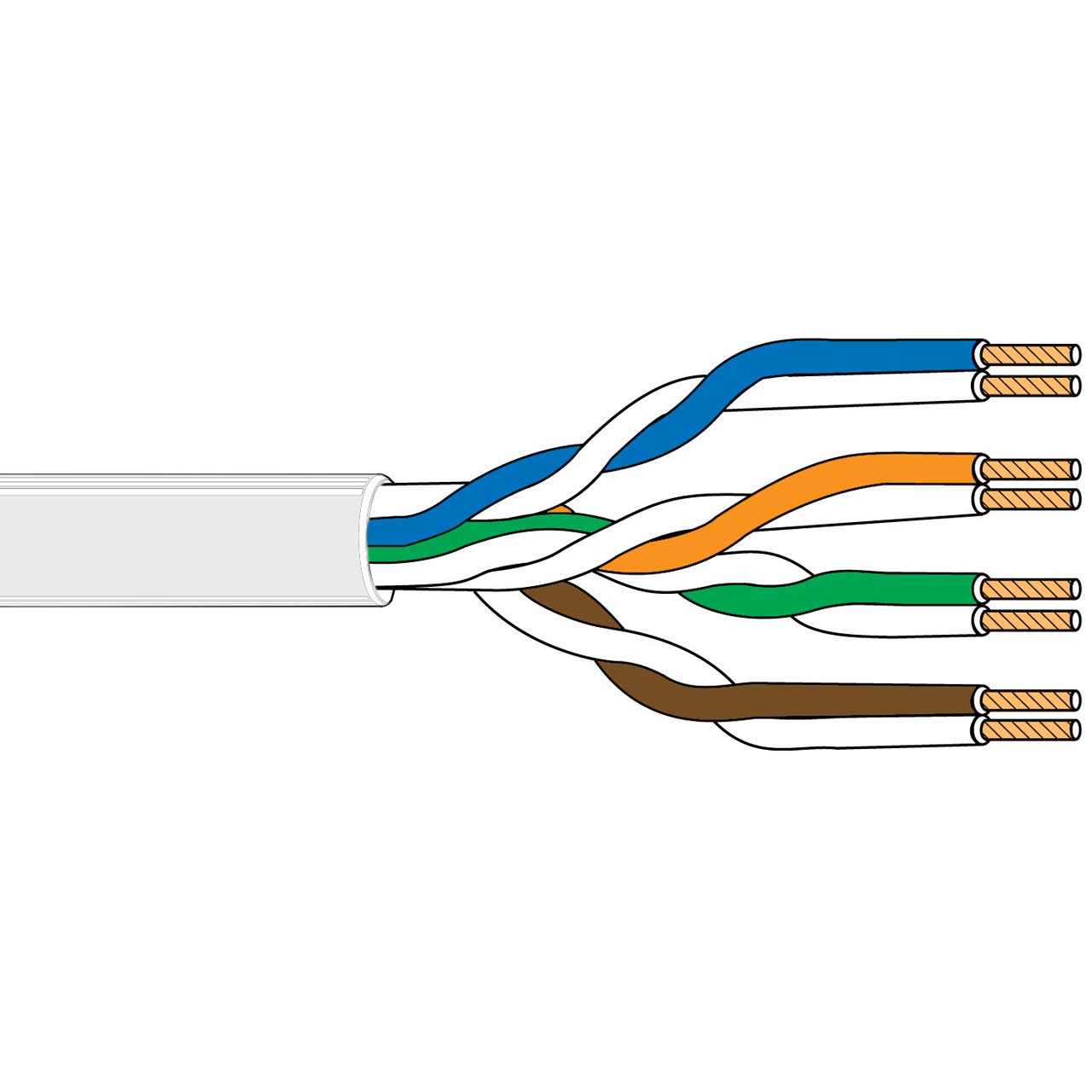

Belden 1592A is a Category 5e, U/UTP Premise Patch Cable (200MHz). It features 4 Pair, 24 AWG Stranded (7x32) Bare Copper Conductors in a CM rated PVC Jacket.

Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e cable provides headroom beyond the TIA-568-C.2 Category 5e standard and is offered with Bonded-Pair technology to make your installation as robust as possible.

Applications
Premise Patch Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
PoE++, PoE+, PoE

  • Features:

    • Superior Electrical Performance: Exceeds Category 5e performance
    • Stable Electricals: Cable's design features matched conductors on all four pairs Provides for extremely stable electrical performance


  • Specifications:

    • Conductor Number of Pairs: 4
    • Total Number Of Conductors: 8
    • Conductor AWG: 24
    • Conductor Stranding: 7x32
    • Conductor Material: BC (Bare Copper)
    • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
    • Insulation Material: Polyolefin
    • Outer Shield Material: Unshielded
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.213 in (5.41 mm)
    • Outer Jacket Ripcord: No
    • Overall Cable Diameter (Nominal): 0.213 in (5.41 mm)
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Sustainability: Product Lens™ Environmental Product Declaration (EPD) Available
    • Flammability / Reaction to Fire: UL 1685 (UL Loading-Limited Smoke)
    • NEC / UL Compliance: Article 800, CM
    • CEC / C(UL) Compliance: CM
    • Operating Temperature Range: -20°C To +75°C
    • Bulk Cable Weight: 21 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 25 lbs.
    • Min. Bend Radius/Minor Axis: 1 in.
    • Min. Bend/Installation: 2.100 in.
    • Capacitance (pF/ft): 15
    • Maximum Capacitance Unbalance (pF/100 m): 330
    • Delay Skew (ns/100 m): 45
    • DCR @ 20°C (Ohm/100 m): 9.38
    • Voltage: 300 V RMS


  • Item Includes:

    • 1592A Cat5e Premise Patch U/UTP Ethernet Cable 24AWG - White - 1000 Ft


  • Warranty:

    • 10 Year Limited Warranty


  • GTIN:

    0612825118725
