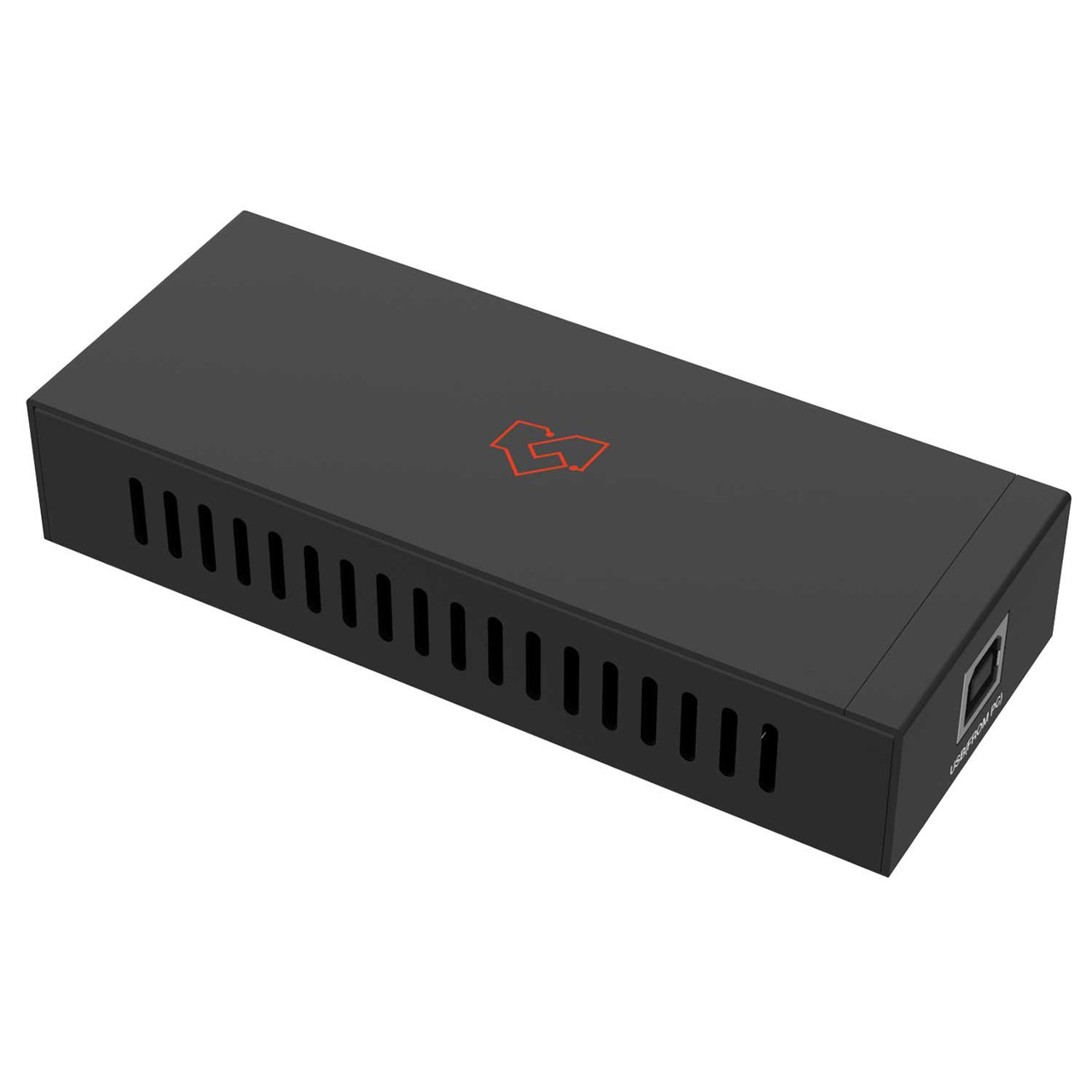

VigilLink VLDT-UA2-TR 2-Channel Dante USB Audio Encoder/Decoder with POE

VLDT-UA2-TR - Overview

• Features:

  • Compliant with USB 2.0 Full Speed Operation
  • Compliant with USB Audio Device Class Specification V1.0
  • Analog sound card, supporting MIC input and SPK output
  • Audio sampling rate supports 44.1kHz, 48kHz, and 96kHz (24bit)
  • Dante solution supports AES67 RTP audio transmission
  • Supports USB 5V power supply and PoE function (IEEE802.3af Class 0)


• Specifications:

  Technical
  • Video Network Bandwidth: 100M
  • Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
  • Transmission Distance: 100m (Cat 6/6A)
  • Frequency Response: 20Hz to 20kHz
  • Control Method: Dante Controller

    Connections
  • Input/Output:

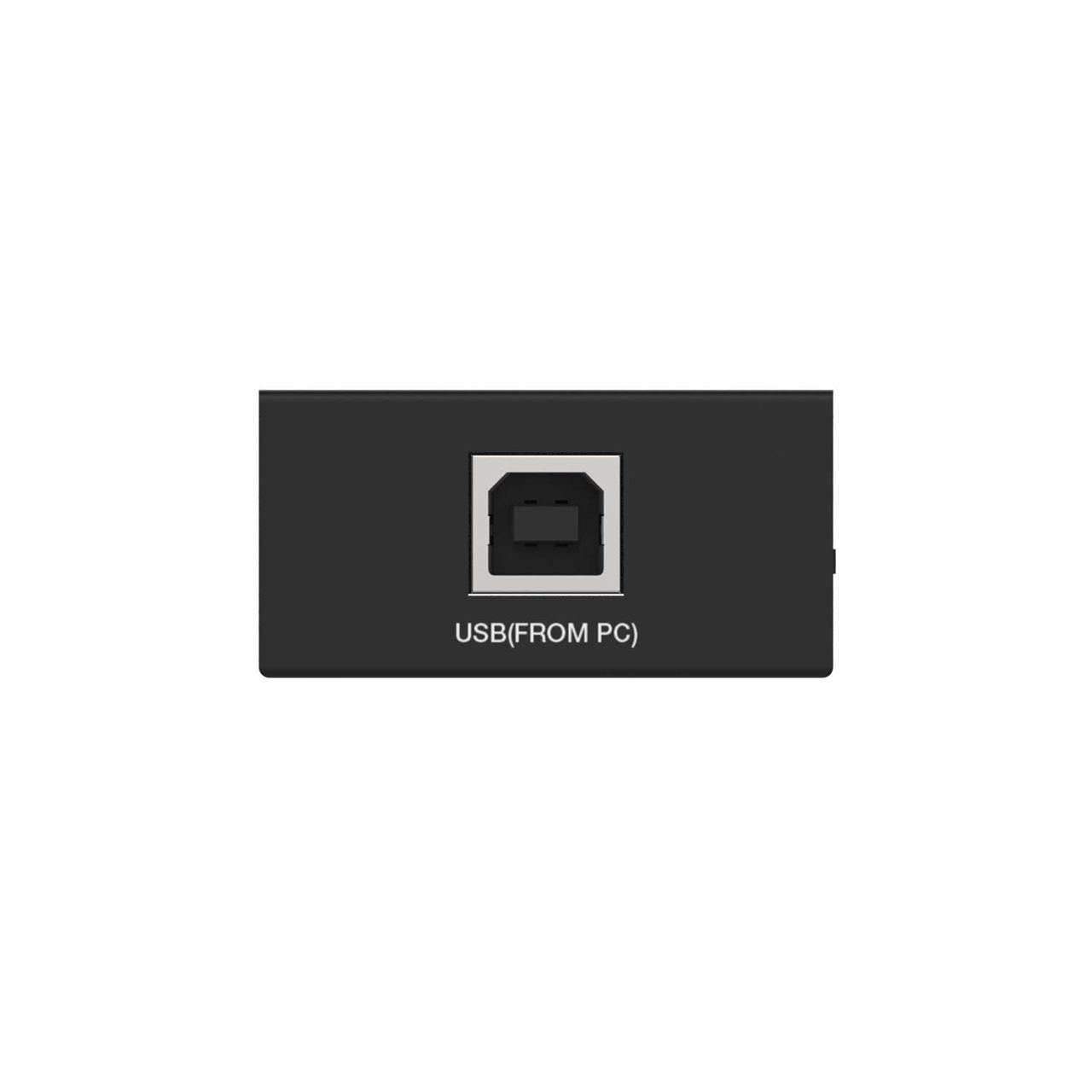

    - 1x USB-B

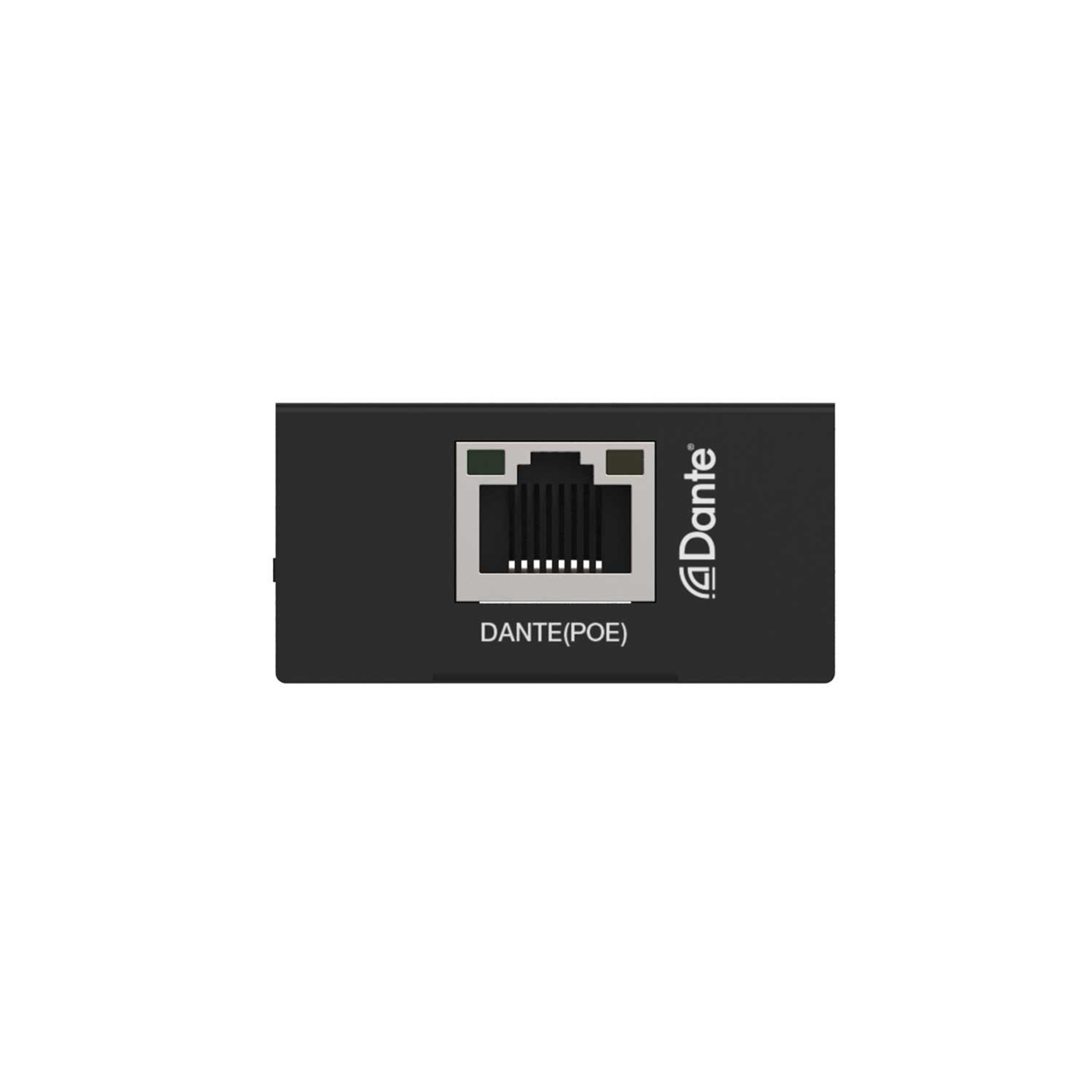

    - 1x DANTE [RJ45 connector, PoE]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 4.72" x 1.85" x 1.02" (120mm x 47mm x 26mm)
  • Weight: 0.44lbs (186g)
  • Power Supply:
    - USB Input: 5V-500MA
    - PoE Input: IEEE802.3af Class 0
  • Power Consumption: 1W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x Dante 2CH USB Audio Encoder/Decoder
  • 1x USB Cable (6FT USB A to USB B)
  • 1x User Manual


• Warranty:

  • 6 Years
